1.9 STEERING ANGLE SENSOR

STEERING ANGLE SENSOR

CONDITION

PRESS [REST], IF YOU ARE READY!

STRAIGHTEN THE FRONT TIRE,
AND ARRANGE THE STEERING
WHEEL AT THE CENTER
POSITION.
IG.KEY ON, ENGINE STOP

REST

CALIBRATION  COMPLETION!

PRESS  [ESC]  KEY.

EJRF703O

8)

Scanner OFF.

9)

Remove the scanner from the vehicle.

10) Confirm the Steering angle sensor(SAS) calibra-

tion as driving the vehicle.(turn left once, turn
right once)

Clutch System

GENERAL

CLUTCH SYSTEM

CLUTCH COVER AND DISC
CLUTCH PEDAL
CLUTCH MASTER CYLINDER

CH -2

CLUTCH SYSTEM

GENERAL

SPECIFICATION

EC11DECE

Item

SPECIFICATION

Clutch operation

Hydraulic type

Clutch disc

Single dry with diaphragm

Clutch cover assembly

Self Adjusting Clutch

TIGHTENING TORQUE

Item

Nm

kgf.m

lb-ft

Clutch cover (6EA)

25~36

2.5~3.6

18.2~26.2

Clutch pedal bracket mounting

17~26

1.7~2.6

12.3~18.9

Oil chamber bolt

8~12

0.8~1.2

5.8~8.6

Connecting rod adjusting bolt

9~14

0.9~1.4

6.5~10.1

Clutch master cylinder mounting

17~26

1.7~2.6

12.3~18.8

Clutch switch nut

8~10

0.8~1.0

5.8~7.27

Clutch pedal bolt/nut

25~34

2.5~3.4

18.1~24.7

Ignition lock switch nut

8~10

0.8~1.0

5.8~7.27

C.S.C. assembly mounting nut

12~15

1.2~1.5

8.7~10.8

SERVICE STANDARD

Item

Standard value [mm(in)]

Clutch pedal stroke

150~155 (5.90~6.10)

Clutch pedal free play

6~13 (0.24~0.51)

SPECIAL TOOLS

EE92F61C

Tool

(Number and Name)

Illustration

Use

09411-43000
Clutch disc guide

LOKG002A

Installation of the clutch disc

CLUTCH SYSTEM

CH -3

CLUTCH SYSTEM

DESCRIPTION

EB27D04B

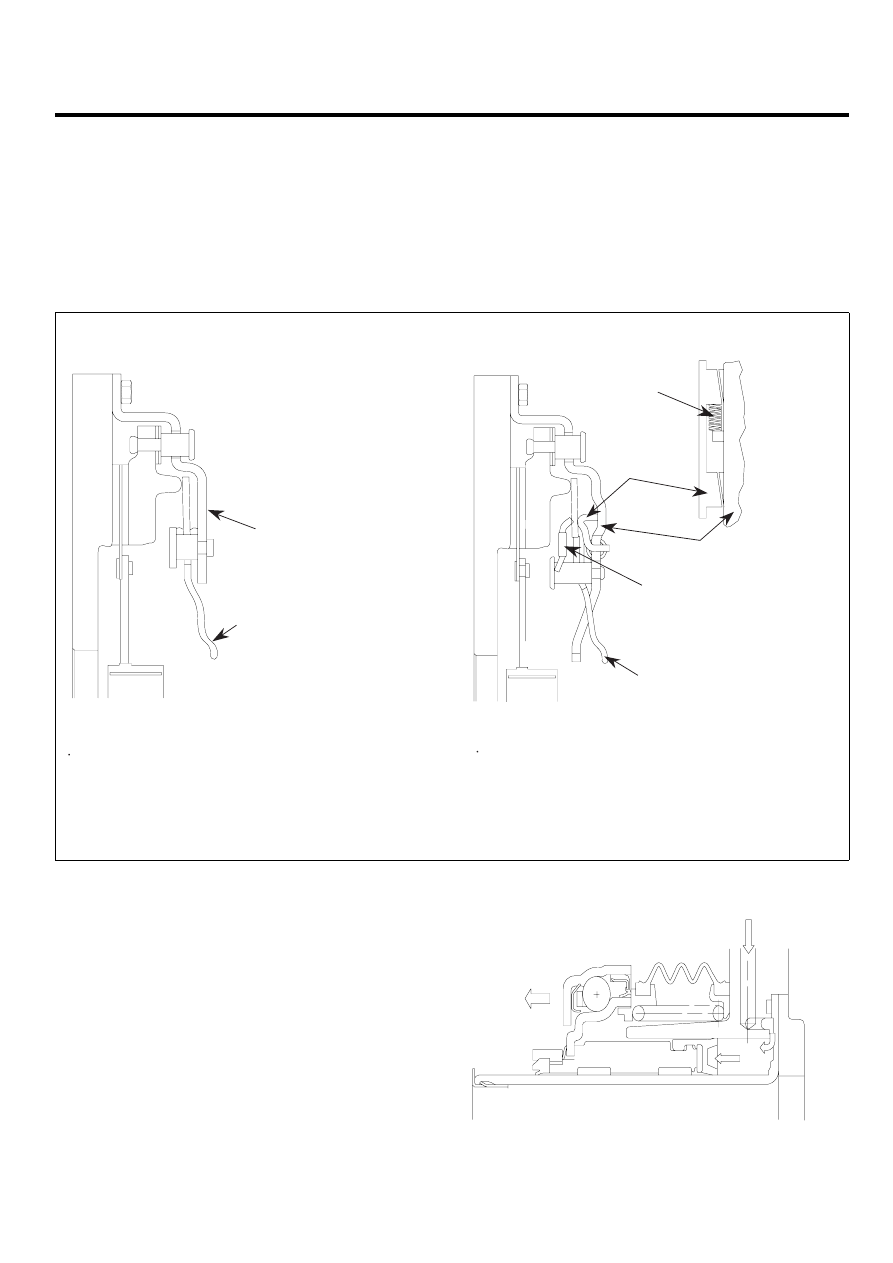

SELF ADJUSTING CLUTCH(S.A.C.) COVER

• As a clutch disc facing is worn away according to its

durability, a cover weight is increasing and a clutch
pedal pressure can be more needed.

• To make up for this defect, the self adjusting clutch

system makes the requsted pedal pressure minimized
so that makes the maintenance cycle longer.

Diaphragm spring

Cover

Cover

Coil spring

Sensor spring

Diaphragm spring

Adjusting ring

GENERAL CLUTCH COVER

SELF ADJUSTING CLUTCH COVER

 In a general clutch cover, the diaphragm

  spring increases the weight to the disc
  in proportion to abrasion.

 In a self adjusting clutch, the adjusting ring prevents

   the diaphragm spring from being raised to
   the transmission side in spite of abrasion.

LOKG001A

CONCENTRIC SLAVE CYLINDER-C.S.C.

It improves working efficiency and lowers the number
and the weight of part by unifing clutch release control
parts(clutch release bearing ~ clutch release cylinder) in
a manual transaxle.

OPERATION

ECCA75CF

CONCENTRIC SLAVE CYLINDER-C.S.C

When the clutch pedal is pressed, oil pressure is trans-
mitted along the arrow directions shown below and that
moves the clutch slave cylinder and the diaphragm spring
of the clutch cover.

KORE001B
