IGNITION SYSTEM

BE -289

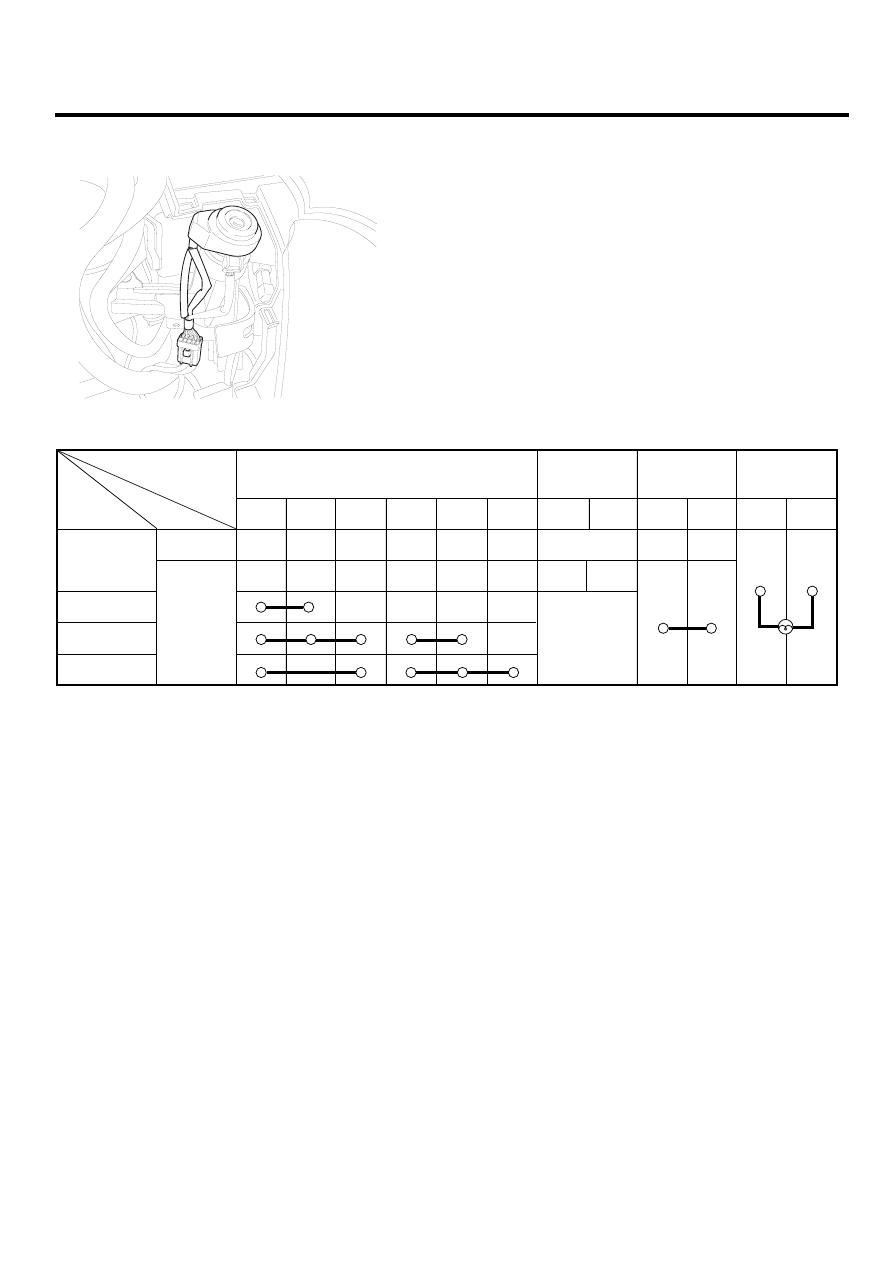

INSPECTION

EF31DB95

SCMBE6532D

1.

Disconnect the ignition switch connector and key
warning switch connector from under the steering
column.

2.

Check for continuity between the terminals.

3.

If continuity is not specified, replace the switch.

LOCK

IGNITION SWITCH

TERMINAL

POSITION

KEY

STEERING

6

4

5

3

1

LOCK

LOCK UNLOCK

UNLOCK

TRAVEL

TRAVEL

3

5

6

4

2

KEY

WARNING

SWITCH

KEY HOLE

ILLUMINATION

ACC

ON

START

REMOVAL

INSERT

LTIF781E

Brake System

GENERAL

BRAKE SYSTEM

BRAKE BOOSTER
MASTER CYLINDER
BRAKE LINE
BRAKE PEDAL
FRONT DISC BRAKE
REAR DISC BRAKE

PARKING BRAKE SYSTEM

PARKING BRAKE

ABS (ANTI-LOCK BRAKE SYSTEM)

ANTI-LOCK

BRAKING

SYSTEM

CONTROL

MODULE
FRONT WHEEL SPEED SENSOR
REAR WHEEL SPEED SENSOR

EBD (ELECTRONIC BRAKE-FORCE DIS-
TRIBUTION)

ESP/ESC SYSTEM

YAW-RATE SENSOR AND G-SENSOR
ESP/ESC SWITCH
STEERING WHEEL ANGLE SPEED SENSOR

BR -2

BRAKE SYSTEM

GENERAL

BR -3

GENERAL

SPECIFICATIONS

E7815AD4

Item

Specification

Type

Tandem

Cylinder I.D.

26.99 mm (1.063 in)

Piston stroke

31 mm (1.22 in)

Master cylinder

Fluid level switch

Provided

Type

9" + 10" Tandem

Brake booster

Boosting ratio

9: 1

Type

Ventilated disc

298 mm (11.73 in)

Disc O.D.

325 mm (12.80 in)

Front brake

Caliper piston

Double

Type

Solid disc

Disc O.D.

302 mm (11.89 in)

Rear brake

Caliper piston

Single

Type

DIH (Drum in hat)

Parking brake

Drum I.D.

190 mm (7.48 in)

Brake fluid

DOT 3

NOTE

O.D. : Outer Diameter
I.D. : Inner Diameter
