LIGHTING SYSTEM

BE -209

3.

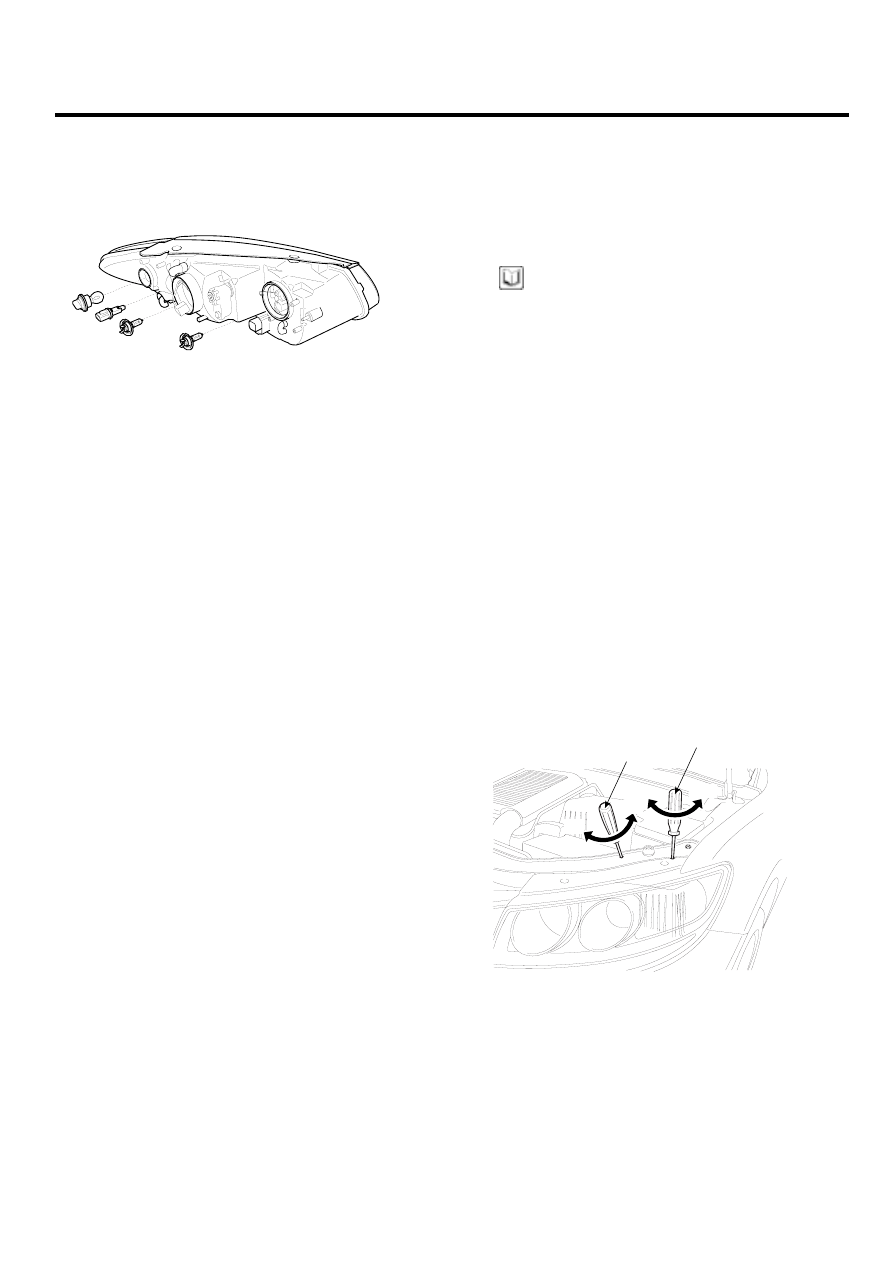

Remove the head lamp bulb.

SCMBE6435L

4.

Installation is the reverse of removal.

ADJUSTMENT

EFD0DACA

HEAD LAMP AIMING INSTRUCTIONS

The head lamps should be aimed with the proper beam-
setting equipment, and in accordance with the equipment
manufacturer’s instructions.

NOTE

If there are any regulations pertinent to the aiming
of head lamps in the area where the vehicle is to be
used, adjust so as to meet those requirements.

Alternately turn the adjusting gear to adjust the head lamp
aiming. If beam-setting equipment is not available, pro-
ceed as follows :

1.

Inflate the tires to the specified pressure and remove
any loads from the vehicle except the driver, spare
tire, and tools.

2.

The vehicle should be placed on a flat floor.

3.

Draw vertical lines (Vertical lines passing through
respective head lamp centers) and a horizontal
line (Horizontal line passing through center of head
lamps) on the screen.

4.

With the head lamp and battery in normal condition,
aim the head lamps so the brightest portion falls on
the horizontal and vertical lines.
Make vertical and horizontal adjustments to the lower
beam using the adjusting wheel.

Vertical adjustment

Horizontal adjustment

Up

Left

Down

Right

SCMBE6440L

BE -210

BODY ELECTRICAL SYSTEM

FRONT FOG LAMP AIMING

The front fog lamps should be aimed as the same manner
of the head lamps aiming.
With the front fog lamps and battery normal condition, aim
the front fog lamps by turning the adjusting gear (A).

A

SCMBE6442D

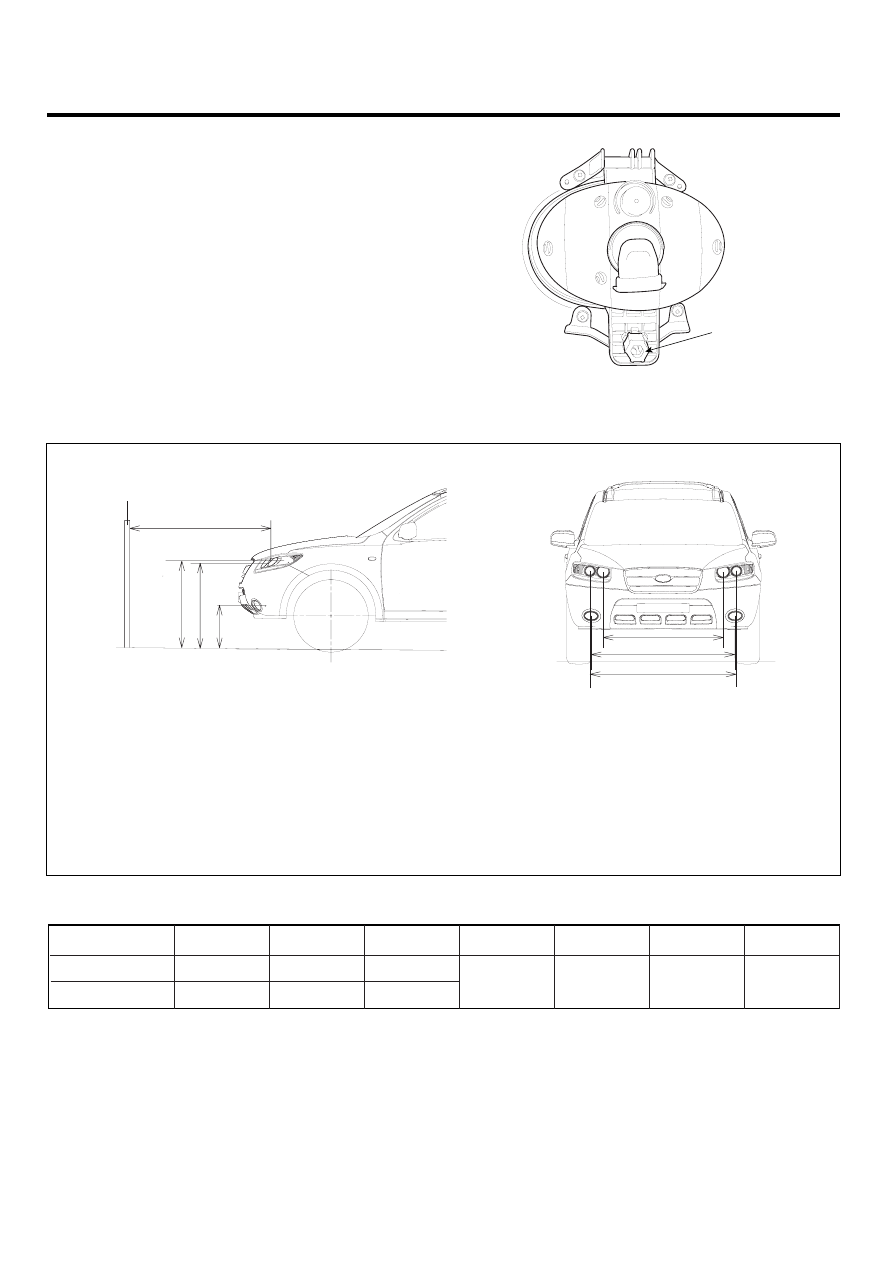

HEAD LAMP AND FOG LAMP AIMING POINT

L

H1

H2

H3

W3

W1

W2

Screen

H1 : Height between the head lamp bulb center and ground (Low beam)
H2 : Height between the head lamp bulb center and ground (High beam)
H3 : Height between the fog lamp bulb center and ground
W1 : Distance between the two head lamp bulbs centers (Low beam)
W2 : Distance between the two head lamp bulbs centers (High beam)
W3 : Distance between the two fog lamp bulbs centers
L : Distance between the head lamp bulb center and screen

SCMBE6443L

H1

35(889)

34.7(883)

H2

34.4(875)

34.2(869)

H3

17.5(445)

17.2(439)

55.2(1,402)

45.0(1,144)

54.2(1,378)

118(3,000)

W1

W2

W3

L

Vehicle condition

Without driver

With driver

Unit : in (mm)

SCMBE6444L

LIGHTING SYSTEM

BE -211

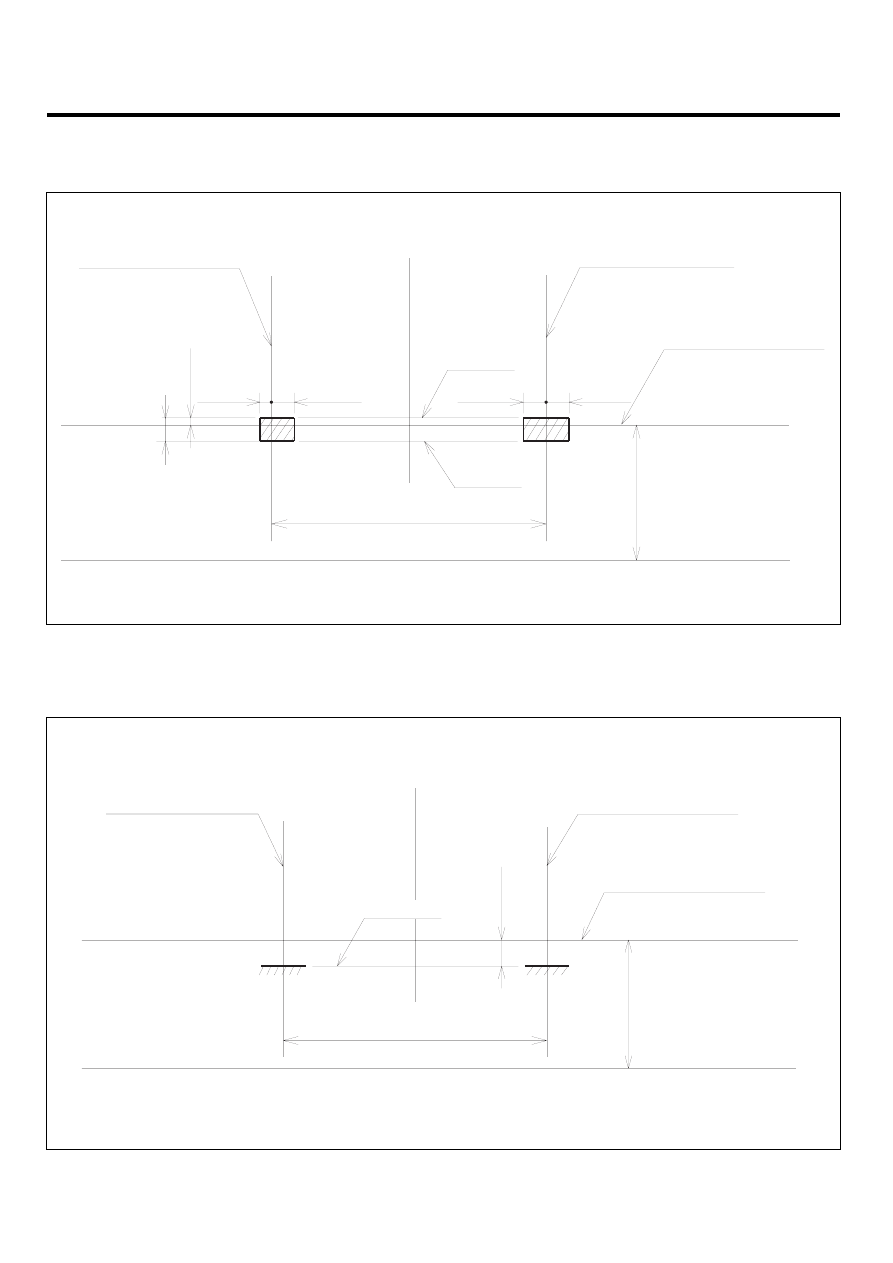

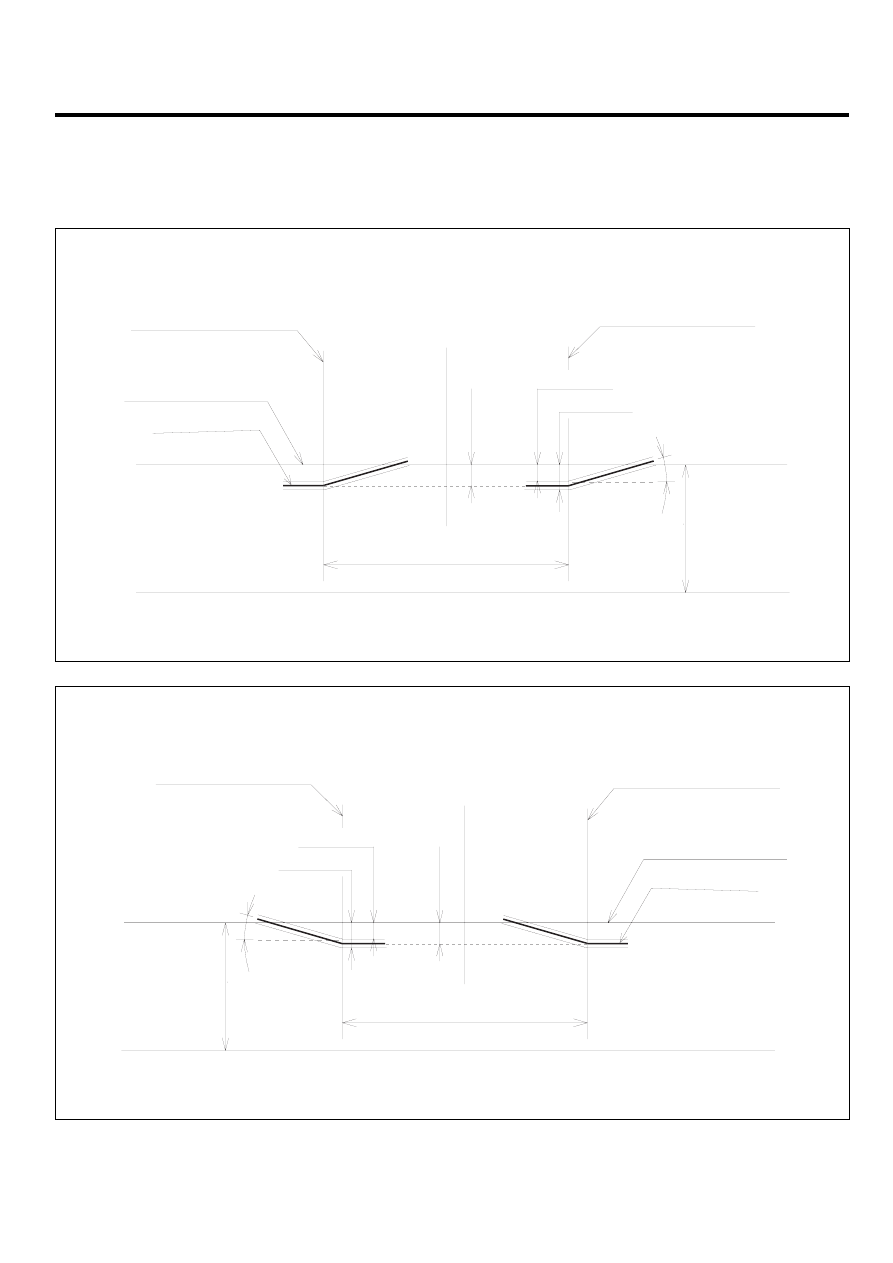

1.

Turn the low beam on without the driver aboard.
The cut-off line should be projected in the allowable
range (shaded region).
In case of equipping with the manual leveling device,
set the leveling device switch on the "O" position.

In case of equipping with the auto leveling device, set
the initialization by using the diagnostic tool before
aiming.

W1

H1

0.9(23)

1.18(30)

1.45(37)

15˚

Vertical of the left
head lamp bulb center

Horizontal lone of
head lamp bulb center

CUT-OFF LINE

CAR axis

Upper limit

Lower limit

Ground

Vertical of the right
head lamp bulb center

Unit : in.(mm)

[LHD]

SCMBE6445L

W1

H1

0.9(23)

1.18(30)

1.45(37)

15˚

Vertical of the left
head lamp bulb center

Horizontal lone of
head lamp bulb center

CUT-OFF LINE

CAR axis

Upper limit

Lower limit

Ground

Vertical of the right
head lamp bulb center

Unit : in.(mm)

[RHD]

SCMBE6459L

BE -212

BODY ELECTRICAL SYSTEM

2.

Turn the high beam on without the driver aboard.
The cut-off line should be projected in the allowable
range (shaded region).

H2

W2

1.18(30)

1.77(45)

3.54(90)

3.54(90)

3.54(90)

9/100xH2

Vertical of the left
head lamp bulb center

Horizontal lone of
head lamp bulb center

CAR axis

Upper limit

Lower limit

Ground

Vertical of the right
head lamp bulb center

Unit : in.(mm)

SCMBE6446L

3.

Turn the front fog lamp on without the driver aboard.
The cut-off line should be projected in the allowable
range (shaded region)

W3

H3

2.36(60)

Upper limit

Vertical of the left
fog lamp bulb center

Horizontal lone of
fog lamp bulb center

Ground

Vertical of the right
fog lamp bulb center

Unit : in.(mm)

CAR axis

SCMBE6447L
