WINDSHIELD WIPER／WASHER

BE -165

WINDSHIELD WIPER／
WASHER

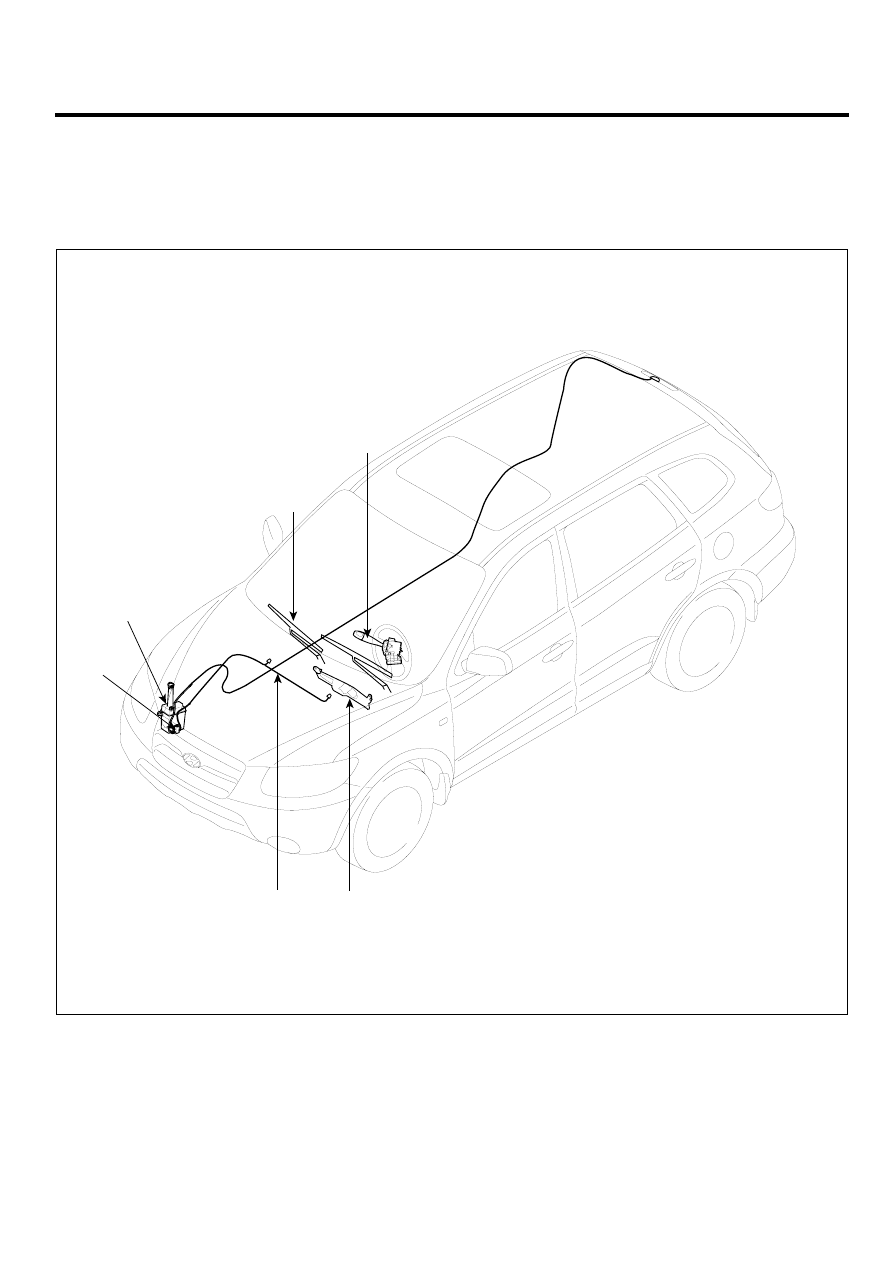

COMPONENT LOCATION

E2A93BAD

2*

1*

4*

3

6

5

1.  Windshield wiper arm & blade
2.  Wiper & washer switch
3.  Windshield washer hose

4.  Windshield wiper motor & linkage
5.  Washer motor
6.  Washer reservoir

The parts with asterisk(*) :
This illustration shows the LHD type.
RHD type is symmetrical.

SCMBE6320L

BE -166

BODY ELECTRICAL SYSTEM

TROUBLESHOOTING

E70074B4

1.

Wiper low and wiper high do not work.

Inspect the battery supply voltage of
wiper switch between connector
terminals 2 and ground.
OK : Battery voltage (12V)

Replace the fuse

Replace the wiper switch

Repair the wire harness and

poor ground

Wiper switch inspection

Replace the wiper motor

Windshield wiper motor inspection

Wiper fuse(25A) for short

OK

OK

OK

NG

NG

NG

NG

SCMBE6333L

2.

When washer switch is on, wiper does not work.

Turn the ignition switch on, then
measure the output voltage between
BCM-C connector terminal 3 and ground.
- Washer switch ON : 0V
- Washer switch OFF : 12V

OK

NG

Replace the fuse

Repair the wire harness between
BCM connector C terminal 3 and
washer switch connector terminal 12 or
inspect the washer switch.

Replace the BCM

OK

OK

NG

Wiper fuse(25A) for short

Refer to the above

"1. Wiper does not work"

NG

Wiper operation inspection

SCMBE6334L

WINDSHIELD WIPER／WASHER

BE -167

WINDSHIELD WIPER／WASHER
SWITCH

REPLACEMENT

E64A45F0

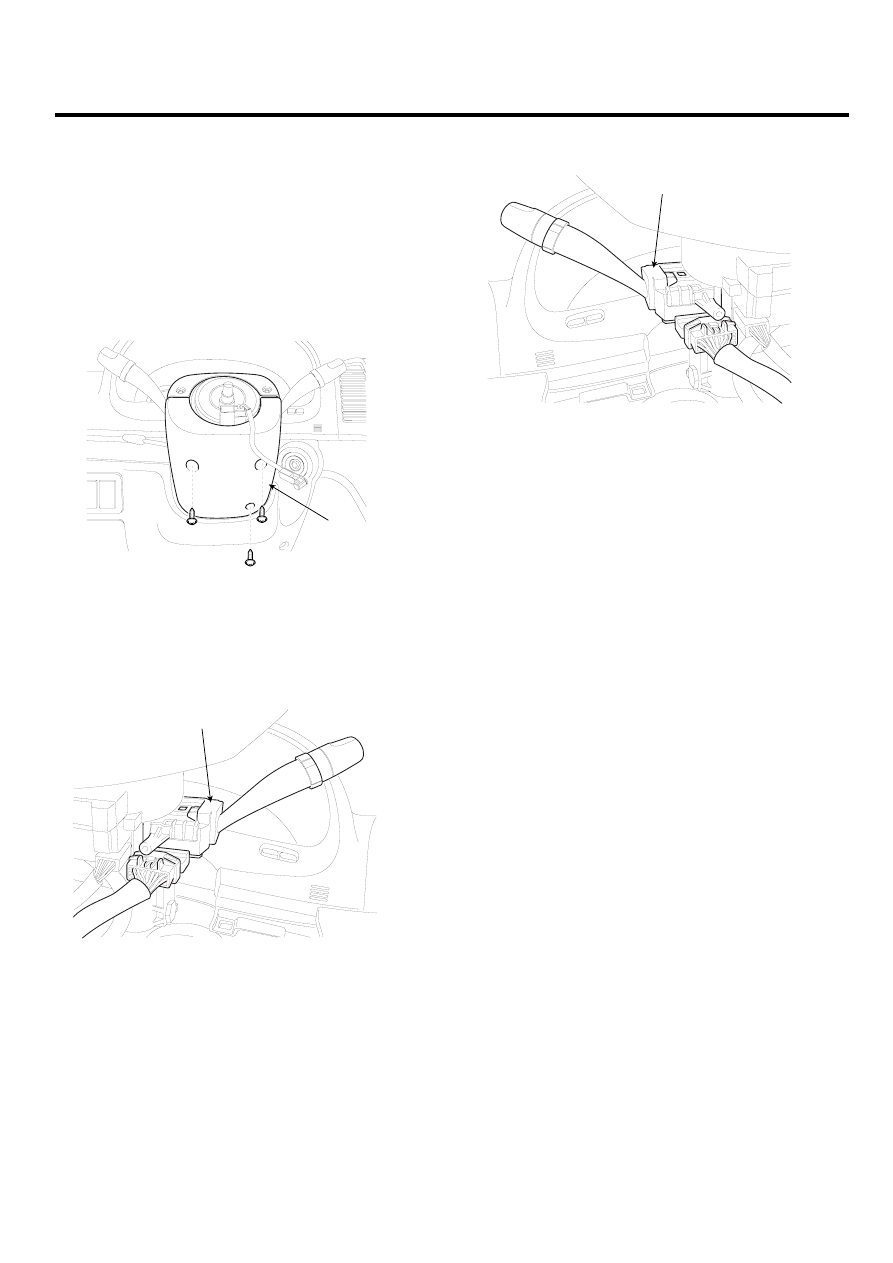

1.

Disconnect the negative (-) battery terminal.

2.

Remove the steering column upper and lower shrouds
(A) after removing 3 screws.

A

SCMBE6321D

3.

Remove the wiper switch (A) after disconnecting the
connector and loosening 2 screws.

[LHD]

A

SCMBE6322D

[RHD]

A

SCMBE6322R

4.

Installation is the reverse of removal.

BE -168

BODY ELECTRICAL SYSTEM

INSPECTION

E7A21203

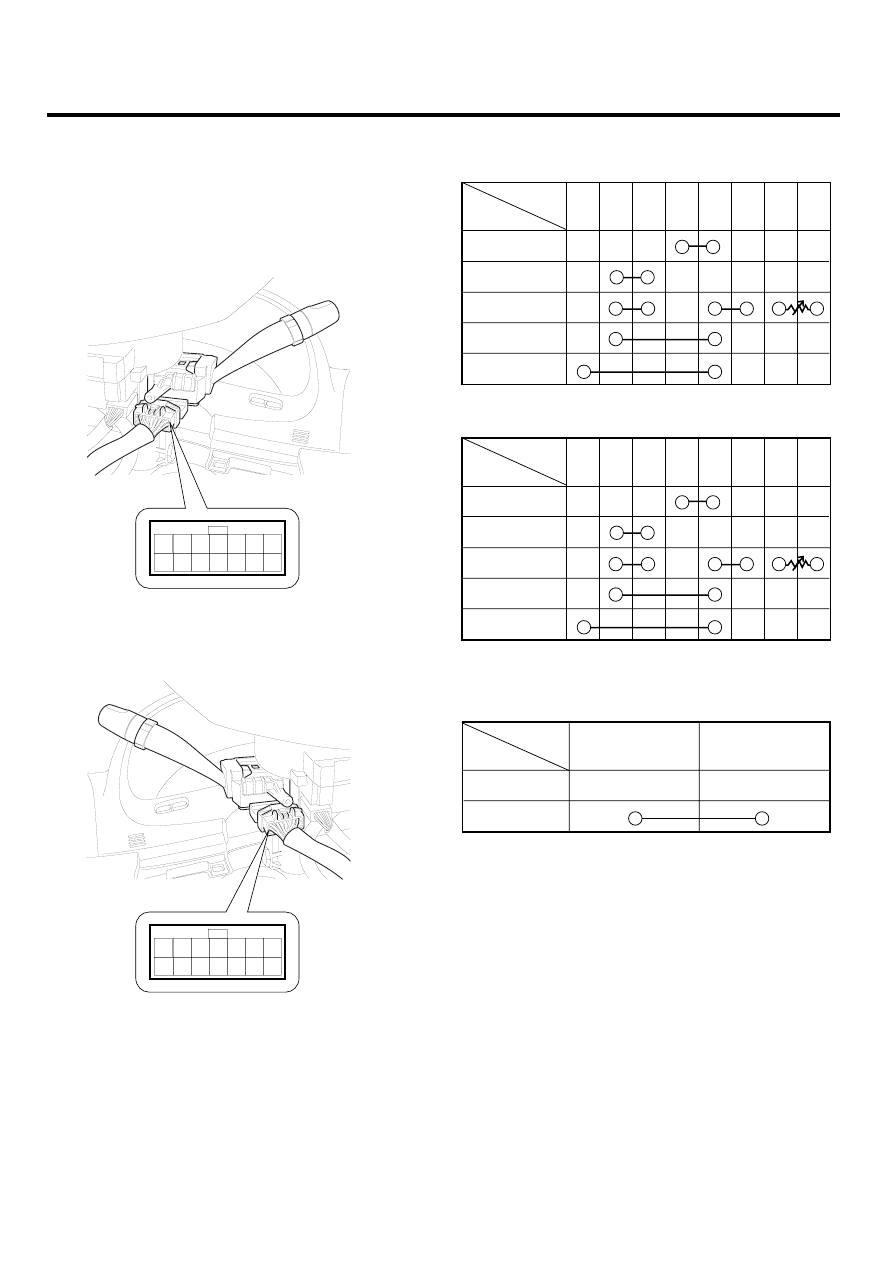

1.

Check for continuity between the terminals while op-
erating the wiper and washer switch. If it is not normal
condition, replace wiper and wiper switch.

[LHD]

1

2

3

4

5

6

7

 8  9 10 11 12 13 14

SCMBE6050D

[RHD]

1

2

3

4

5

6

7

 8  9 10 11 12 13 14

SCMBE6050R

WIPER SWITCH

OFF

MIST

INT

LOW

HI

1

(7)

2

(6)

3

(5)

4

(4)

5

(3)

6

(2)

13

(9)

14

(8)

Terminal

Position

[STANDARD]

(    ) : RHD

SCMBE6051L

Terminal

Position

OFF

MIST

AUTO

LOW

HI

[RAIN SENSOR]

1

(7)

2

(6)

3

(5)

4

(4)

5

(3)

6

(2)

13

(9)

14

(8)

(    ) : RHD

SCMBE6052L

WASHER SWITCH

5(3)

7(1)

OFF

ON

Terminal

Position

(    ) : RHD

SCMBE6053L
