AUDIO SYSTEM

BE -21

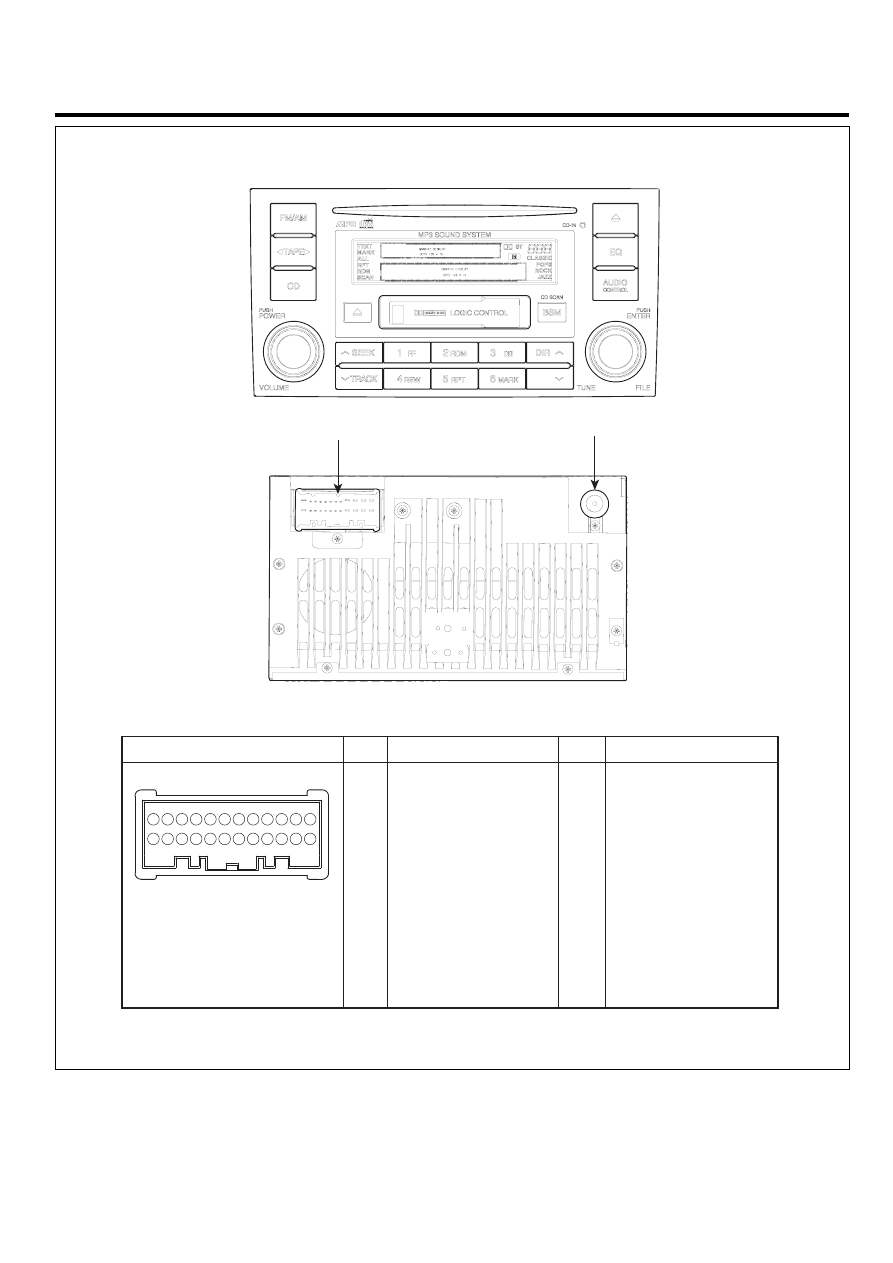

[AM/FM/MP3/CD(M455)]

1

2

3

4

5

6

7

8

9

10

11

12

Ground

B+

Antenna B+

ACC

-

-

Tweeter in(Right)

Tweeter in(Left)

Ground

Tweeter ground

MUTE

Rear arm remote control

13

14

15

16

17

18

19

20

21

22

23

24

Remote control ground

Steering remote control

Illumination(-)

Illumination(+)

Rear left speaker(-)

Rear left speaker(+)

Rear right speaker(-)

Rear right speaker(+)

Front right speaker(-)

Front right speaker(+)

Front left speaker(-)

Front left speaker(+)

24P Connector

Pin

Description

Pin

Description

1

3

5

7

9 11 13 15 17 19 21 23

2

4

6

8 10 12 14 16 18 20 22 24

24P Connector

Antenna

SCMBE6003L

BE -22

BODY ELECTRICAL SYSTEM

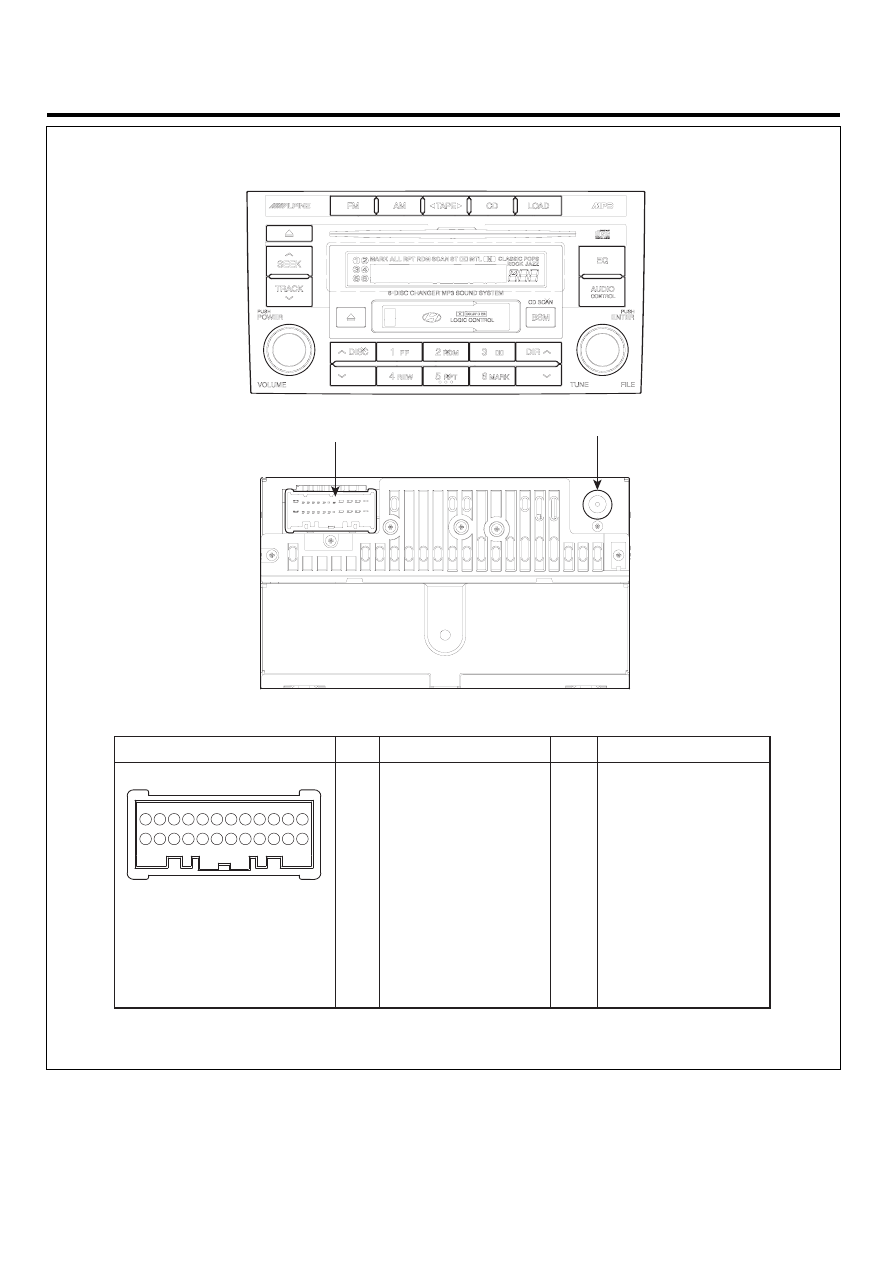

[AM/FM/CASSETTE/MP3/6CDC(M465)]

1

2

3

4

5

6

7

8

9

10

11

12

Ground

B+

Antenna B+

ACC

-

Remote control

Tweeter in(Right)

Tweeter in(Left)

Ground

Tweeter ground

MUTE

Rear arm remote control

13

14

15

16

17

18

19

20

21

22

23

24

Remote control ground

Steering remote control

Illumination(-)

Illumination(+)

Rear left speaker(-)

Rear left speaker(+)

Rear right speaker(-)

Rear right speaker(+)

Front right speaker(-)

Front right speaker(+)

Front left speaker(-)

Front left speaker(+)

24P Connector

Pin

Description

Pin

Description

1

3

5

7

9 11 13 15 17 19 21 23

2

4

6

8 10 12 14 16 18 20 22 24

24P Connector

Antenna

SCMBE6004L

AUDIO SYSTEM

BE -23

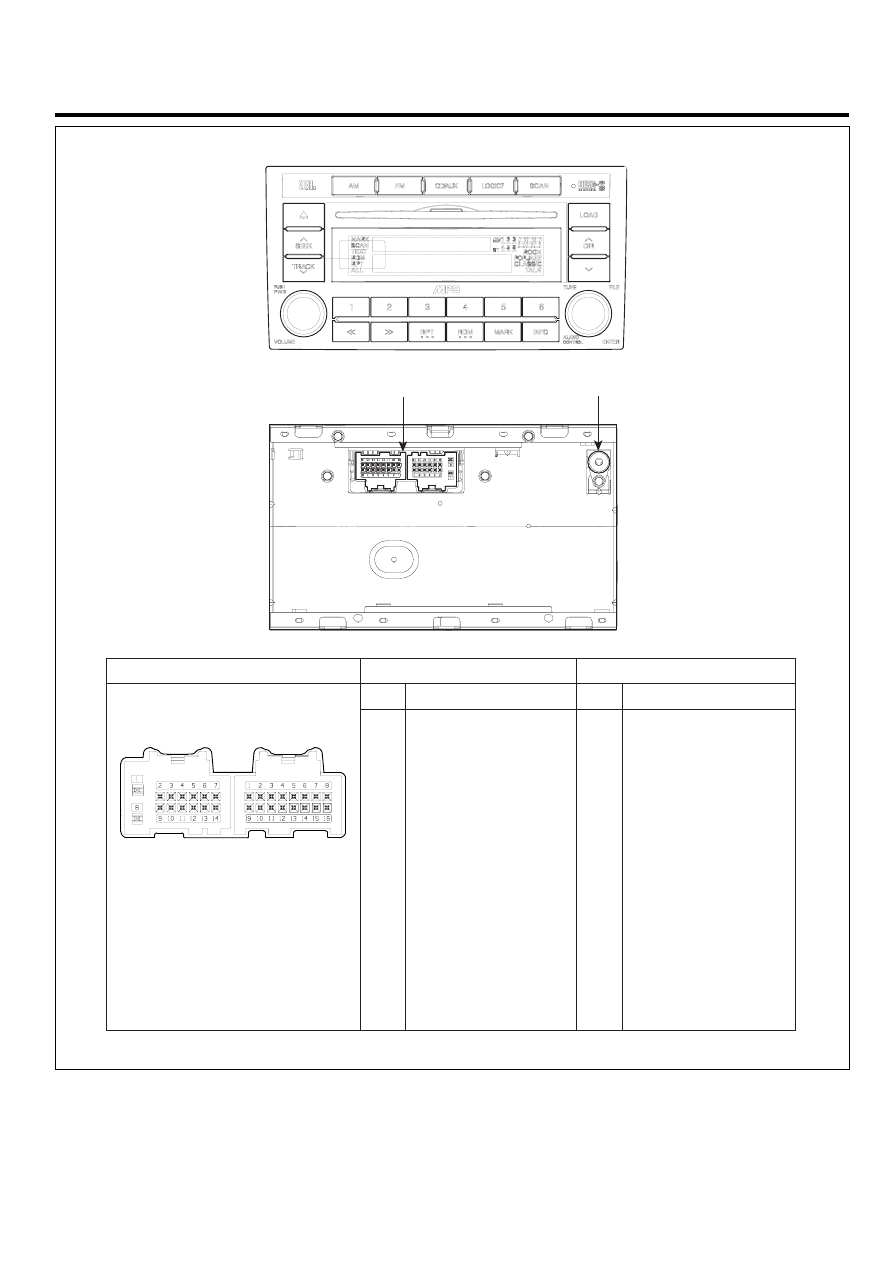

[PREMIUM (D466)]

1

2

3

4

5

6

7

8

9

10

11

12

13

14

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

B+

-

-

Illumination(+)

Illumination(-)

Remote control

ACC

Ground

MUTE

Surround ON/OFF

SWC

SWC output

MSCAN high

MSCAN  low

Tweeter (Left)

Tweeter (Right)

Tweeter ground

EQ SEL

Front right speaker(-)

Front right speaker(+)

Rear left speaker(-)

Rear left speaker(+)

-

-

-

-

Front left speaker(-)

Front left speaker(+)

Rear right speaker(-)

Rear right speaker(+)

Connector

Connector A

Connector B

Connector A

Connector B

Pin

Description

Pin

Description

24P Connector

Antenna

SCMBE6005L

BE -24

BODY ELECTRICAL SYSTEM

INSPECTION

E813AFA7

TAPE HEAD AND CAPSTAN CLEANING

1.

To obtain optimum performance, clean the head, and
capstan as often as necessary, depending on fre-
quency of use and tape cleanness.

2.

To clean the tape head and capstan, use a cotton
swab dipped in ordinary rubbing an alcohol. Wipe the
head and capstan.

Capstan

Head

LTAC005A

REPLACEMENT

EA2B9CB5

1.

Disconnect the negative (-) battery terminal.

2.

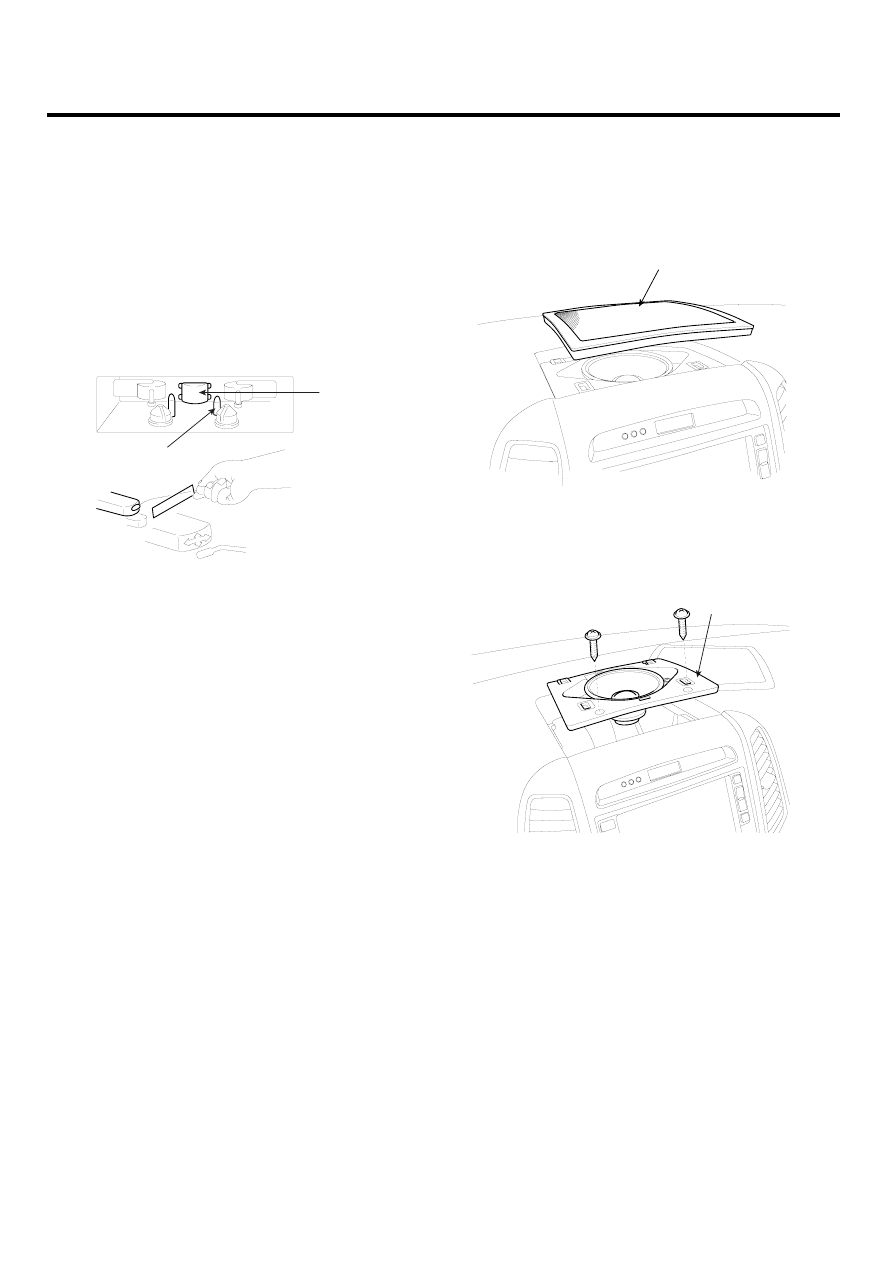

Remove the crash pad center speaker grill (A).
(Refer to the Body group - Crash pad).

A

SCMBE6014D

3.

Remove the crash pad center speaker (A) after loos-
ening the screws. Avoid damaging retaining clips.

A

SCMBE6015D
