AUDIO SYSTEM

BE -17

4.  SOUND QUALITY IS POOR

Does it play properly if another good-
quality CD is loaded ?

Repair or replace CD player.

Replace CD

Yes

No

5.  CD WILL NOT EJECT

Is the ignition key at ACC or ON ?

Yes

Is the combined amplifier or radio
connected securely ?

Yes

Turn the key to ON.

No

Securely connect.

No

Look for foreign matters in CD player.
Such as paper labels, coins etc.

Yes

Power ON reset.
Disconnect the 2 audio fuses, wait 5
minutes with ignition key off. Insert both
fuses. Then turn the Ignition key ON.
Is CD ejected?

No

If  CD does not eject, don't try
removing it.
The player may be damaged.
Therfore,  contact a service shop for
repairs.

6.  NO SOUND FROM ONE SPEAKER

Check with radio OK?

Yes

Does it play properly if another CD
is played ?

No

Jump to Chart 1.

No

Replace CD.

Yes

Repair or replace the radio.

LTIF001K

BE -18

BODY ELECTRICAL SYSTEM

CHART 6

Faint reception

Are both reception and static faint
even when antenna is fully length-
ened ?

Inspect antenna

Temporarily install another
antenna. O.K. ?

Inspect antenna and cable and
repair if necessary.

Temporarily install another
speaker. O.K. ?

Replace speaker

Replace radio unit

Replace radio

Yes

Yes

Yes

No

No

No

LTIF001L

CHART 7

Poor Volume

Does the problem disappear
when switching from the cas-
sette to the radio ?

Is the tape player head O.K. ?

Check for an improperly connected
tape player head wire or a malfunc-
tion in the tape player itself.
The tape being tested must be of
good stereo quality.

Improperly connected harness
or connector.

Correct the connection of the
harness or the connector.

Clean or replace the tape
player head.

Dirty, worn or damaged tape
player head, improperly installed
tape player head.

Correct the connection or re-
place the malfunctioning parts.

Use tapes which have been
recorded in stereo.

Yes

Yes

No

No

LTIF001M

AUDIO SYSTEM

BE -19

CHART 8

Seek/scan problem

Is antenna lead-in properly in-
stalled ?

Check that the antenna is
inserted completely into the
antenna receptacle.

Check antenna and lead-in for
broken connectors. Tester indi-
cates open circuit ?

Install antenna properly

Fully insert antenna

Replace antenna

Yes

O.K.

No

Not O.K.

Yes

- Check antenna amplifier power ground.
- Check AM scan Vs FM scan
- Check antenna feeder cable connector
   in middle of cable.
- Check for clear reception.

Is it clear?

No

No

Replace radio unit.

No

LTIF001N

CHART 9

"Eating" tape

Check capstan and pinch roller
for oxide and dirt build-up

Check for tape loose in cassette

Check whether C-120 or longer
tape is used

Check with another tape

Replace tape player

Clean head, capstan, and pinch roller.
Use head cleaner or isopropyl alcohol

Tension the tape using a pen or pencil

Use C-30, 60, 90 tapes (C-120 tape is
 very thin and delicate)

Tape is defective. Change tape

Not O.K.

Not O.K.

Not O.K.

O.K.

O.K.

O.K.

O.K.

Not O.K.

LTIF001O

BE -20

BODY ELECTRICAL SYSTEM

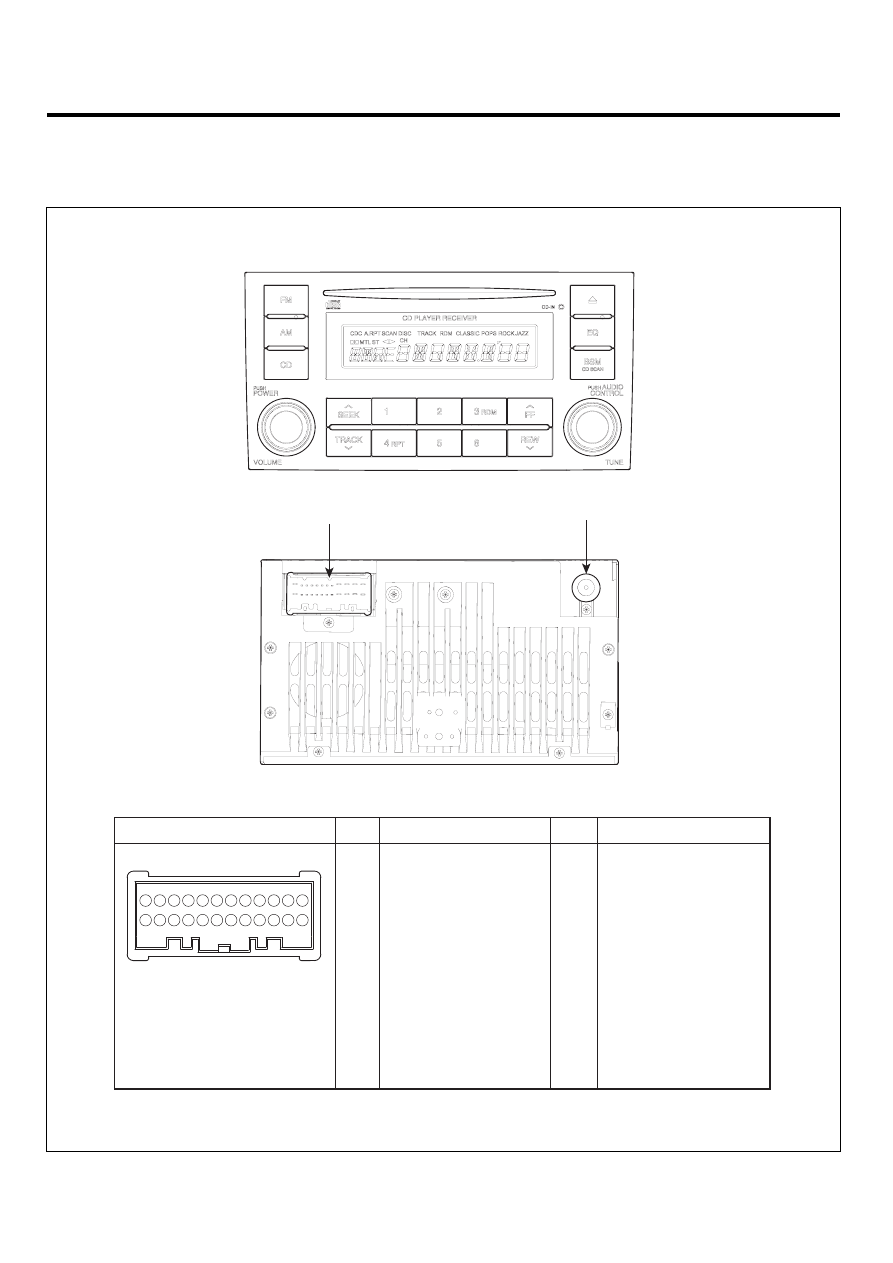

AUDIO UNIT

COMPONENTS

E35BCAF6

[AM/FM/CASSETTE/CD(M445)]

1

2

3

4

5

6

7

8

9

10

11

12

Ground

B+

Antenna B+

ACC

-

-

Tweeter in(Right)

Tweeter in(Left)

Ground

Tweeter ground

MUTE

Rear arm remote control

13

14

15

16

17

18

19

20

21

22

23

24

Remote control ground

Steering remote control

Illumination(-)

Illumination(+)

Rear left speaker(-)

Rear left speaker(+)

Rear right speaker(-)

Rear right speaker(+)

Front right speaker(-)

Front right speaker(+)

Front left speaker(-)

Front left speaker(+)

24P Connector

Pin

Description

Pin

Description

1

3

5

7

9 11 13 15 17 19 21 23

2

4

6

8 10 12 14 16 18 20 22 24

24P Connector

Antenna

SCMBE6002L
