Hyundai Santa Fe (2006 year). Manual - part 129

SEAT

BD -99

SEAT FRAME REPLACEMENT

1.

Remove the following items.
-

Recliner cover. (See page BD- 95)

-

Seat back panel. (See page BD- 96)

-

Headrest guide. (See page BD- 96)

-

Seat back cover. (See page BD- 96)

-

Seat cushion cover. (See page BD- 98)

2.

Remove the clip.

3.

Remove the shift (A).

NOTE

-

Remove the side air bag for replacing side air bag
installation seat.

-

Be fore service, be fully aware of precautions and
service procedure relevant to air bag. (See page
RT-Airbag)

A

SCMBD6124D

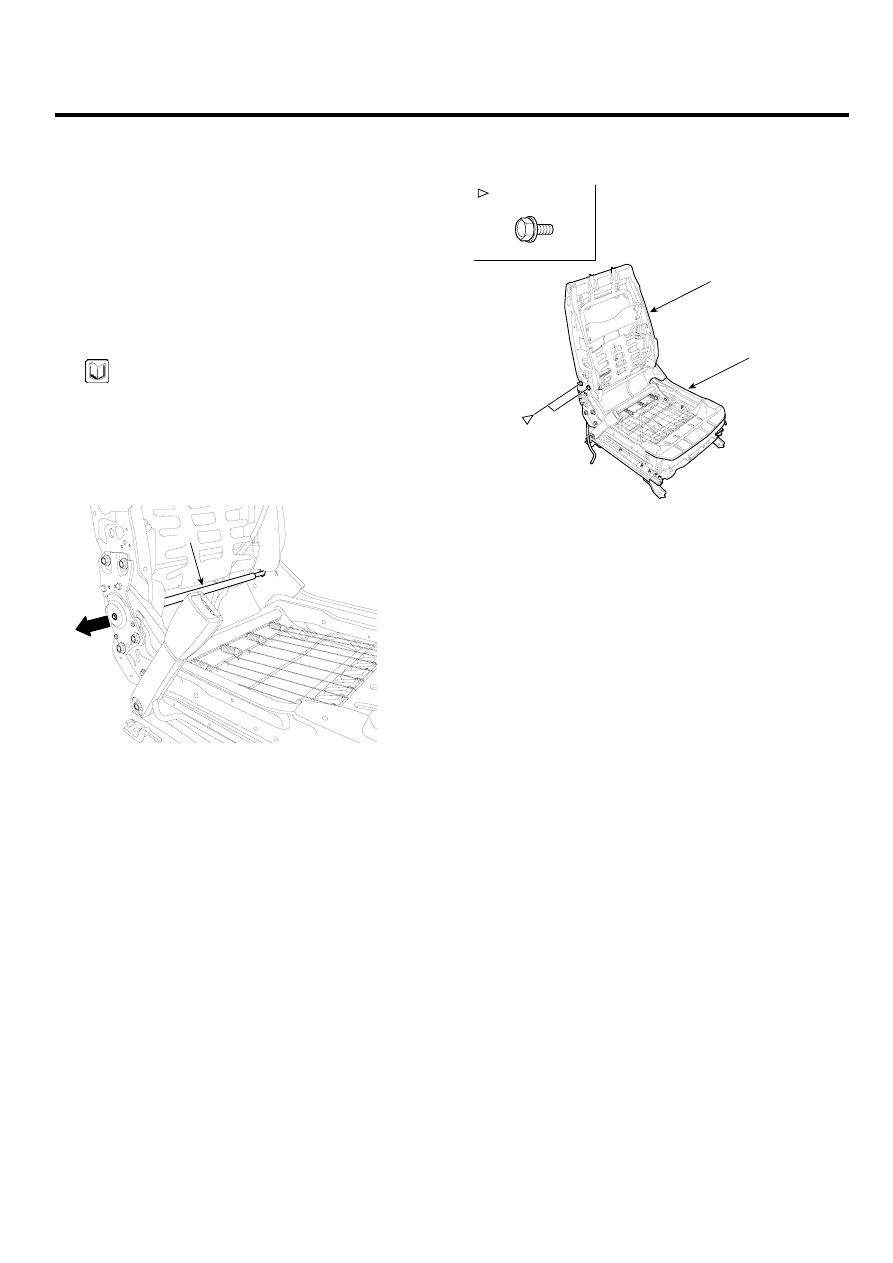

4.

After loosening the mounting bolts, then disconnect
the seat back frame (A) and seat cushion frame (B).

A

B

: Bolt Locations, 4

SCMBD6125L

5.

Installation is the reverse of removal.

BD -100

BODY (INTERIOR AND EXTERIOR)

REAR SEAT

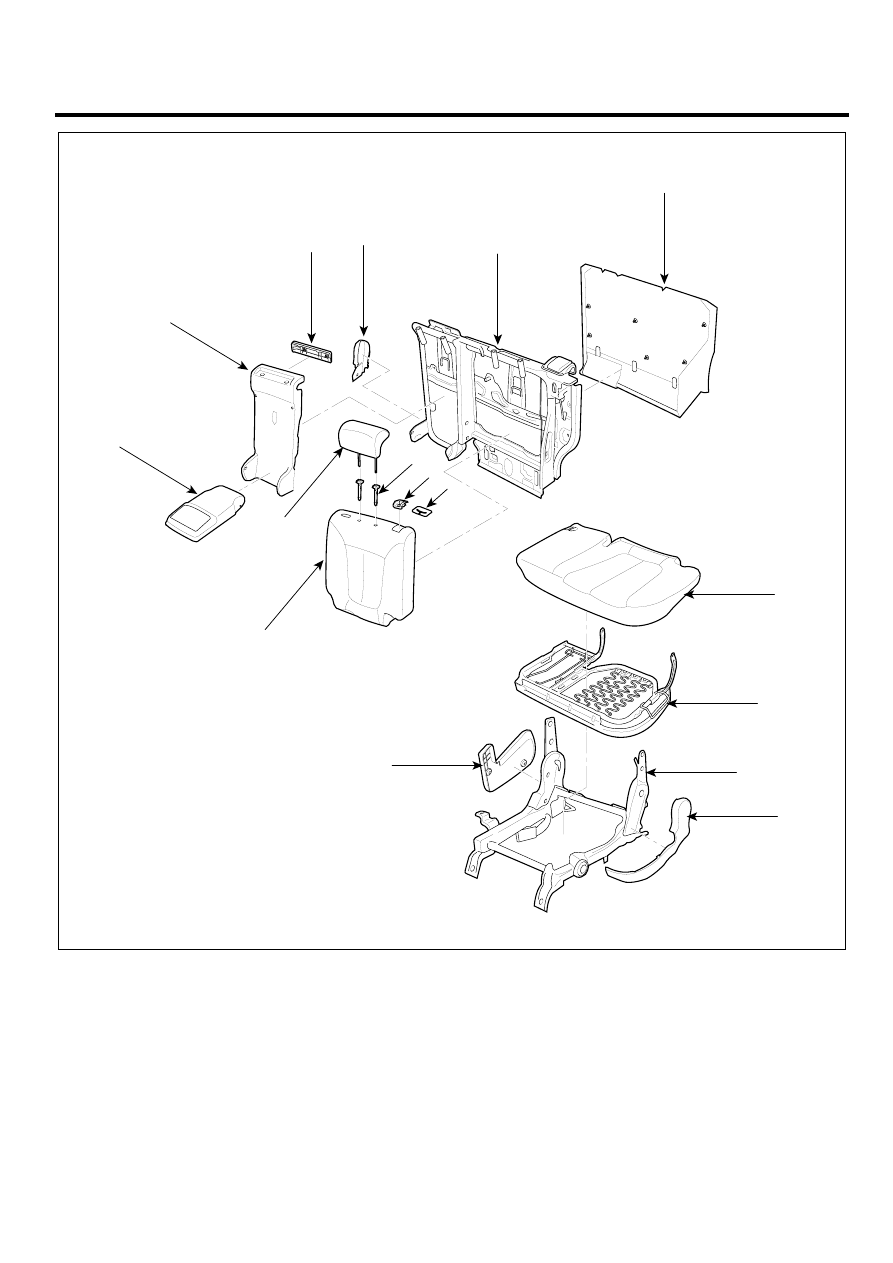

COMPONENTS

E7C22FC0

9

8

7

5

3

2

4

6

15

14

13

1

16

11

12

10

1. Leg cover
2. Seat cushion cover
3. Seat cushion pad
4. Cover
5. Recliner cover
6. Seat cushion cover

7. cover
8. Seat back frame
9. Seat back panel
10. Headrest guide
11. Headrest
12. Recliner lever cover

[RH]

SCMBD6181L

SEAT

BD -101

1

2

3

14

13

4

7

8

9

10

5

6

11

12

15

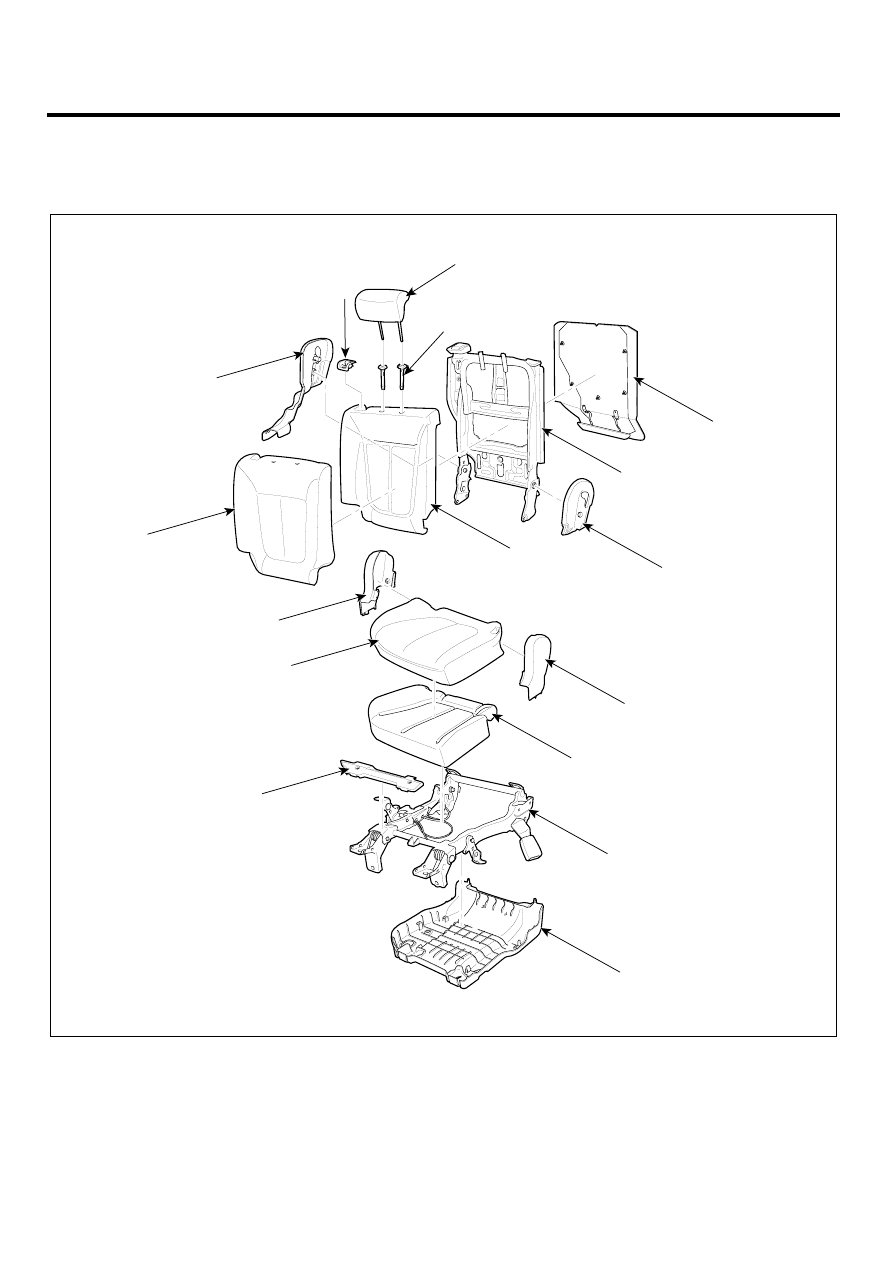

16

1. Seat cushion cover
2. Seat cushion frame
3. Leg assembly
4. Seat back cover
5. Seat back frame
6. Seat back panel
7. Armrest
8. Armrest cover

9. cover
10. Recliner cover
11. Headrest
12. Headrest guide
13. Recliner cover
14. Recliner cover
15. Recliner lever cover
16. Seat belt guide

[LH]

SCMBD6221L

BD -102

BODY (INTERIOR AND EXTERIOR)

REPLACEMENT

EE371E54

SECONDARY SEAT

SEAT ASSEMBLY REPLACEMENT(RH)

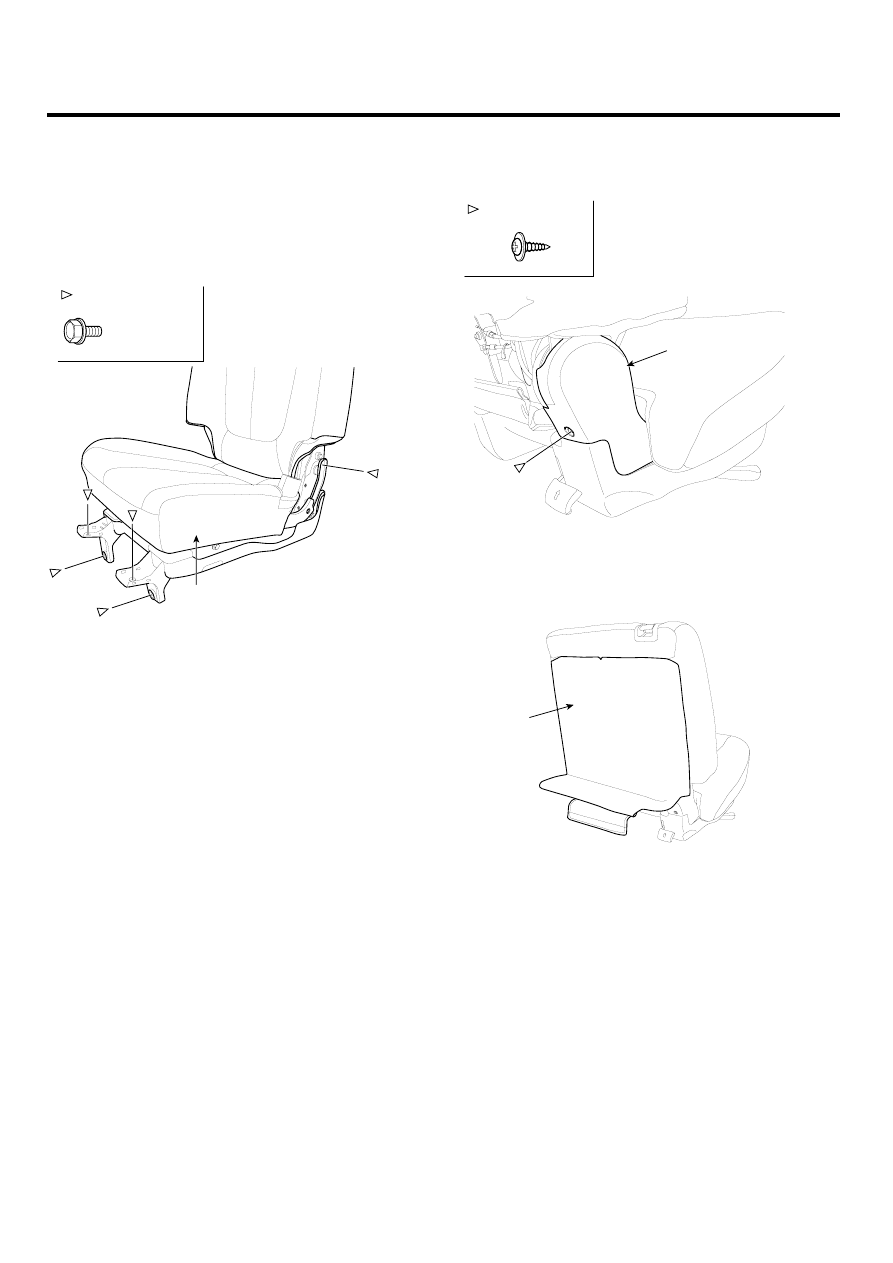

1.

Loosen the mounting bolt, then remove the rear seat
assembly (A).

A

: Bolt Locations, 2

43.1~64.7 N.m
(4.4~6.6 Kgf.m,
31.8~47.7 lbf.ft)

SCMBD6519L

2.

Installation is the reverse of removal.

SEAT BACK COVER REPLACEMENT

1.

Remove the recliner cover (A).

A

: Screw Locations, 1

SCMBD6128L

2.

Remove the back panel (A).

A

SCMBD6129D
