BUMPER

BD -91

REAR BUMPER

REPLACEMENT

E9F085BC

NOTE

-

After remove the rear combination lamp.

-

When prying with a flat-tipped screwdriver, wrap
it with protective tape, and apply protective tape
around the related parts your hands.

-

Put on gloves to protect your hands.

-

Take care not bend or scratch the cover and other
parts.

-

Replace any damaged clips.

1

1

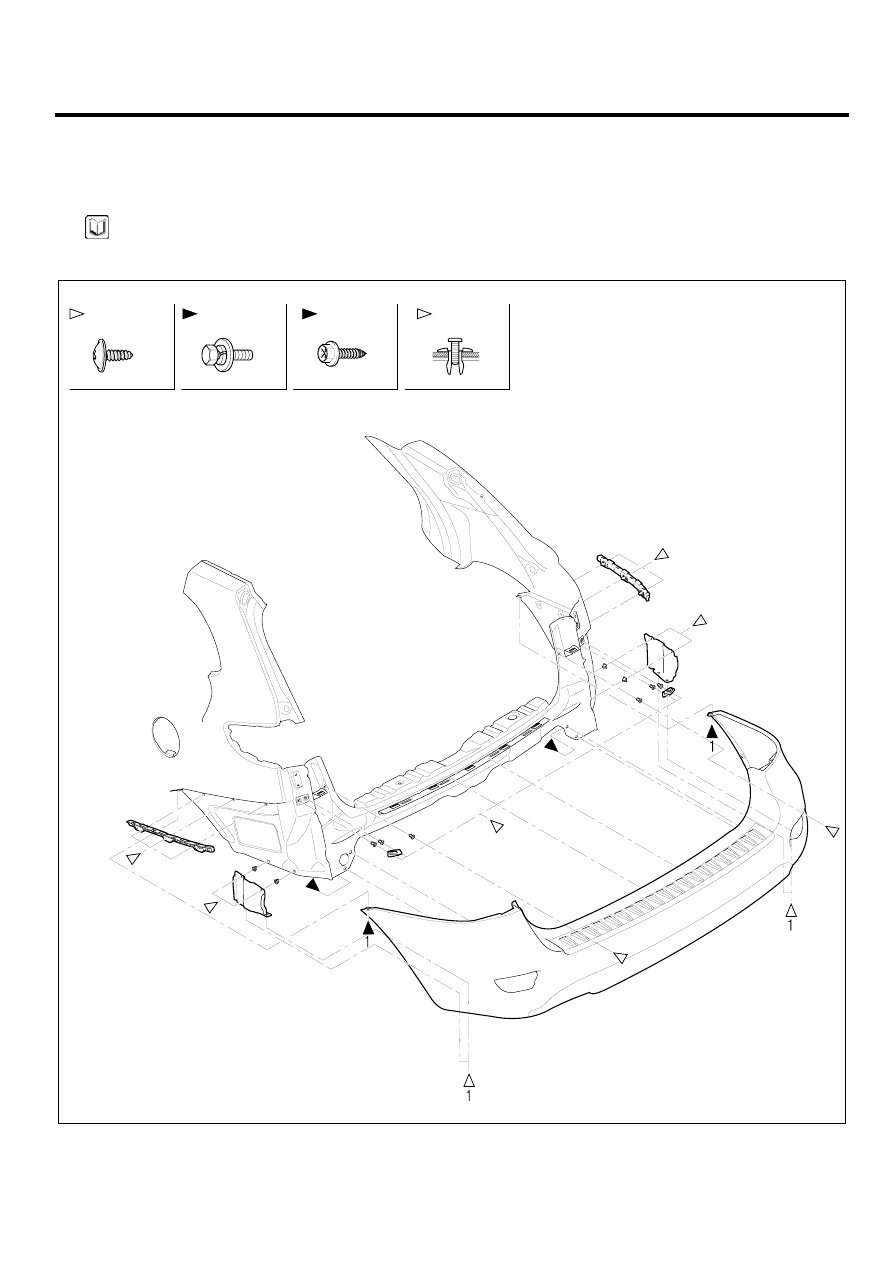

Fastener Locations

: Clip

: Bolt

: Screw

: Screw

SCMBD6178L

BD -92

BODY (INTERIOR AND EXTERIOR)

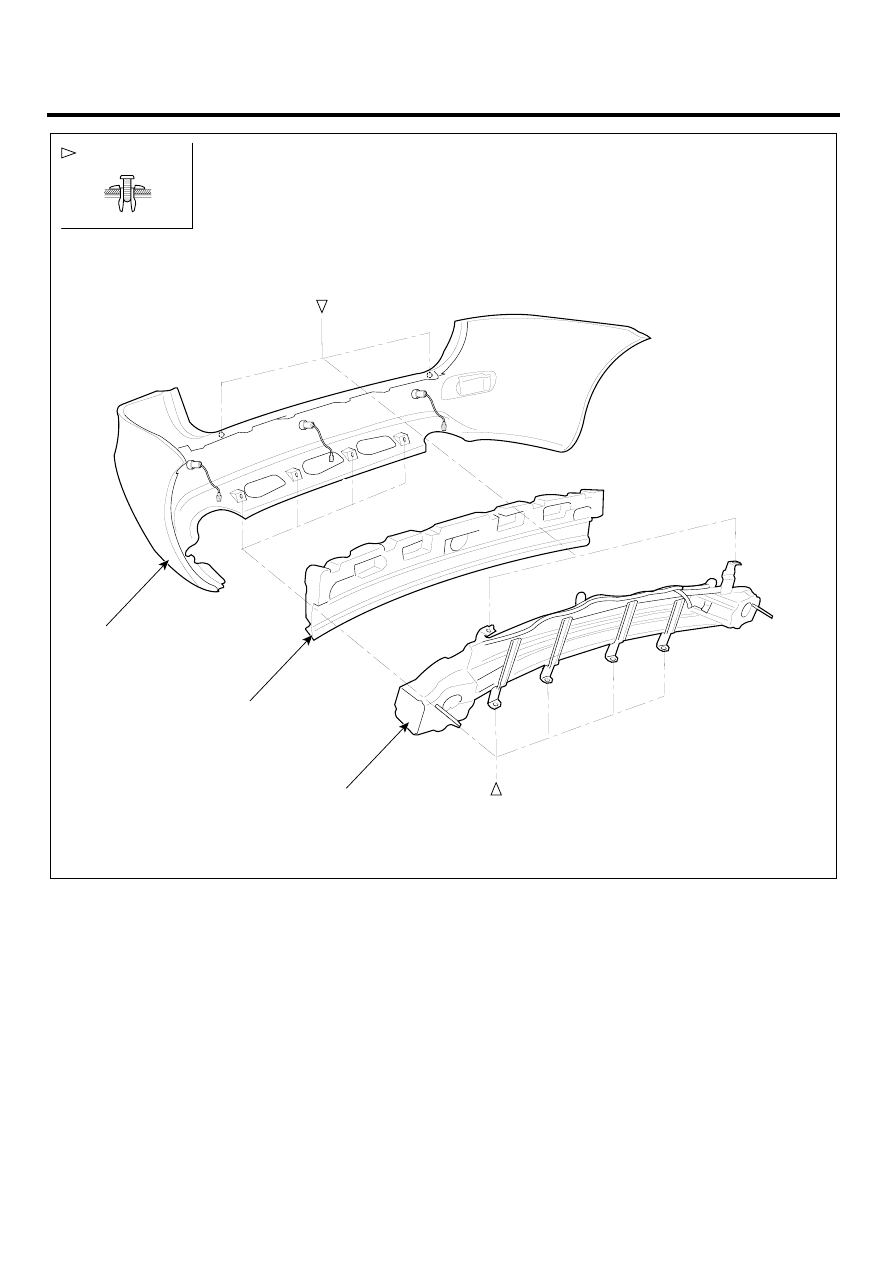

1. Rear bumper cover
2. Energy absorber
3. Rear bumper rail

1

2

3

: Clip Locations

SCMBD6179L

SEAT

BD -93

SEAT

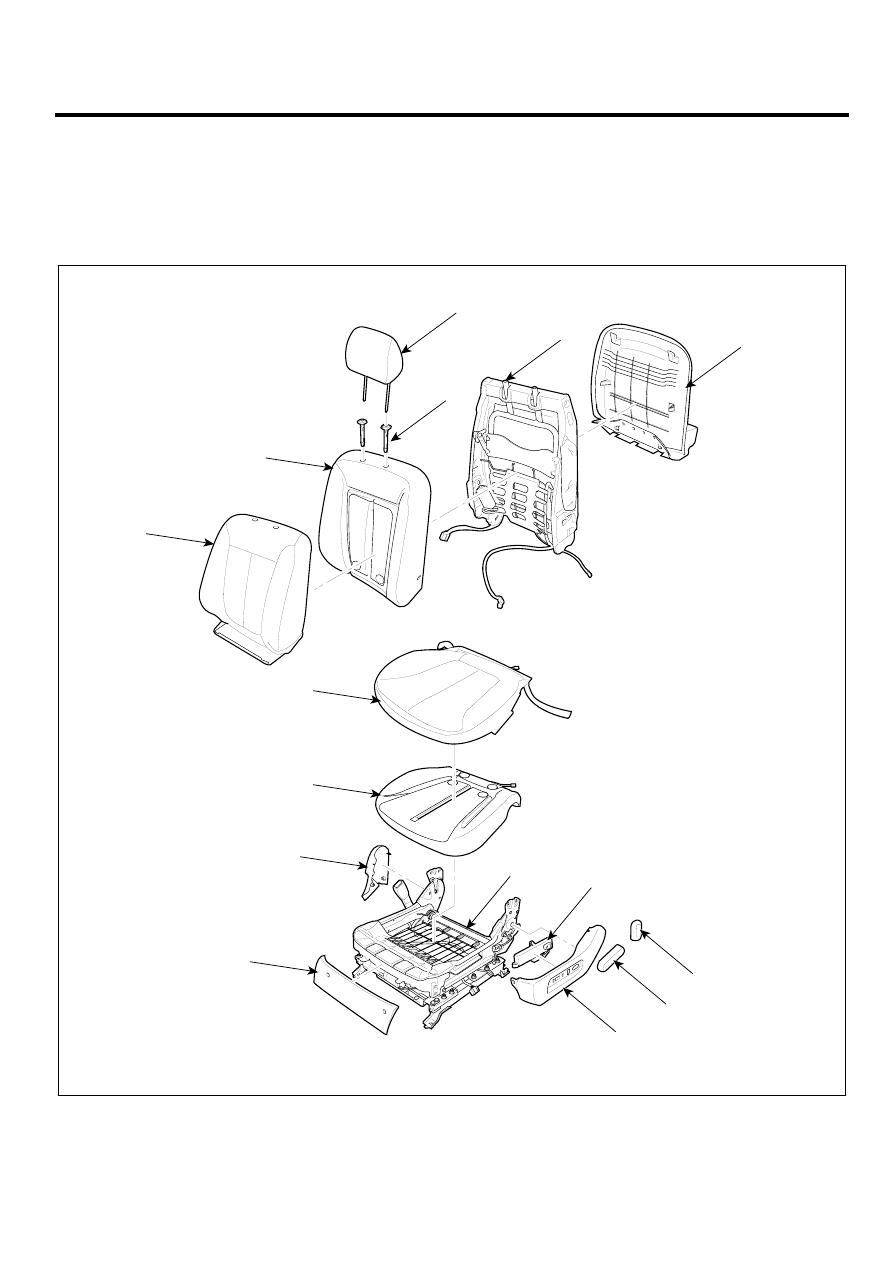

FRONT SEAT

COMPONENTS

E088B74F

6

5

4

3

2

1

7

8

9

11

10

12

13

14

15

1. Seat back cover
2. Seat back pad
3. Headrest guide
4. Headrest
5. Seat back frame

6. Seat back panel
7. Seat cushion cover
8. Seat cushion pad
9.  Side cover
10. Front cover

11. Seat cushion frame
12. Switch assembly
13. Recliner cover
14. Reber
15. Recliner reber

SCMBD6180L

BD -94

BODY (INTERIOR AND EXTERIOR)

REPLACCEMENT

EEDFEB65

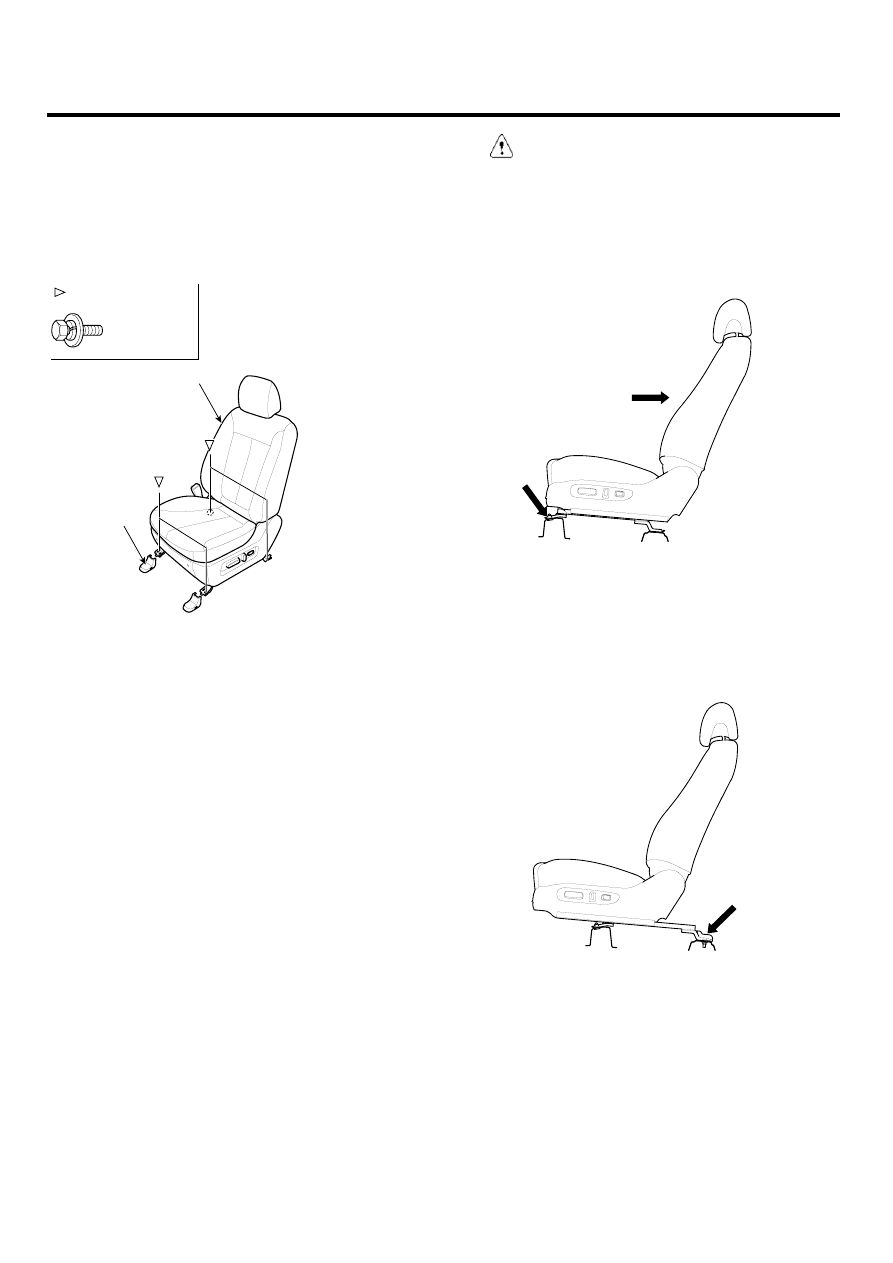

SEAT ASSEMBLY REPLACEMENT

1.

Remove the seat assembly mounting cover (A).

2.

After loosening the seat assembly mounting bolts and
nuts, remove the seat assembly (C).

C

A

: Bolt Locations, 4

43.1~64.7 N.m
(4.4~6.6 Kgf.m,
31.8~47.7 lbf.ft)

SCMBD6113L

3.

Installation is the reverse of removal.

CAUTION

SEAT MOUNTING BOLT INSTALLATION PROCE-
DURE
-

Set the into the most rearward position.
Check then each slide is locked, and then
tighten the front mounting bolt temporarily.

ESBF304A

-

Set the seat into most forward position.
Check that each slide is locked, and then
tighten the rear mounting bolt completely.

ESBF305A
