Hyundai Santa Fe (2006 year). Manual - part 120

INTERIOR

BD -63

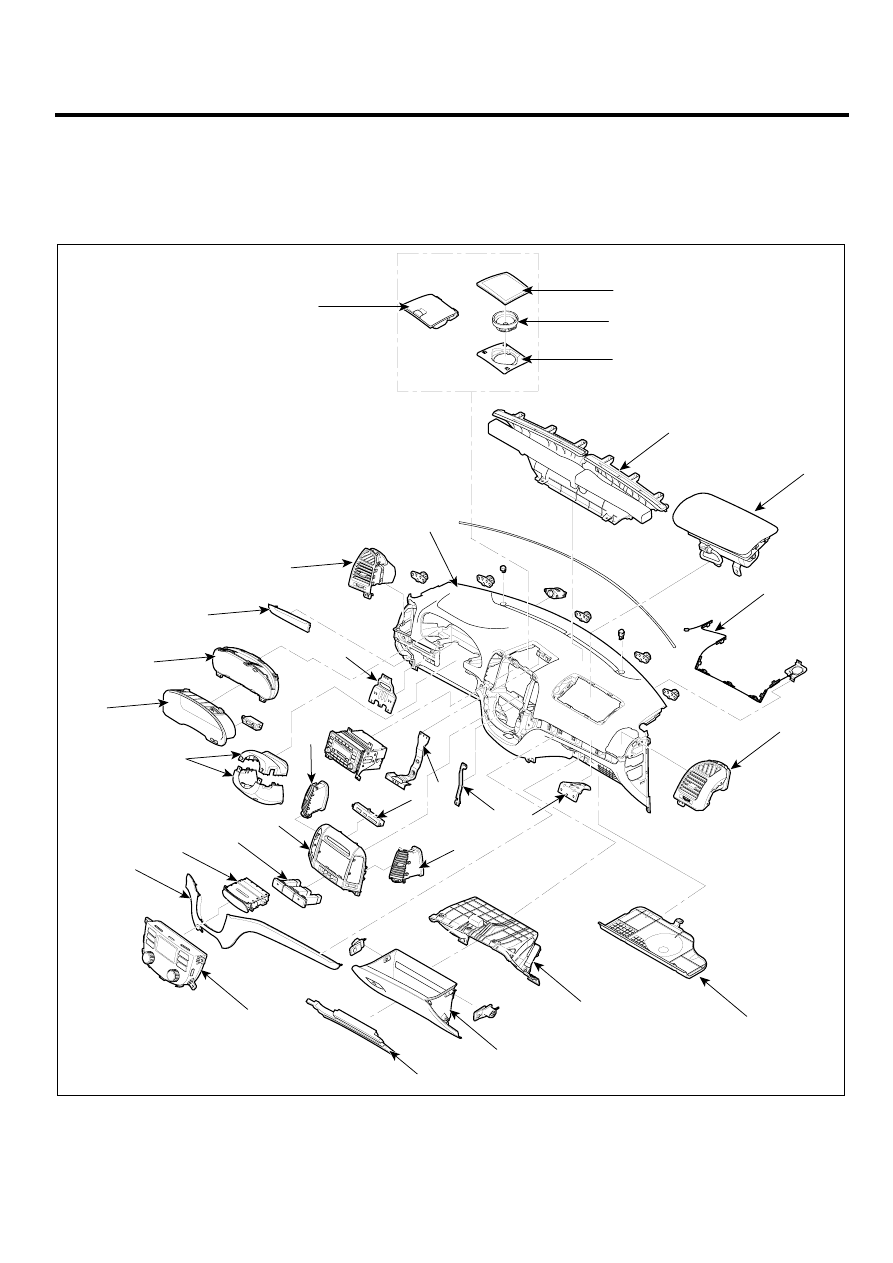

CRASH PAD

CONPONENTS

E269893C

[LHD]

28

27

26

24

25

30

29

1

2

3

4

5

6

7

14

15

16

17

18

19

22

23

20

8

9

10

11

12

13

21

1. Main crash pad
2. Side air vent
3. Side garnish
4. Cluster
5. Cluster facia panel
6. Shroud assembly
7. Ash tray

8.Center garnish
9. Heater control unit
10. Knee bolster
11. Glove box
12. Glove box housing
13. Glove box under cover
14. Switch assembly

15. Center facia upper panel
16. Center air vent (LH)
17. Digital clock
18. Center air vent (RH)
19. Crash pad center bracket
20. Airbag bracket
21. Side air vent
22. Audio bracket

23. Crash pad drive bracket
24. Passenger airbag module
25. GPS antenna unit
26. Speaker plate
27. Speaker
28. Speaker grill
29. Center facia upper tray
30. Defroster nozzle

SCMBD6173L

BD -64

BODY (INTERIOR AND EXTERIOR)

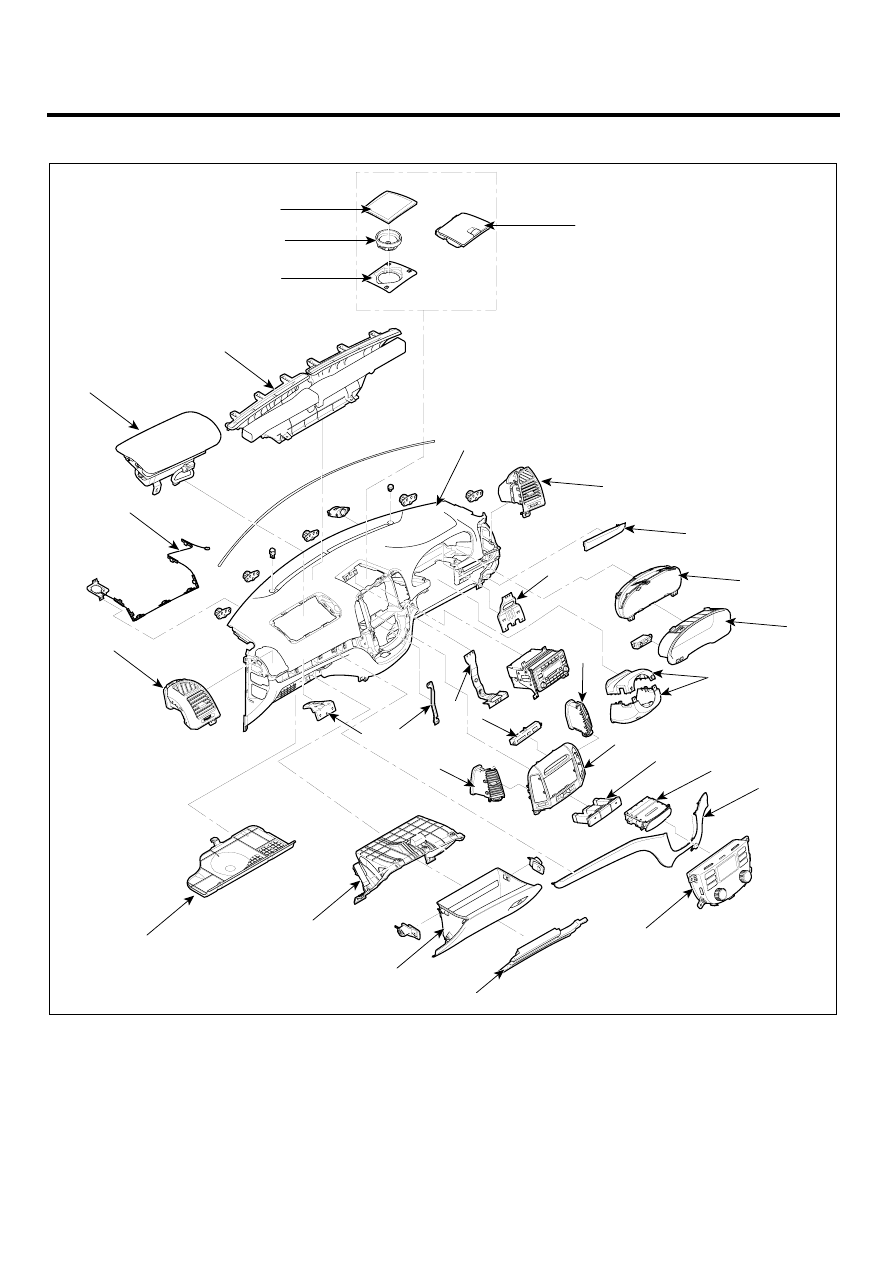

[RHD]

28

27

26

24

25

30

29

1

2

3

4

5

6

7

14

15

16

17

18

19

22

23

20

8

9

10

11

12

13

21

1. Main crash pad
2. Side air vent
3. Side garnish
4. Cluster
5. Cluster facia panel
6. Shroud assembly
7. Ash tray

8.Center garnish
9. Heater control unit
10. Knee bolster
11. Glove box
12. Glove box housing
13. Glove box under cover
14. Switch assembly

15. Center facia upper panel
16. Center air vent (LH)
17. Digital clock
18. Center air vent (RH)
19. Crash pad center bracket
20. Airbag bracket
21. Side air vent
22. Audio bracket

23. Crash pad drive bracket
24. Passenger airbag module
25. GPS antenna unit
26. Speaker plate
27. Speaker
28. Speaker grill
29. Center facia upper tray
30. Defroster nozzle

SCMBD6173R

INTERIOR

BD -65

REPLACEMENT

E0FDDE2F

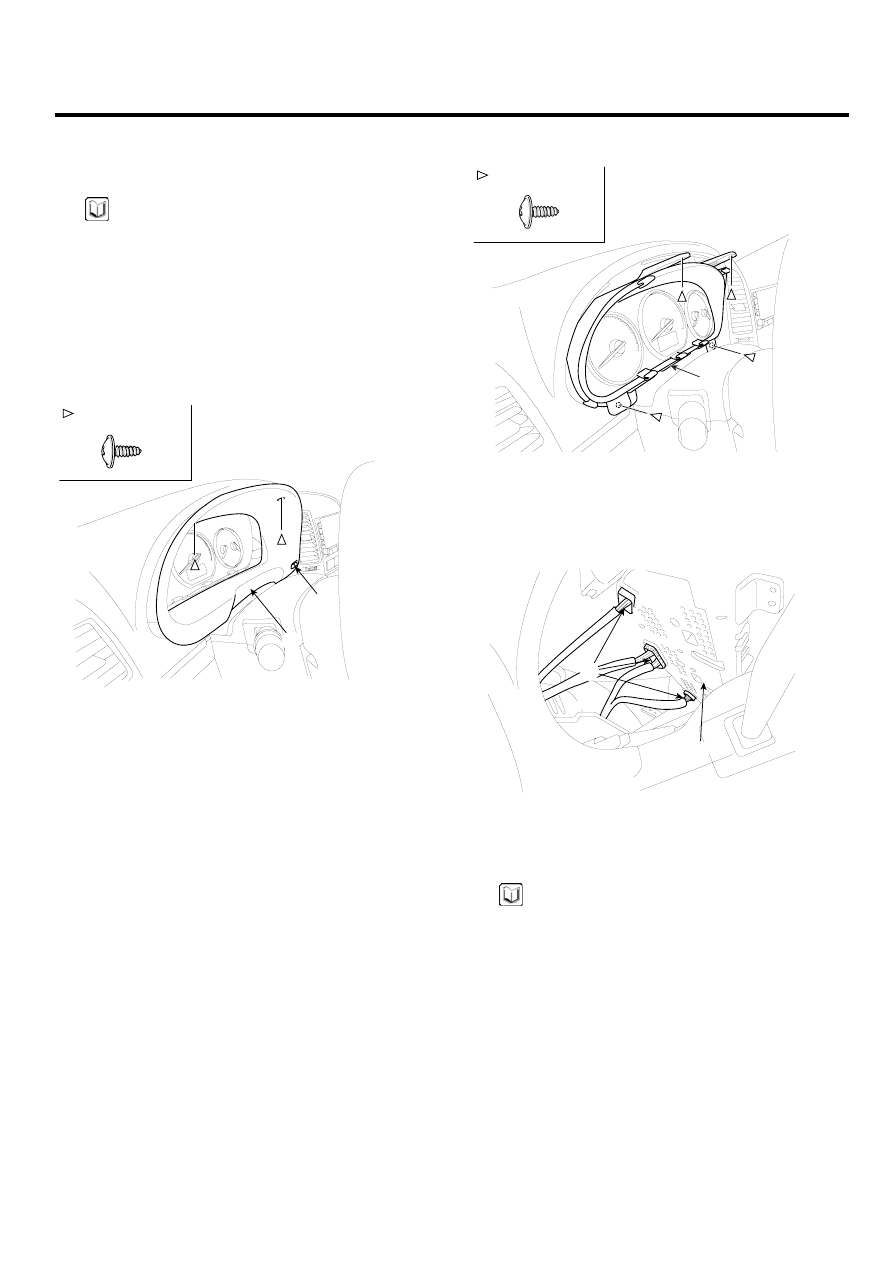

CLUSTER REPLACEMENT

NOTE

-

When prying with a flat-tipped screwdriver, wrap
it with protective tape, and apply protective tape
around the related parts, to prevent damaged.

-

Put on gloves to protect your hands.

1.

Tilt the steering column down.

2.

After disconnecting the trip sensor connector (A), re-
move the cluster facia panel (B).

A

B

: Screw Locations, 2

SCMBD6070L

3.

Installation is the reverse the removal.

4.

Loosen the screws.

5.

Remove the cluster (A).

A

: Screw Locations, 4

SCMBD6071L

6.

Disconnect the cluster connector (A), then remove the
cluster (B).

A

B

SCMBD6072L

7.

Installation is the reverse of removal.

NOTE

-

Make sure the connector are plugged in properly.

BD -66

BODY (INTERIOR AND EXTERIOR)

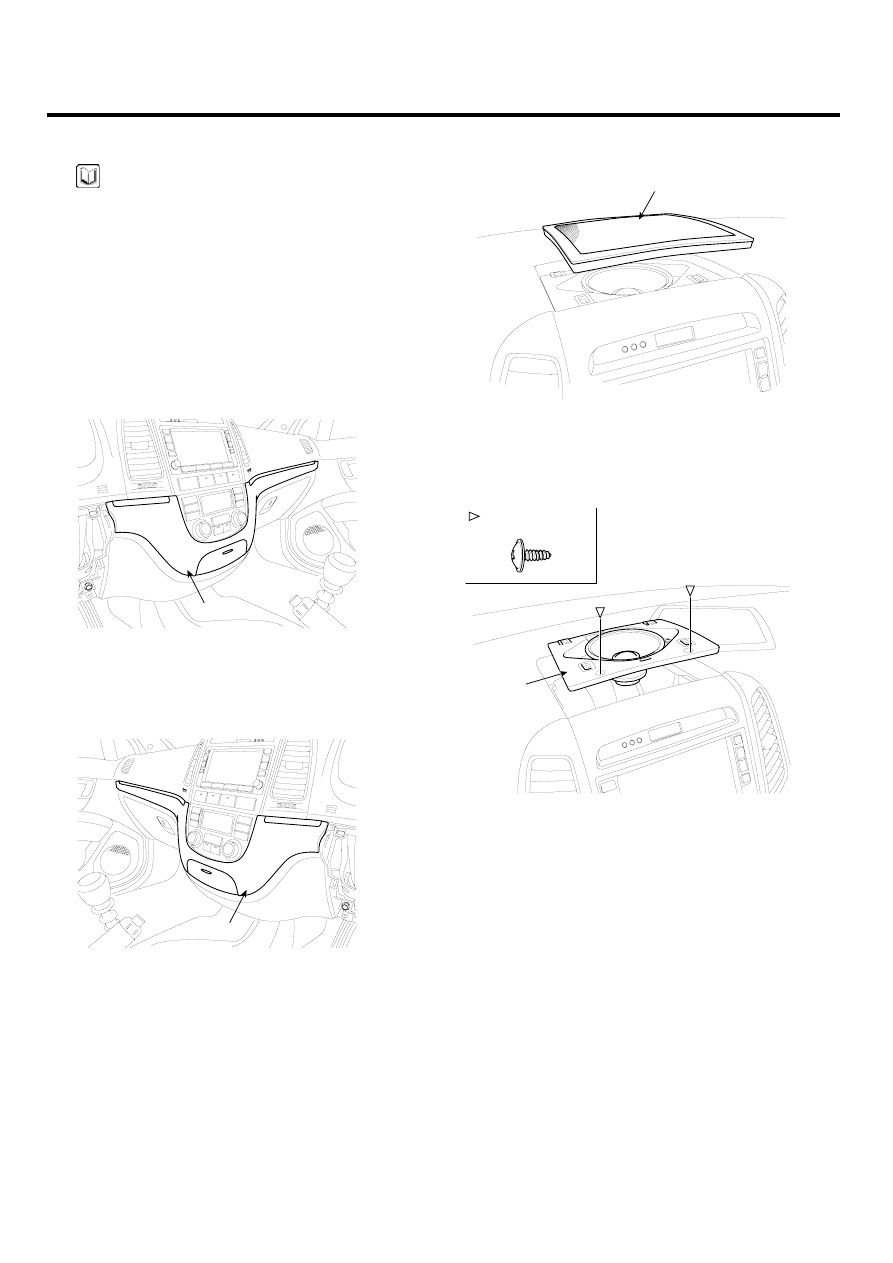

CENTER FACIA PANEL REPLACEMENT

NOTE

-

When prying with a flat-tipped screwdriver, wrap
it with protective tape, and apply protective tape
around the related parts, to prevent damaged.

-

Put on gloves to protect your hands.

1.

Remove the crash pad lower panel. (See page BD-
68)

2.

Remove the center lower garnish (A).

[LHD]

A

SCMBD6073D

[RHD]

A

SCMBD6073R

3.

Remove the speaker grill (A).

A

SCMBD6074D

4.

Loosen the mounting screw, remove the speaker grill
(A).

A

: Screw Locations, 2

SCMBD6075L
