Hyundai Santa Fe (2006 year). Manual - part 103





ATA -170

AUTOMATIC TRANSAXLE (A5HF1)

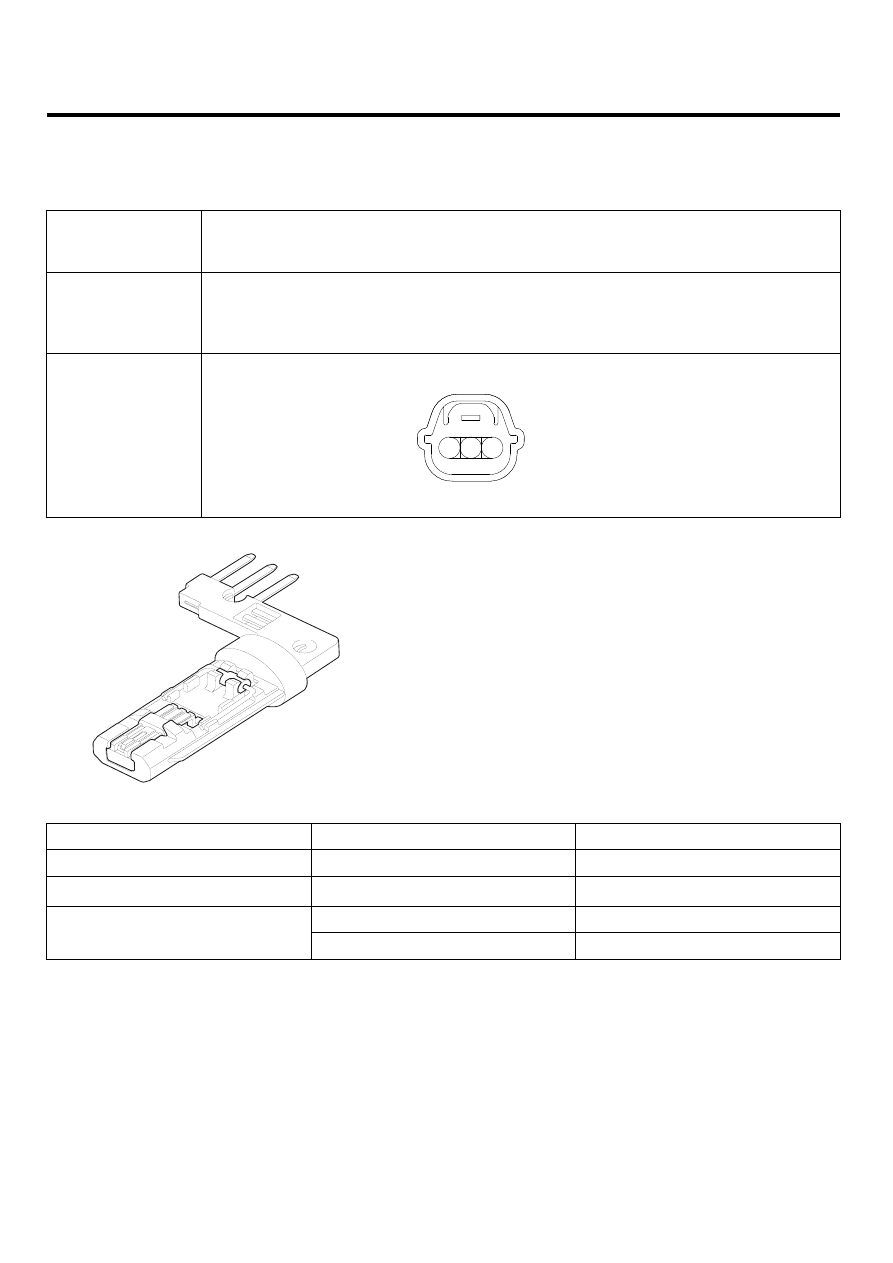

OUTPUT SPEED SENSOR

DESCRIPTION

EE59F1CD

Sensor type

1.

Type : HALL SENSOR

2.

Output voltage : DC 12V

3.

Current consumption : 22mA (Max)

Function

1.

Output shaft speed sensor : Detect the output shaft rpm(T/F DRIVE
GEAR RPM) at the T/F drive gear

2.

Feedback control, clutch-clutch control, damper clutch control, shift range control,
incorrect ratio control and sensor trouble detection signal.

Connector

1

2

3

C243

1.  Ground
2.  Power source
3.  Input

SCMAT6005L

<Inside structure>

BKGF012B

Item

Inspection item

Standard value

Air gap

Output shaft speed sensor

0.05in(1.3mm)

Sensor resistance

Output shaft speed sensor

Over 4 MΩ

HIGH

Over 4.8V

Output voltage

LOW

Below 0.8V

AUTOMATIC TRANSAXLE CONTROL SYSTEM

ATA -171

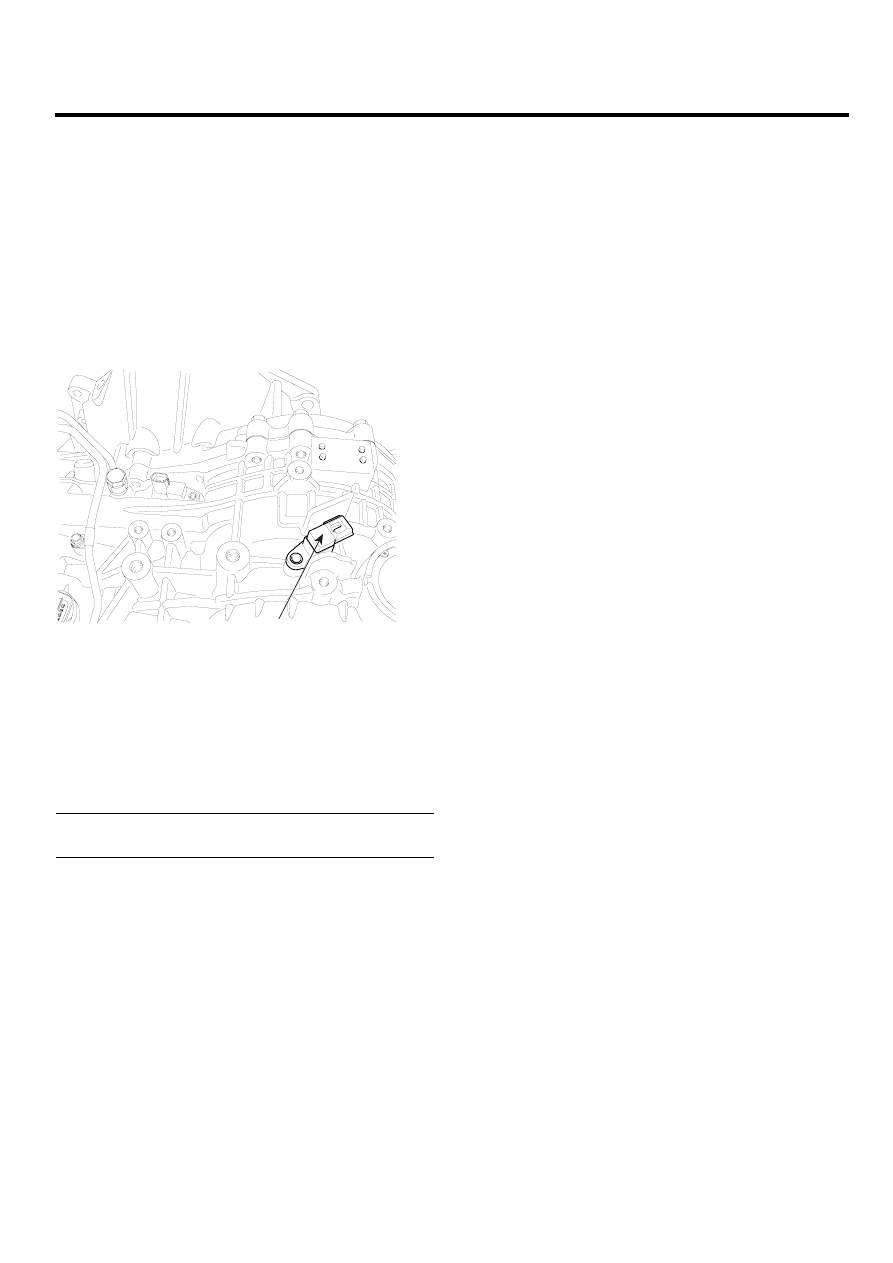

REMOVAL

E2D1DE7E

1.

Remove the battery terminal.

2.

Remove the battery and battery tray.

3.

Remove the air cleaner assembly. (see the automatic
transaxle- Removal/ installation procedures)

4.

Remove the output shaft speed sensor connector.

5.

Remove the output shaft speed sensor(A).

A

SCMAT6039D

INSTALLATION

EDDDA414

1.

Install the new O-ring to the output shaft speed sen-
sor.

2.

Remove the output shaft speed sensor.

TORQUE:
10~12Nm(1.0~1.2kgf.m, 7~8lb-ft)

CAUTION

While installing the output shaft speed sensor, do
not allow dust or other foreign particles to enter
the transaxle.

3.

Check the connector for dust, dirt, or oil, then connect
the connector securel.

4.

Installation is the reverse of removal.

ATA -172

AUTOMATIC TRANSAXLE (A5HF1)

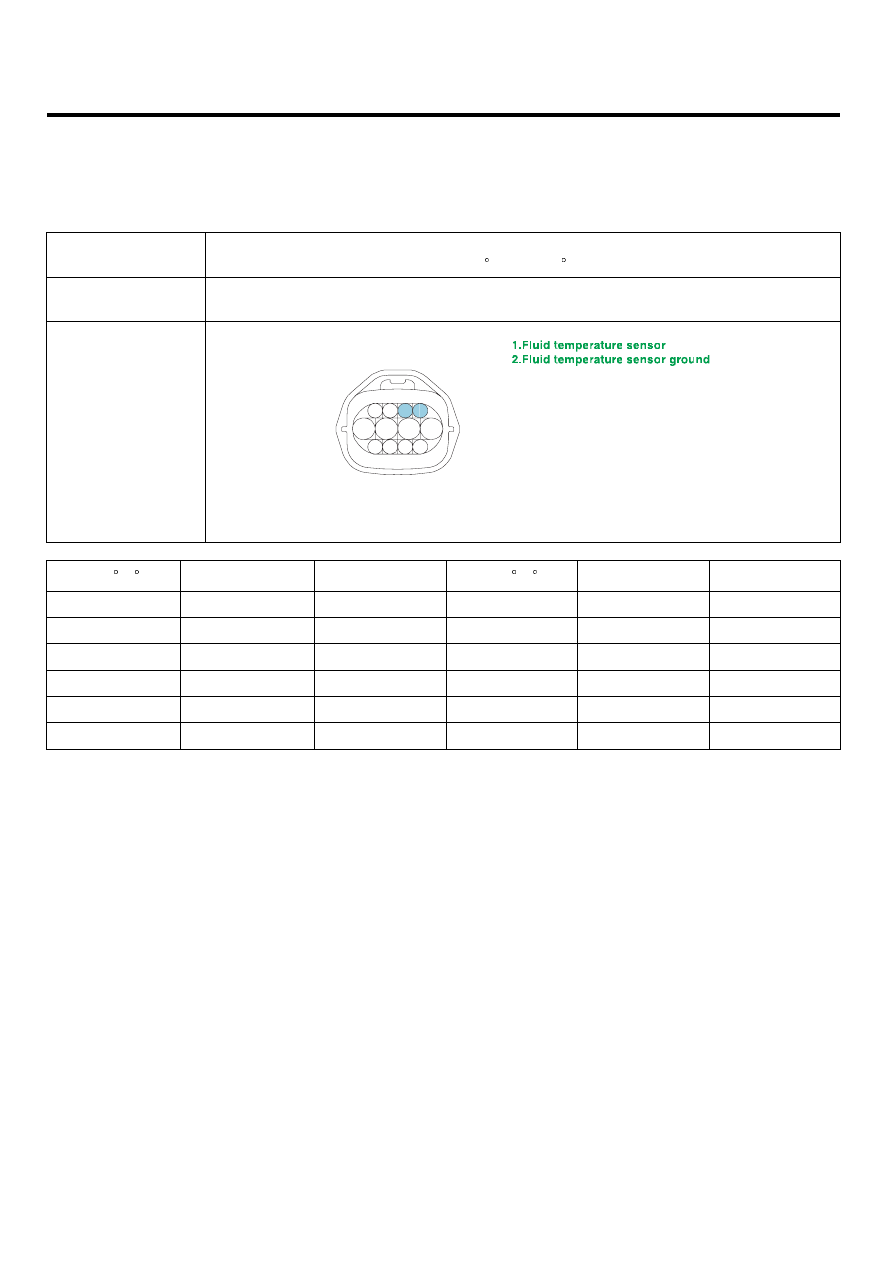

TRANSAXLE OIL TEMPERATURE
SENSOR

DESCRIPTION

E7EEEEF5

Sensor type

1.

Type : Thermister

2.

Use available temperature :-40~160 C(-40~320 F)

Function and feature

1.

Detect the temperature of ATF through the thermistor which is exposed outside.

2.

When shifting the range, it is used as the oil pressure control information.

Connector

1

2

3

4

5

9

10

11

12

6

7

8

C209

3.UD Solenoid valve
4.2ND Solenoid valve
5.A/T battery
6.A/T battery
7.A/T battery
8.VF Solenoid valve ground
9.DCC Solenoid valve
10.RED Solenoid valve
11.LR Solenoid valve
12.OD Solenoid valve

SCMAT6006L

Temp.[ C( F)]

Resistance (KΩ )

Voltage (V)

Temp.[ C( F)]

Resistance (KΩ )

Voltage (V)

-40(-40)

140.5

4.447

80(176)

1.085

0.932

-20(-4)

47.95

4.207

100(212)

0.63

0.591

0(32)

18.6

3.725

120(248)

0.385

0.381

20(68)

8.05

2.996

140(284)

0.25

0.255

40(104)

3.85

2.176

160(320)

0.16

0.166

60(140)

1.975

1.453

AUTOMATIC TRANSAXLE CONTROL SYSTEM

ATA -173

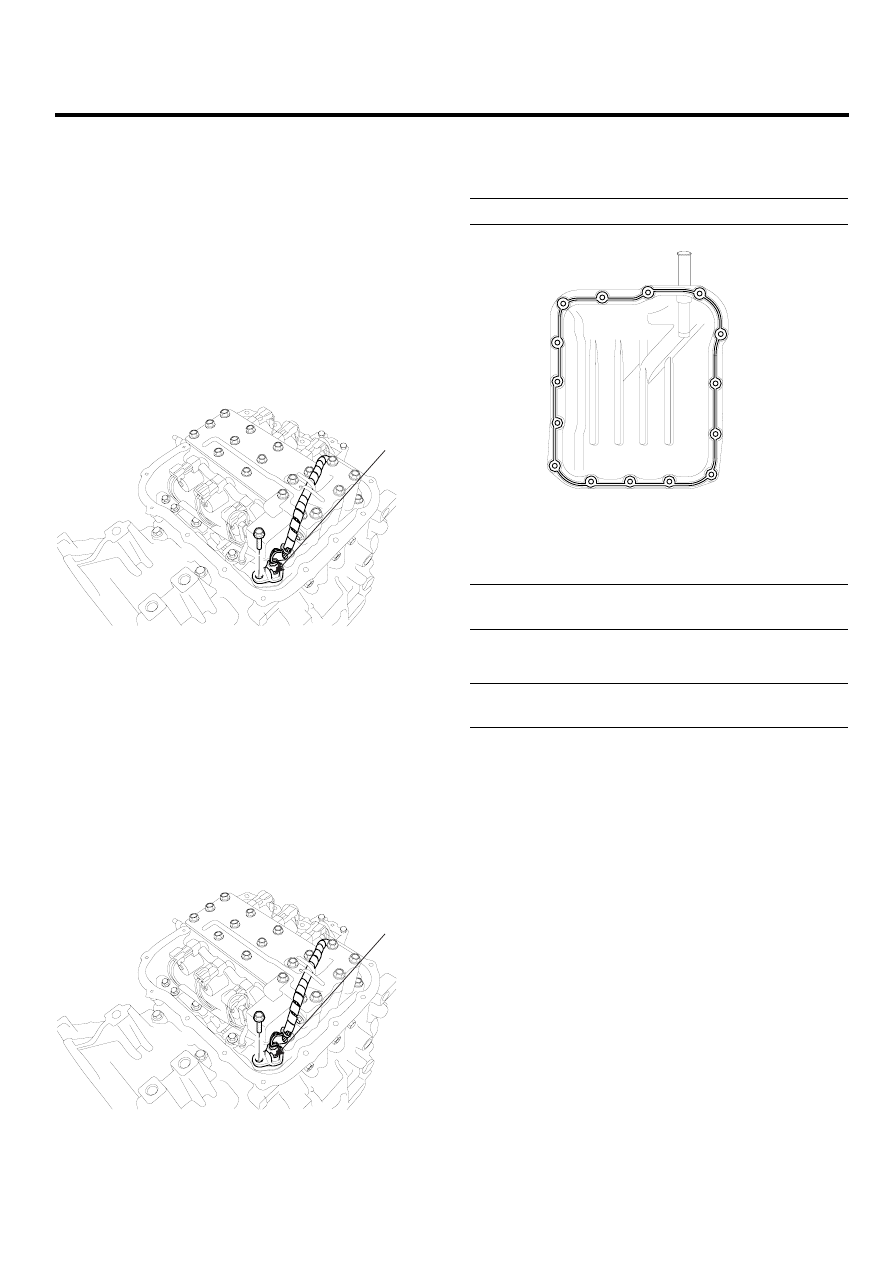

REMOVAL

E7B2DE5B

1.

Remove the battery terminal.

2.

Lift the vehicle.

3.

Remove the splash shield.

4.

Loosen the drain plug and drain the transaxle oil.

5.

Remove the valve body cover.

6.

Disconnect the oil temperature sensor connector and
remove the sensor(A) from the valve body.

A

SCMAT6042D

INSTALLATION

E8C2FBA3

1.

Install the oil temperature sensor(A) and connect the
sensor connector.

CAUTION

When connecting the oil temperature connector,
check the connector for rust, dirt, or oil, then re-
connect it.

A

SCMAT6042D

2.

Continue to apply liquid gasket at application points
at the valve body cover with Ø0.098in(2.5mm) thick-
ness.

Liquid gasket Part name : Threebond 1281B

SCMAT6052D

3.

Tighten the mounting bolt with the specified torque
after installing the valve body cover.

TORQUE:
10~12Nm(1.0~1.2kgf.m, 7~8lb-ft)

4.

Install the drain plug.

TORQUE :
35~45Nm(3.5~4.5kgf.m, 25~32lb-ft)

5.

Installation is the reverse of the removal.
