ATA -162

AUTOMATIC TRANSAXLE (A5HF1)

AUTOMATIC TRANSAXLE
CONTROL SYSTEM

SOLENOID VALVE

DESCRIPTION

E2DBB4CE

TCM calculates the best condition using the information
from all kinds of sensors. If the solenoid valve receives the

information on the oil pressure, the solenoid valve actuates
according to the driving signal. All kinds of regulators in
the valve body are controlled to change the oil passage
and also the line pressure is controlled by TCM.

Each sensor

(Information input)

(Electric signal)

Solenoid

(oil pressure control)

TCM

BKGF017A

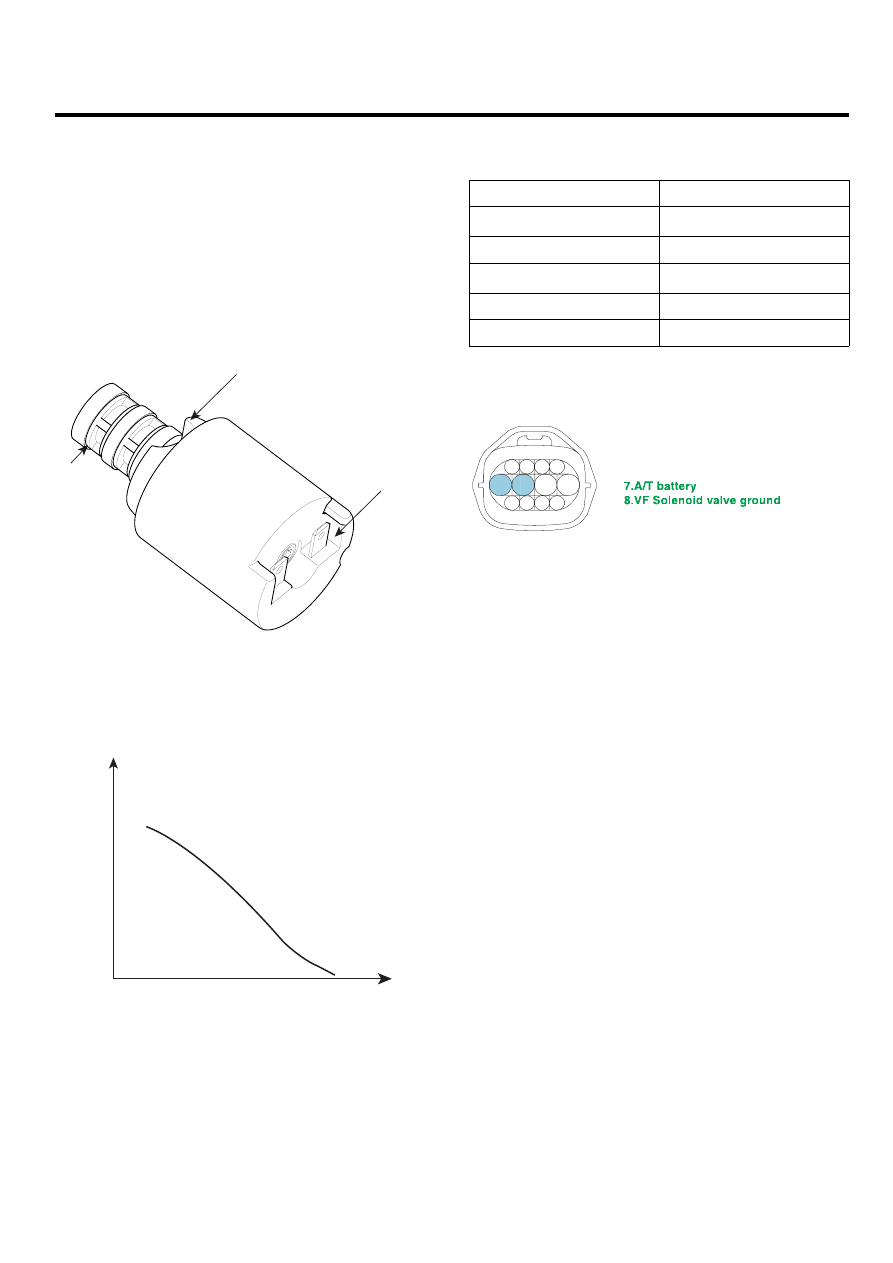

● PWM (Pluse Width Modulation) SOLENOID VALVE

Structure and functions

PWM solenoid valve is composed of five solenoid valves
and the oil capacity in the solenoid valve is changed by the
electric duty value of TCM. The oil pressure of the valve
body and the torque converter engages or disengages the
damper clutch. The solenoid valves send the operating oil
pressure to the clutches and brakes at the each range and
also control the strength and weakness of oil pressure to
reduce the shock when shifting the range.

1

2

3

4

5

9

10

11

12

6

7

8

C209

1.Fluid temperature sensor
2.Fluid temperature sensor ground

7.A/T battery
8.VF Solenoid valve ground

SCMAT6001L

<PWM Solenoid valve>

SCMAT6002L

AUTOMATIC TRANSAXLE CONTROL SYSTEM

ATA -163

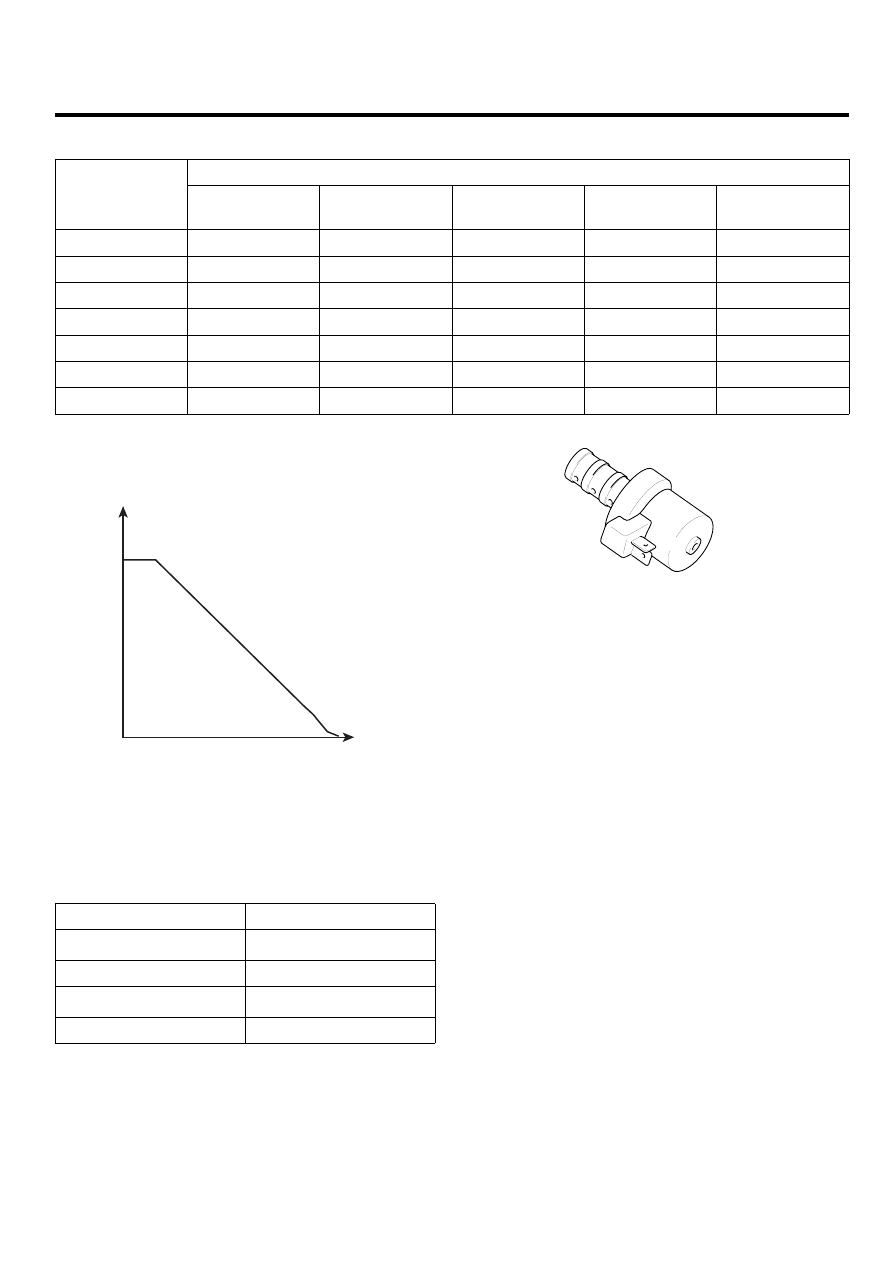

PWM (PLUSE WIDTH MODULATION) SOLENOID

PWM solenoid valve

Range

PCSV-A

(SCSV-B)

PCSV-B

(SCSV-C)

PCSV-C

(SCSV-D)

PCSV-D

(TCC SV)

ON, OFF

(SCSV-A)

N, P

OFF

ON

ON

OFF

ON

1st

ON

ON

OFF

OFF

ON

2nd

ON

OFF

OFF

ON

OFF

3rd

OFF

ON

OFF

ON

OFF

4th

OFF

OFF

ON

ON

OFF

Reverse

OFF

OFF

ON

OFF

ON

LOW

OFF

ON

OFF

OFF

ON

PWM (PLUSE WIDTH MODULATION) SOLENOID
VALVE CONTROL FEATURE

0

20

30

40

60

80 100

Pressure

Duty (%)

<PWM Solenoid valve performance curve>

Performance Curve

BKGF017D

PWM solenoid valve is controlled linearly according to the
duty ratio.

Item

Contents

Type

3way ＆ Normal High

Input resistance

12V

Coil resistance

3.2±0.2Ω

Pulse

50HZ

<PWM Solenoid valve form>

SCMAT6003L

ATA -164

AUTOMATIC TRANSAXLE (A5HF1)

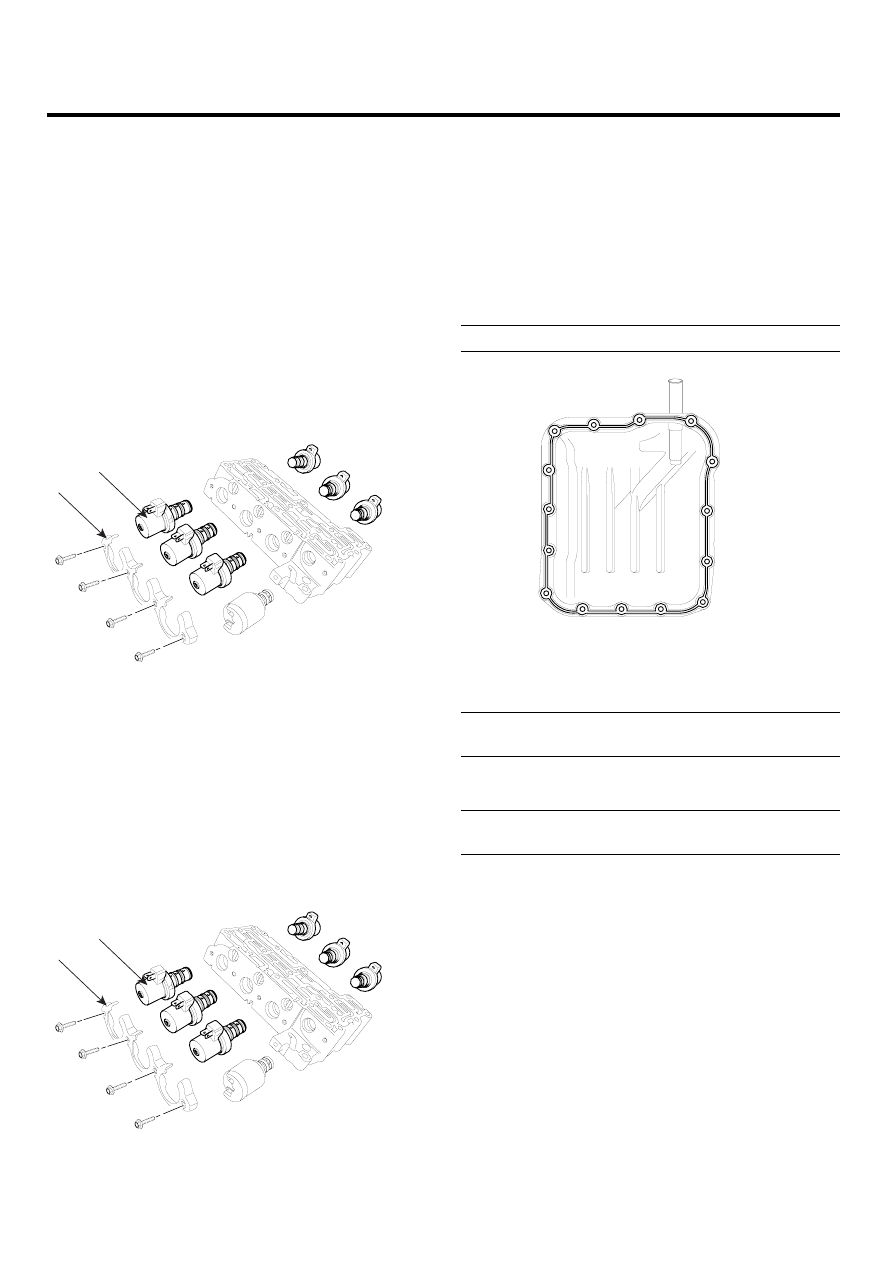

REMOVAL

E91C4C3C

1.

Remove the battery terminal.

2.

Lift the vehicle.

3.

Remove the splash shield.

4.

Loosen the drain plug and drain the transaxle oil.

5.

Remove the valve body cover.

6.

Disconnect the solenoid valve connectors.

7.

Remove the solenoid valve(B-6EA) by removing the
supporting bracket(A).

B

A

SCMAT6033D

INSTALLATION

EFD8F825

1.

Install the solenoid valve(B-6EA) and the supporting
bracket(A).

CAUTION

Apply the ATF oil or White Vaseline to the O-ring
not to be damaged.

B

A

SCMAT6033D

2.

Connect the solenoid valve connector.

CAUTION

When connecting the solenoid valve connector,
check the connector for rust, dirt, or oil, then re-
connect it.

3.

Continue to apply liquid gasket at application points
at the valve body cover with Ø2.5mm (0.098in) thick-
ness.

Liquid gasket Part name : Threebond 1281B

SCMAT6052D

4.

Tighten the mounting bolt with the specified torque
after installing the valve body cover.

TORQUE :
10~12Nm(1.0~1.2kgf.m, 7~8lb-ft)

5.

Install the drain plug and refill the transaxle fluid.

TORQUE :
35~45Nm(3.5~4.5kgf.m, 25~32lb-ft)

6.

Install the splash shield.

7.

Lower the vehicle and install the battery terminal.

AUTOMATIC TRANSAXLE CONTROL SYSTEM

ATA -165

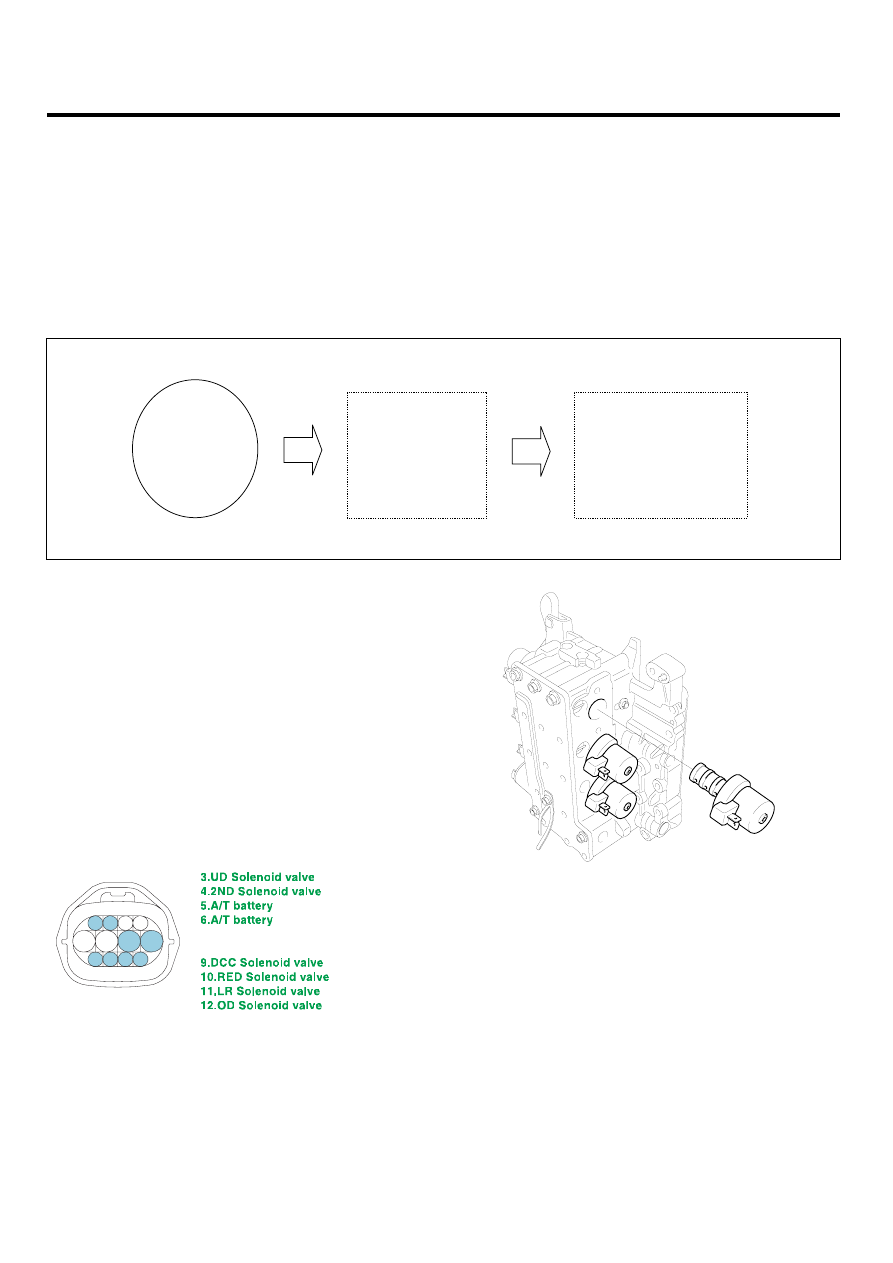

VFS(VARIABLE FORCE
SOLENOID) VALVE

DESCRIPTION

E9FA1D98

VFS valve controls the regulator valve and varies the line
pressure from 4.5bar to 10.5bar according to the throttle
open angle and the shift range. The holder is installed on
the upper side of the case and the filter is installed to the
two places on the holder outside to prevent in the strange
material from flowing in the VFS.

Holder

Connector

Filter

<VFS assembly >

SCMAT6011L

VFS (VARIABLE FORCE SOLENOID) VALVE
CONTROL FEATURE

6.0

0

0.2

0.4

0.6

0.8

1.0

1.2

7.0

Control pressure

(kgf/cm  )

2

Current  (A)

<VFS Solenoid valve performance curve>

BKGF018B

PWM solenoid valve is controlled linearly according to the
current value.

Item

Contents

type

3way ＆ Normal High

Input resistance

12V

Coil resistance

3.5 ± 0.2 Ω

Operating current

0 ~ 1200 mA

Pulse

50HZ

1

2

3

4

5

9

10

11

12

6

7

8

C209

1.Fluid temperature sensor
2.Fluid temperature sensor ground
3.UD Solenoid valve
4.2ND Solenoid valve
5.A/T battery
6.A/T battery

9.DCC Solenoid valve
10.RED Solenoid valve
11.LR Solenoid valve
12.OD Solenoid valve

SCMAT6009L
