AT -96
AUTOMATIC TRANSAXLE (F4A51)

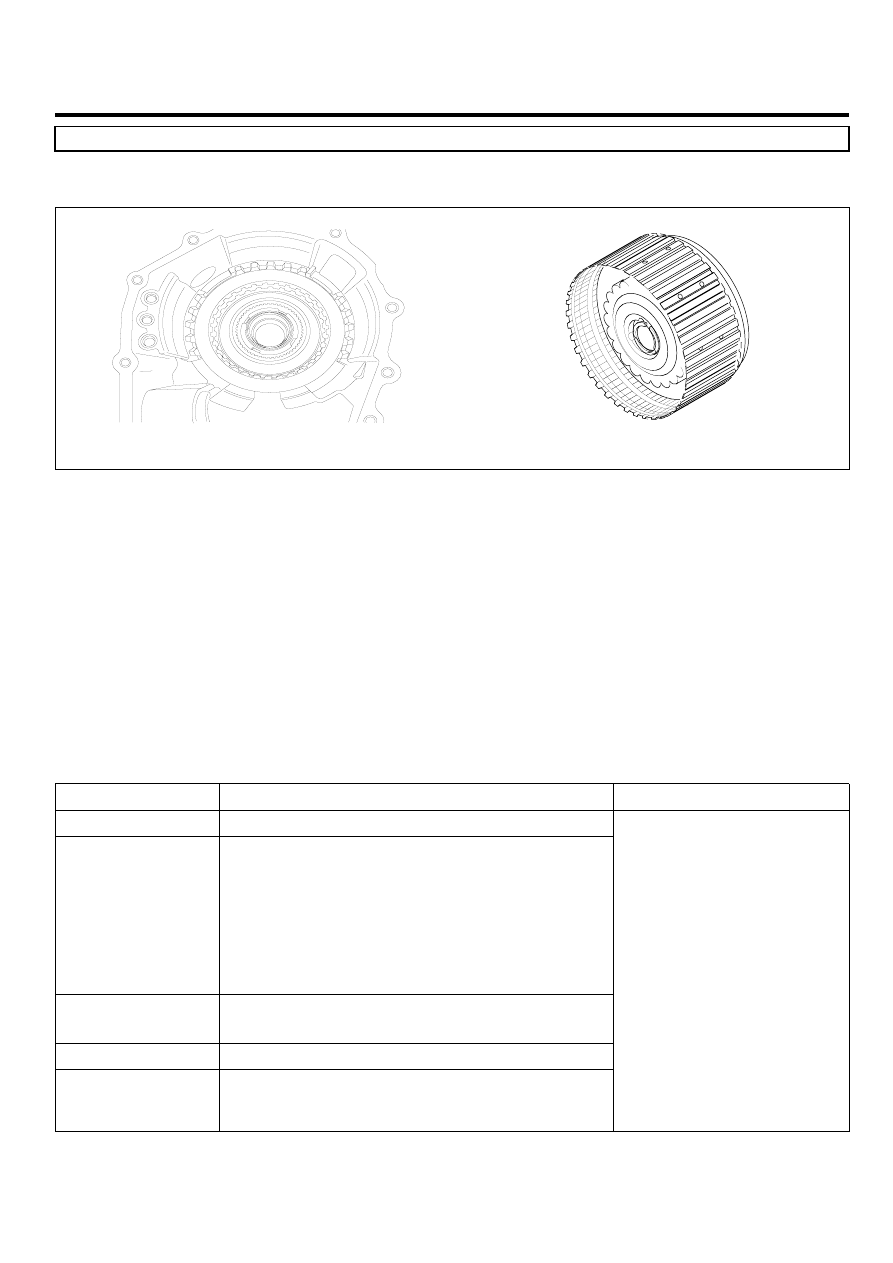

OPERATING ELEMENT OF EACH SHIFTING RANGE
UD/C
OD/C
REV/C
2ND/B
LR/B
OWC
P
●
R
●
●
N
●
D1
●
●
○
D2
●
●
D3
●
●
D4
●
●
※ Low ＆ Reverse Brake is released when the vehicle speed is over 7Km/h(5 MPH).
Stall test procedure in D3 and reason
Procedure
1.
Warm up the engine
2.

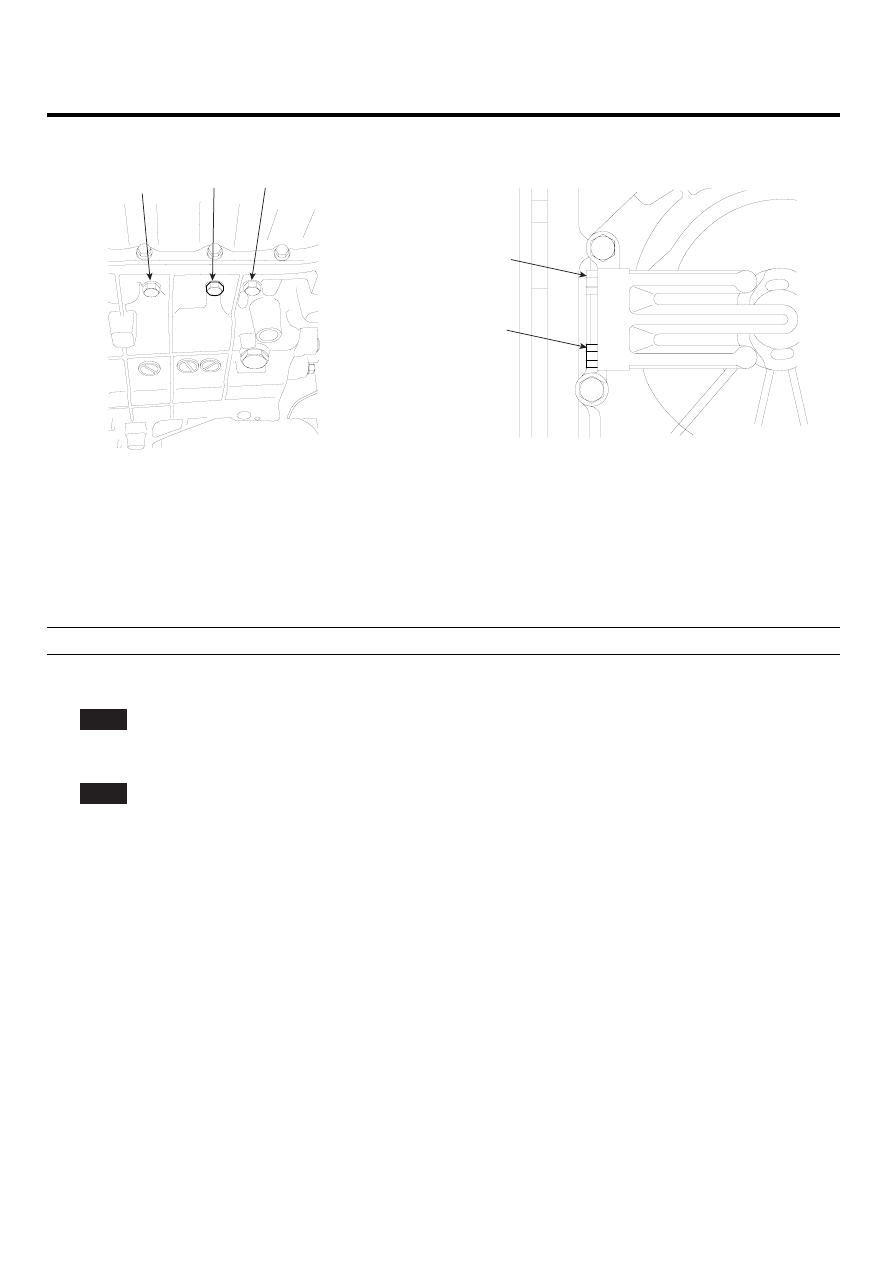

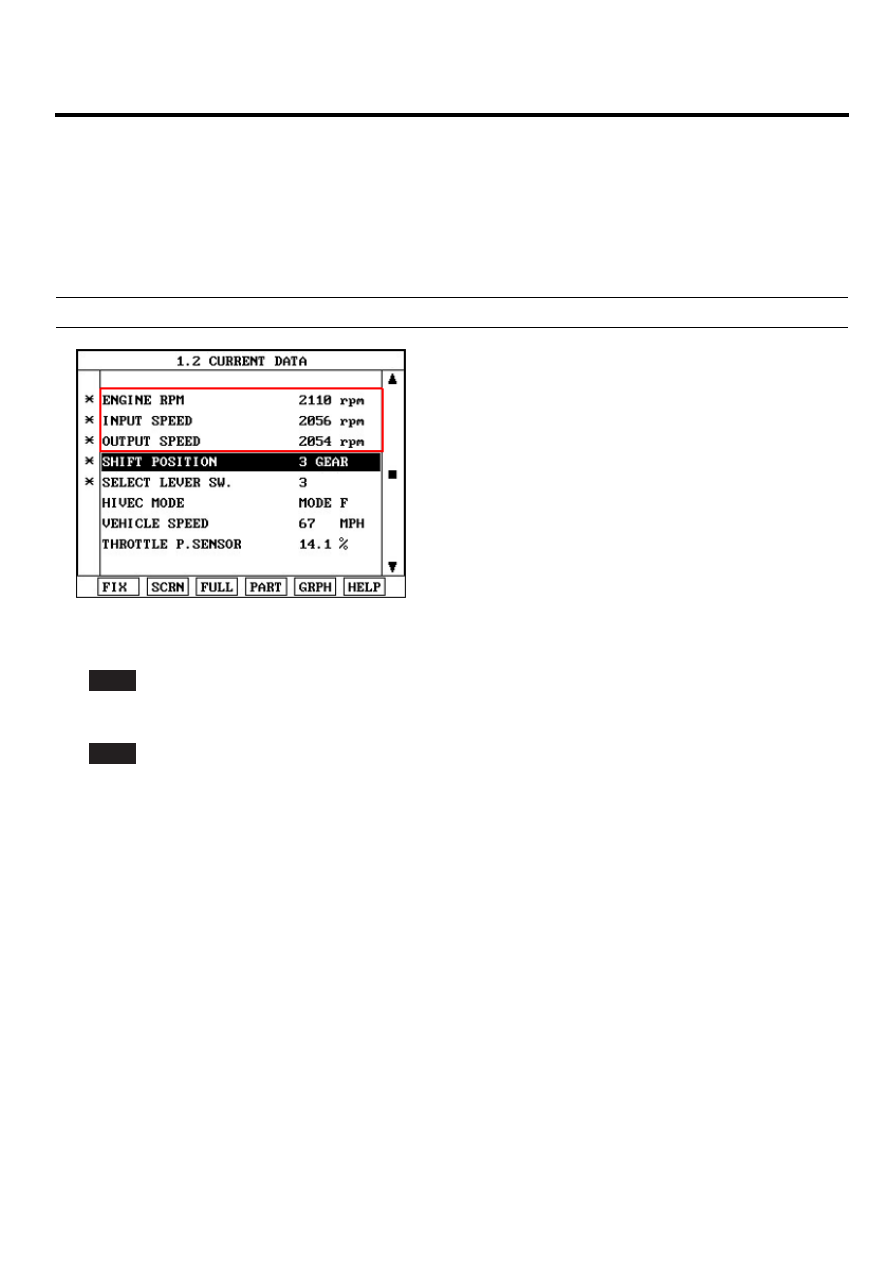

Set 3rd gear hold by disconnecting the solenoid valve connector. Fully depress the brake pedal, then place the
transaxle gear lever into "D" range. Press and hold the accelerator pedal to the floor for no more than eight
seconds while observing the engine, input speed,
and output speed RPM values.
* The slippage of 3rd gear operating parts can be detected by stall test in D3
Reason for stall test
1.
If there is no mechanical defaults in A/T, all slippage occurs in torque converter.
2.
Therefore, engine revolution is output, but input and output speed revolution must be "zero" due to wheel’s lock.
3.
If OD clutch system(3rd gear operating part) has faults, input speed revolution will be out of specification.
4.
If output speed revolution is output. It means that the foot brake force is not applied fully. Retesting using greater
braking force is required.
5.
Is "STALL TEST " within specification?
YES
▶ Go to "Signal Circuit Inspection" procedure.
NO
▶ Go to "Component Inspection" procedure.
CAUTION
● Do not let anybody stand in front of or behind the vehicle while this test is being carried out.
● Check the A/T fluid level and temperature and the engine coolant temperature.
-
Fluid level : At the hot mark on the oil level gauge.
-
Fluid temperature : 80~100 C (176 F~ 212 F).
-
Engine coolant temperature : 80~100 C (176 F~ 212 F).
● Chock both rear wheels(left and right).
● Pull the parking brake lever on with the brake pedal fully depressed.
● The throttle should not be left fully open for more than eight seconds.
● If carrying out the stall test two or more times, move the select lever to the "N" position and run the engine
at 1,000 rpm to let the A/T fluid cool down before carrying out subsequent tests.
