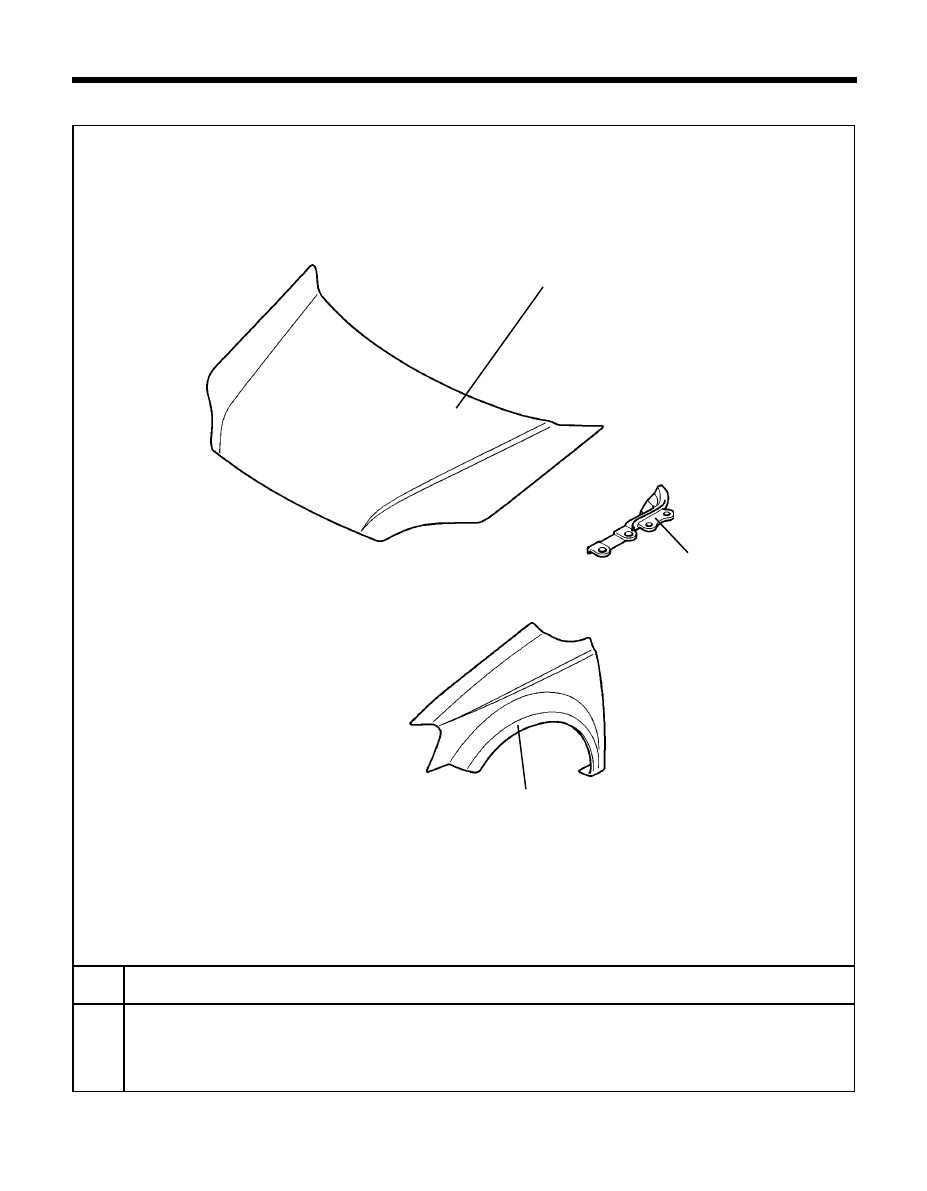

BODY CONSTRUCTION -  Fender & Hood

FENDER & HOOD

No

1

Hood panel

2

Hinge hood side reinforcement

LH/RH

3

Fender panel

LH/RH

PART NAME

    TB-690

 1

 3

 2

44

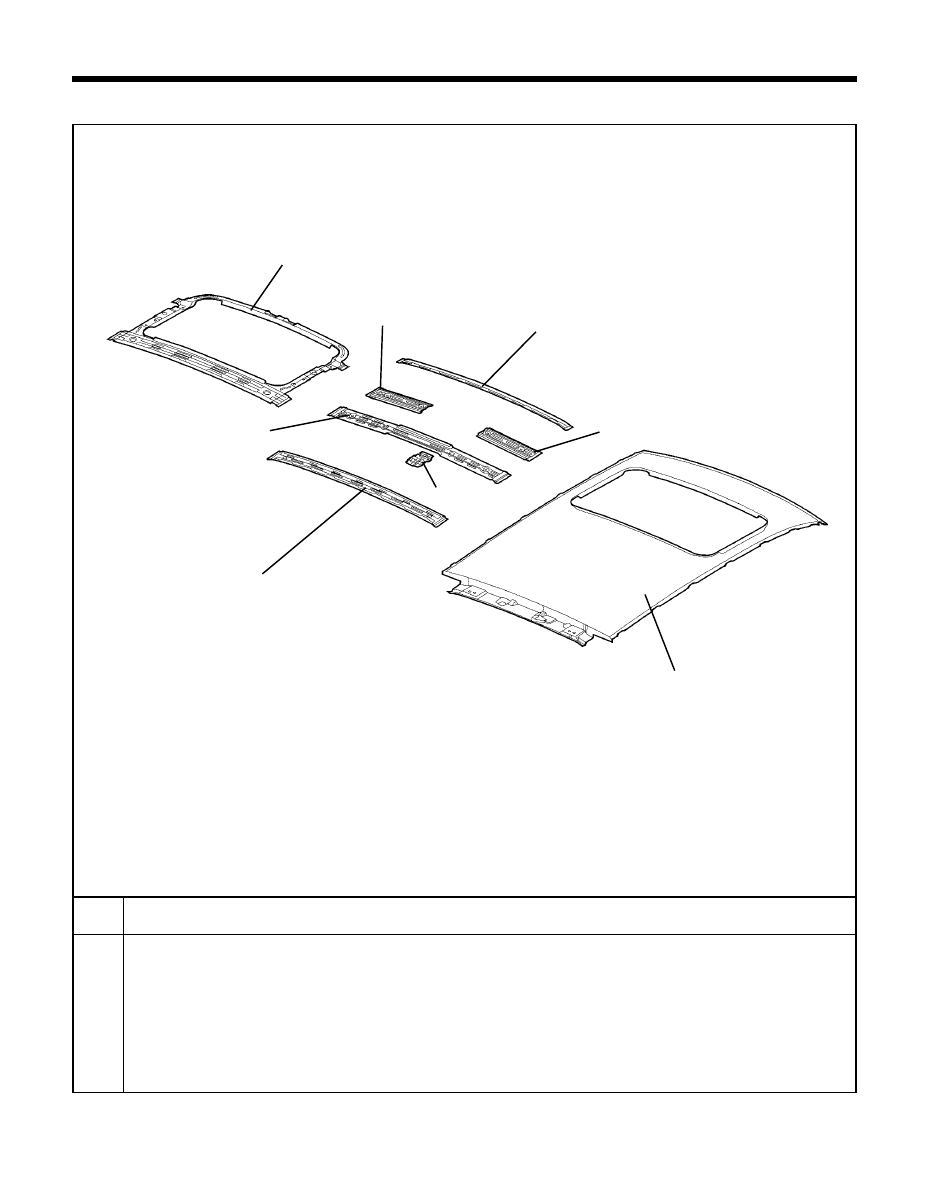

BODY CONSTRUCTION  -  Roof

ROOF

NO

1
2
3
4
5
6
7
8

 PART NAME

Roof panel
Roof center front rail
Roof center side rail

LH

Roof center side rail

RH

Roof center rail
Room lamp mounting bracket assembly
Roof center rear rail
Sunroof reinforcement ring assembly

TB-700

3

 5

 4

 6

 1

 2

 8

 7

45

SECTION D-D'

SECTION B-B'

SECTION C-C'

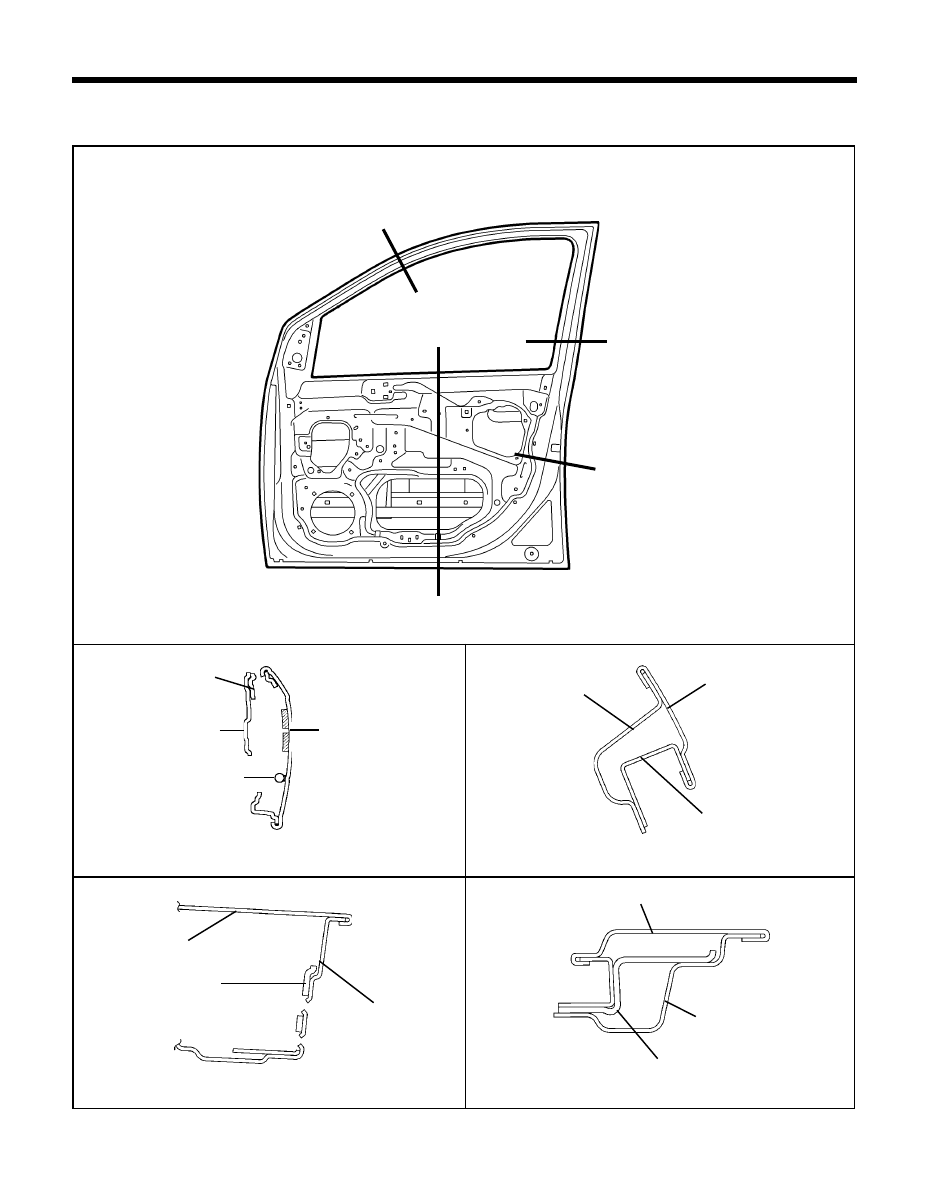

BODY CONSTRUCTION -  Door <Front door>

710-4

710-3

DOOR

1. FRONT DOOR

SECTION A-A'

710-1

   710-2

TB-710

Front door inner
panel

Front door inner member

Front door outer panel

Front door inner panel

Front door channel
& reinforcement

Front door outer panel

<Cross-sectional Views>

Front door outer panel

Front door channel
& reinforcement

Front door inner panel

Front door reinforcement
beam

Front door outer panel

Front door channel
& reinforcement

Front door channel & reinforcement

Î

Î

A'

A

B'

B

Ó

D'

D

Í

Í

C'

C

Í

Ó

Í

46

SECTION C-C'

SECTION D-D'

SECTION B-B'

SECTION A-A'

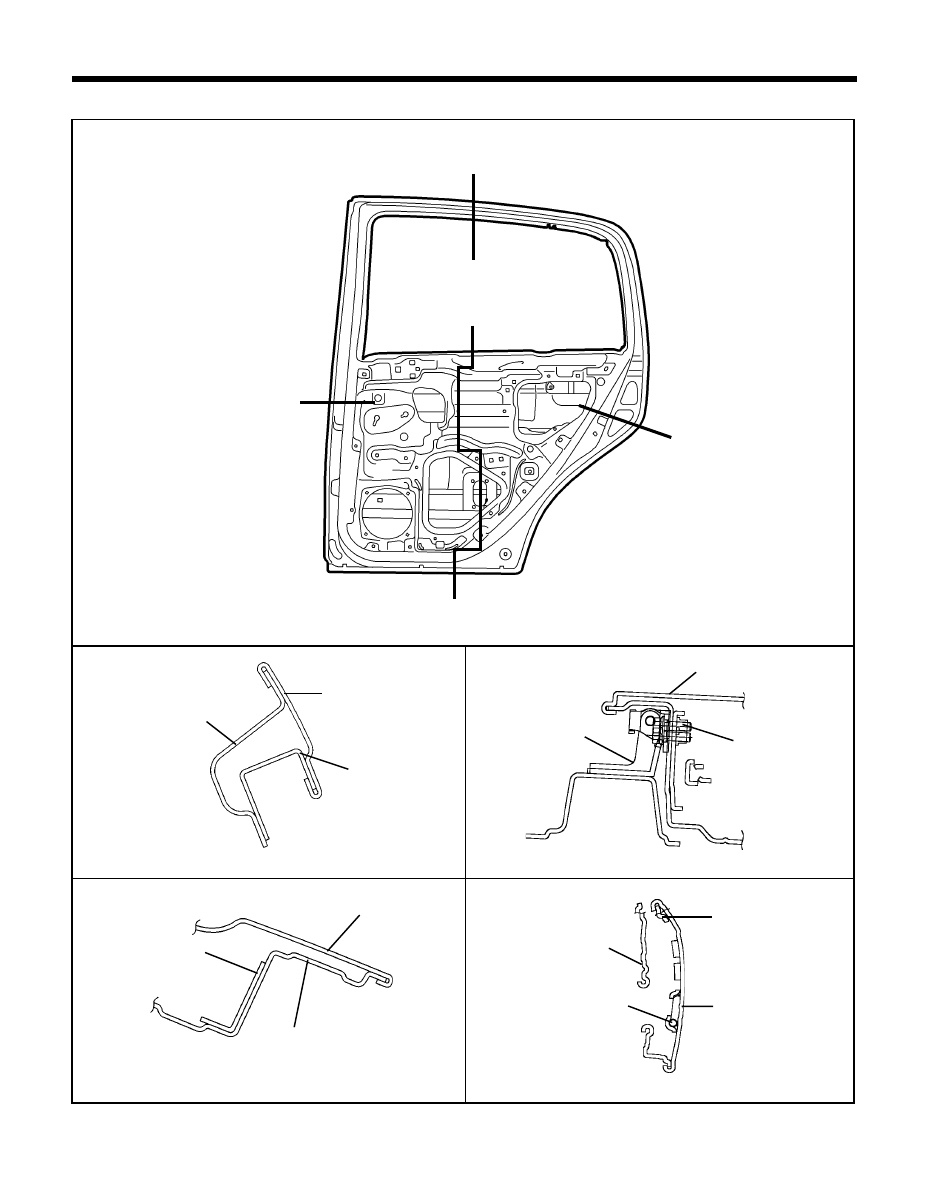

BODY CONSTRUCTION -  Door<Rear door>

760-4

760-3

760-1

760-2

TB-760

Rear door outer panel

Rear door channel
reinforcement

Rear door inner panel

Rear door inner panel

Rear door reinforcement beam

Rear door outer panel

Rear door outer panel

Rear door panel

Rear door upper hinge

2. REAR DOOR

<Cross-sectional Views>

Rear door channel
& reinforcement

Rear door inner
panel

Door side hinge
mounting bolt

Rear door channel
& reinforcement

A'

Í

Í

A

B'

Í

B

C

C'

Ó

Í

D

D'

Ó

Í

Í
