Hummer H2. Manual - part 901

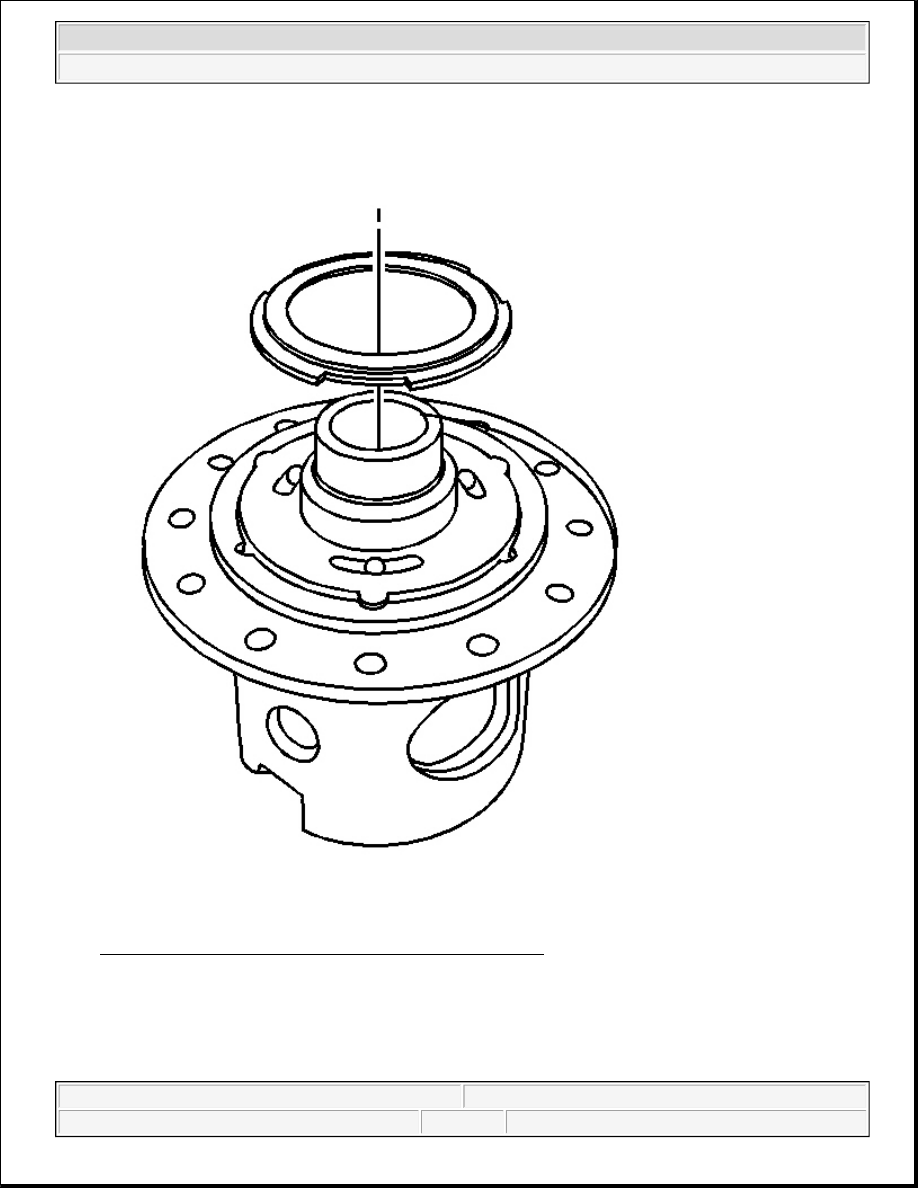

Fig. 41: Outboard Locking Differential Ball Bearing Plate
Courtesy of GENERAL MOTORS CORP.

13. Install the outboard locking differential ball bearing plate.



2004 Hummer H2

2004 DRIVELINE/AXLE Drive Axle - Locking/Limited Slip - Hummer H2

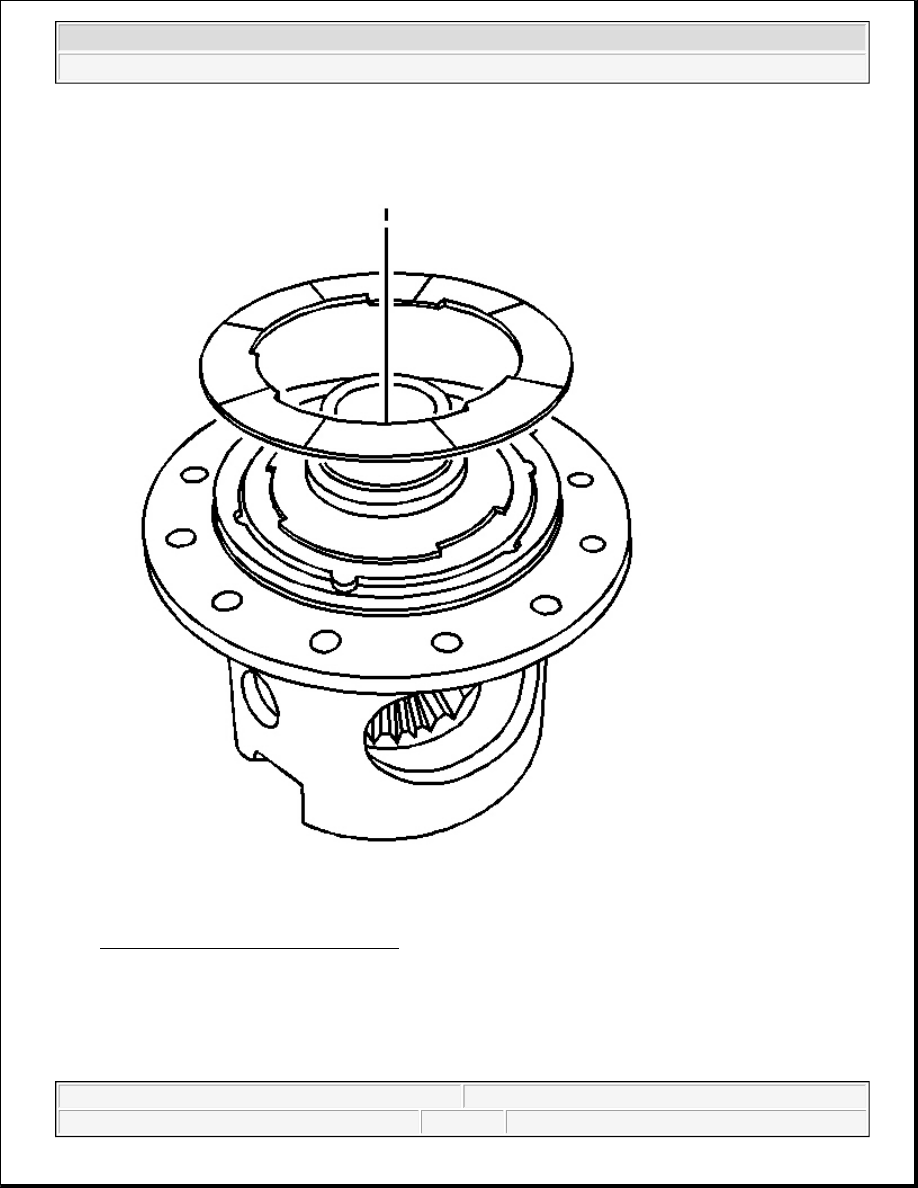

Fig. 42: Locking Differential Coil Plate
Courtesy of GENERAL MOTORS CORP.

14. Install the locking differential coil plate.



2004 Hummer H2

2004 DRIVELINE/AXLE Drive Axle - Locking/Limited Slip - Hummer H2

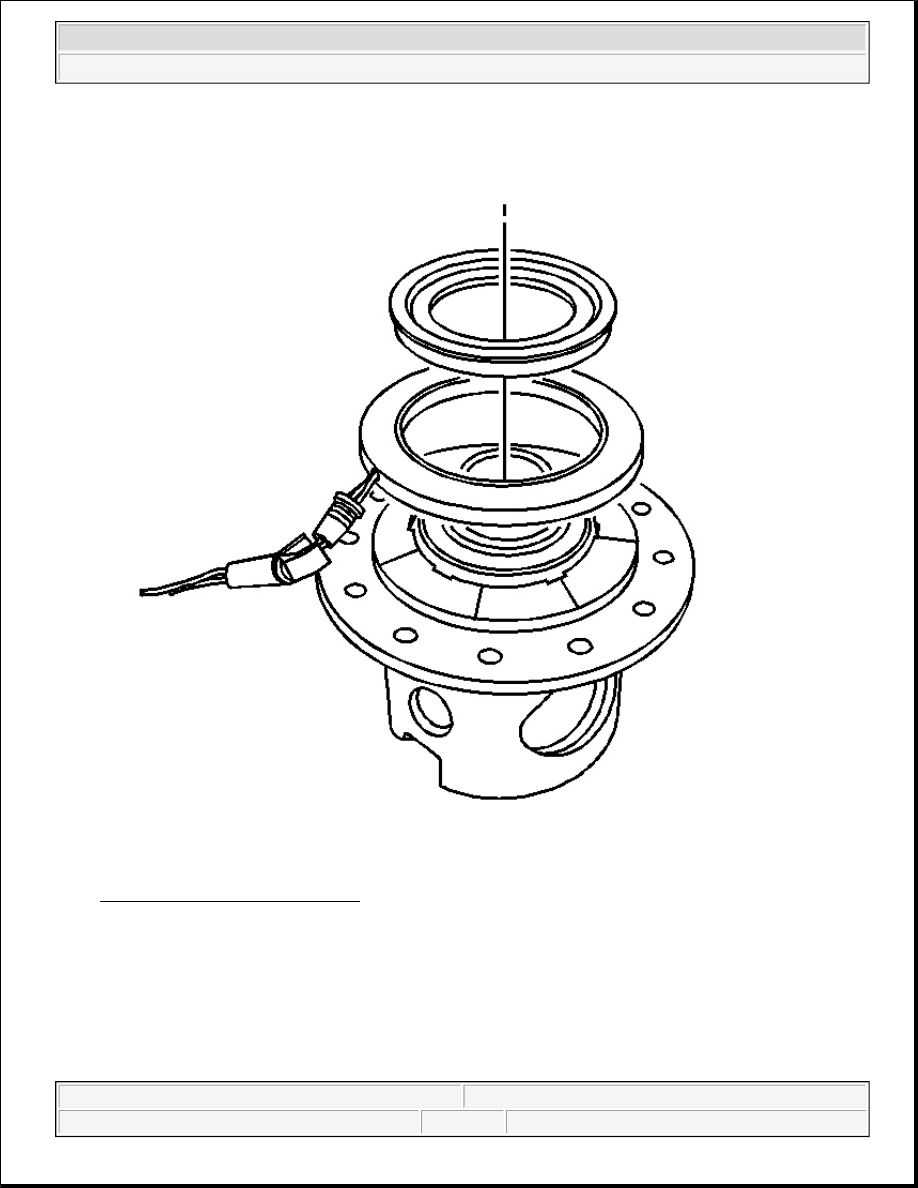

Fig. 43: Differential Bearing Race
Courtesy of GENERAL MOTORS CORP.

15. Install the locking differential coil assembly.

16. Install the differential bearing race.



2004 Hummer H2

2004 DRIVELINE/AXLE Drive Axle - Locking/Limited Slip - Hummer H2

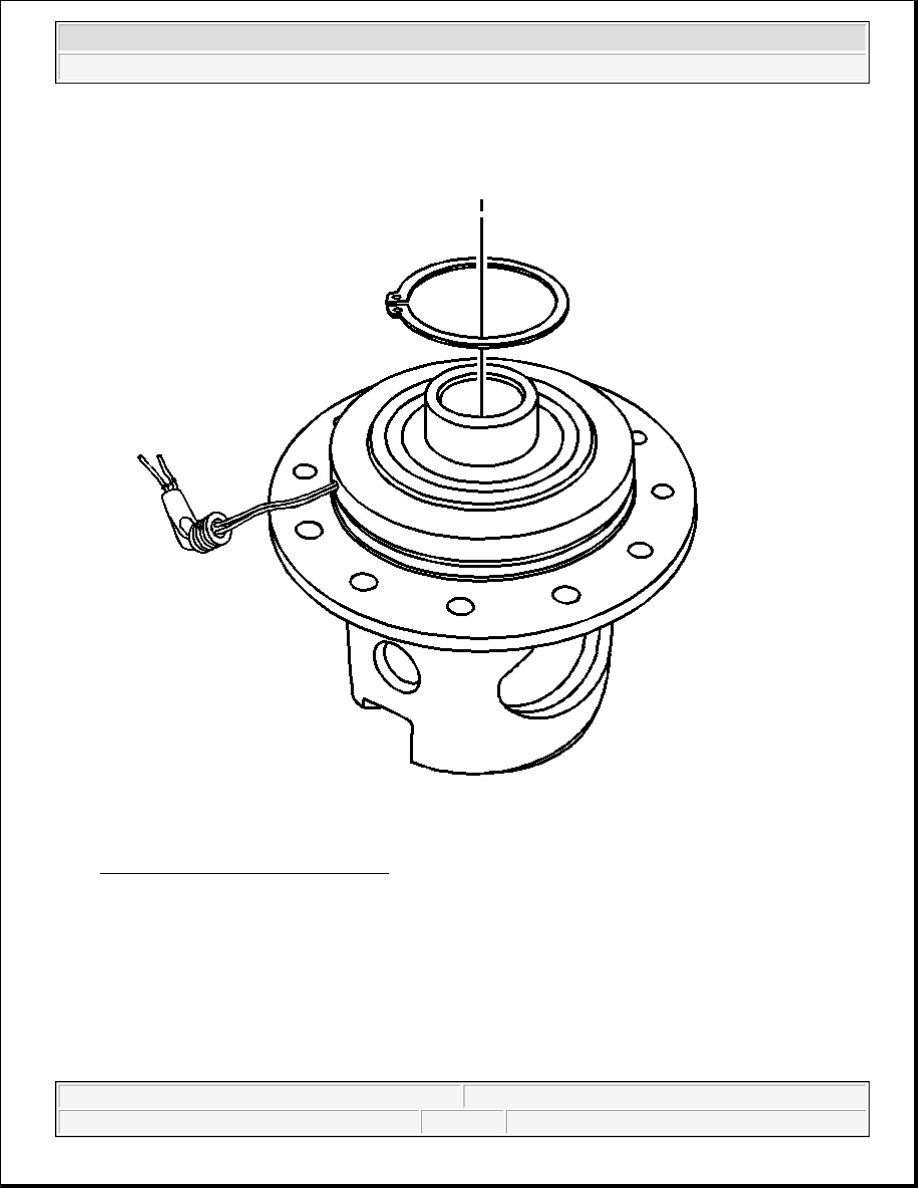

Fig. 44: Differential Bearing Retainer
Courtesy of GENERAL MOTORS CORP.

17. Install the differential bearing retainer by performing the following steps:

1. Install the differential bearing retainer.

2. With the aid of an assistant, push the differential bearing race down towards the differential case in

order to compress the differential bearing retainer and differential coil assembly against the locking

IMPORTANT: The differential bearing race must be compressed in order to install the

differential bearing retainer.



2004 Hummer H2

2004 DRIVELINE/AXLE Drive Axle - Locking/Limited Slip - Hummer H2
