Hummer H2. Manual - part 900

Fig. 37: Locking Differential Clutch Springs
Courtesy of GENERAL MOTORS CORP.

9. Install the locking differential clutch springs.



2004 Hummer H2

2004 DRIVELINE/AXLE Drive Axle - Locking/Limited Slip - Hummer H2



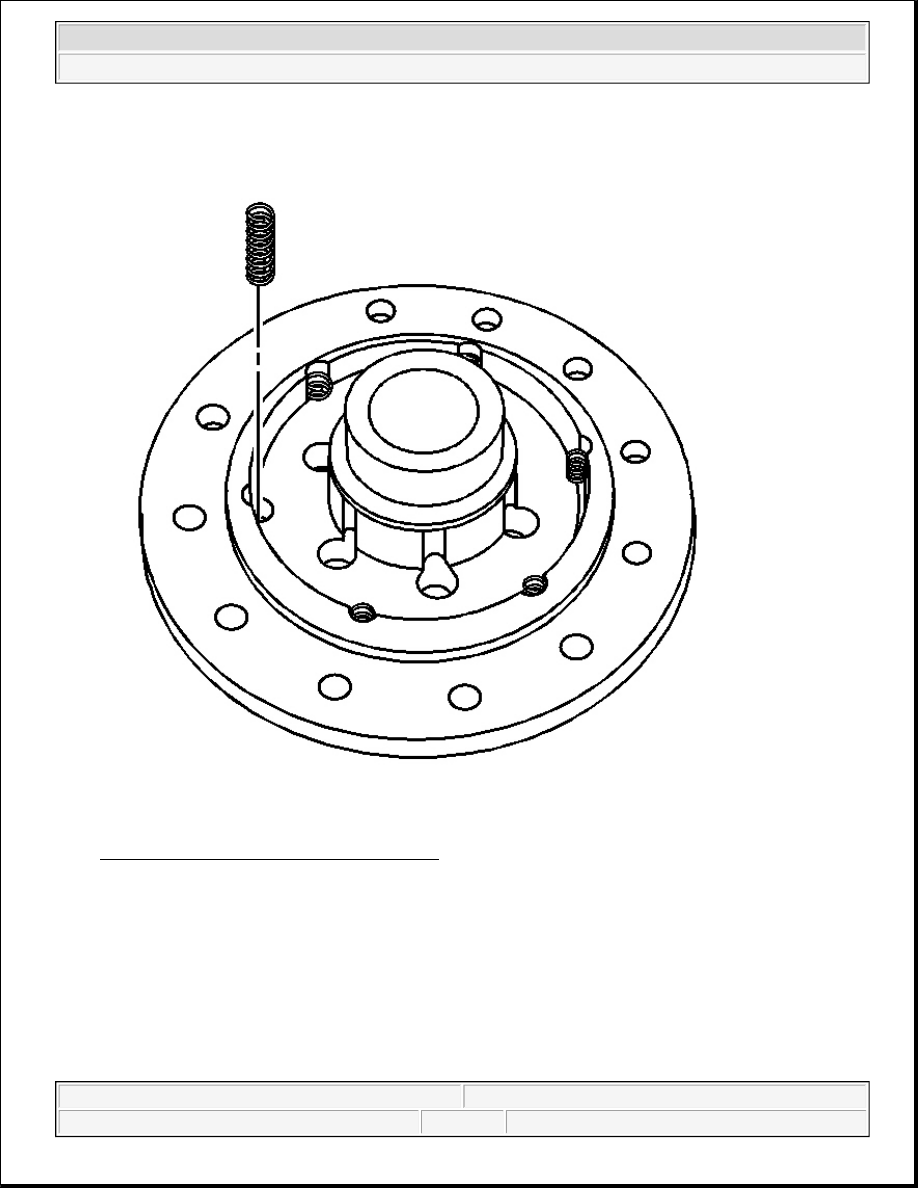

Fig. 38: Locking Differential Clutch Spring Retainer & Differential Carrier Lock Pins
Courtesy of GENERAL MOTORS CORP.

10. Install the locking differential clutch spring retainer and the differential carrier lock pins.



2004 Hummer H2

2004 DRIVELINE/AXLE Drive Axle - Locking/Limited Slip - Hummer H2



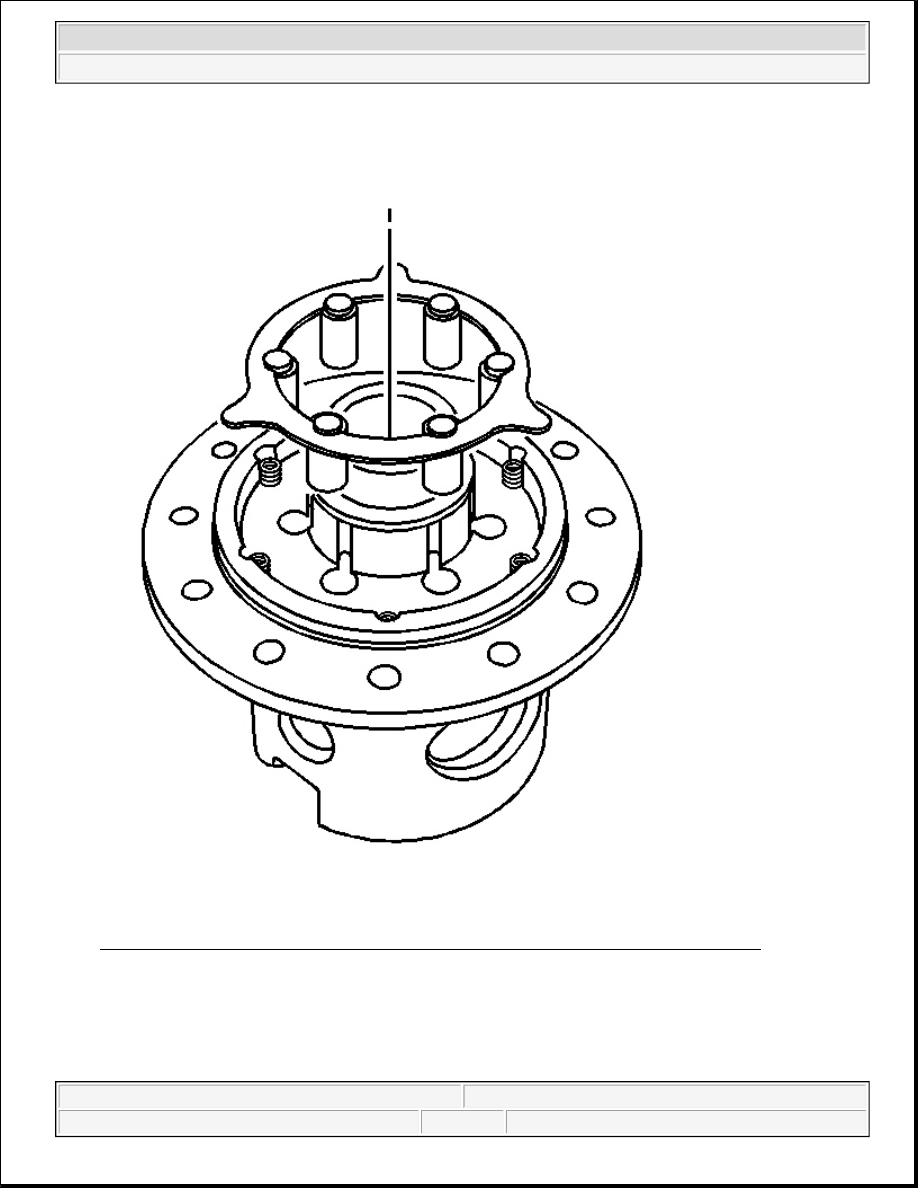

Fig. 39: Inboard Locking Differential Ball Bearing Plate
Courtesy of GENERAL MOTORS CORP.

11. Install the inboard locking differential ball bearing plate.

Place the inboard locking differential ball bearing plate on the three exposed differential clutch springs.



2004 Hummer H2

2004 DRIVELINE/AXLE Drive Axle - Locking/Limited Slip - Hummer H2



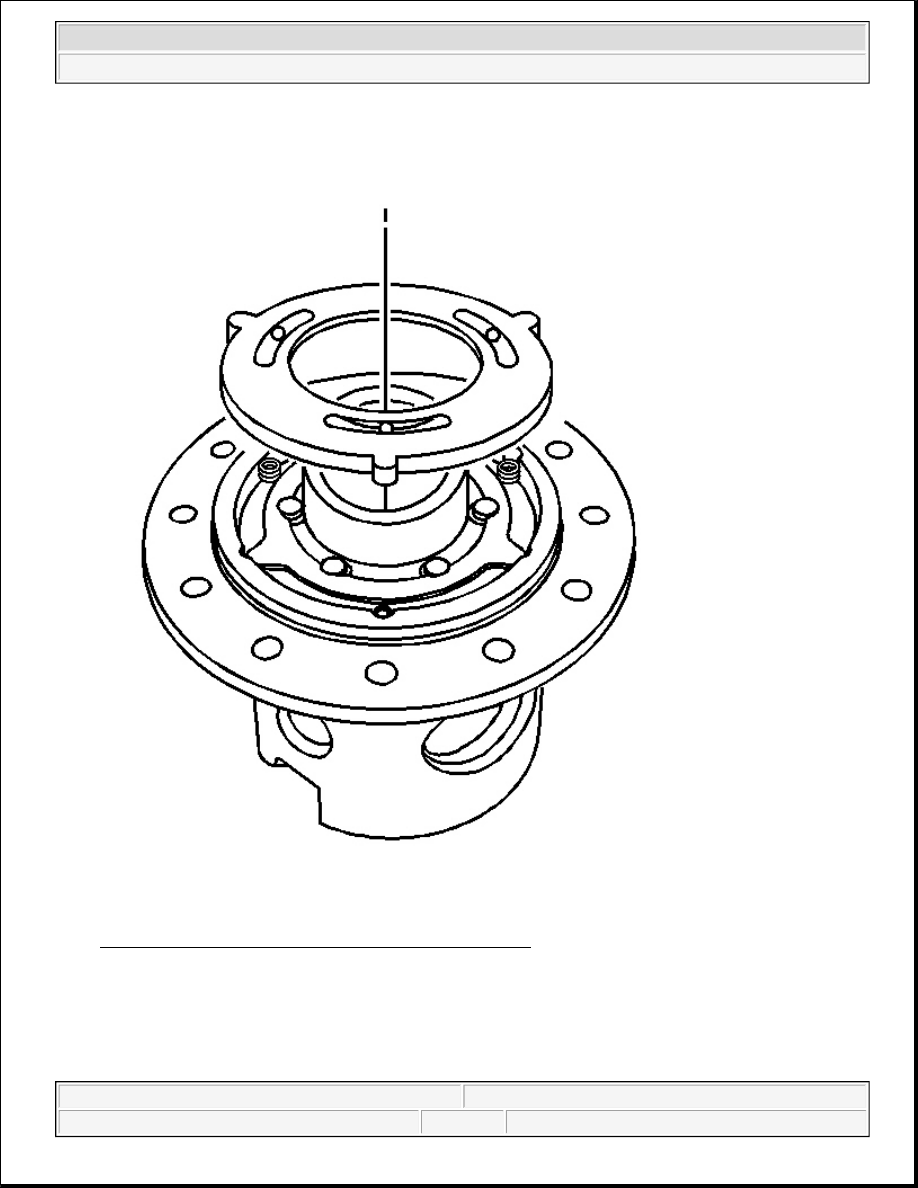

Fig. 40: Locking Differential Ball Bearings
Courtesy of GENERAL MOTORS CORP.

12. Install the locking differential ball bearings.



2004 Hummer H2

2004 DRIVELINE/AXLE Drive Axle - Locking/Limited Slip - Hummer H2
