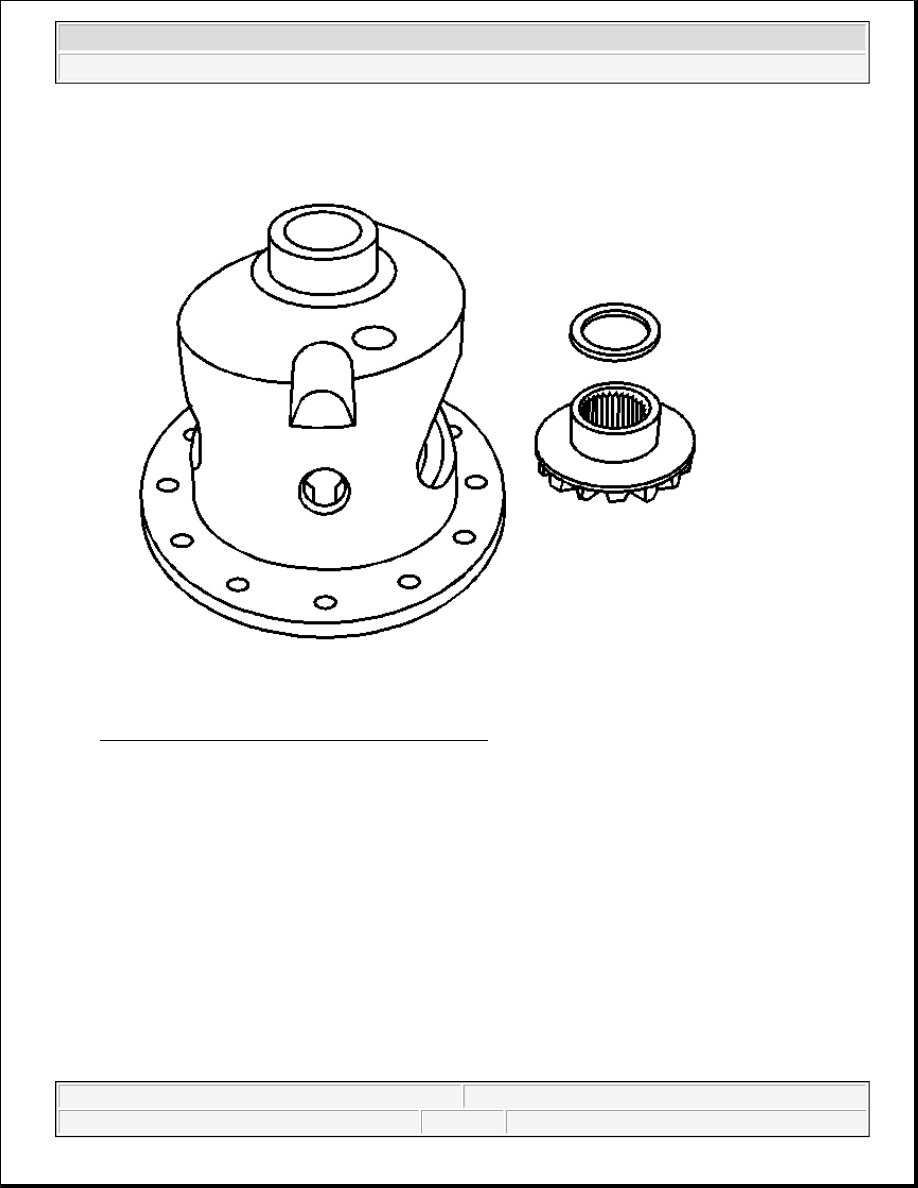

Fig. 33: Differential Side Gears & Thrust Washers
Courtesy of GENERAL MOTORS CORP.

4. Install the differential side gear thrust washer to the differential side gear.

5. Install the differential side gear and thrust washer into the bell side of the differential case.



2004 Hummer H2

2004 DRIVELINE/AXLE Drive Axle - Locking/Limited Slip - Hummer H2



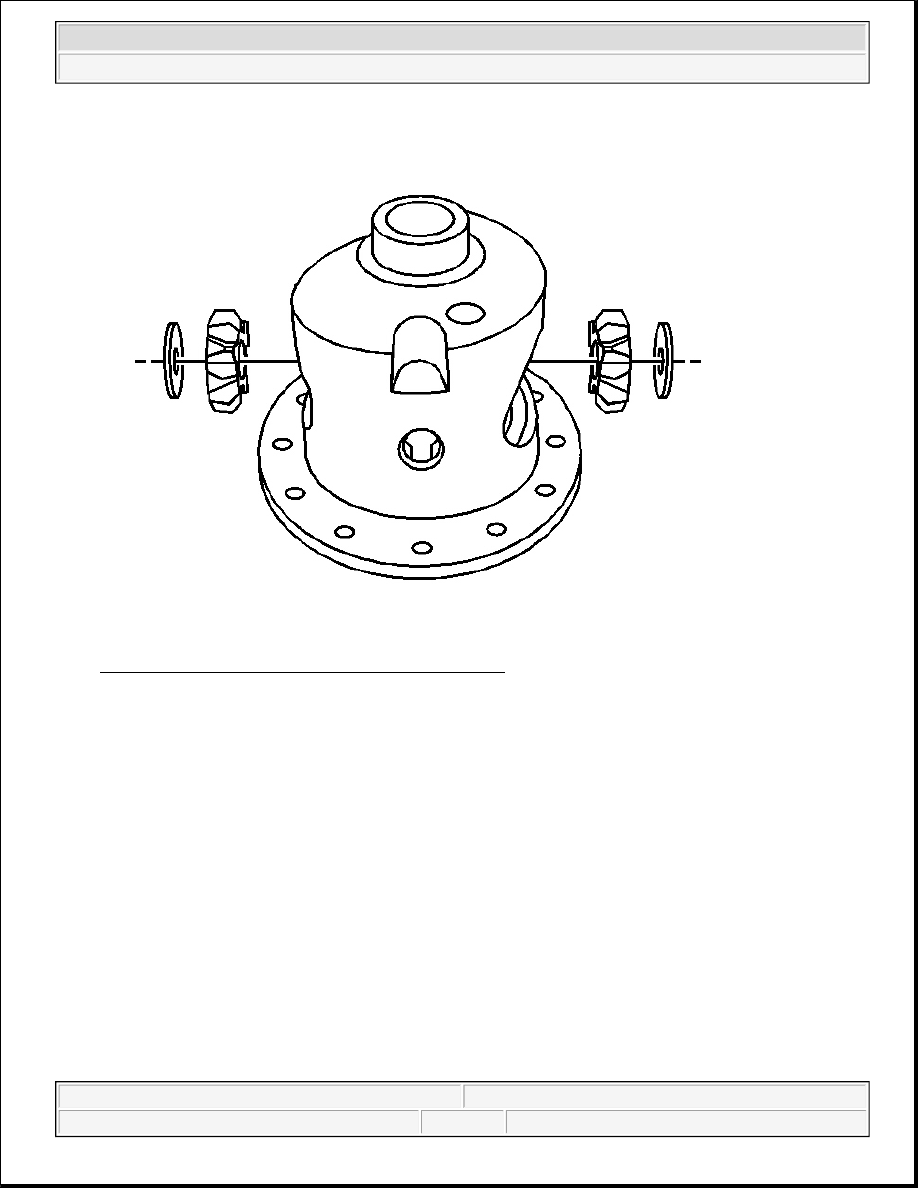

Fig. 34: Differential Pinion Gears & Thrust Washers
Courtesy of GENERAL MOTORS CORP.

6. Install the differential pinion gears and thrust washers by doing the following:

1. Position both pinion gears and thrust washers between the differential side gears.

Place the pinion gears and thrust washers 180 degrees across from each other.

2. Rotate the differential side gears until both pinion gears and thrust washers are directly opposite the

opening in the differential case.

Line up the pinion shaft opening in each of the pinion gears with the pinion shaft opening in the
differential case.



2004 Hummer H2

2004 DRIVELINE/AXLE Drive Axle - Locking/Limited Slip - Hummer H2



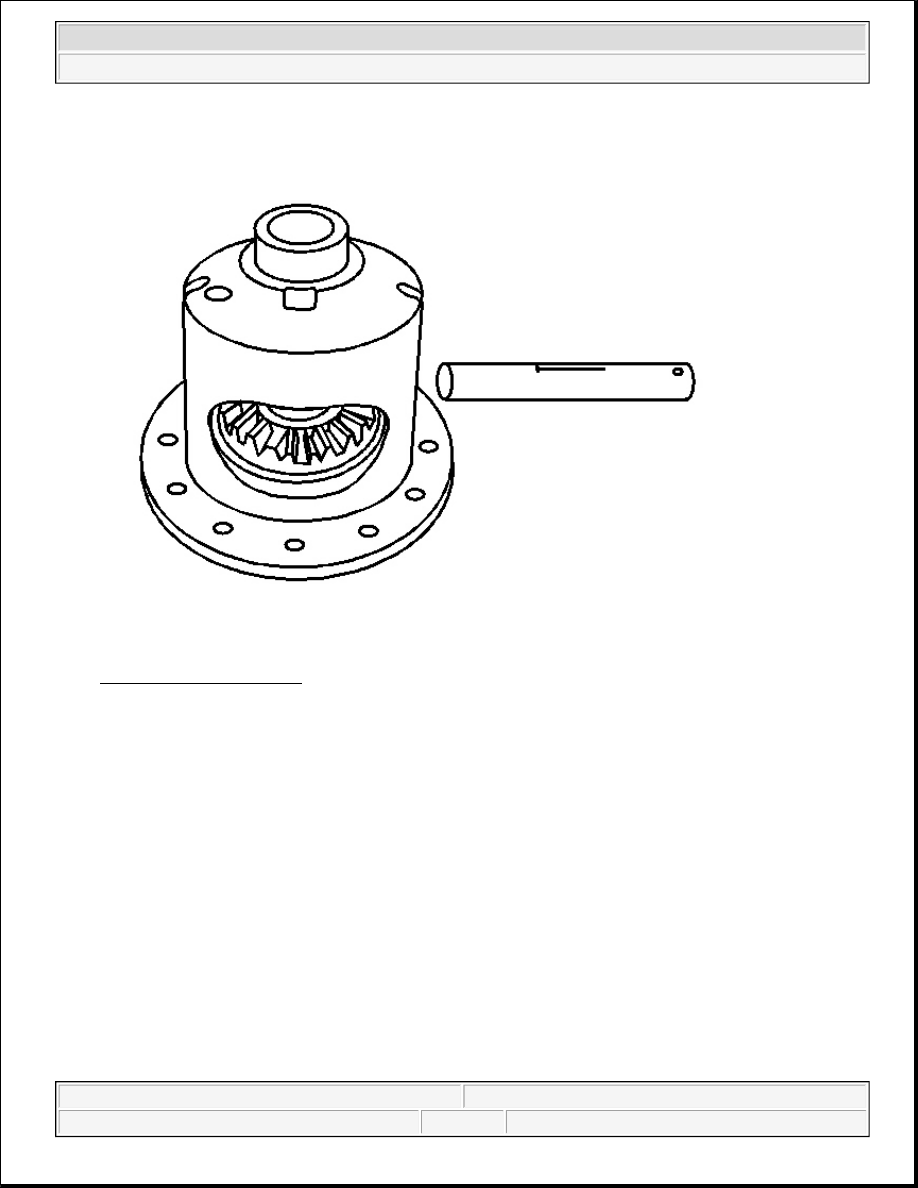

Fig. 35: Pinion Gear Shaft
Courtesy of GENERAL MOTORS CORP.

7. Install the pinion shaft.



2004 Hummer H2

2004 DRIVELINE/AXLE Drive Axle - Locking/Limited Slip - Hummer H2



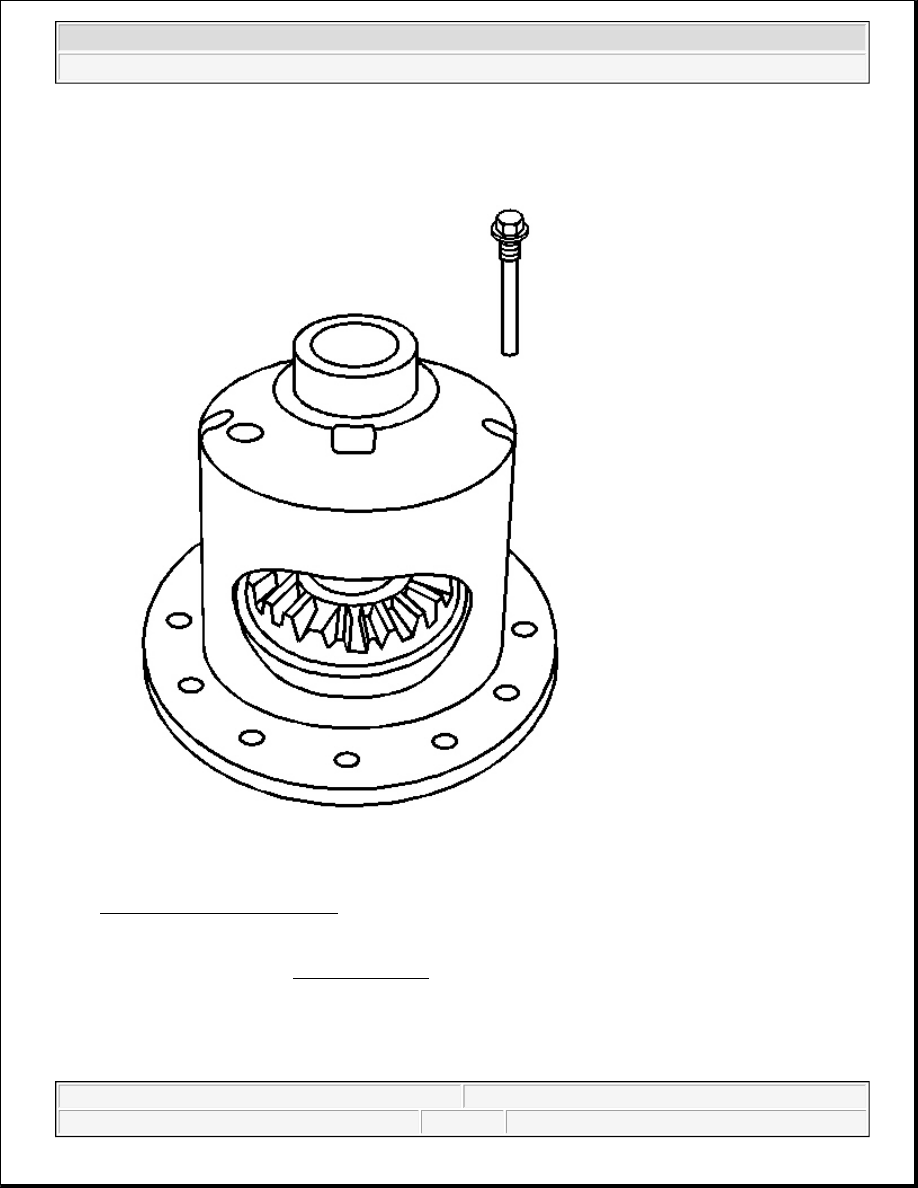

Fig. 36: Pinion Shaft Lock Bolt
Courtesy of GENERAL MOTORS CORP.

8. Install a new pinion shaft lock bolt.

Tighten: Tighten the new pinion shaft lock bolt to 50 N.m (37 lb ft).

NOTE:

Refer to Fastener Notice in Cautions and Notices.
