3. Install the differential bearing retainer.

Ensure the differential bearing retainer is evenly and fully seated in the differential bearing retainer
slot before releasing the differential bearing race.

18. Install the ring gear. Refer to Drive Pinion and Ring Gear Replacement in Rear Drive Axle.

19. Install the differential side bearings. Refer to Differential Side Bearings Replacement in Rear Drive

Axle.

DESCRIPTION AND OPERATION

LOCKING DIFFERENTIAL DESCRIPTION AND OPERATION

The electronic locking differential consists of the following components:

z

Differential Bearing Retainer Race

z

Differential Bearing Race

z

Differential Bearing Assembly

z

Locking Differential Coil Assembly

z

Locking Differential Coil Plate

z

Locking Differential Ball Bearing Plate - Outboard

z

Locking Differential Ball Bearing Assembly

z

Locking Differential Ball Bearing Plate - Inboard

z

Locking Differential Clutch Spring

z

Locking Differential Clutch Spring Retainer

z

Differential Carrier Lock Pins

z

Differential Case

z

Differential Pinion Gears and Thrust Washers

z

Locking Differential Side Gear and Thrust Washer

z

Differential Side Gear and Thrust Washer

The electronic locking differential is a combination of an open differential and an electrically energized coil
assembly. When the coil is not energized, the differential operates in the same manner as an open differential.
The locking differential coil assembly is located on the left side of the differential case. The locking differential
coil is held stationary within the differential case housing through the lock tab on the coil and the hold down
lock that attaches to the differential bearing cap. The remainder of the locking components: the locking
differential coil plate, the locking differential ball bearing plates, the clutch springs and the lock pins are located
within the differential case and rotate at the same speed as the differential case. The locking function of the
differential is accomplished by a combination of vehicle and user inputs. In order to the differential coil to
energize, the vehicle must be operating under the following conditions:



2004 Hummer H2

2004 DRIVELINE/AXLE Drive Axle - Locking/Limited Slip - Hummer H2



z

The transfer case indicator switch indicates 4 LO.

z

The vehicle's speed must be less than 4.8 km/h (3 mph).

z

The differential lock switch is turned ON.

z

The left to right rear wheel speed difference is less than 50 RPM.

Once the above conditions are met, the automatic transfer case shift control module sends a signal to energize
the coil. The energized coil creates a magnetic field that allows the outboard locking differential ball bearing
plate to rotate at a slower speed than inboard locking differential ball bearing plate and the differential case. The
difference in the 2 speeds causes the ball bearings that are between the outboard and the inboard ball bearing
plate to move along their respective ramps and separate the 2 ball bearing plates. The separation increases the
width of the plates and allows the differential lock pins to be pushed through the differential case towards the
locking differential side gear. The locking differential side gear has 6 notches that accept the differential lock
pins. Once the differential lock pins are engaged, the locking differential side gear can no longer rotate
independently of the differential case. Since the locking differential side gear is now apart of the differential
case and turning at the same speed as the ring gear, the pinion gears that are perpendicular to the locking
differential side gear, cannot rotate within the differential case. This causes the bell-side differential side gear to
rotate at the same speed as the locking differential side gear. The driving force generated by the ring gear, is
transmitted through the locking differential side gear, through the pinion gears, to the bell-side differential side
gear. The axle shafts, which are splined to each side gear, receive the force and rotate together at the same speed
along with the differential case and ring gear. The will remain the locked position until the vehicle's speed
exceeds 32 km/h (20 mph) or the operator turns OFF the differential lock switch or the transfer case is shifted
into 4 HI, 2 HI or NEUTRAL. The locking differential coil will de-energize and the differential will function as
an open differential.

SPECIAL TOOLS AND EQUIPMENT

SPECIAL TOOLS

Special Tools

Illustration

Tool Number/Description

J 7872

Magnetic Base Dial Indicator



2004 Hummer H2

2004 DRIVELINE/AXLE Drive Axle - Locking/Limited Slip - Hummer H2



2004 DRIVELINE/AXLE

Front Drive Axle - Hummer H2

SPECIFICATIONS

FASTENER TIGHTENING SPECIFICATIONS

Fastener Tightening Specifications

AXLE PRELOAD AND BACKLASH SPECIFICATIONS

Axle Preload and Backlash Specifications

SEALERS, ADHESIVES, AND LUBRICANTS

Sealers, Adhesives, and Lubricants

Application

Specification

Metric

English

Differential Adjuster Lock Nut Bolt

20 N.m

15 lb ft

Differential Carrier Assembly Case Bolts

78 N.m

58 lb ft

Differential Carrier Assembly Mounting Bolts and Nuts

100 N.m

75 lb ft

Differential Carrier Assembly Hole Plug

28 N.m

21 lb ft

Inner Axle Shaft Housing to Frame Mounting Bolt and Nut

100 N.m

75 lb ft

Inner Axle Shaft Housing to Differential Carrier Assembly Bolts

40 N.m

30 lb ft

Pinion Shaft Lock Bolt

53 N.m

39 lb ft

Plug, Drain and Fill

33 N.m

24 lb ft

Ring Gear Bolts

138 N.m

102 lb ft

Stabilizer Link Nut

18 N.m

13 lb ft

Vent Connector

20 N.m

15 lb ft

Wheel Drive Shaft Inboard Flange Bolts

79 N.m

58 lb ft

Yoke Retainer Bolts

25 N.m

18 lb ft

Application

Specification

Metric

English

Backlash

0.08-0.25 mm

0.003-0.010 in

Backlash (Preferred)

0.13-0.18 mm

0.005-0.007 in

Pinion Bearing Preload, New Bearings

1.7-3.4 N.m

15-30 lb in

Pinion Bearing Preload, Used Bearings

1.1-2.3 N.m

10-20 lb in

Pinion and Differential Case Bearing Preload, New Bearings

3.4-6.2 N.m

30-55 lb in

Pinion and Differential Case Bearing Preload, Used Bearings

2.8-5.1 N.m

25-45 lb in

Application

Type of

Material

GM Part Number



2004 Hummer H2

2004 DRIVELINE/AXLE Front Drive Axle - Hummer H2





2004 Hummer H2

2004 DRIVELINE/AXLE Front Drive Axle - Hummer H2



COMPONENT LOCATOR

FRONT DRIVE AXLE DISASSEMBLED VIEWS

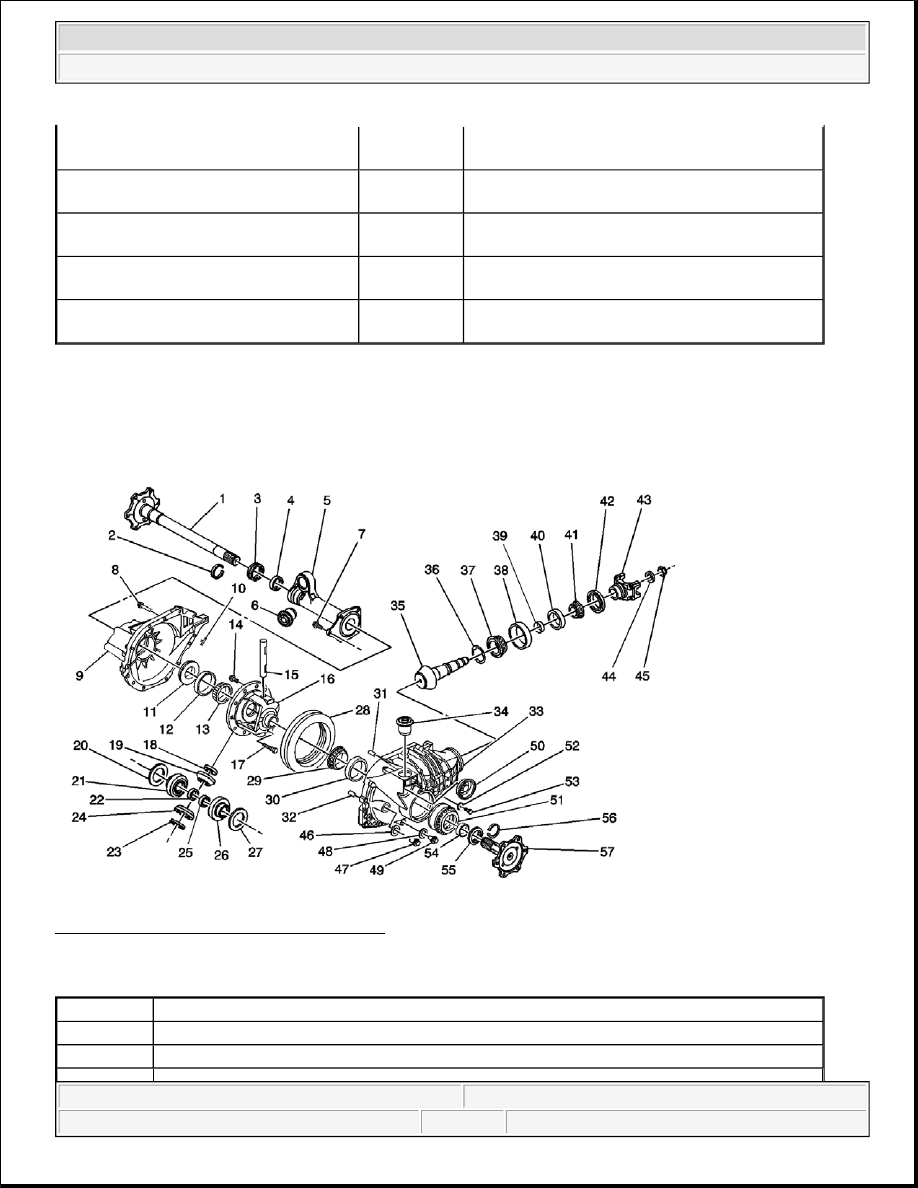

Fig. 1: Front Drive Axle Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 1

Differential Carrier Assembly Case
Mating Surfaces

Sealant

1052942 (Canadian P/N 10953466) or

equivalent

Differential Carrier Assembly Hole Plug

Sealant

12346004 (Canadian P/N 10953480) or

equivalent

Front Drive Axle

Lubricant

12378261 (Canadian P/N 10953455) or

equivalent meeting GM Specification 9986115

Front Drive Axle Inner Shaft Housing to
Differential Carrier Assembly

Sealant

1052942 (Canadian P/N 10953466) or

equivalent

Pinion Yoke Splines

Sealant

12346004 (Canadian P/N 10953480) or

equivalent

Callout

Component Name

1

Front Drive Axle Inner Shaft

2

Front Drive Axle Inner Shaft Retaining Ring
