2. Install the park brake warning lamp switch mounting bolt.

Tighten: Tighten the bolt to 3 N.m (25 lb in).

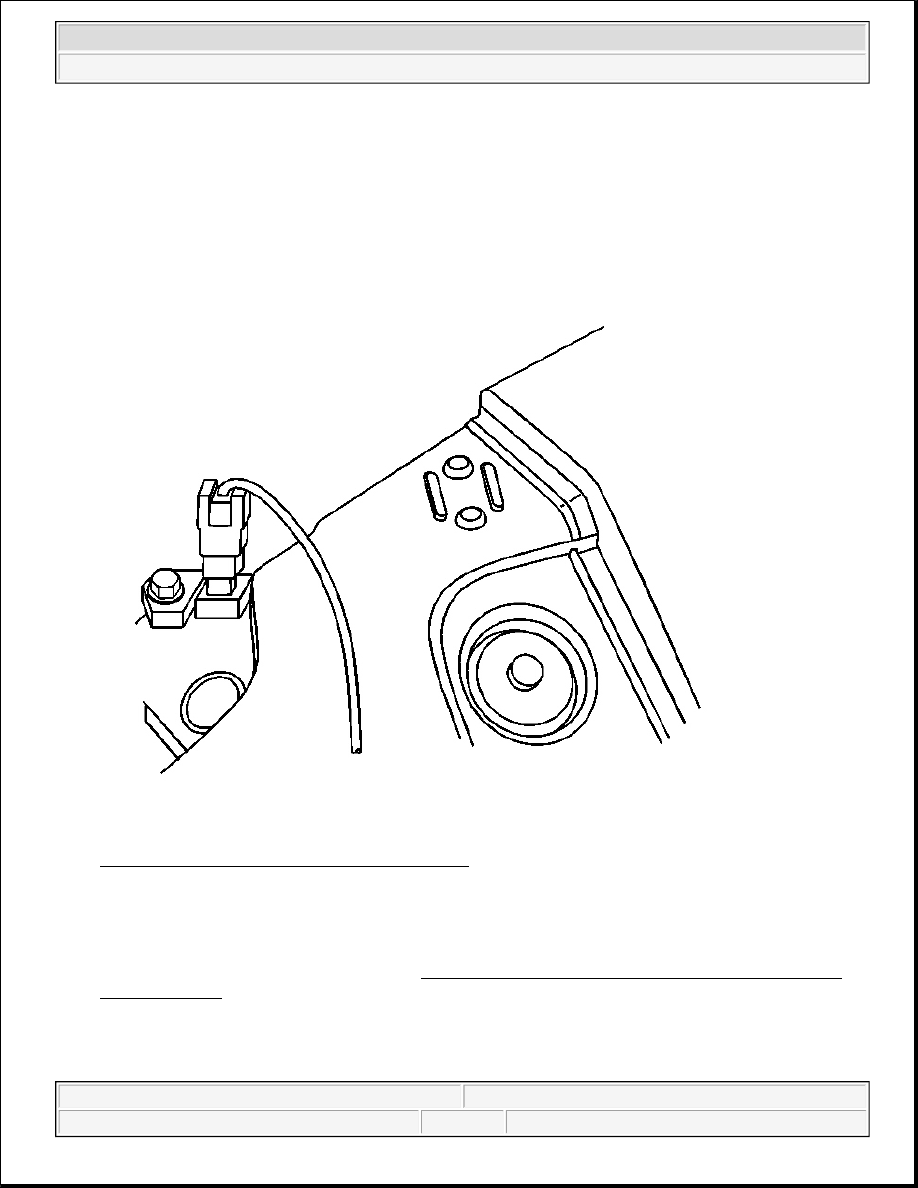

Fig. 20: Park Brake Warning Lamp Connection
Courtesy of GENERAL MOTORS CORP.

3. Connect the park brake warning lamp switch connector.

4. Install the MID-Bussed Electrical Center bracket.

5. Connect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure

(Single Battery) in Engine Electrical.

PARK BRAKE CABLE REPLACEMENT - FRONT

Removal Procedure

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 BRAKES Park Brake - Hummer H2



1. Disable the park brake cable automatic adjuster. Refer to Disabling the Park Brake Cable Automatic

Adjuster In Park Brake.

2. Remove the park brake pedal. Refer to Park Brake Pedal Assembly Replacement .

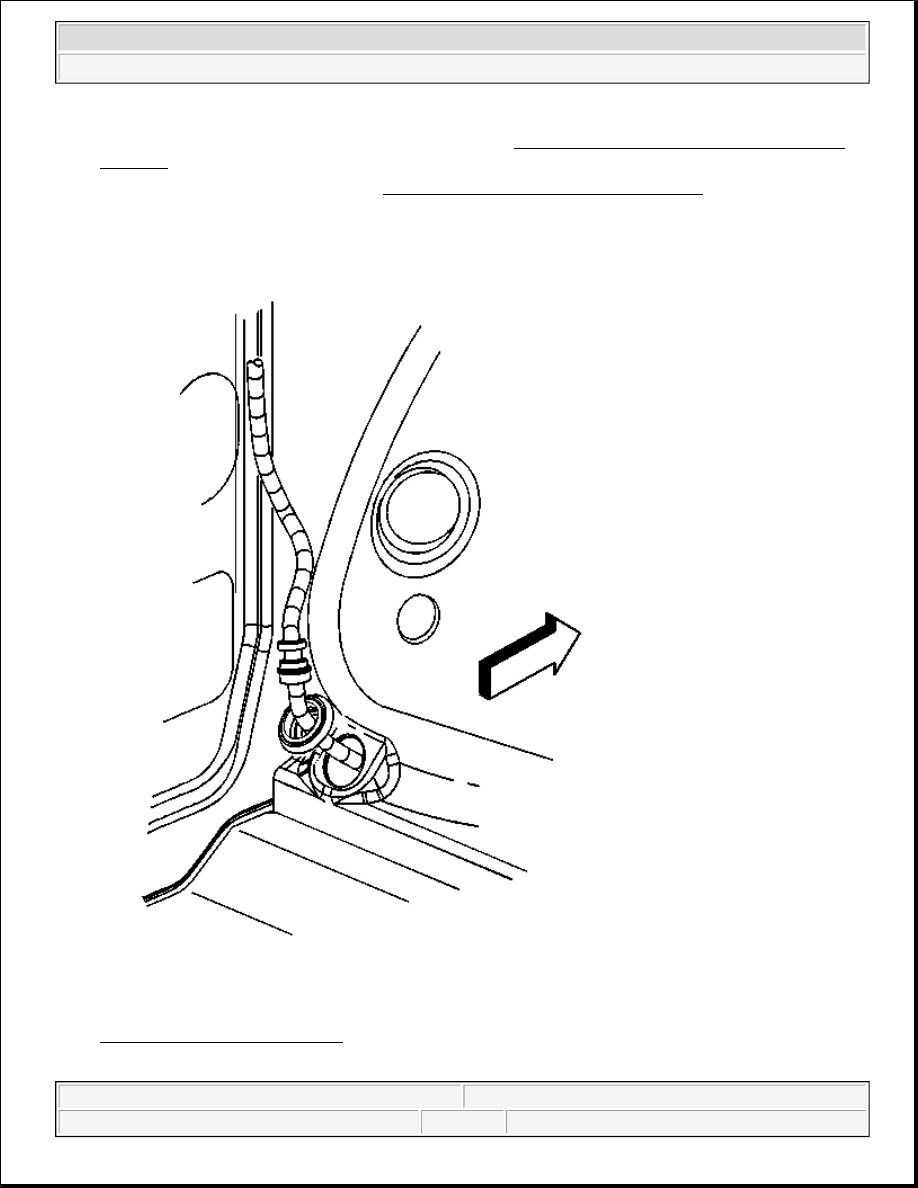

Fig. 21: Access Cable Grommet
Courtesy of GENERAL MOTORS CORP.



2004 Hummer H2

2004 BRAKES Park Brake - Hummer H2



3. Roll the carpet back to access cable grommet.

4. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.

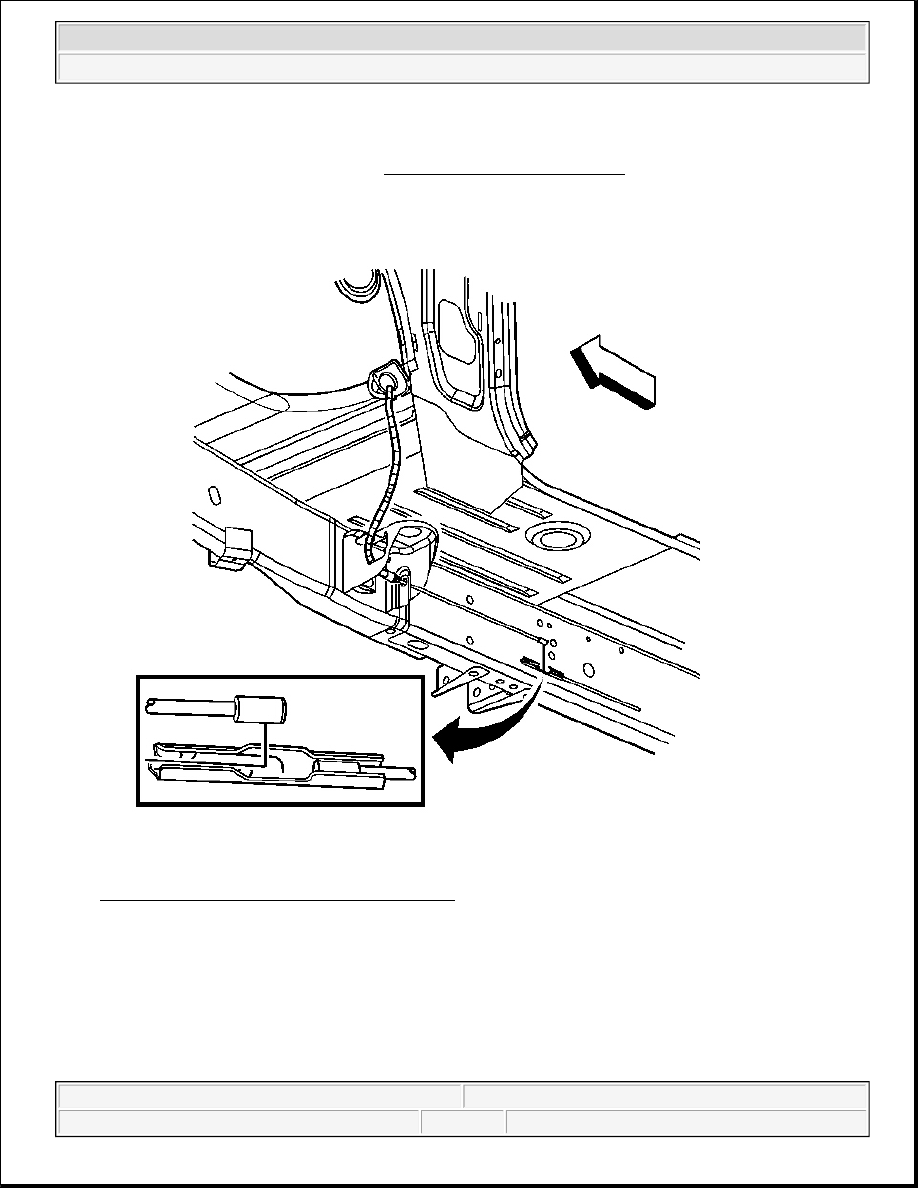

Fig. 22: Front/Intermediate Park Brake Cable
Courtesy of GENERAL MOTORS CORP.

5. Disengage the grommet and the cable from the floor pan.

6. Disconnect the front cable from the rear cable.

7. Remove the cable from the body mount by depressing the retaining tabs.

8. Remove the cable.

Installation Procedure



2004 Hummer H2

2004 BRAKES Park Brake - Hummer H2



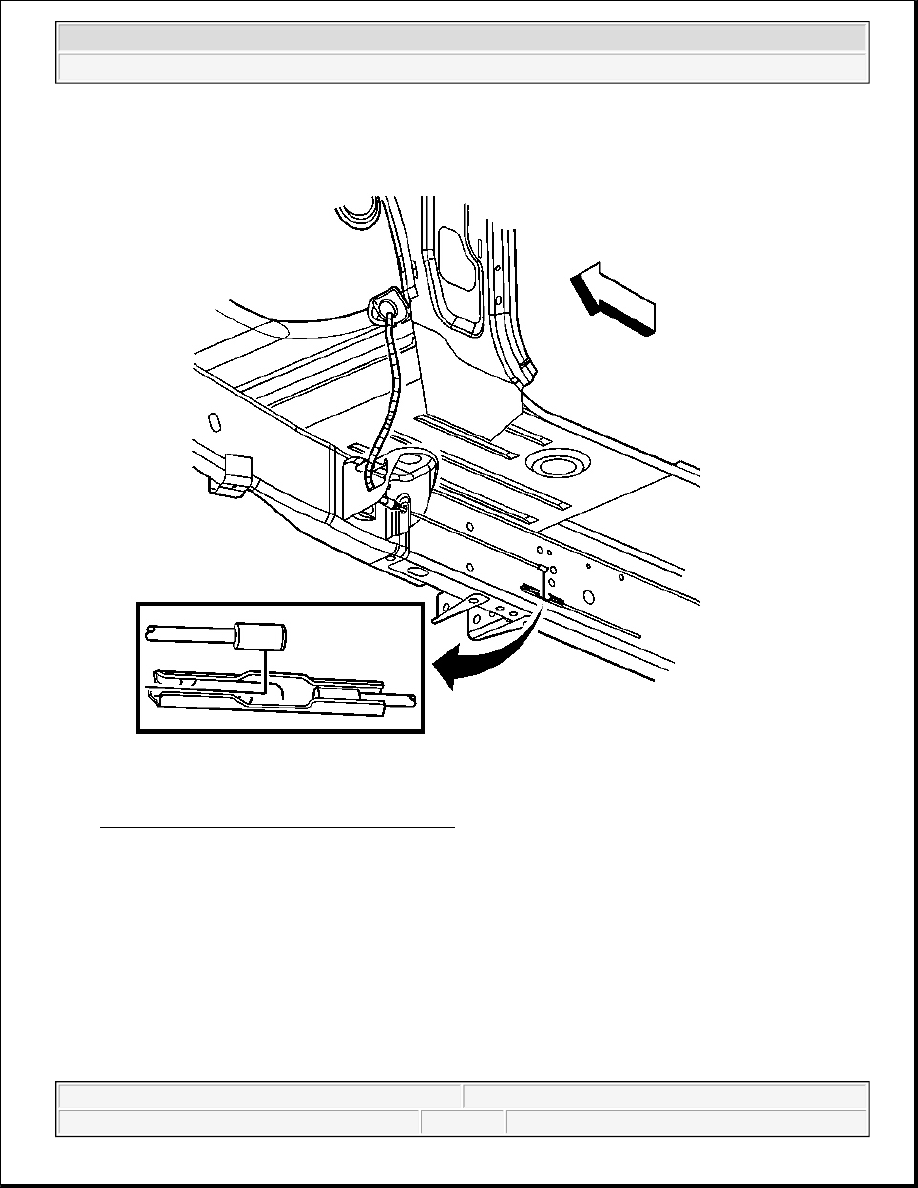

Fig. 23: Front/Intermediate Park Brake Cable
Courtesy of GENERAL MOTORS CORP.

1. Install the cable.

2. Snap the retainer tabs into the body mount.

3. Connect the front cable to the rear cable.

4. Route the cable in through the floor pan and engage the grommet.

5. Remove the safety stands.

6. Lower the vehicle.
