Hummer H2. Manual - part 831

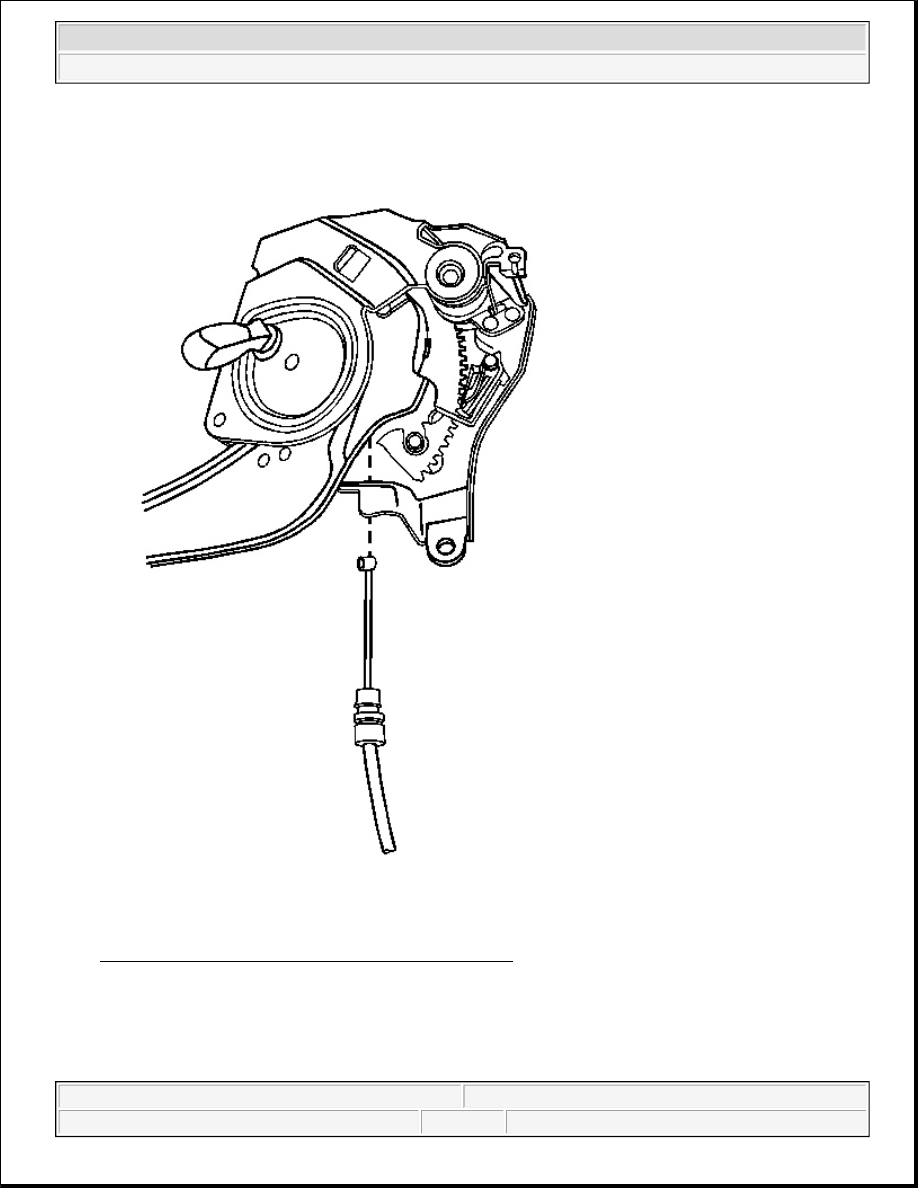

Fig. 12: Front Park Brake Cable & Park Brake Lever
Courtesy of GENERAL MOTORS CORP.

8. Disconnect the front park brake cable from the park brake lever.

9. Remove the park brake lever.



2004 Hummer H2

2004 BRAKES Park Brake - Hummer H2



Installation Procedure

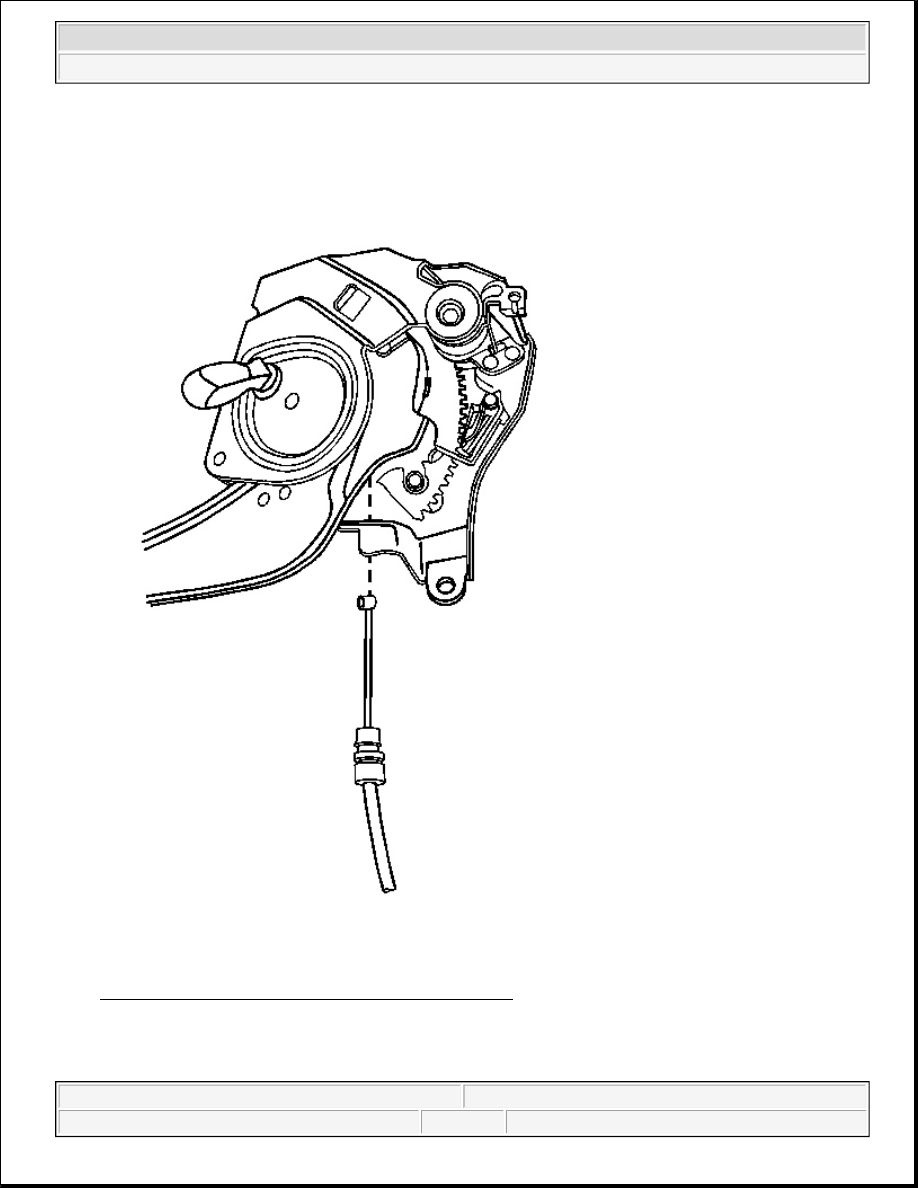

Fig. 13: Front Park Brake Cable & Park Brake Lever
Courtesy of GENERAL MOTORS CORP.

1. Connect the front park brake cable to the park brake lever.



2004 Hummer H2

2004 BRAKES Park Brake - Hummer H2

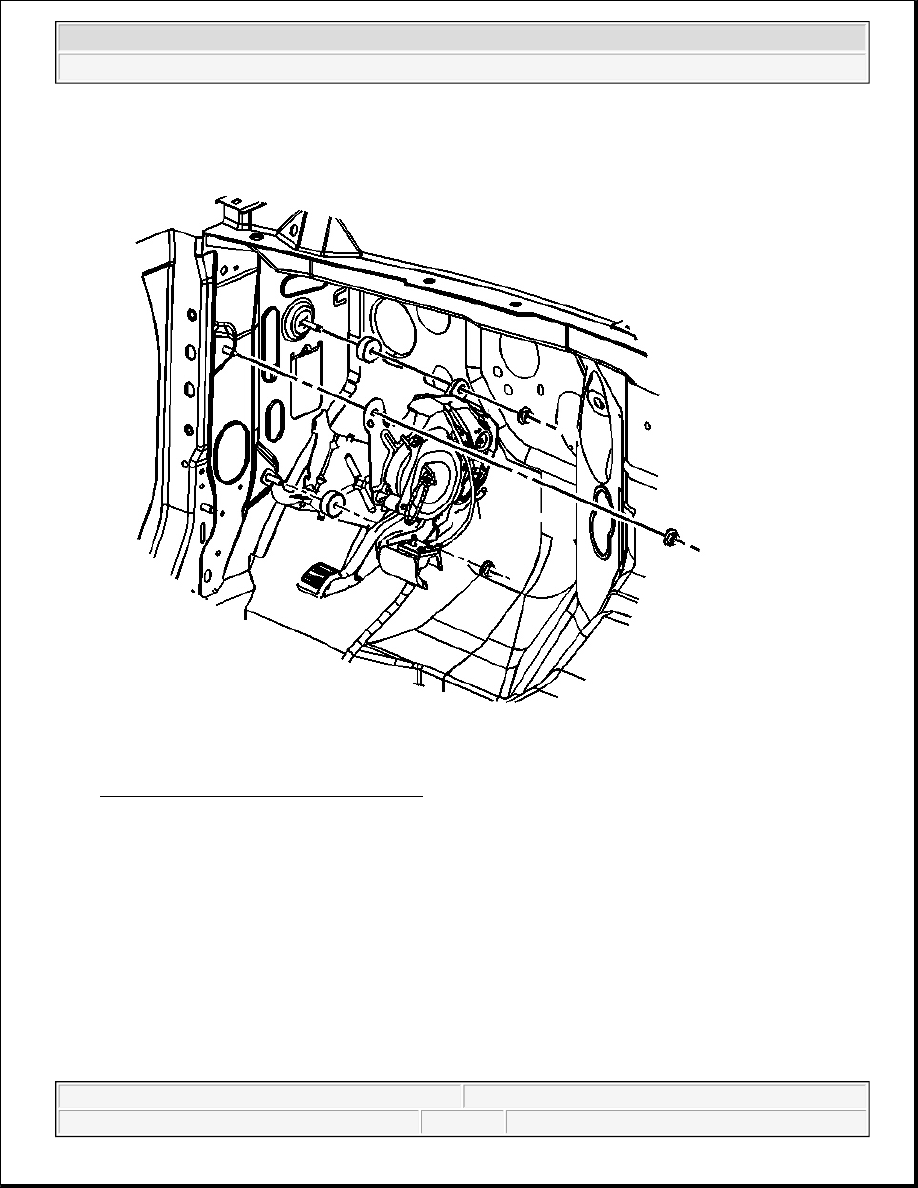

Fig. 14: Park Brake Lever Mounting Nuts
Courtesy of GENERAL MOTORS CORP.

2. Install the park brake lever.

3. Install the park brake lever mounting nuts.

Tighten: Tighten the nuts to 25 N.m (18 lb ft).

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 BRAKES Park Brake - Hummer H2

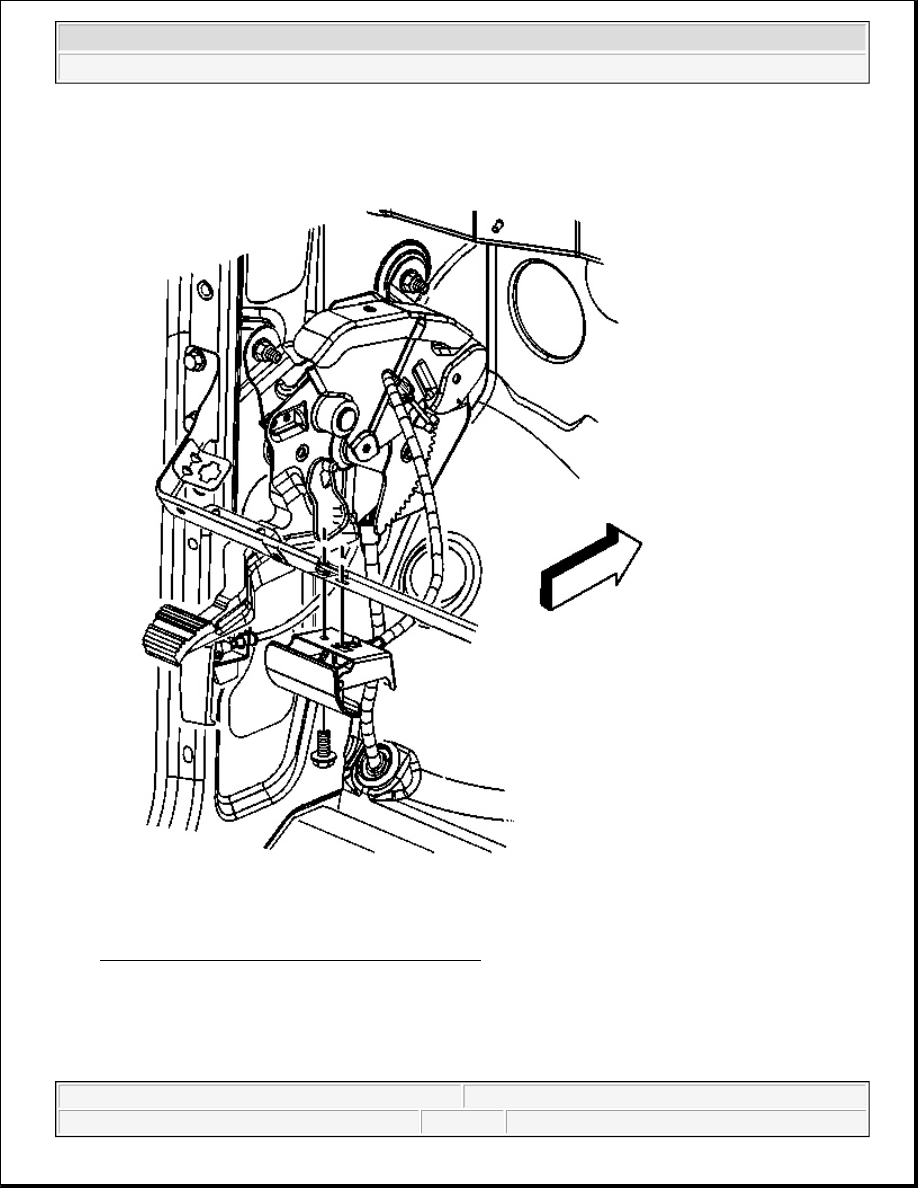

Fig. 15: Park Brake Release Lever Handle & Bolt
Courtesy of GENERAL MOTORS CORP.

4. Connect the park brake release cable to the park brake lever.



2004 Hummer H2

2004 BRAKES Park Brake - Hummer H2
