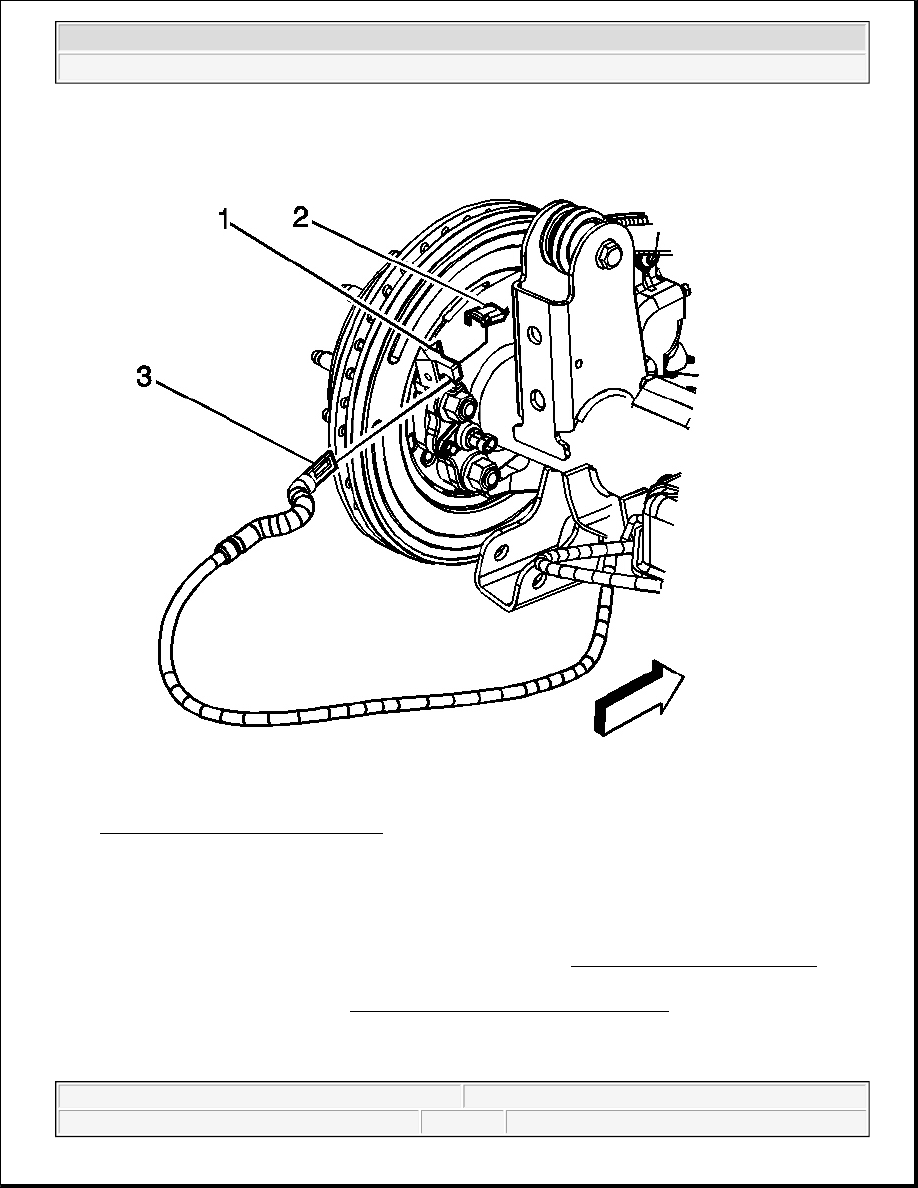

Fig. 6: Cable, Lever & Backing Plate
Courtesy of GENERAL MOTORS CORP.

8. Install the cable (3) to the lever (2).

9. install the cable (3) to the backing plate (1) by compressing the spring, routing the cable through the slot

in the backing plate and pressing the cable into the backing plate until the locking tabs snap into place.

10. Install the caliper and mounting bracket as an assembly. Refer to Brake Pads Replacement - Rear in

Disc Brakes.

11. Install the tire and wheel. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.

12. Remove the safety stands.

13. Lower the vehicle.



2004 Hummer H2

2004 BRAKES Park Brake - Hummer H2



14. Enable the park brake cable automatic adjuster. Refer to Enabling the Park Brake Cable Automatic

Adjuster .

PARK BRAKE RELEASE HANDLE ASSEMBLY REPLACEMENT

Removal Procedure

1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure

(Single Battery) in Engine Electrical.

CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.



2004 Hummer H2

2004 BRAKES Park Brake - Hummer H2

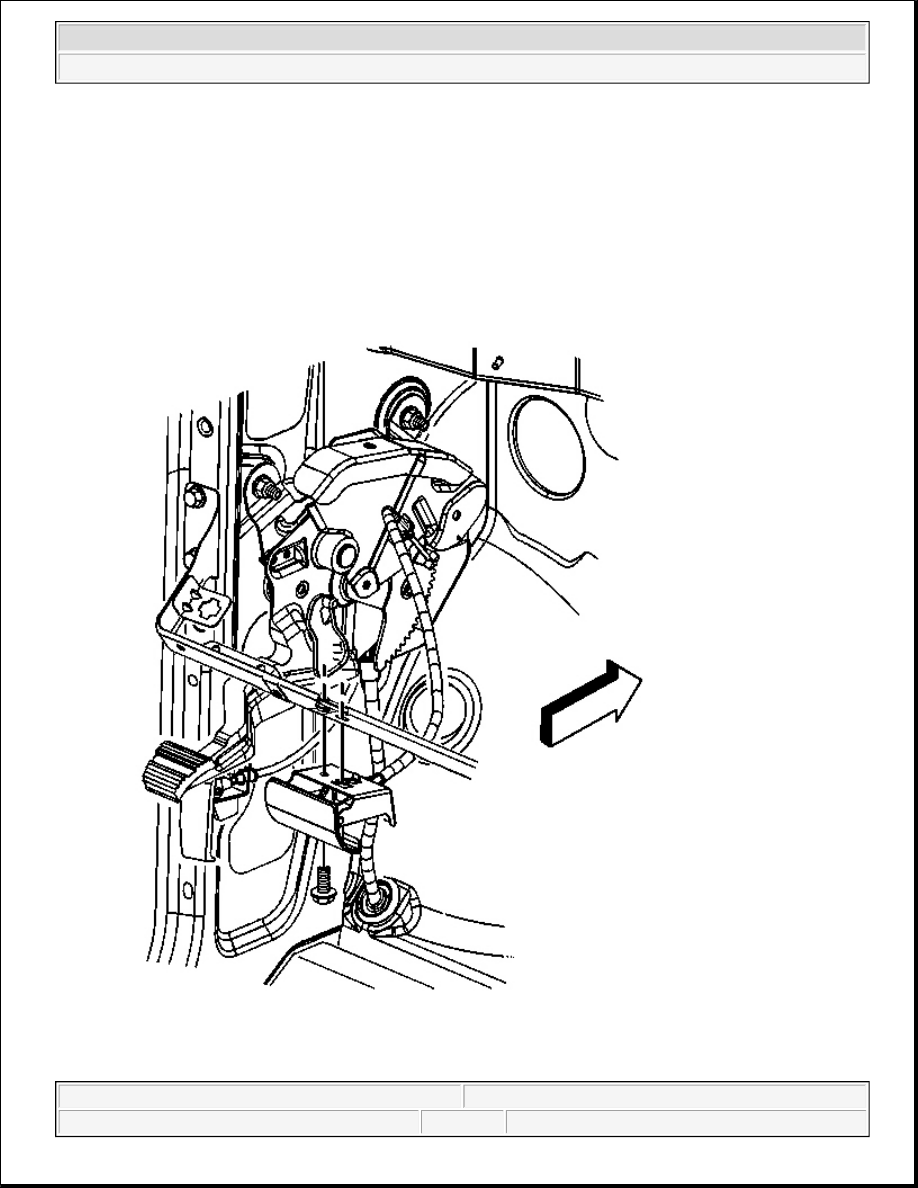

Fig. 7: Park Brake Release Lever Handle & Bolt
Courtesy of GENERAL MOTORS CORP.

2. Remove the park brake release lever mounting bolt.

3. Remove the park brake release lever handle from the knee bolster.

4. Remove the MID-Bussed Electrical Center from the bracket.



2004 Hummer H2

2004 BRAKES Park Brake - Hummer H2

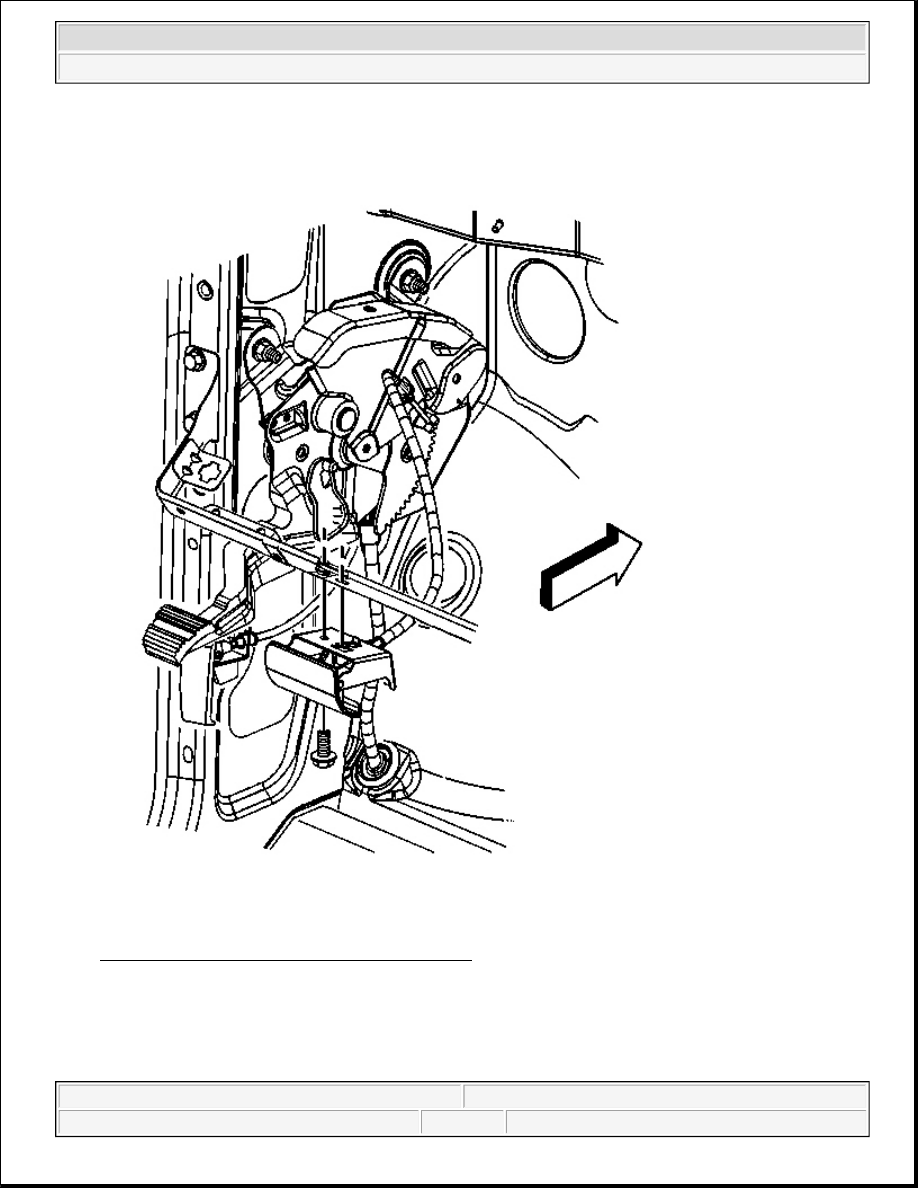

5. Remove the park brake release cable housing from the pedal assembly.

6. Remove the park brake release cable from the pedal assembly.

7. Note the routing of the cable as you remove the park brake release handle assembly from the vehicle.

Installation Procedure
