Hummer H2. Manual - part 828

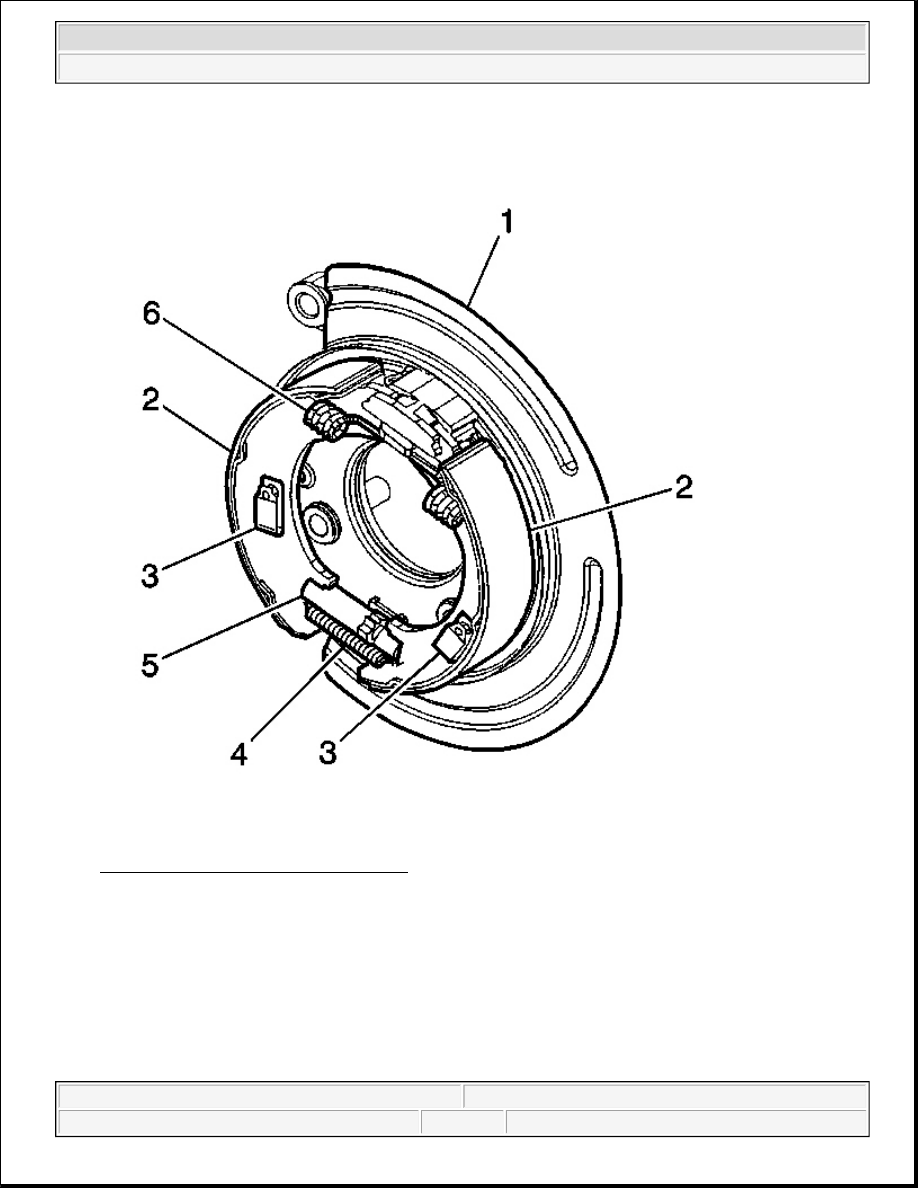

Fig. 2: Park Brake Shoe Return Springs
Courtesy of GENERAL MOTORS CORP.

9. Remove the park brake shoe return springs (4, 6).



2004 Hummer H2

2004 BRAKES Park Brake - Hummer H2

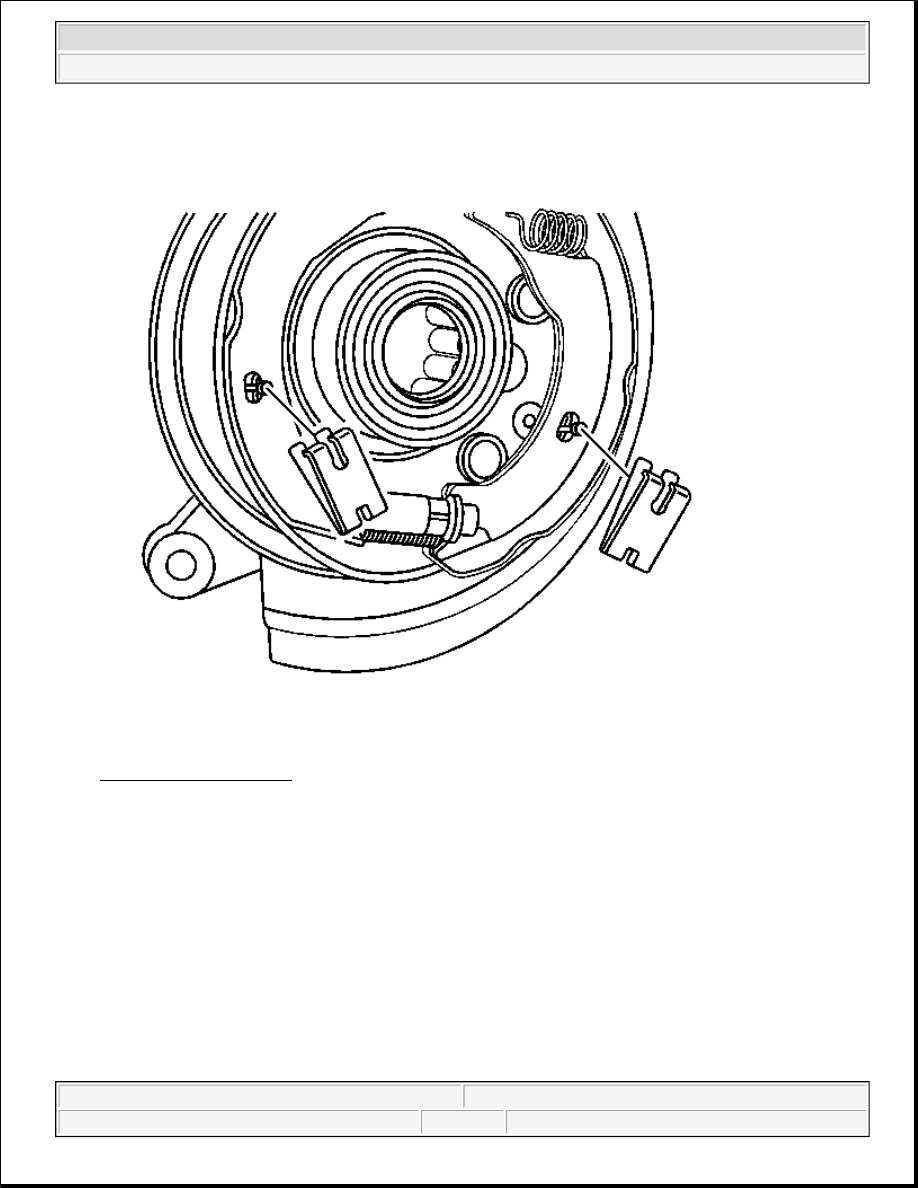

Fig. 3: Park Brake Shoes
Courtesy of GENERAL MOTORS CORP.

10. Remove the park brake shoe anchor springs and pins.

11. Remove the park brake shoes.

Installation Procedure



2004 Hummer H2

2004 BRAKES Park Brake - Hummer H2



Fig. 4: Park Brake Shoes
Courtesy of GENERAL MOTORS CORP.

1. Clean the debris and the dust from the park brake components using a clean towel.

2. Install the park brake shoes.

3. Install the park brake shoe anchor springs and pins.



2004 Hummer H2

2004 BRAKES Park Brake - Hummer H2

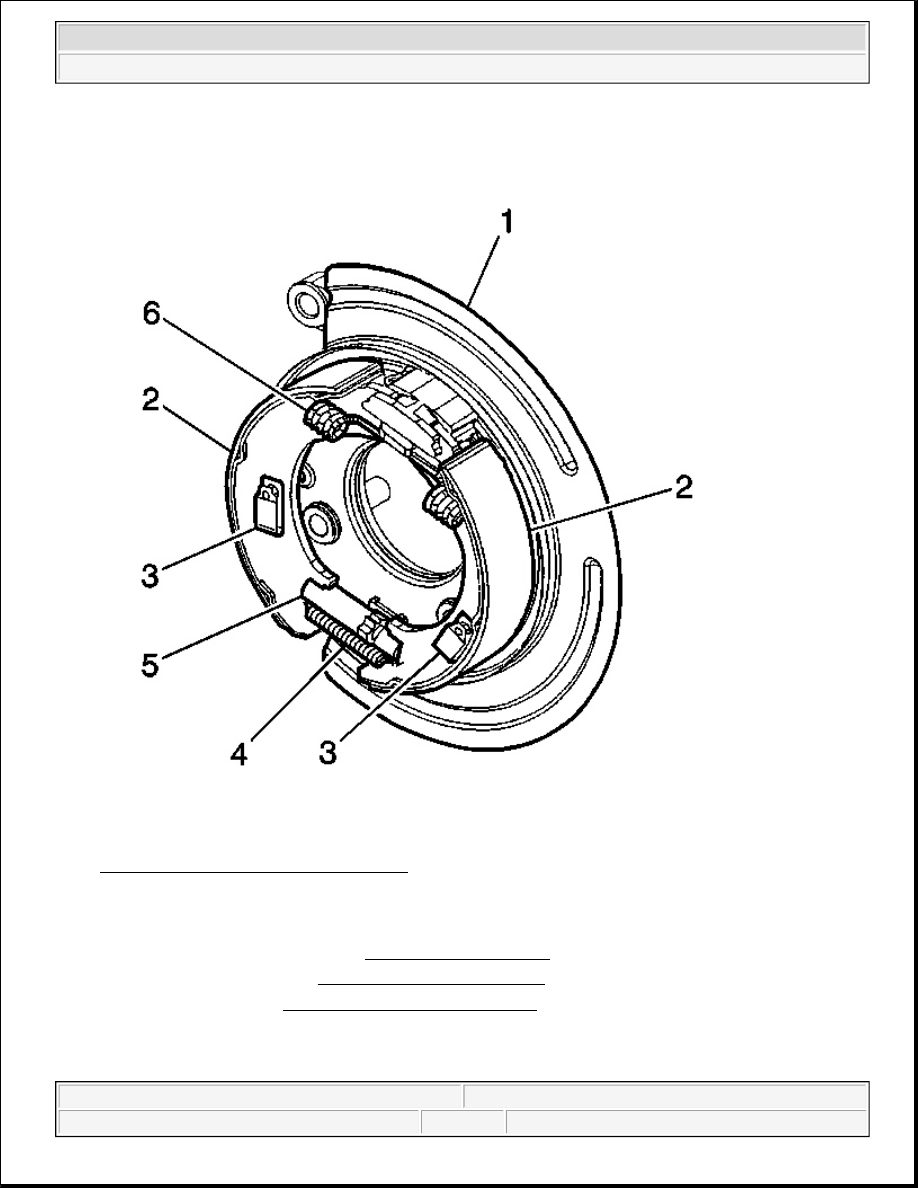

Fig. 5: Park Brake Shoe Return Springs
Courtesy of GENERAL MOTORS CORP.

4. Install the park brake shoe return springs (4, 6).

5. Adjust the park brake shoe. Refer to Park Brake Adjustment .

6. Install the axle shaft. Refer to Rear Axle Shaft Replacement in Rear Drive Axle.

7. Install the rotor. Refer to Brake Rotor Replacement - Rear in Disc Brakes.



2004 Hummer H2

2004 BRAKES Park Brake - Hummer H2
