Fig. 8: Park Brake Release Lever Handle & Bolt
Courtesy of GENERAL MOTORS CORP.

1. Install the park brake release handle assembly to the vehicle. Install the cable using the same routing as

the original cable.

2. Install the park brake release cable to the pedal assembly.

3. Install the park brake release cable housing to the pedal assembly.

4. Install the MID-Bussed Electrical Center to the bracket.

5. Install the park brake release lever handle to the knee bolster.

6. Install the park brake release lever mounting bolt.

Tighten: Tighten the bolt to 25 N.m (18 lb ft).

7. Connect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure

(Single Battery) in Engine Electrical.

PARK BRAKE PEDAL ASSEMBLY REPLACEMENT

Removal Procedure

1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure

(Single Battery) in Engine Electrical.

2. Disable the park brake cable automatic adjuster. Refer to Disabling the Park Brake Cable Automatic

Adjuster .

3. Remove the left side hinge pillar panel. Refer to Trim Replacement - Hinge Pillar in Interior Trim.

4. Remove the MID-Bussed Electrical Center from the bracket.

NOTE:

Refer to Fastener Notice in Cautions and Notices.

CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.



2004 Hummer H2

2004 BRAKES Park Brake - Hummer H2



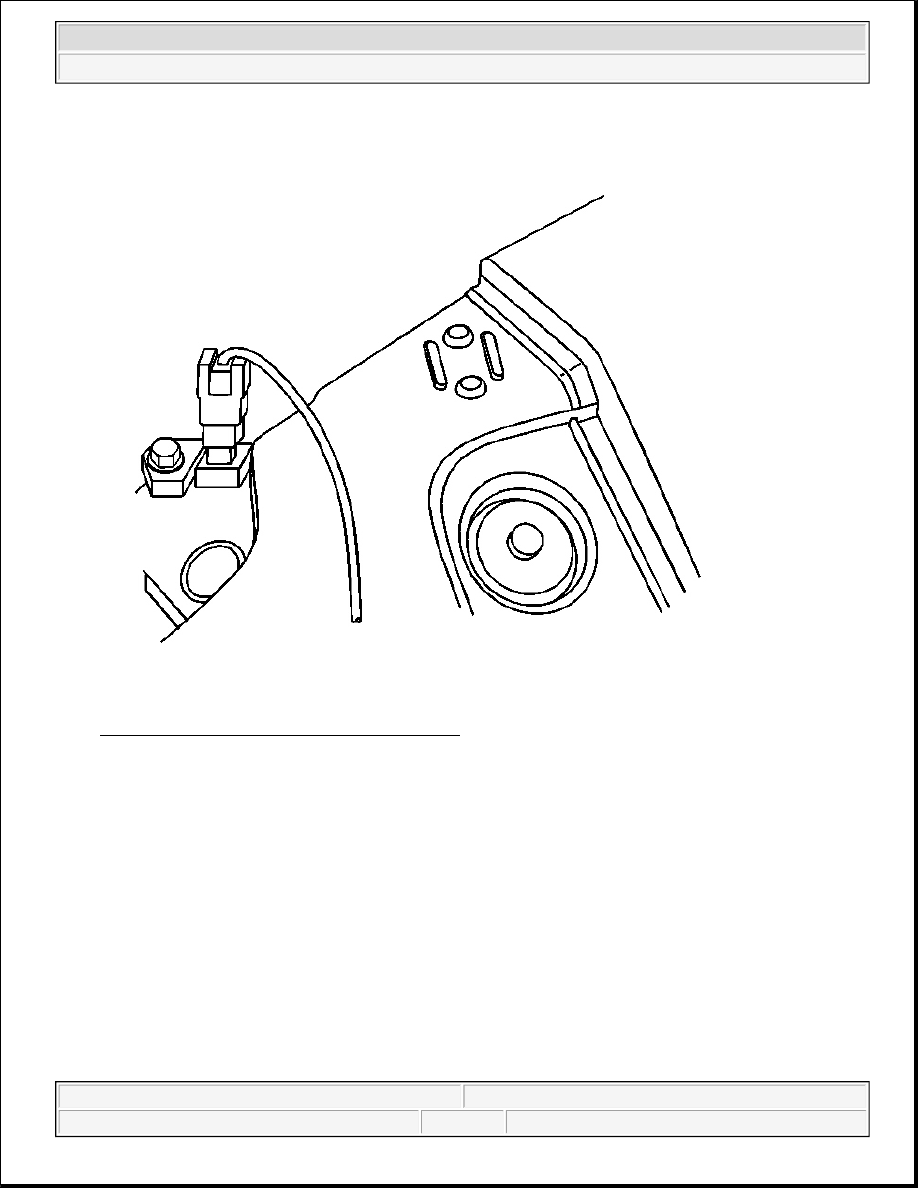

Fig. 9: Park Brake Warning Lamp Connection
Courtesy of GENERAL MOTORS CORP.

5. Disconnect the park brake warning lamp connection.



2004 Hummer H2

2004 BRAKES Park Brake - Hummer H2



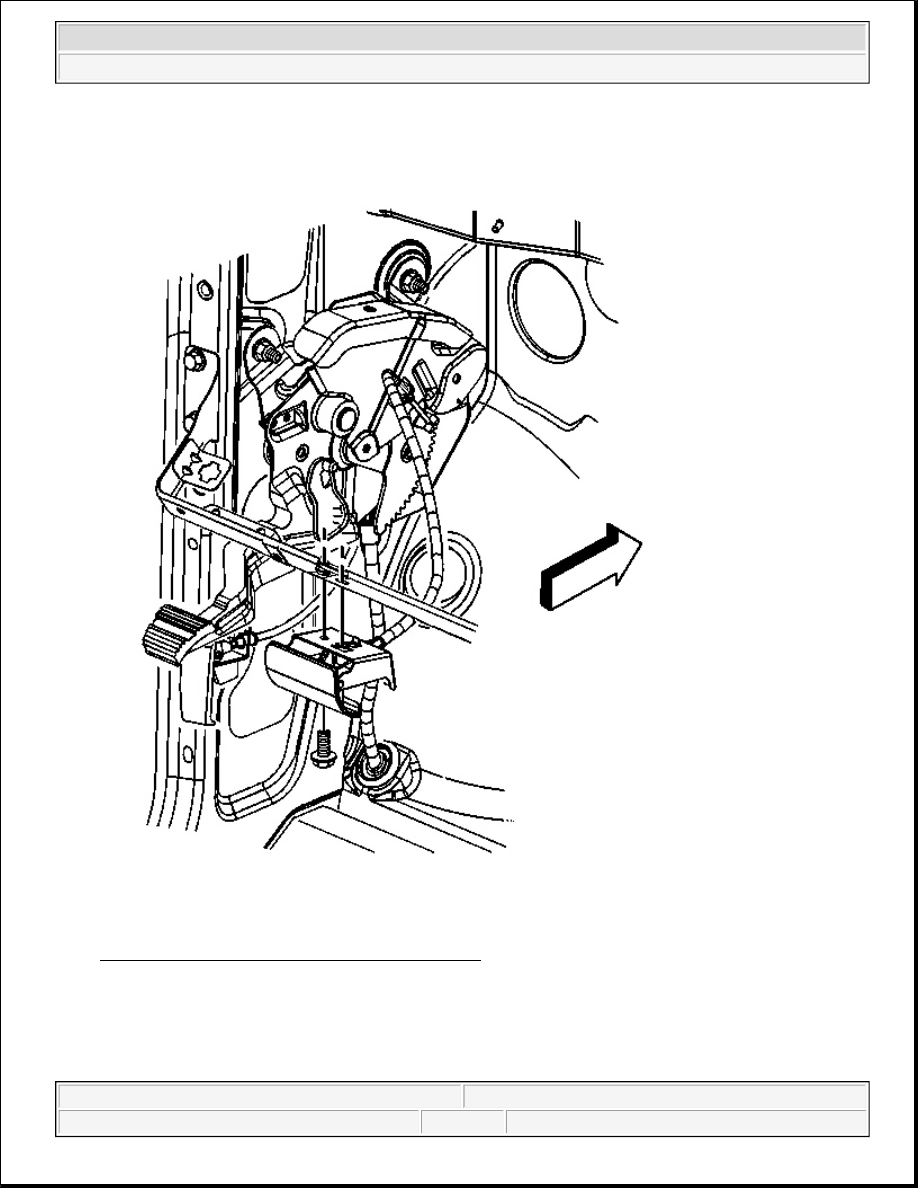

Fig. 10: Park Brake Release Lever Handle & Bolt
Courtesy of GENERAL MOTORS CORP.

6. Disconnect the park brake release cable from the park brake lever.



2004 Hummer H2

2004 BRAKES Park Brake - Hummer H2



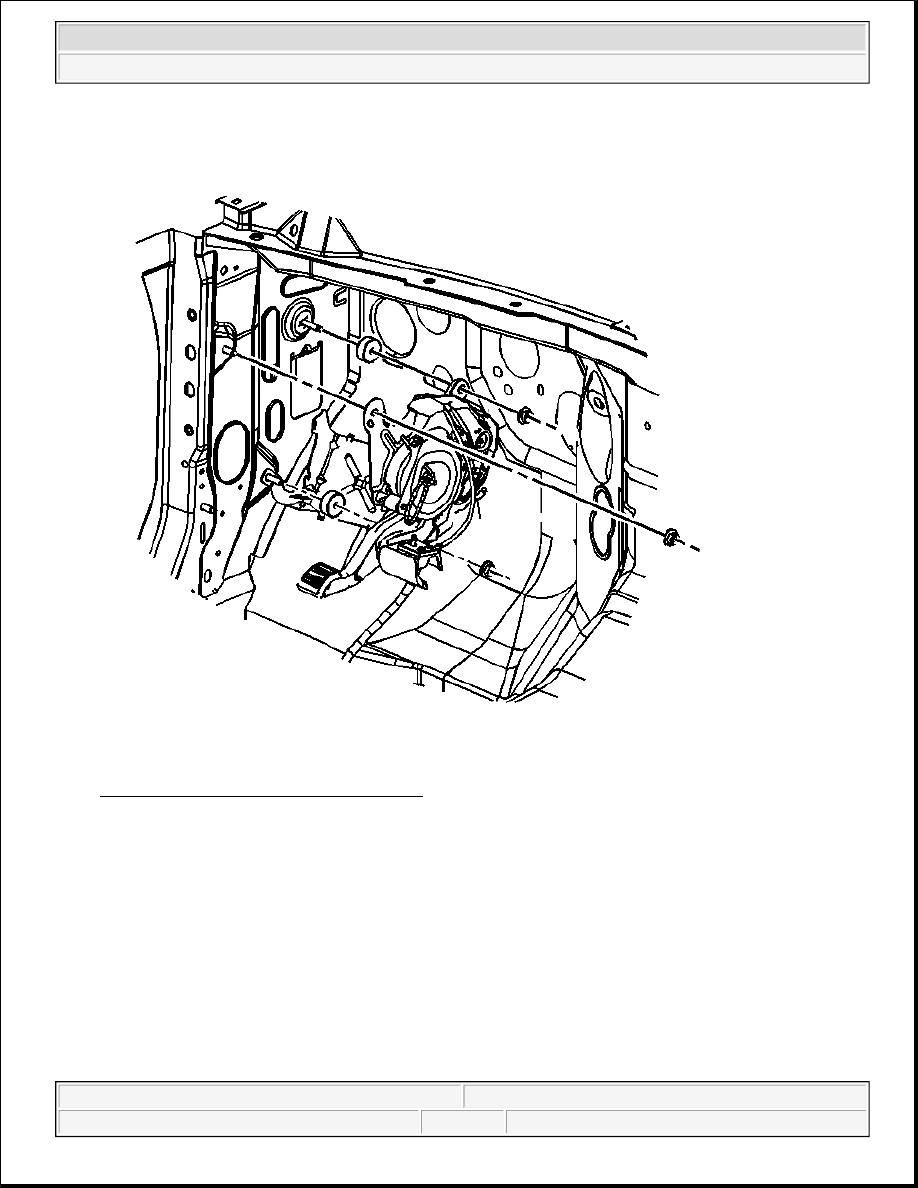

Fig. 11: Park Brake Lever Mounting Nuts
Courtesy of GENERAL MOTORS CORP.

7. Remove the park brake lever mounting nuts.



2004 Hummer H2

2004 BRAKES Park Brake - Hummer H2
