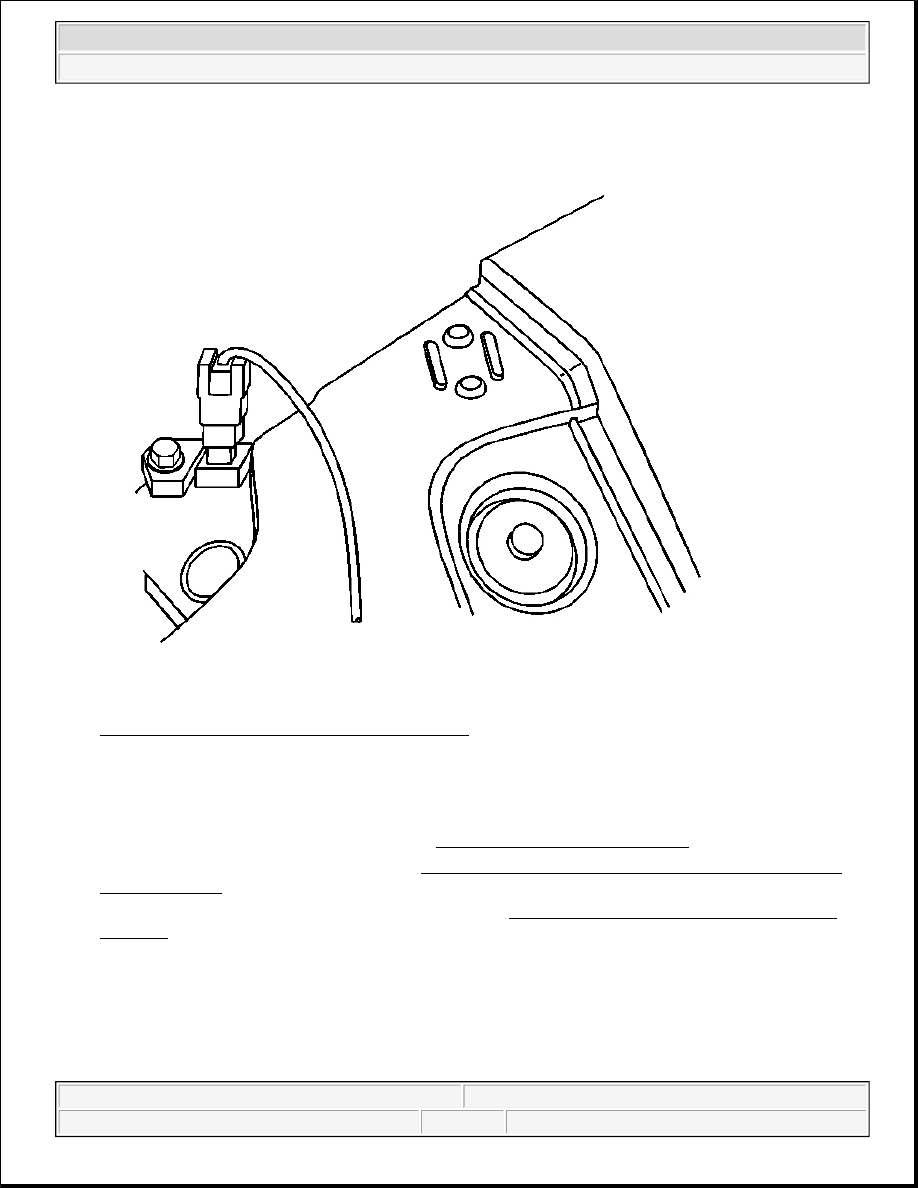

Fig. 16: Park Brake Warning Lamp Connection
Courtesy of GENERAL MOTORS CORP.

5. Connect the park brake warning lamp connector.

6. Install the MID-Bussed Electrical Center bracket.

7. Install the left side hinge pillar panel. Refer to Trim Replacement - Hinge Pillar in Interior Trim.

8. Connect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure

(Single Battery) in Engine Electrical.

9. Enable the park brake cable automatic adjuster. Refer to Enabling the Park Brake Cable Automatic

Adjuster .

PARK BRAKE WARNING LAMP SWITCH REPLACEMENT

Removal Procedure

CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.



2004 Hummer H2

2004 BRAKES Park Brake - Hummer H2



1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure

(Single Battery) in Engine Electrical.

2. Remove the MID-Bussed Electrical Center from the bracket.

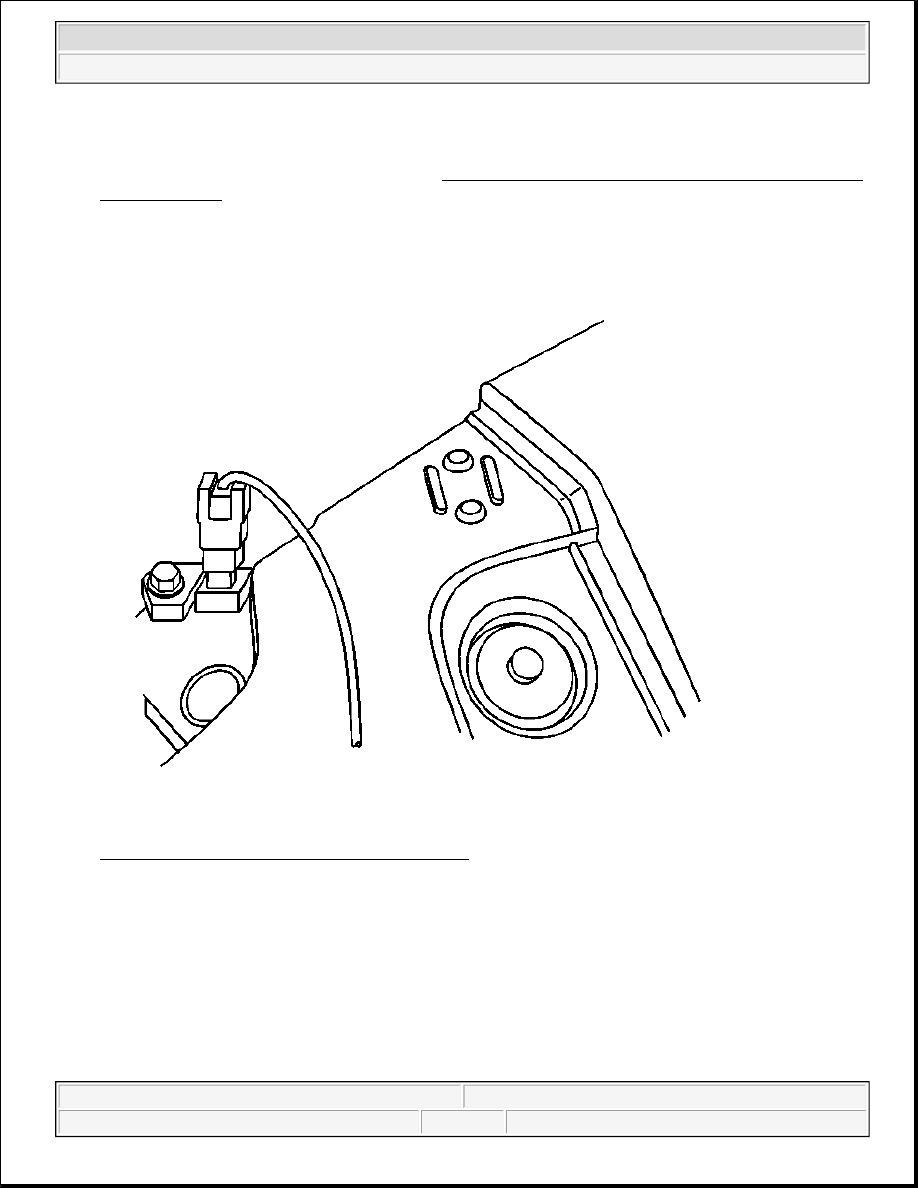

Fig. 17: Park Brake Warning Lamp Connection
Courtesy of GENERAL MOTORS CORP.

3. Disconnect the park brake warning lamp switch connector.



2004 Hummer H2

2004 BRAKES Park Brake - Hummer H2



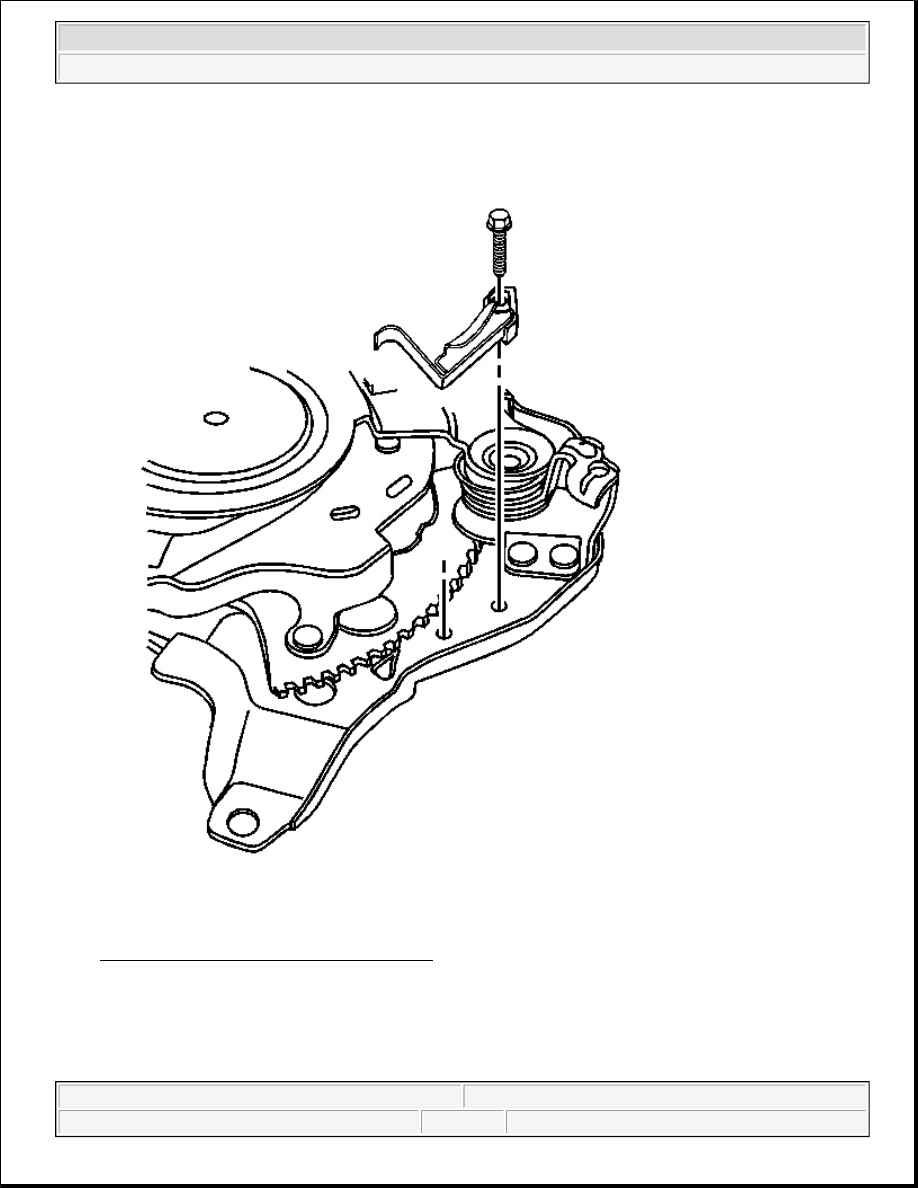

Fig. 18: Park Brake Warning Lamp Switch
Courtesy of GENERAL MOTORS CORP.

4. Remove the park brake warning lamp switch mounting bolt.

5. Remove the park brake warning lamp switch.



2004 Hummer H2

2004 BRAKES Park Brake - Hummer H2



Installation Procedure

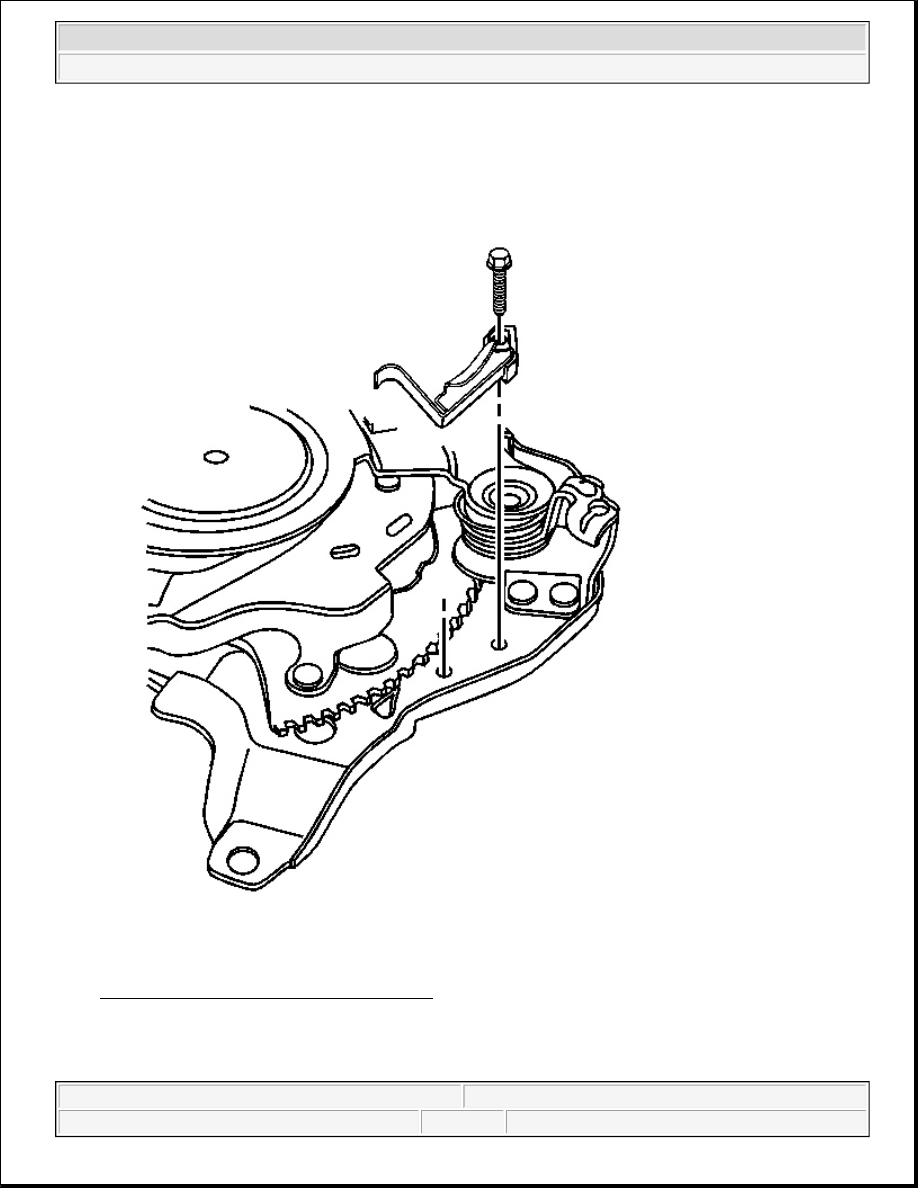

Fig. 19: Park Brake Warning Lamp Switch
Courtesy of GENERAL MOTORS CORP.

1. Install the park brake warning lamp switch.
