Hummer H2. Manual - part 834

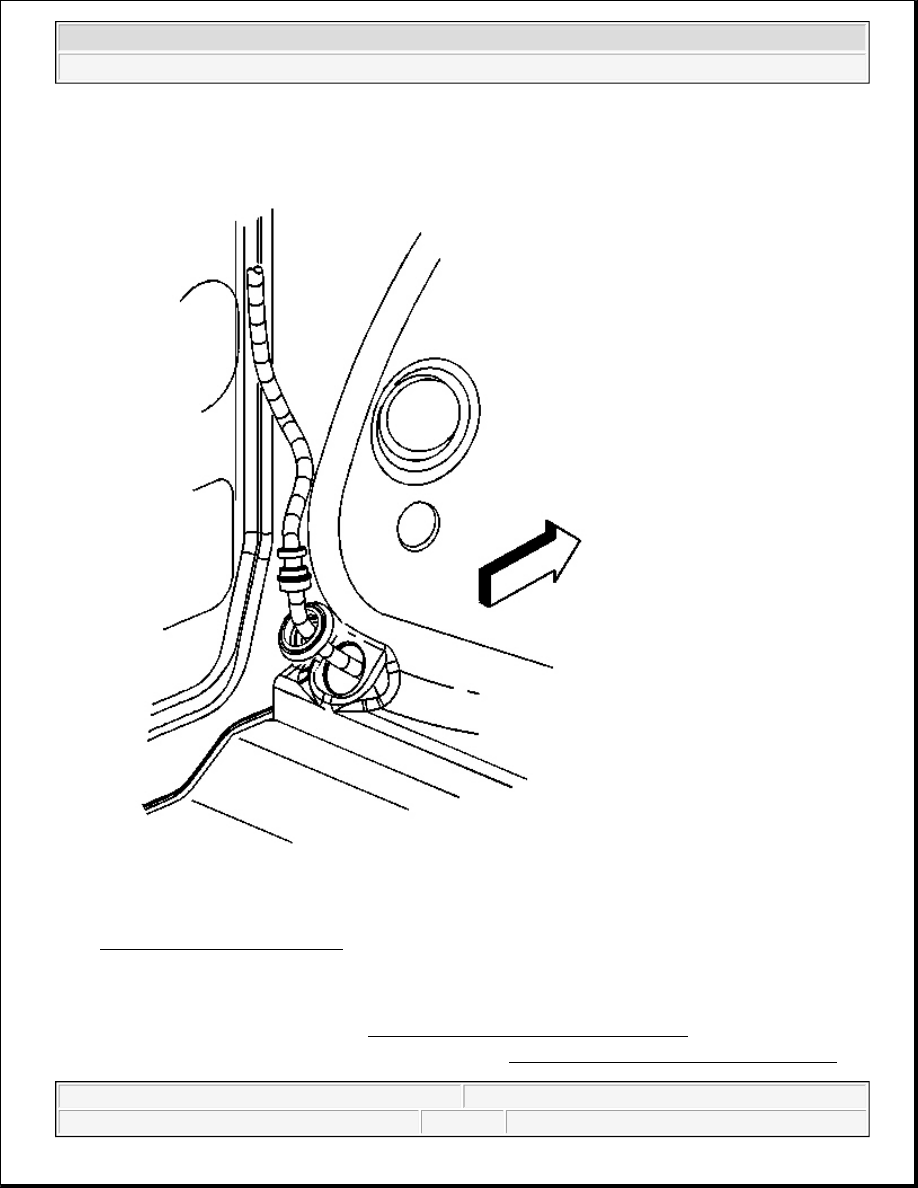

Fig. 24: Access Cable Grommet
Courtesy of GENERAL MOTORS CORP.

7. Roll the carpet into place.

8. Install the park brake pedal. Refer to Park Brake Pedal Assembly Replacement .

9. Enable the park brake cable automatic adjuster. Refer to Enabling the Park Brake Cable Automatic

Adjuster in Park Brake.



2004 Hummer H2

2004 BRAKES Park Brake - Hummer H2



PARK BRAKE CABLE REPLACEMENT - LEFT REAR

Removal Procedure

1. Disable the park brake cable automatic adjuster. Refer to Disabling the Park Brake Cable Automatic

Adjuster .

2. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.

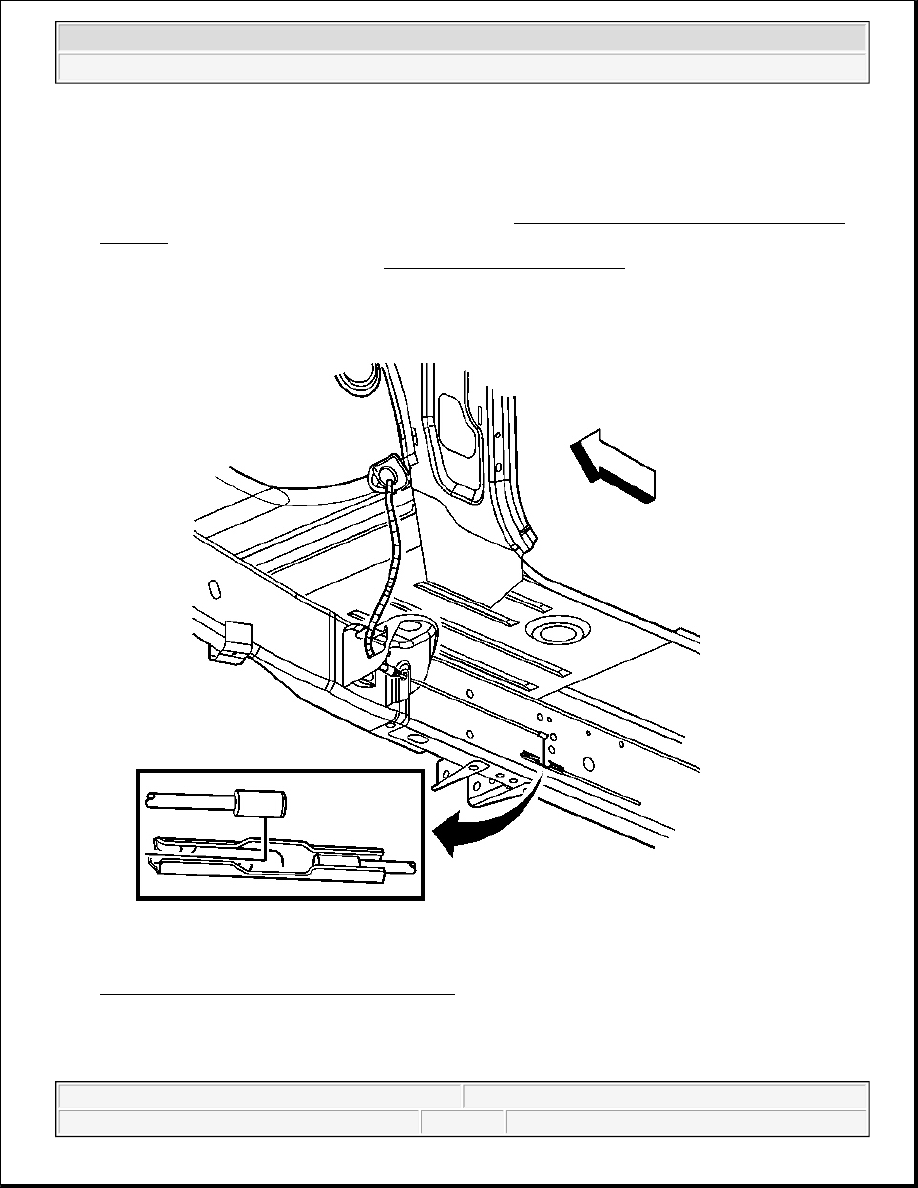

Fig. 25: Front/Intermediate Park Brake Cable
Courtesy of GENERAL MOTORS CORP.

3. Disconnect the left rear cable from the front cable.



2004 Hummer H2

2004 BRAKES Park Brake - Hummer H2



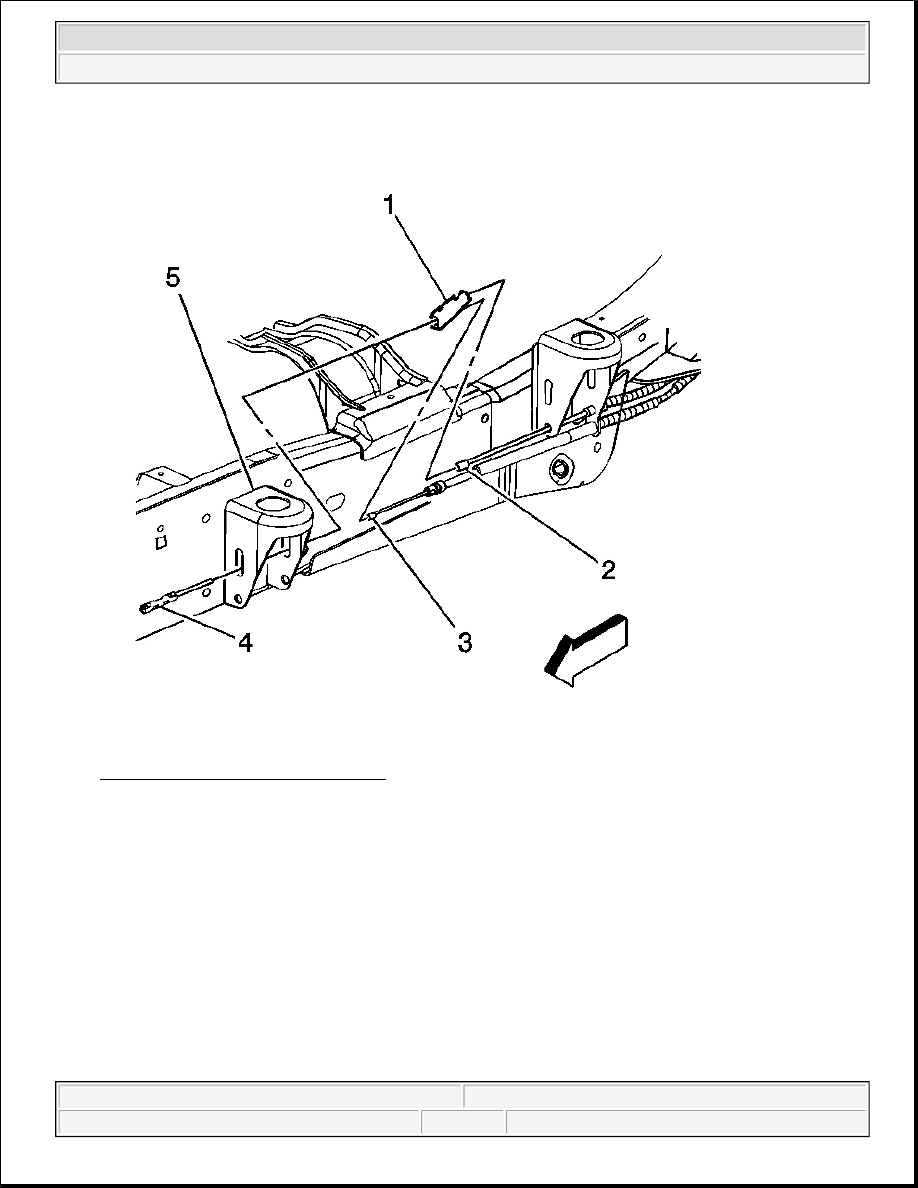

Fig. 26: Left Rear Cable & Equalizer
Courtesy of GENERAL MOTORS CORP.

4. Remove the left rear cable (4) from the equalizer (1) by depressing the locking tabs.



2004 Hummer H2

2004 BRAKES Park Brake - Hummer H2



Fig. 27: Left Rear Cable & Cable Support
Courtesy of GENERAL MOTORS CORP.

5. Remove the left rear cable (3) from the cable support (2).



2004 Hummer H2

2004 BRAKES Park Brake - Hummer H2
