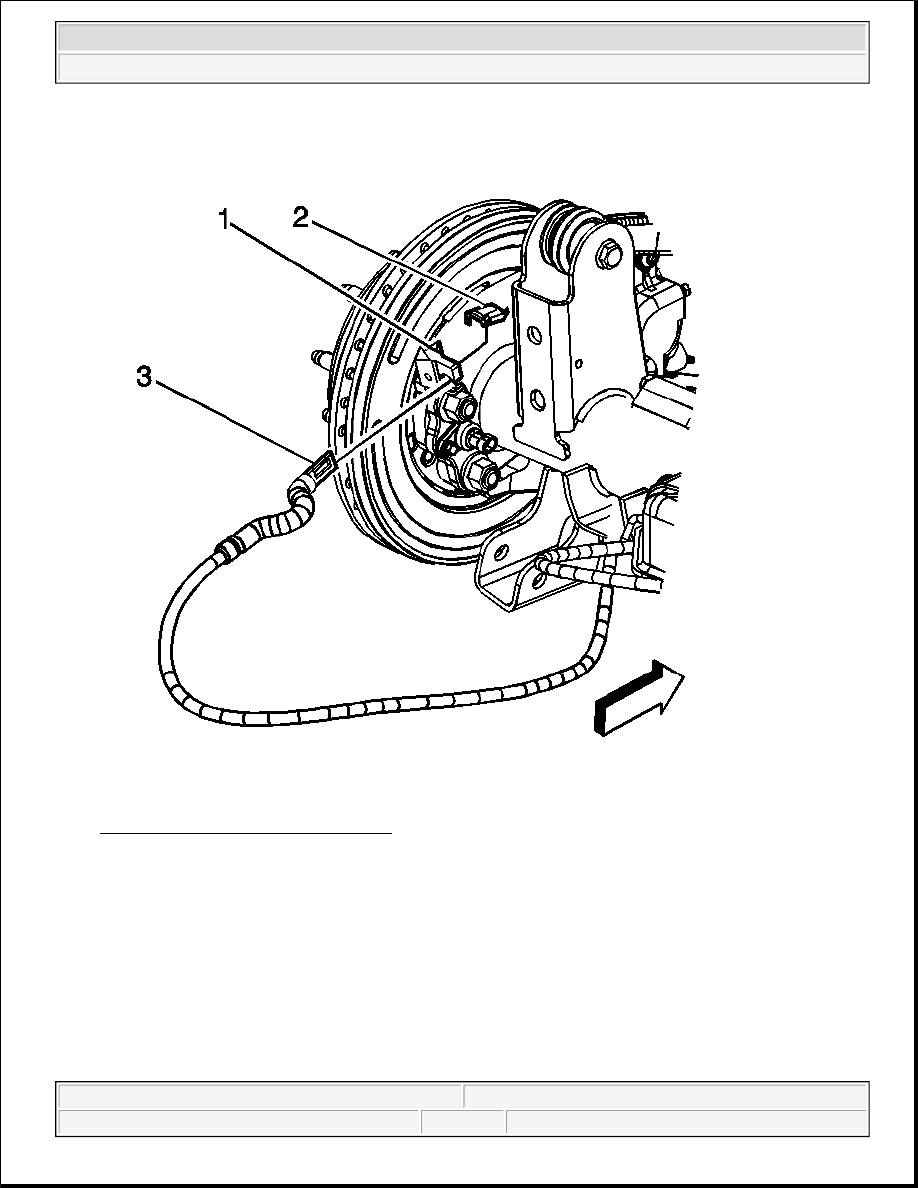

Fig. 38: Cable, Lever & Backing Plate
Courtesy of GENERAL MOTORS CORP.

6. Remove the cable (3) from the backing plate (1) by compressing the spring to access and depress the

locking tabs, pull the cable out of the backing plate, and routing the cable through the slot in the backing
plate.

7. Remove the cable (3) from the lever (2).



2004 Hummer H2

2004 BRAKES Park Brake - Hummer H2

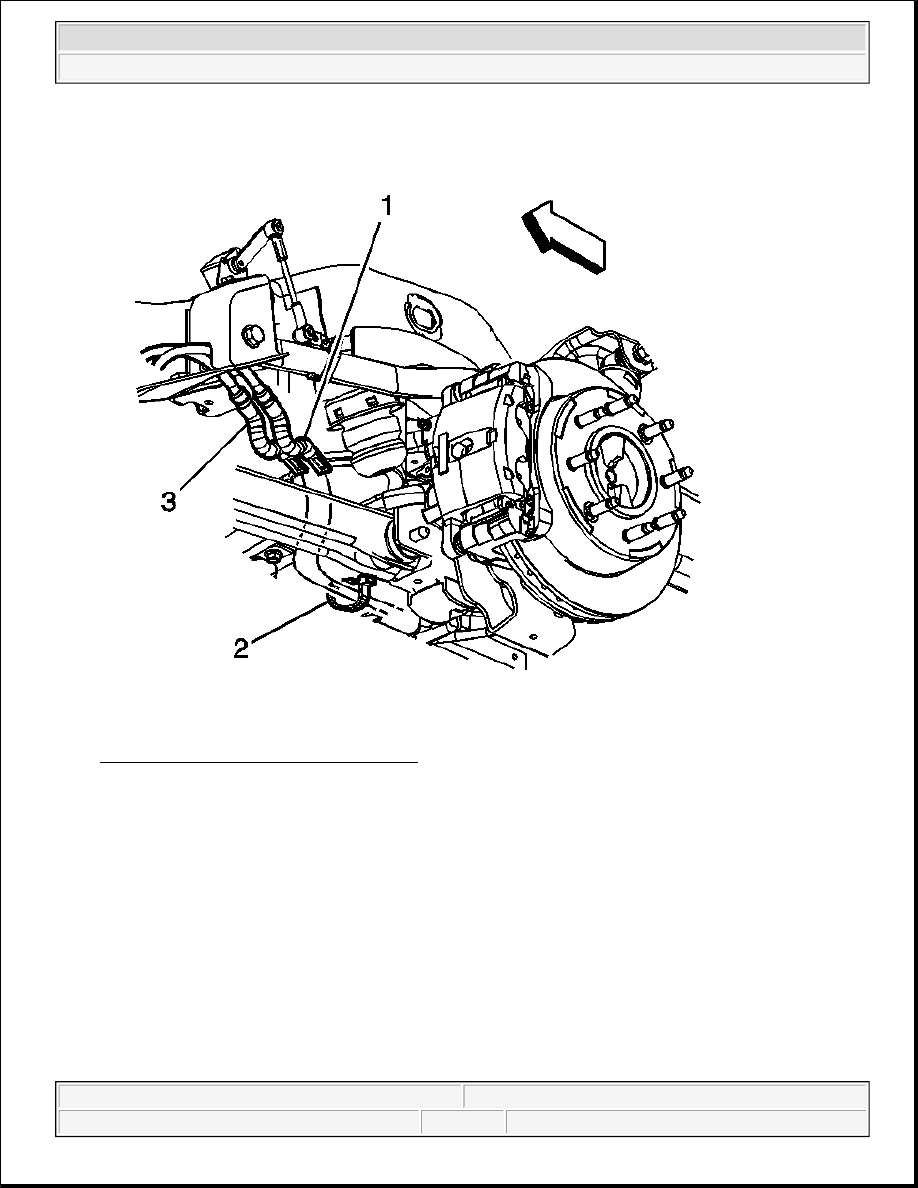

Fig. 39: Right Rear Cable & Cable Guide
Courtesy of GENERAL MOTORS CORP.

8. Remove the right rear cable (3) from the cable guide (2).

9. Remove the cable from the vehicle.

Installation Procedure



2004 Hummer H2

2004 BRAKES Park Brake - Hummer H2



Fig. 40: Right Rear Cable & Cable Guide
Courtesy of GENERAL MOTORS CORP.

1. Install the right rear cable taking care to correctly route the cable (3) through the cable guide (2).



2004 Hummer H2

2004 BRAKES Park Brake - Hummer H2



Fig. 41: Cable, Lever & Backing Plate
Courtesy of GENERAL MOTORS CORP.

2. Install the cable (3) to the lever (2).

3. install the cable (3) to the backing plate (1) by compressing the spring, routing the cable through the slot

in the backing plate and pressing the cable into the backing plate until the locking tabs snap into place.



2004 Hummer H2

2004 BRAKES Park Brake - Hummer H2
