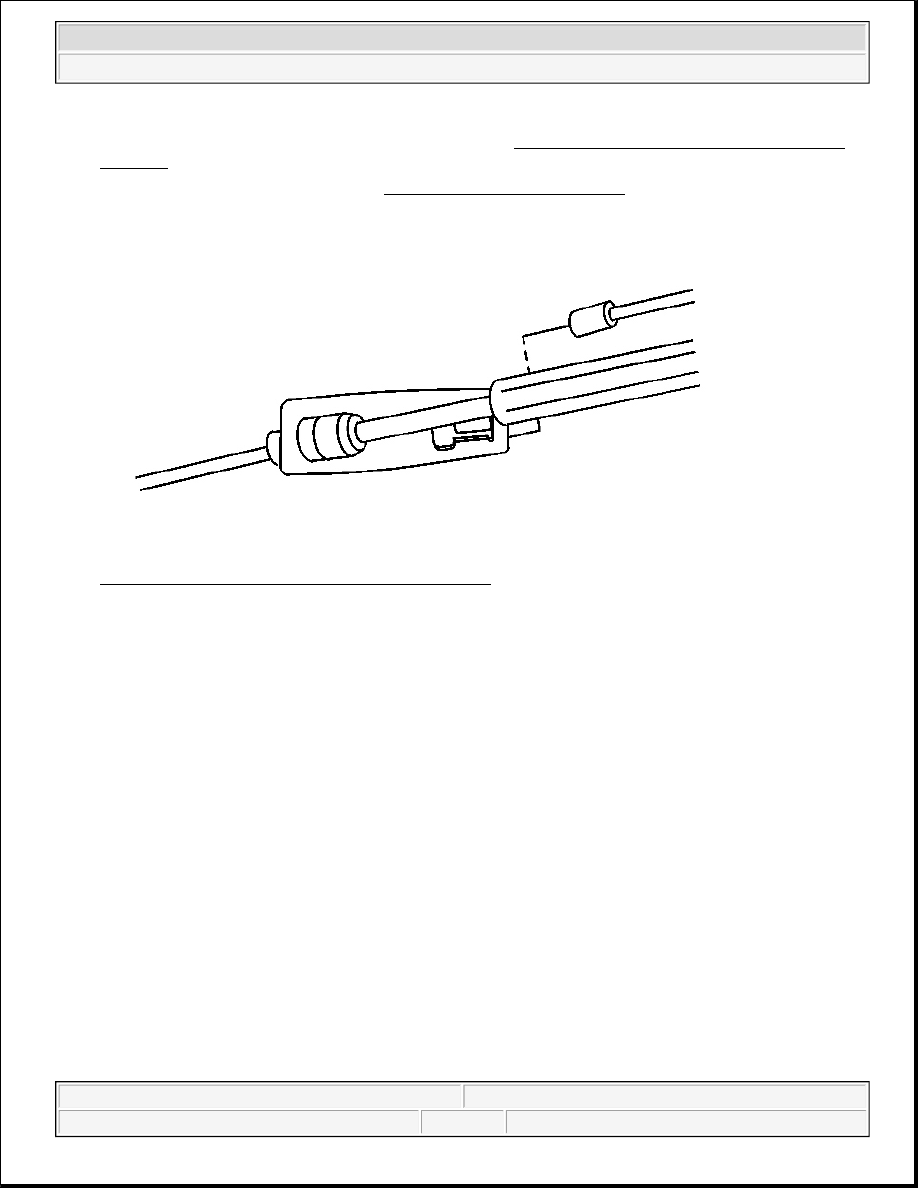

Fig. 34: Front/Intermediate Park Brake Cable
Courtesy of GENERAL MOTORS CORP.

6. Connect the left rear cable to the front cable.

7. Remove the safety stands.

8. Lower the vehicle.

9. Enable the park brake cable automatic adjuster. Refer to Enabling the Park Brake Cable Automatic

Adjuster .

PARK BRAKE CABLE REPLACEMENT - RIGHT REAR

Removal Procedure



2004 Hummer H2

2004 BRAKES Park Brake - Hummer H2



1. Disable the park brake cable automatic adjuster. Refer to Disabling the Park Brake Cable Automatic

Adjuster .

2. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.

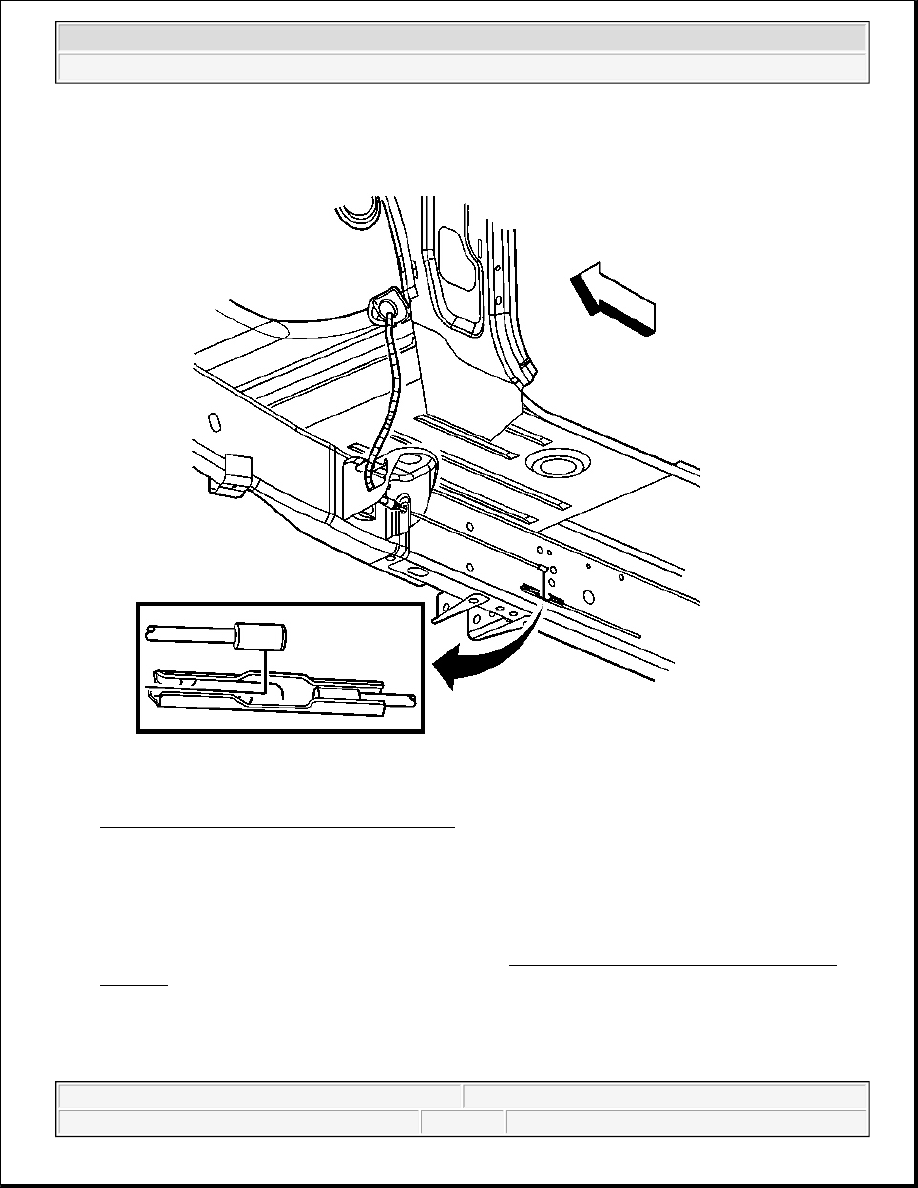

Fig. 35: Right Rear Park Brake Cable & Equalizer
Courtesy of GENERAL MOTORS CORP.

3. Disconnect the right rear cable from the equalizer.



2004 Hummer H2

2004 BRAKES Park Brake - Hummer H2



Fig. 36: Right Rear Cable & Cable Support
Courtesy of GENERAL MOTORS CORP.

4. Remove the right rear cable (1) from the cable support (2).



2004 Hummer H2

2004 BRAKES Park Brake - Hummer H2



Fig. 37: Track Bar & Clips
Courtesy of GENERAL MOTORS CORP.

5. Remove the track bar clips (1) from the track bar.
