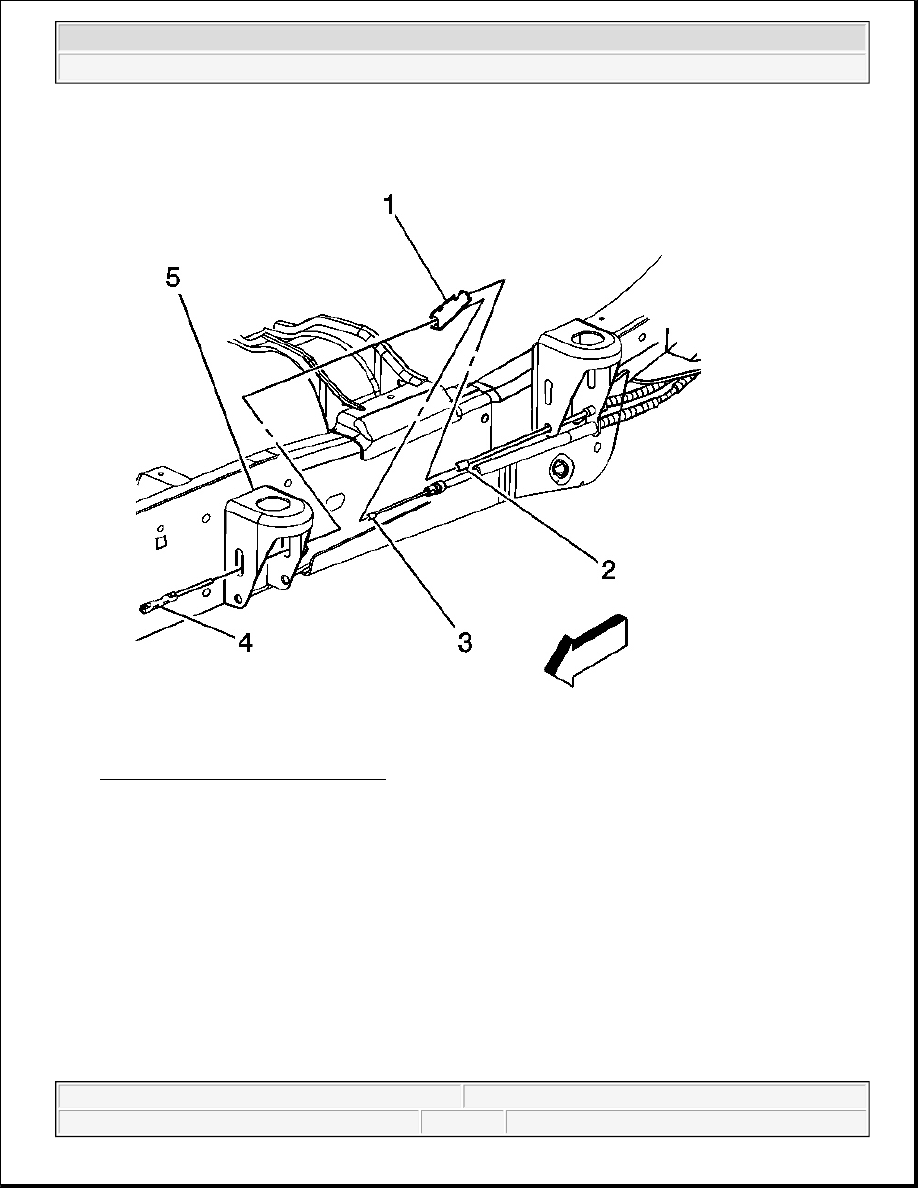

Fig. 26: Left Rear Cable & Equalizer
Courtesy of GENERAL MOTORS CORP.

4. Remove the left rear cable (4) from the equalizer (1) by depressing the locking tabs.



2004 Hummer H2

2004 BRAKES Park Brake - Hummer H2



Fig. 27: Left Rear Cable & Cable Support
Courtesy of GENERAL MOTORS CORP.

5. Remove the left rear cable (3) from the cable support (2).



2004 Hummer H2

2004 BRAKES Park Brake - Hummer H2



Fig. 28: Cable, Lever & Backing Plate
Courtesy of GENERAL MOTORS CORP.

6. Remove the cable (3) from the backing plate (1) by compressing the spring to access and depress the

locking tabs, pull the cable out of the backing plate, and routing the cable through the slot in the backing
plate.

7. Remove the cable (3) from the lever (2).



2004 Hummer H2

2004 BRAKES Park Brake - Hummer H2



Fig. 29: Left Rear Park Brake Cable
Courtesy of GENERAL MOTORS CORP.

8. Remove the left rear cable (1) from the cable guide (2).

9. Remove the cable from the vehicle.

Installation Procedure
