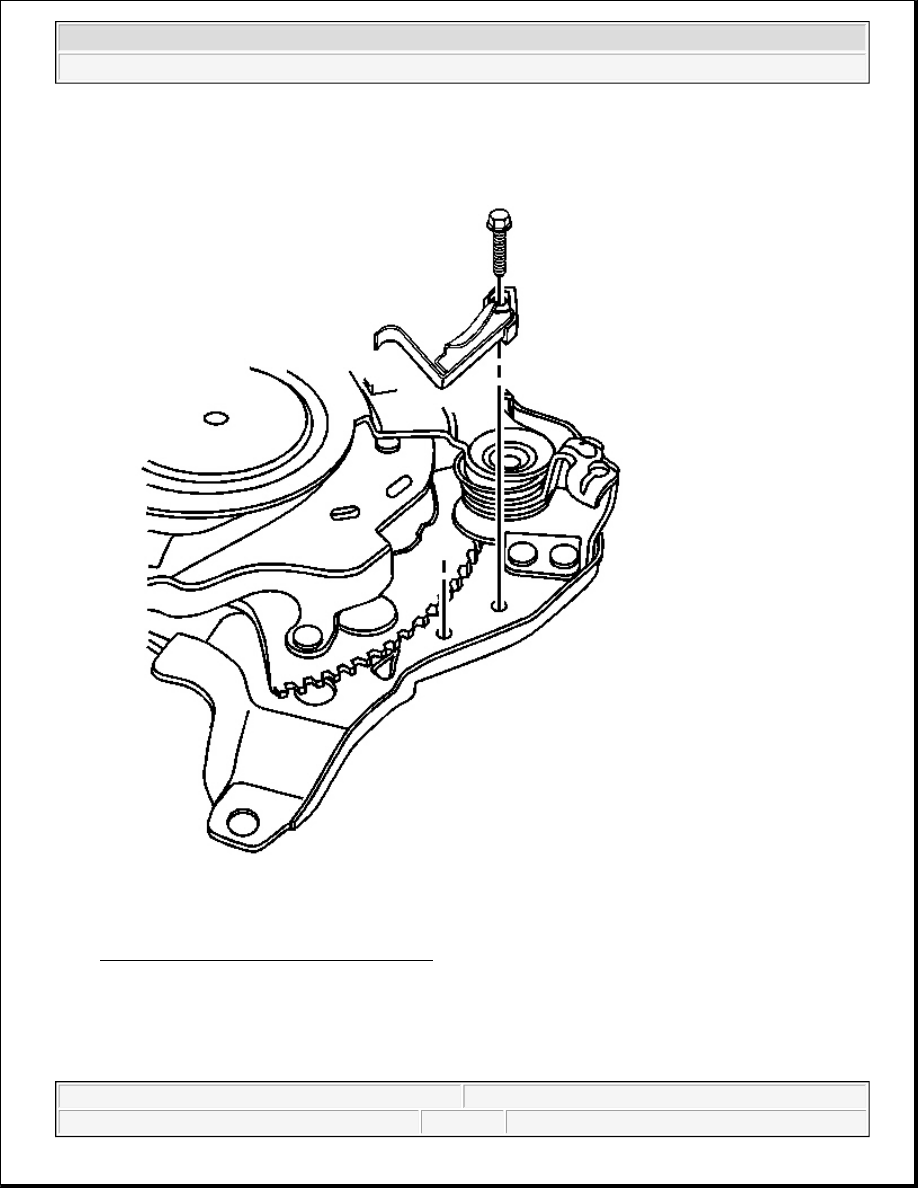

Fig. 18: Park Brake Warning Lamp Switch
Courtesy of GENERAL MOTORS CORP.

4. Remove the park brake warning lamp switch mounting bolt.

5. Remove the park brake warning lamp switch.



2004 Hummer H2

2004 BRAKES Park Brake - Hummer H2



Installation Procedure

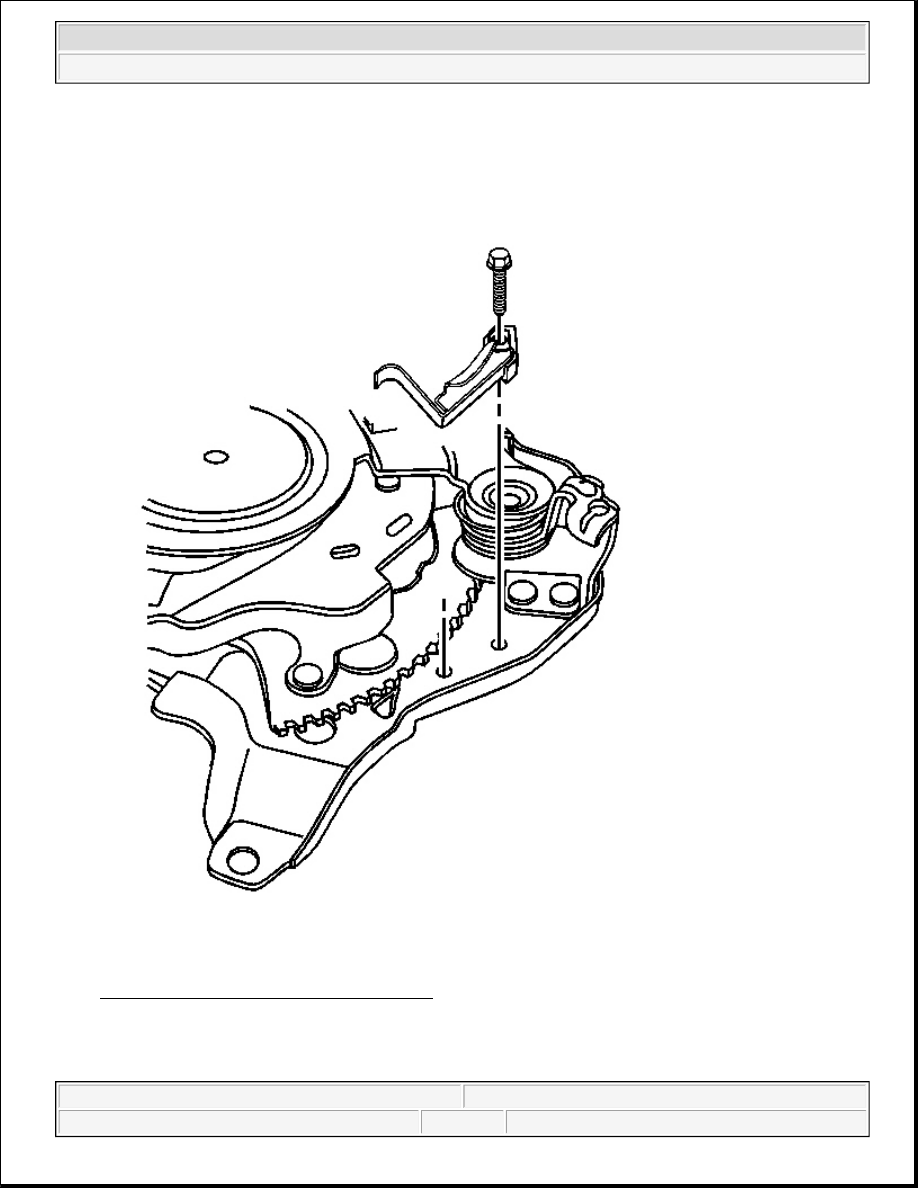

Fig. 19: Park Brake Warning Lamp Switch
Courtesy of GENERAL MOTORS CORP.

1. Install the park brake warning lamp switch.



2004 Hummer H2

2004 BRAKES Park Brake - Hummer H2



2. Install the park brake warning lamp switch mounting bolt.

Tighten: Tighten the bolt to 3 N.m (25 lb in).

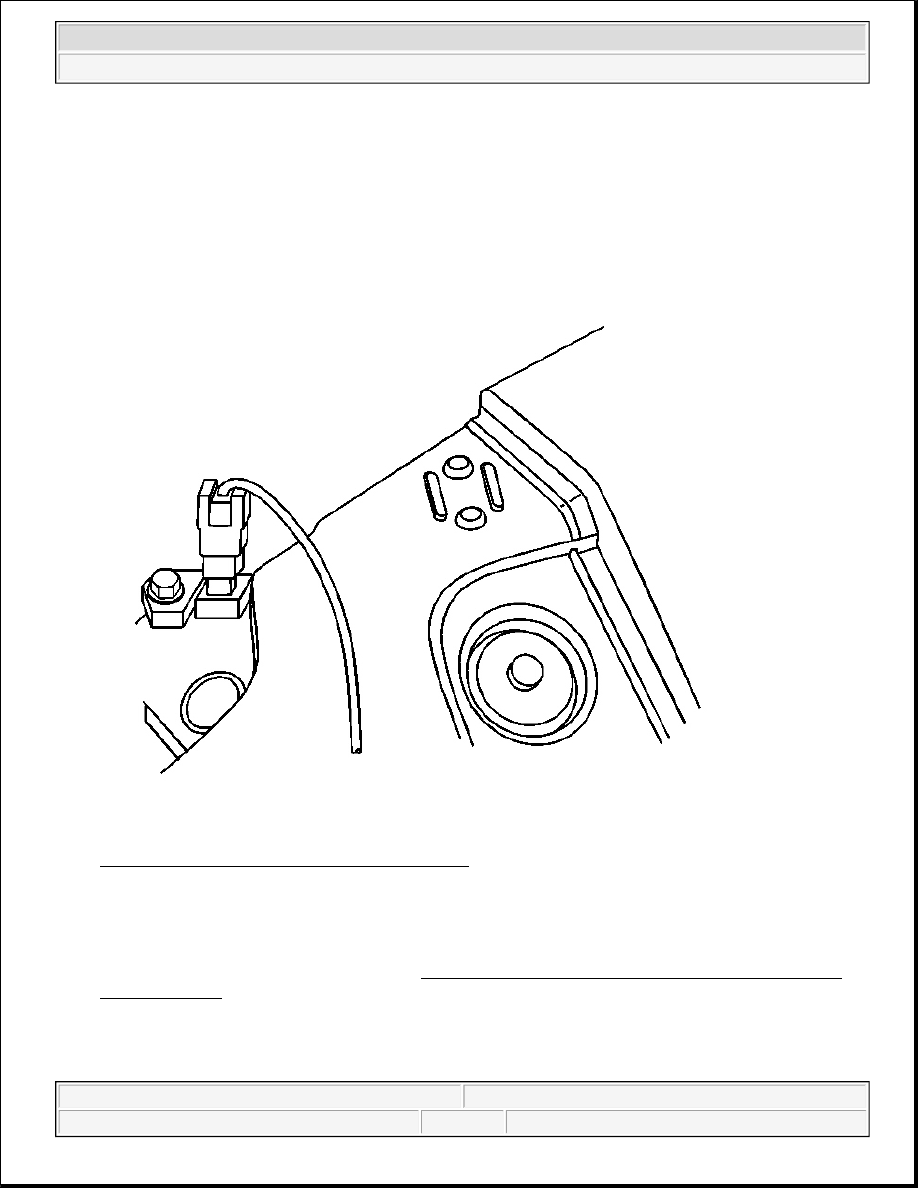

Fig. 20: Park Brake Warning Lamp Connection
Courtesy of GENERAL MOTORS CORP.

3. Connect the park brake warning lamp switch connector.

4. Install the MID-Bussed Electrical Center bracket.

5. Connect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure

(Single Battery) in Engine Electrical.

PARK BRAKE CABLE REPLACEMENT - FRONT

Removal Procedure

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 BRAKES Park Brake - Hummer H2



1. Disable the park brake cable automatic adjuster. Refer to Disabling the Park Brake Cable Automatic

Adjuster In Park Brake.

2. Remove the park brake pedal. Refer to Park Brake Pedal Assembly Replacement .

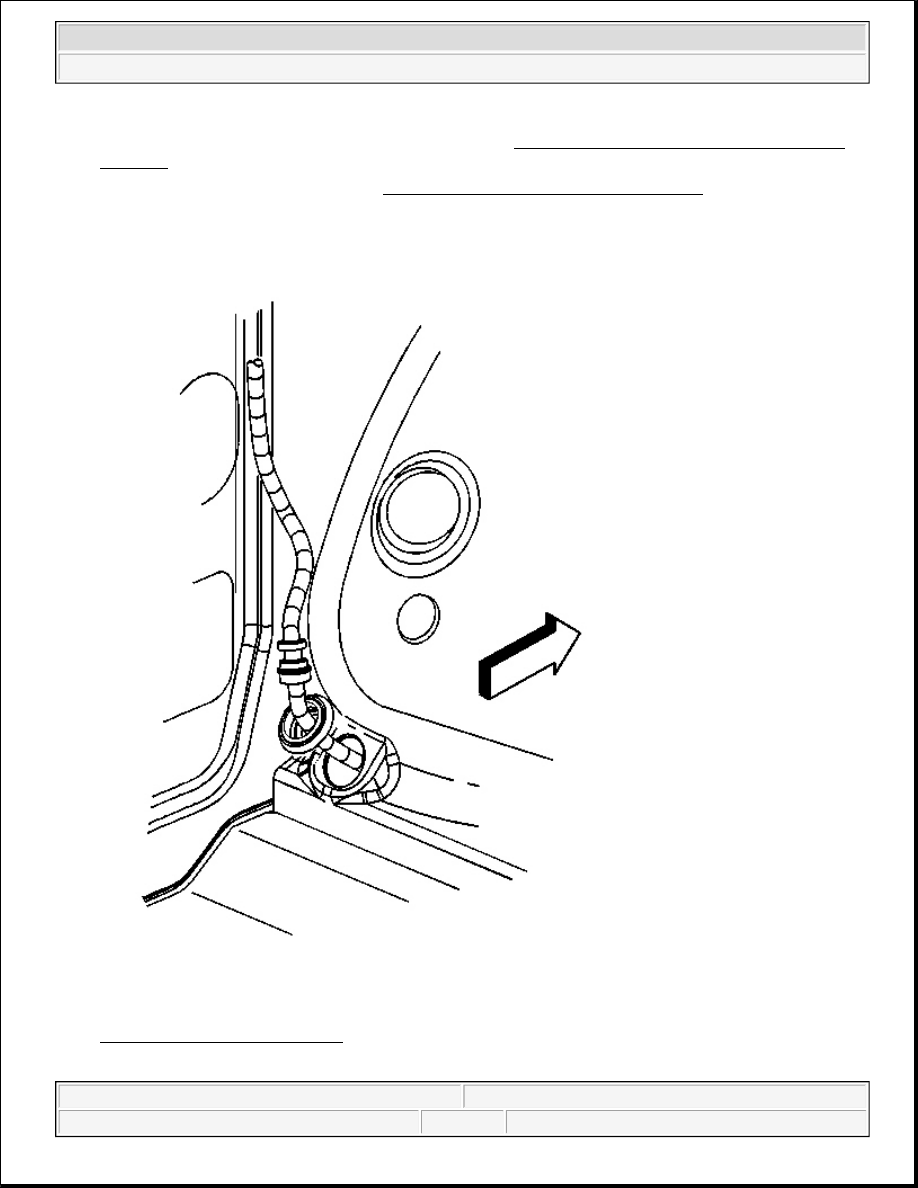

Fig. 21: Access Cable Grommet
Courtesy of GENERAL MOTORS CORP.



2004 Hummer H2

2004 BRAKES Park Brake - Hummer H2
