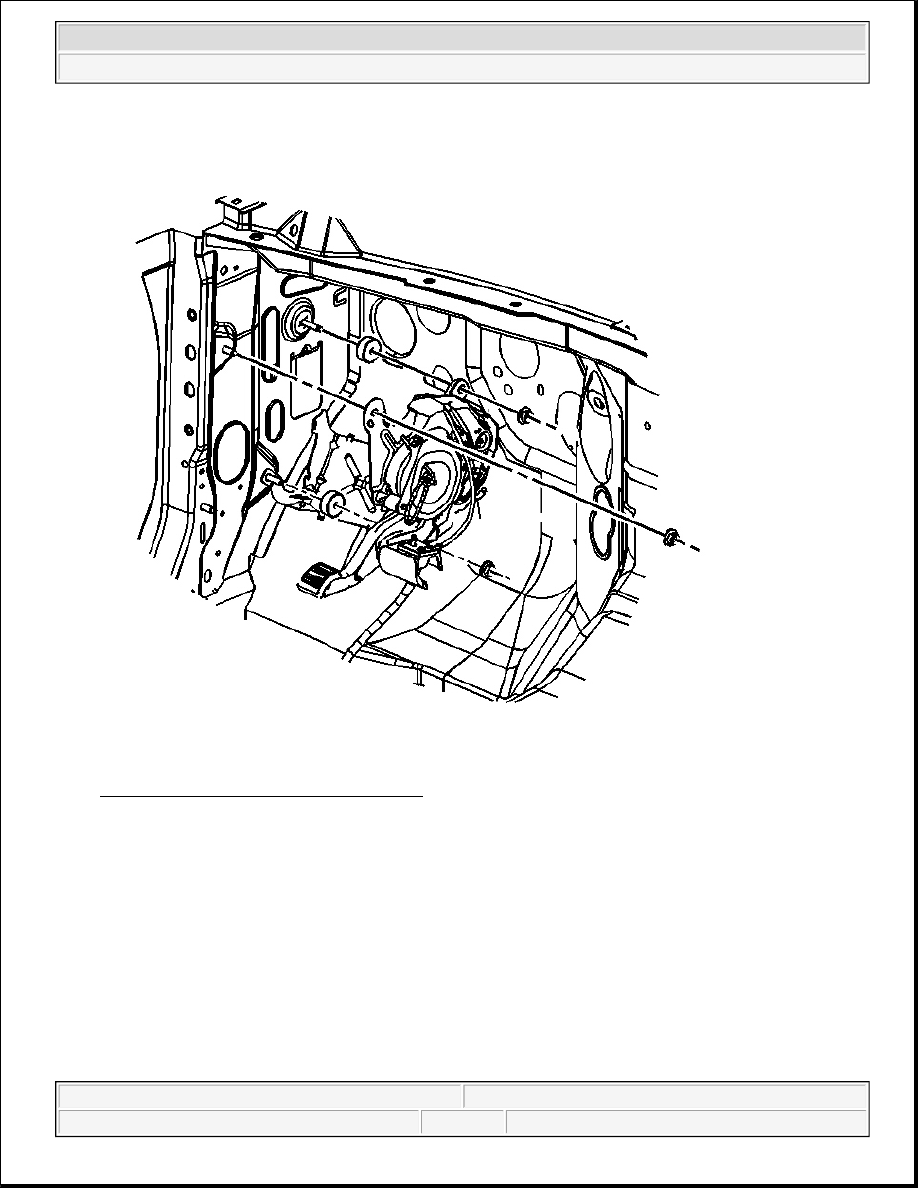

Fig. 14: Park Brake Lever Mounting Nuts
Courtesy of GENERAL MOTORS CORP.

2. Install the park brake lever.

3. Install the park brake lever mounting nuts.

Tighten: Tighten the nuts to 25 N.m (18 lb ft).

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 BRAKES Park Brake - Hummer H2



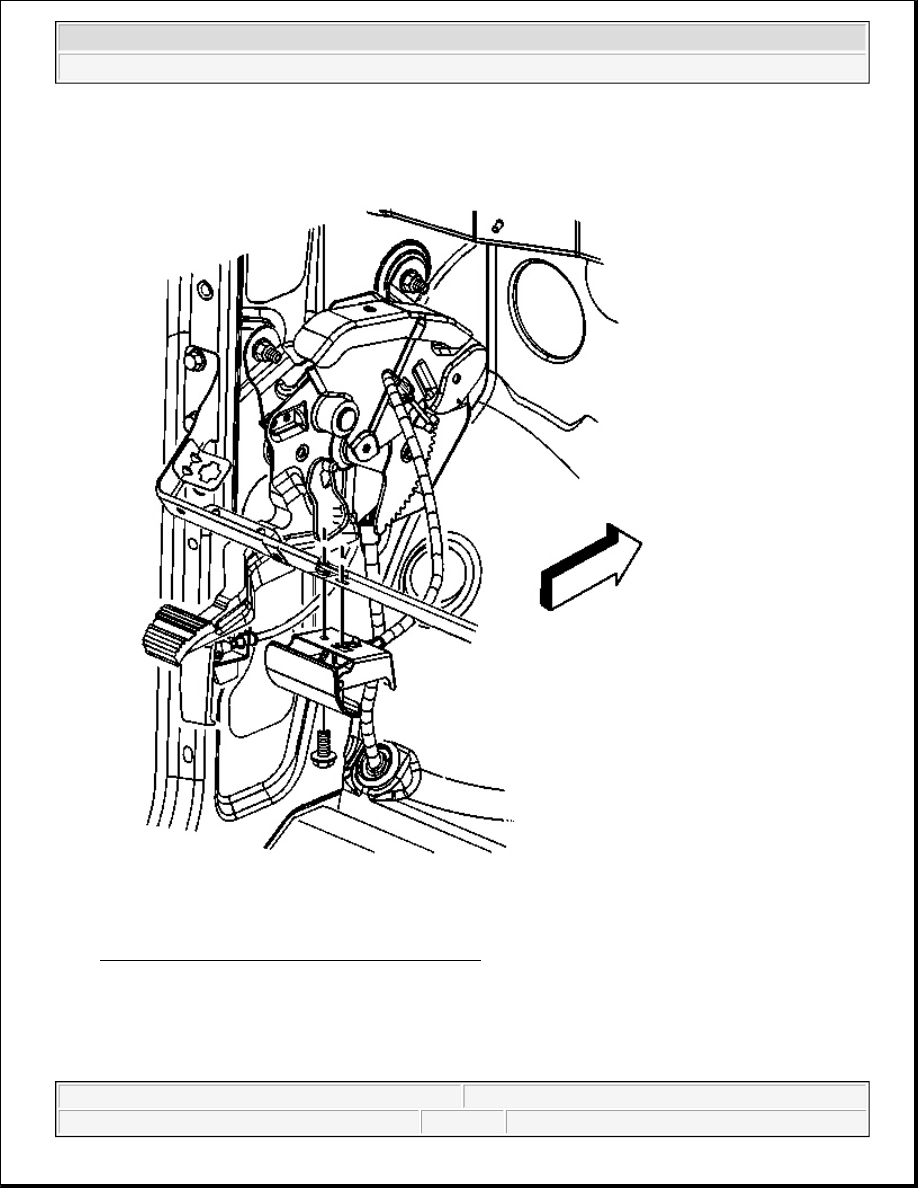

Fig. 15: Park Brake Release Lever Handle & Bolt
Courtesy of GENERAL MOTORS CORP.

4. Connect the park brake release cable to the park brake lever.



2004 Hummer H2

2004 BRAKES Park Brake - Hummer H2



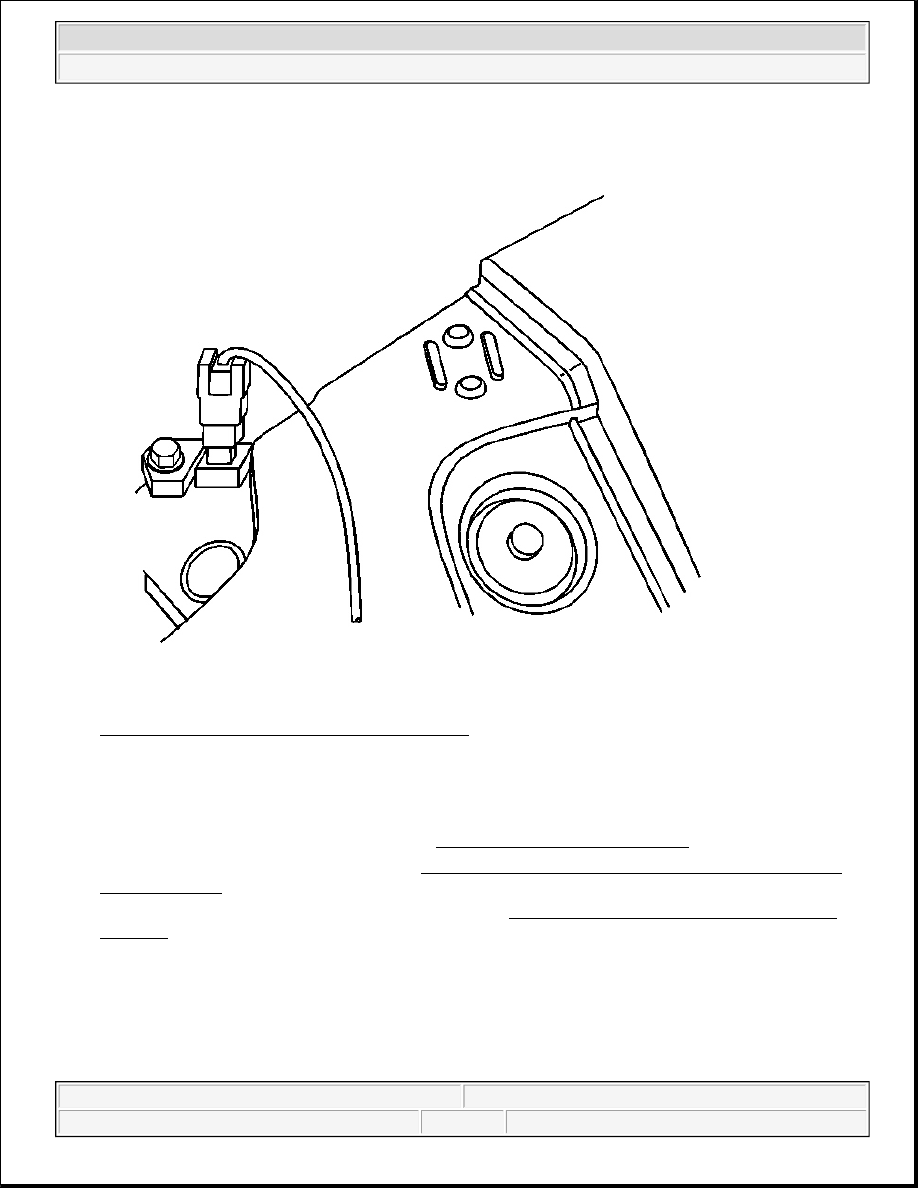

Fig. 16: Park Brake Warning Lamp Connection
Courtesy of GENERAL MOTORS CORP.

5. Connect the park brake warning lamp connector.

6. Install the MID-Bussed Electrical Center bracket.

7. Install the left side hinge pillar panel. Refer to Trim Replacement - Hinge Pillar in Interior Trim.

8. Connect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure

(Single Battery) in Engine Electrical.

9. Enable the park brake cable automatic adjuster. Refer to Enabling the Park Brake Cable Automatic

Adjuster .

PARK BRAKE WARNING LAMP SWITCH REPLACEMENT

Removal Procedure

CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.



2004 Hummer H2

2004 BRAKES Park Brake - Hummer H2



1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure

(Single Battery) in Engine Electrical.

2. Remove the MID-Bussed Electrical Center from the bracket.

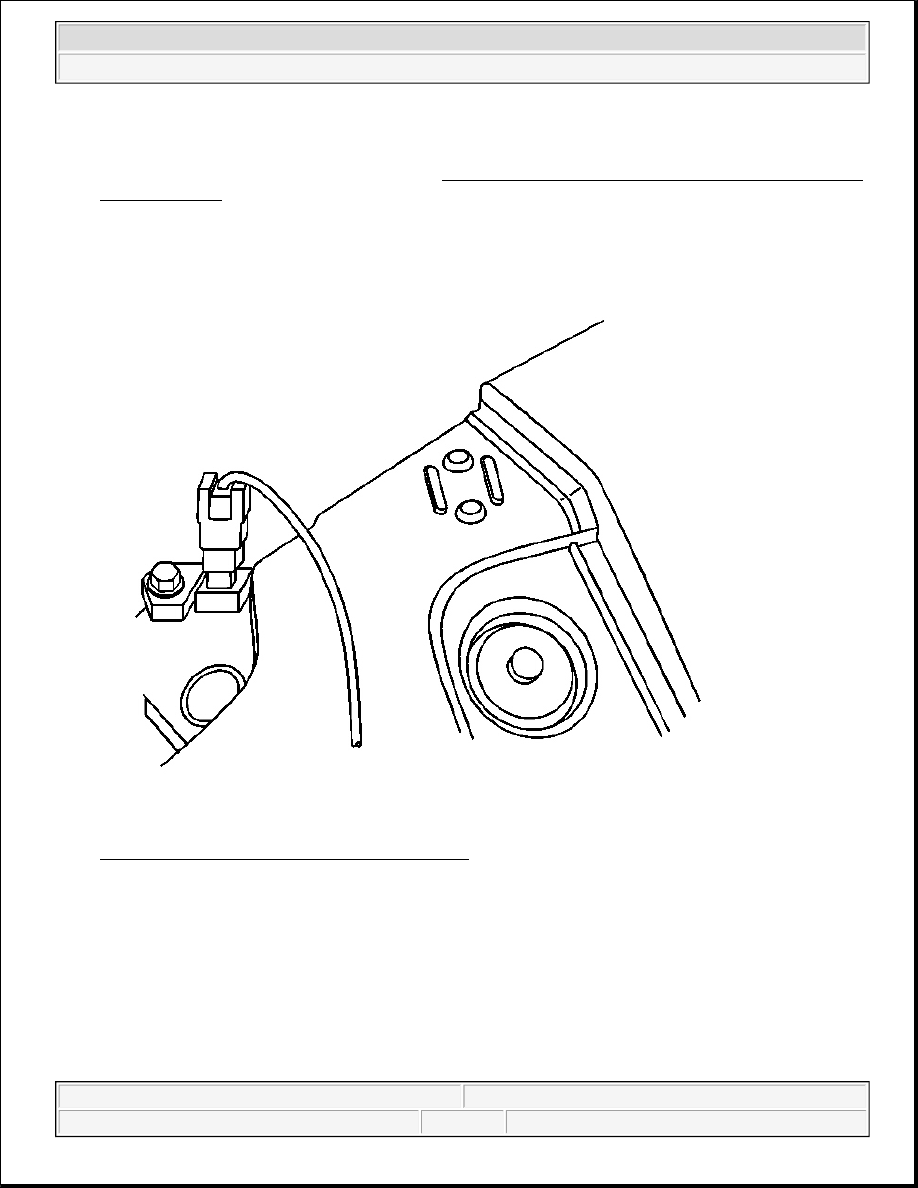

Fig. 17: Park Brake Warning Lamp Connection
Courtesy of GENERAL MOTORS CORP.

3. Disconnect the park brake warning lamp switch connector.
