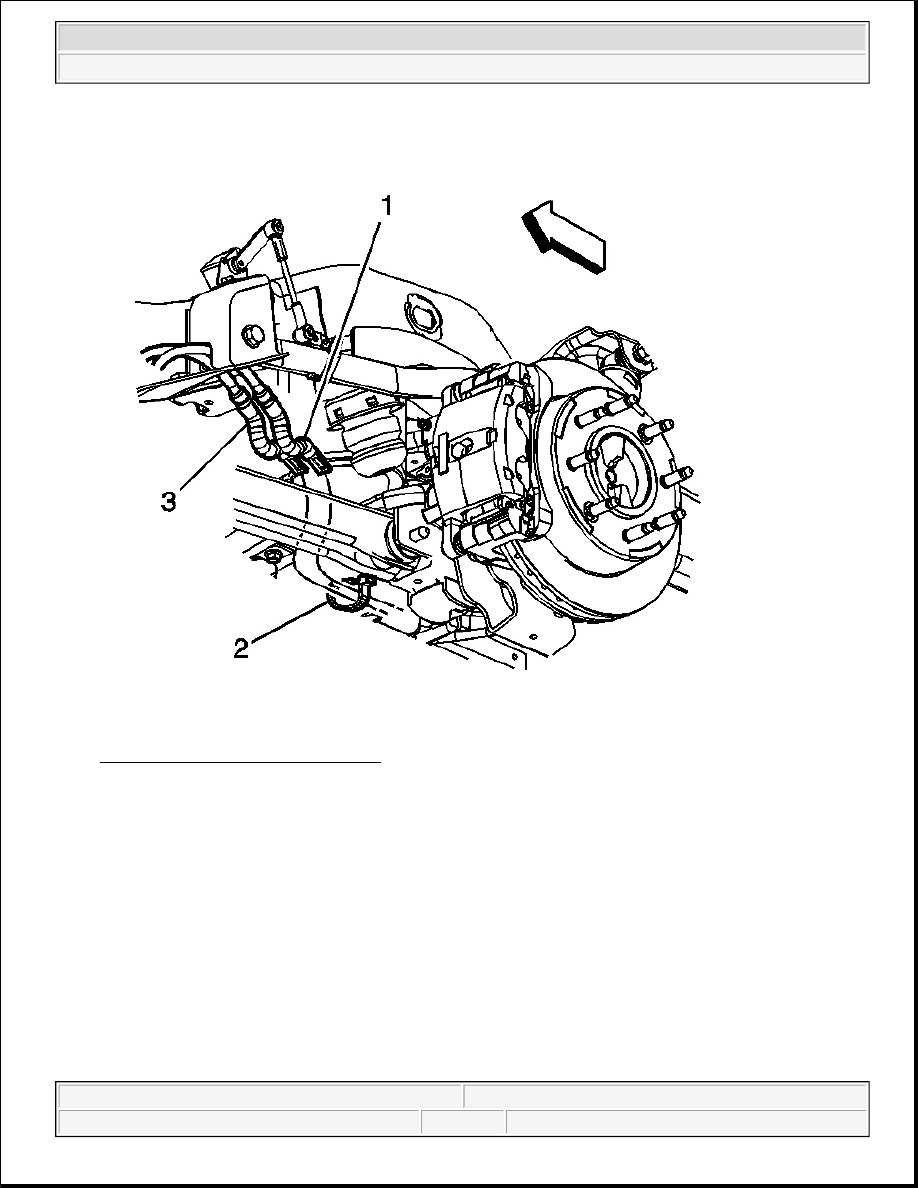

Fig. 30: Left Rear Park Brake Cable
Courtesy of GENERAL MOTORS CORP.

1. Install the left rear cable taking care to correctly route the cable (1) through the cable guide (2).



2004 Hummer H2

2004 BRAKES Park Brake - Hummer H2



Fig. 31: Cable, Lever & Backing Plate
Courtesy of GENERAL MOTORS CORP.

2. Install the cable (3) to the lever (2).

3. install the cable (3) to the backing plate (1) by compressing the spring, routing the cable through the slot

in the backing plate and pressing the cable into the backing plate until the locking tabs snap into place.



2004 Hummer H2

2004 BRAKES Park Brake - Hummer H2



Fig. 32: Left Rear Cable & Cable Support
Courtesy of GENERAL MOTORS CORP.

4. Install the left rear cable (3) to the cable support (2).



2004 Hummer H2

2004 BRAKES Park Brake - Hummer H2



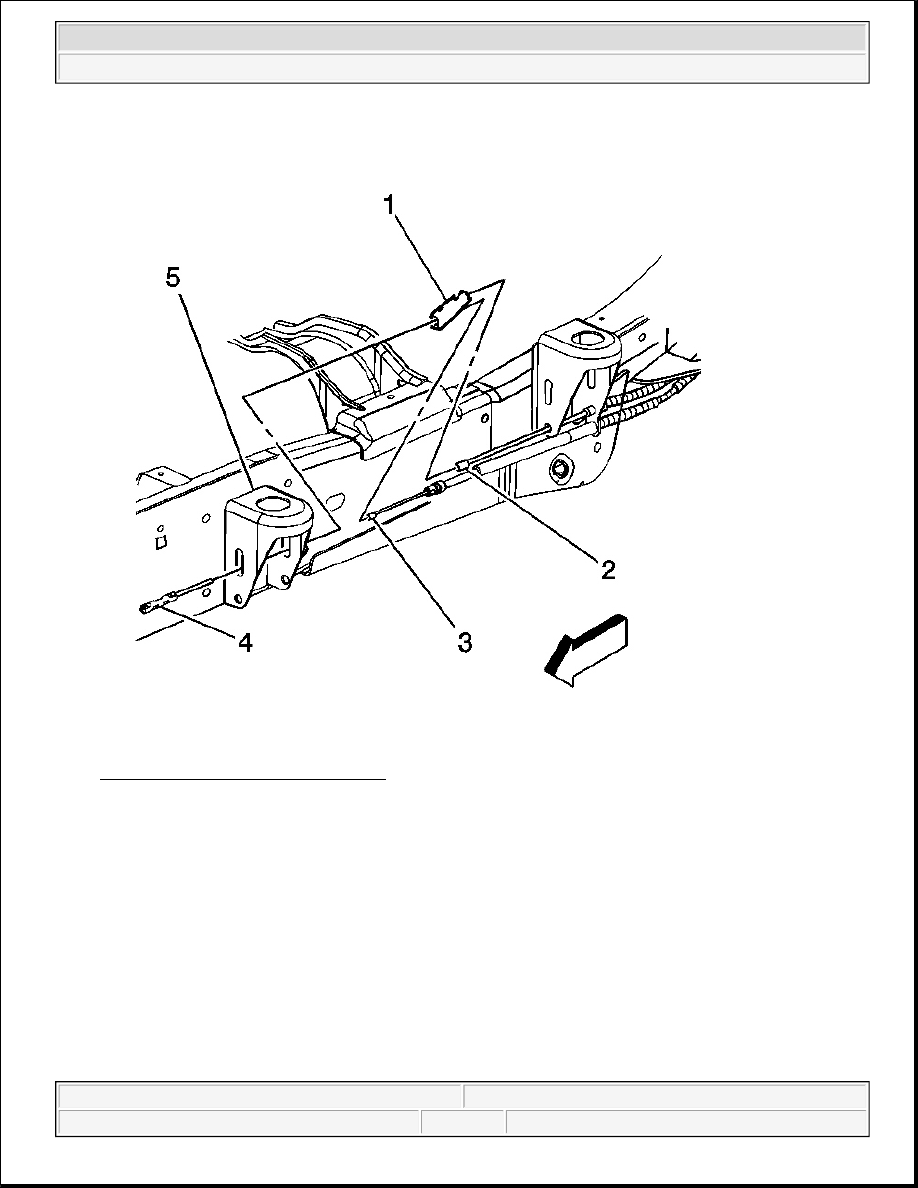

Fig. 33: Left Rear Cable & Equalizer
Courtesy of GENERAL MOTORS CORP.

5. Install the left rear cable (4) to the equalizer (1) until the locking tabs snap into place.
