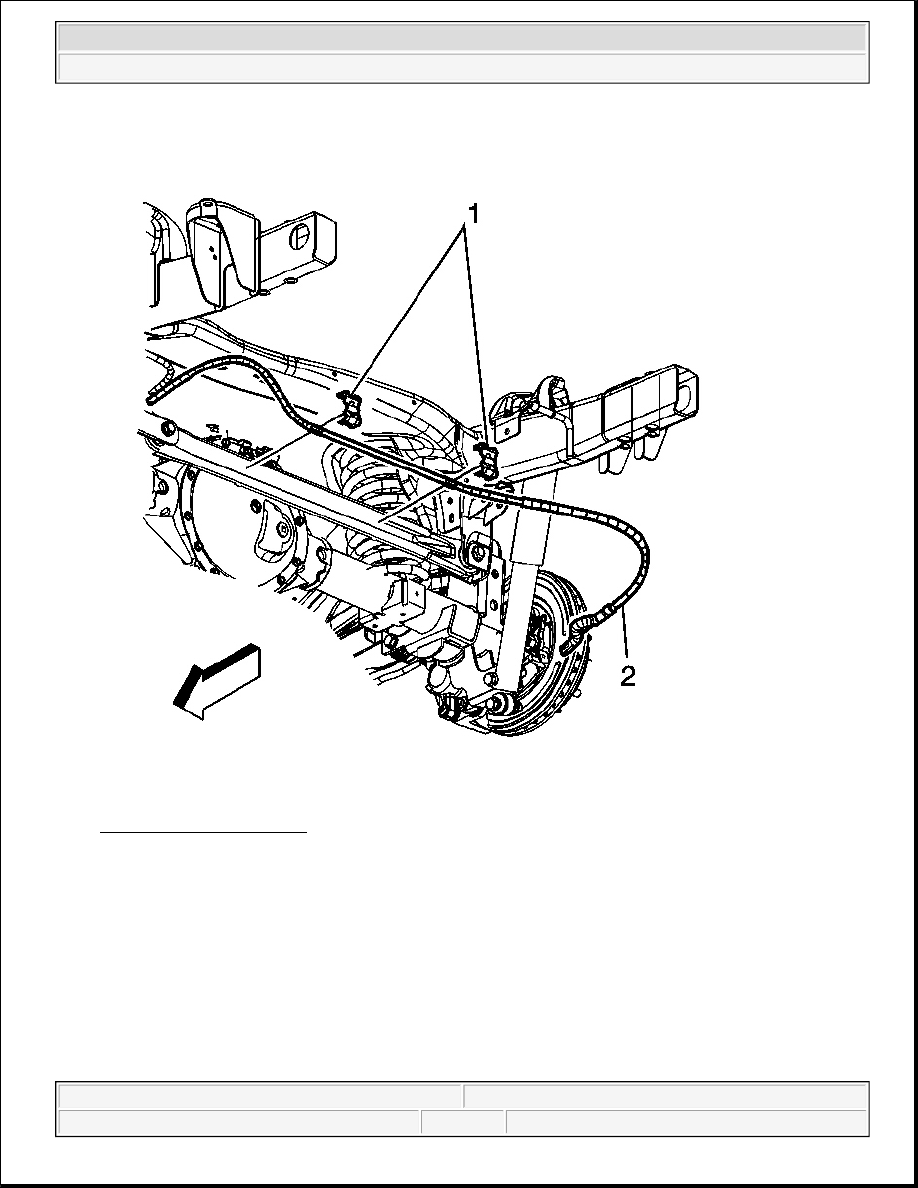

Fig. 42: Track Bar & Clips
Courtesy of GENERAL MOTORS CORP.

4. Position the right rear cable (2) and the clips (1) on the track bar.



2004 Hummer H2

2004 BRAKES Park Brake - Hummer H2



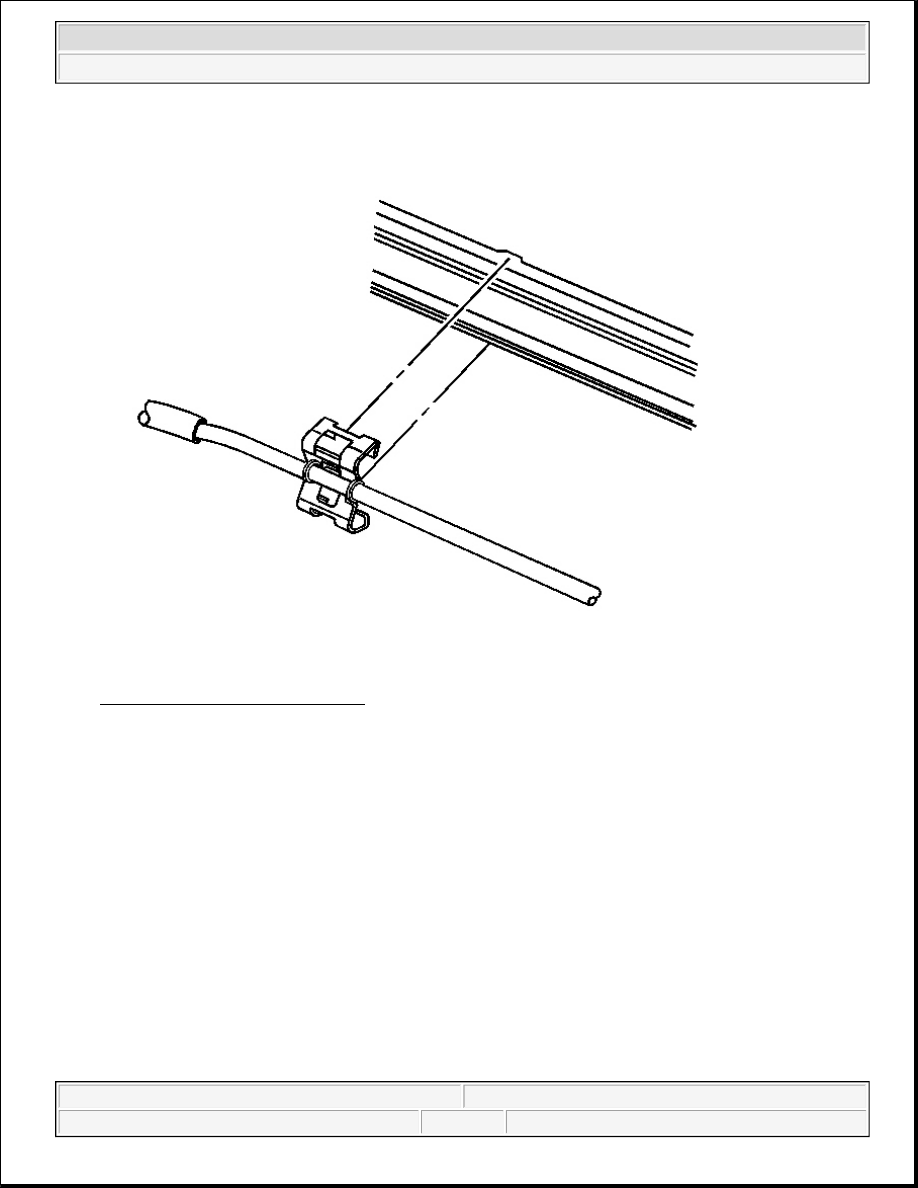

Fig. 43: Installing Track Bar Clips
Courtesy of GENERAL MOTORS CORP.

5. Install the track bar clips to the locating tabs on the track bar.



2004 Hummer H2

2004 BRAKES Park Brake - Hummer H2



Fig. 44: Right Rear Cable & Cable Support
Courtesy of GENERAL MOTORS CORP.

6. Install the right rear cable (1) to the cable support (2).



2004 Hummer H2

2004 BRAKES Park Brake - Hummer H2



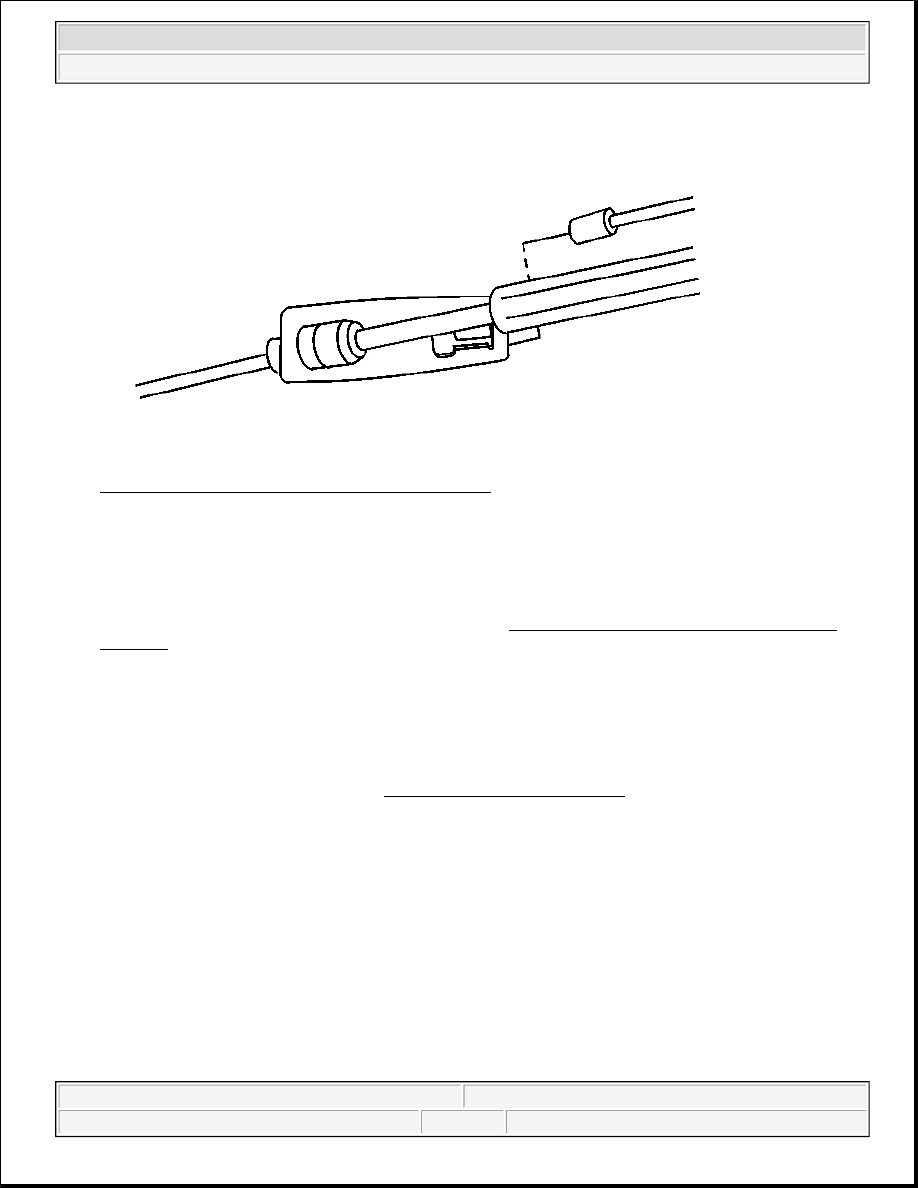

Fig. 45: Right Rear Park Brake Cable & Equalizer
Courtesy of GENERAL MOTORS CORP.

7. Install the right rear cable to the equalizer.

8. Remove the safety stands.

9. Lower the vehicle.

10. Enable the park brake cable automatic adjuster. Refer to Enabling the Park Brake Cable Automatic

Adjuster .

PARK BRAKE CABLE GUIDE REPLACEMENT

Removal Procedure

1. Release the parking brake.

2. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
