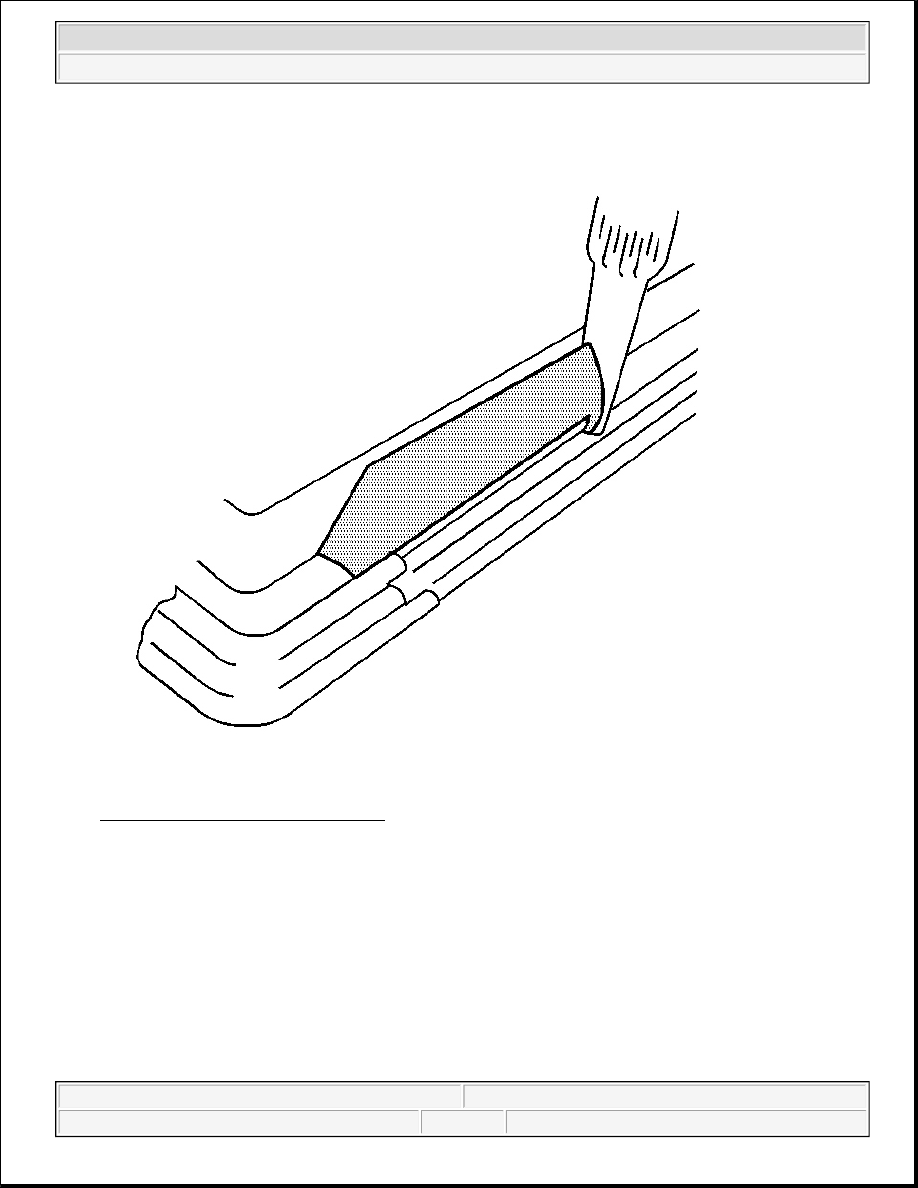

Fig. 32: Modified Applicator Nozzle
Courtesy of GENERAL MOTORS CORP.

18. Cut the applicator nozzle in order to provide a bead of 12.7 mm (1/2 in) wide and 12.7 mm (1/2 in) high.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Stationary Windows - Hummer H2

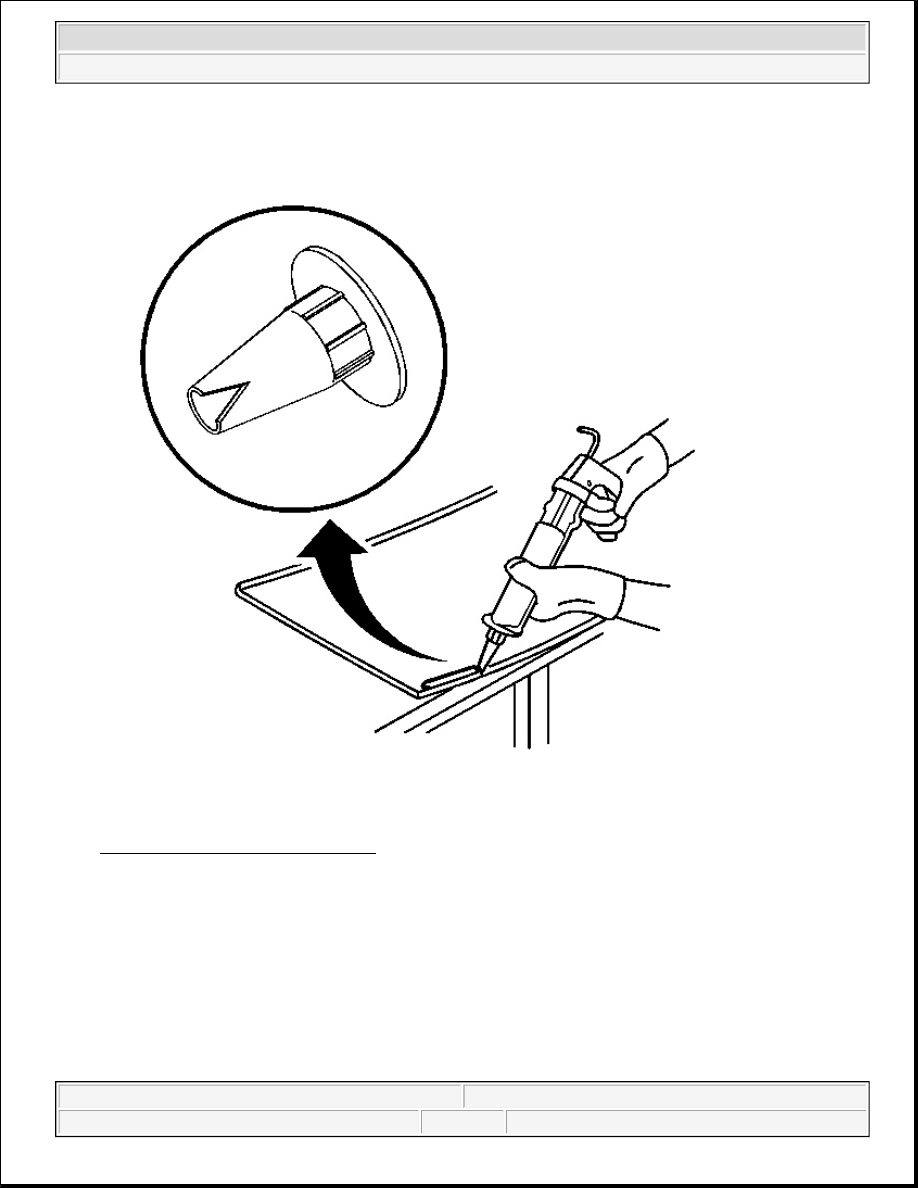

Fig. 33: Applying Urethane Adhesive
Courtesy of GENERAL MOTORS CORP.

19. Use a cartridge-type caulking gun in order to apply a smooth, continuous bead of urethane adhesive.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Stationary Windows - Hummer H2

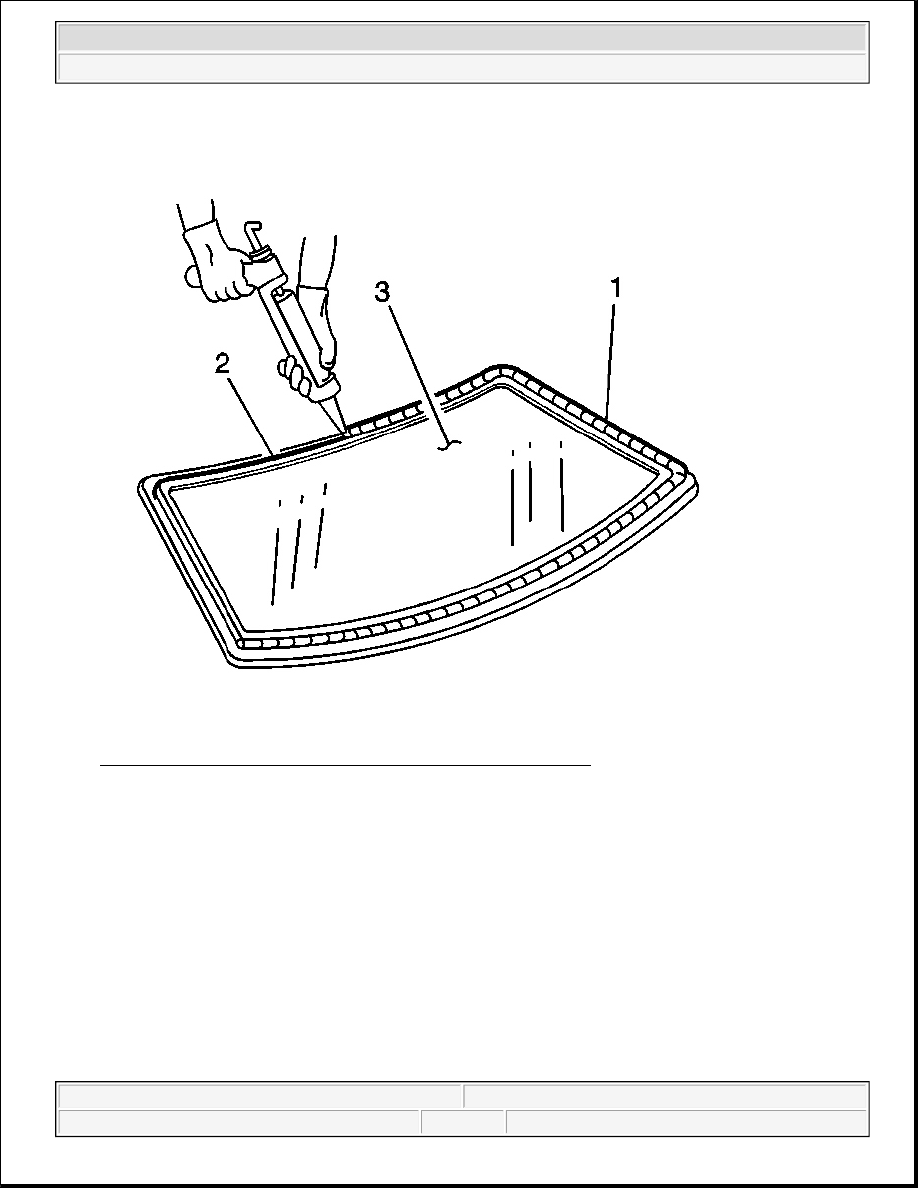

Fig. 34: Applying Urethane Adhesive To Window Inner Surface
Courtesy of GENERAL MOTORS CORP.

20. Use the edge of the window or the inside edge of the reveal molding as a guide for the nozzle in order to

apply the urethane adhesive (1) to the inner surface of the window (3).



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Stationary Windows - Hummer H2

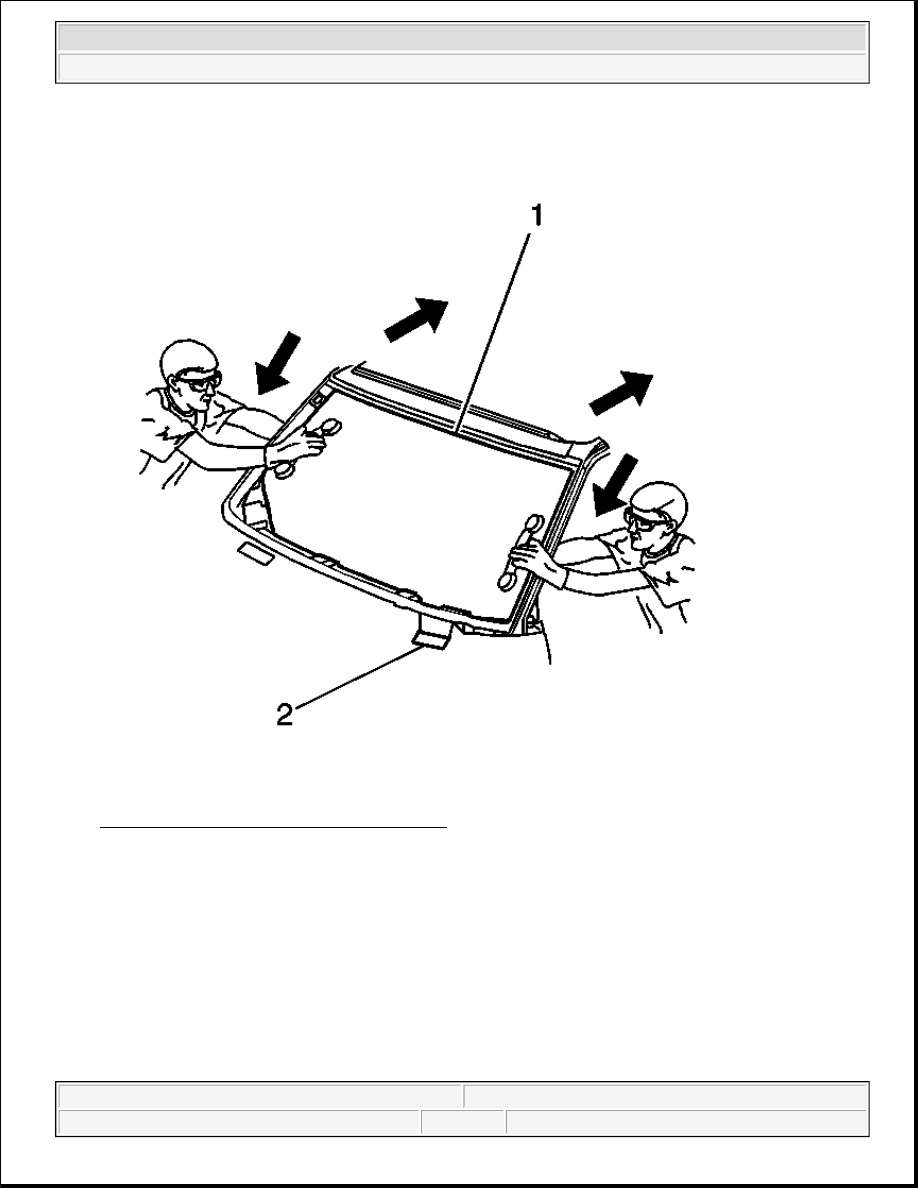

Fig. 35: Placing Window On Lower Supports
Courtesy of GENERAL MOTORS CORP.

21. With the aid of an assistant, place the window in the opening.

If installing a windshield place the windshield on the lower supports (2), if equipped.
