Installation Procedure

1. Install the quarter window into the opening. Refer to Urethane Adhesive Installation of Stationary

Windows .

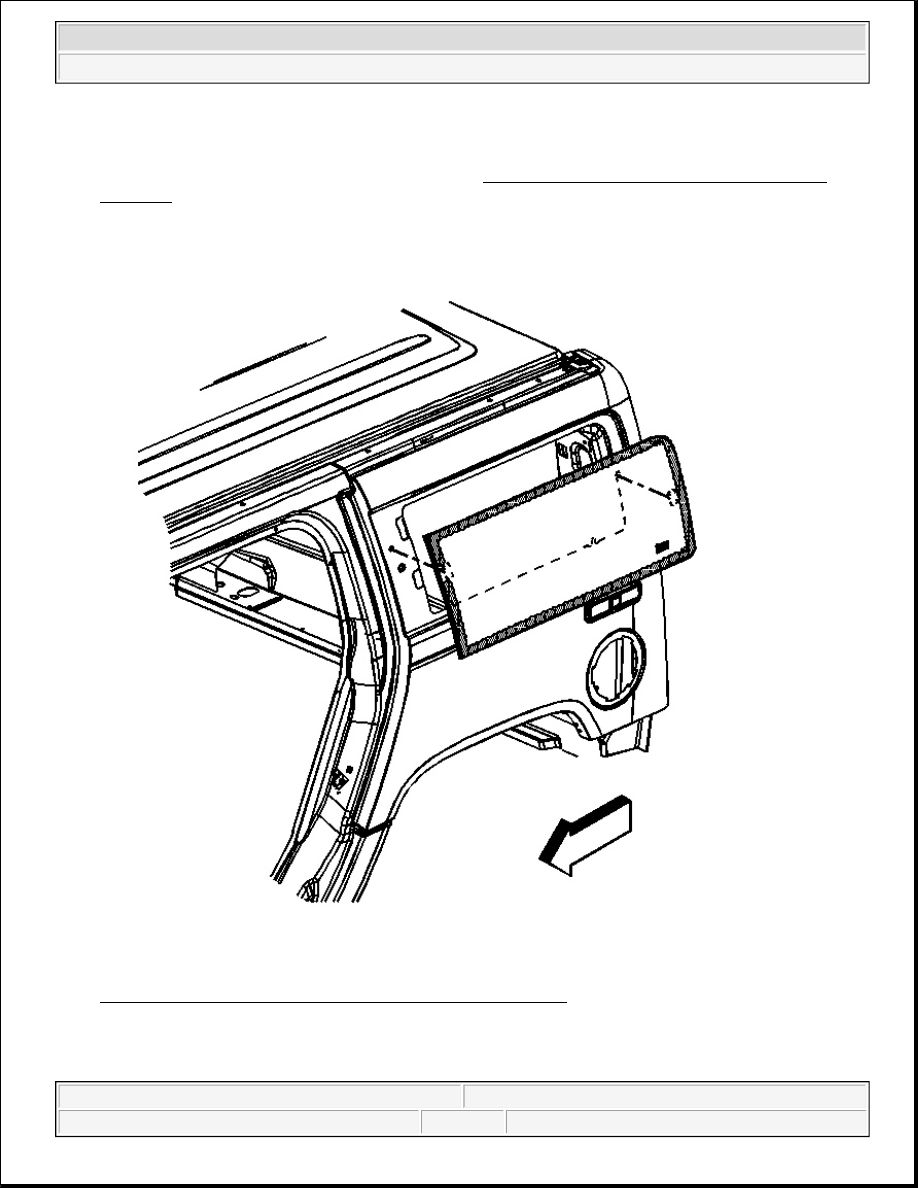

Fig. 25: Quarter Window (SUV Body Side Quarter Window)
Courtesy of GENERAL MOTORS CORP.

2. Insure the pinchweld is primed properly.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Stationary Windows - Hummer H2



3. Remove the double layer of masking tape around the perimeter of the painted surfaces and the interior

trim.

URETHANE ADHESIVE INSTALLATION OF STATIONARY WINDOWS

1. Remove all mounds or loose pieces of urethane adhesive from the pinch-weld area.

2. If the original window is being reused, remove all but a thin film of the existing urethane adhesive from

the window surface by using a clean utility knife or razor blade scraper.

3. Inspect the following components for the causes of a broken window:

z

The flange of the window opening

z

The window reveal molding

4. Inspect for any of the following problems in order to help prevent future breakage of the window:

z

High weld

z

Solder spots

z

Hardened sealer

z

Any other obstruction or irregularity in the pinch-weld flange

5. After repairing the opening as indicated, perform the following steps:

1. Remove all traces of broken glass from the outer cowl panel, seats, floor and defroster ducts.

2. Clean around the edge of the inside surface of the window with a 50/50 mixture of isopropyl

alcohol and water by volume on a dampened lint free cloth.

CAUTION: Refer to Glass and Sheet Metal Handling Caution in Cautions and

Notices.

IMPORTANT: Remove all but approximately 2 mm (3/64 in) of the existing bead of

urethane adhesive from the pinch-weld flange.

IMPORTANT: If corrosion of the pinch-weld flange is present or if sheet metal repairs or

replacements are required, the pinch-weld flange must be refinished in
order to restore the bonding area strength. If paint repairs are required,
mask the flange bonding area prior to applying the color coat in order to
provide a clean primer only surface. Materials such as BASF DE15(R),
DuPont 2610(R), Sherwin-Williams PSE 4600 and NP70(R) and Martin-
Semour 5120 and 5130(R) PPG DP90LF SPIES/ HECKER 3688/8590 -
3688/5150 - 4070/5090 STANDOX 11158/13320 - 14653/14980 products are
approved for this application.

CAUTION: Refer to Window Retention Caution in Cautions and Notices.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Stationary Windows - Hummer H2



6. Verify all primers and urethane adhesive are within expiration dates.

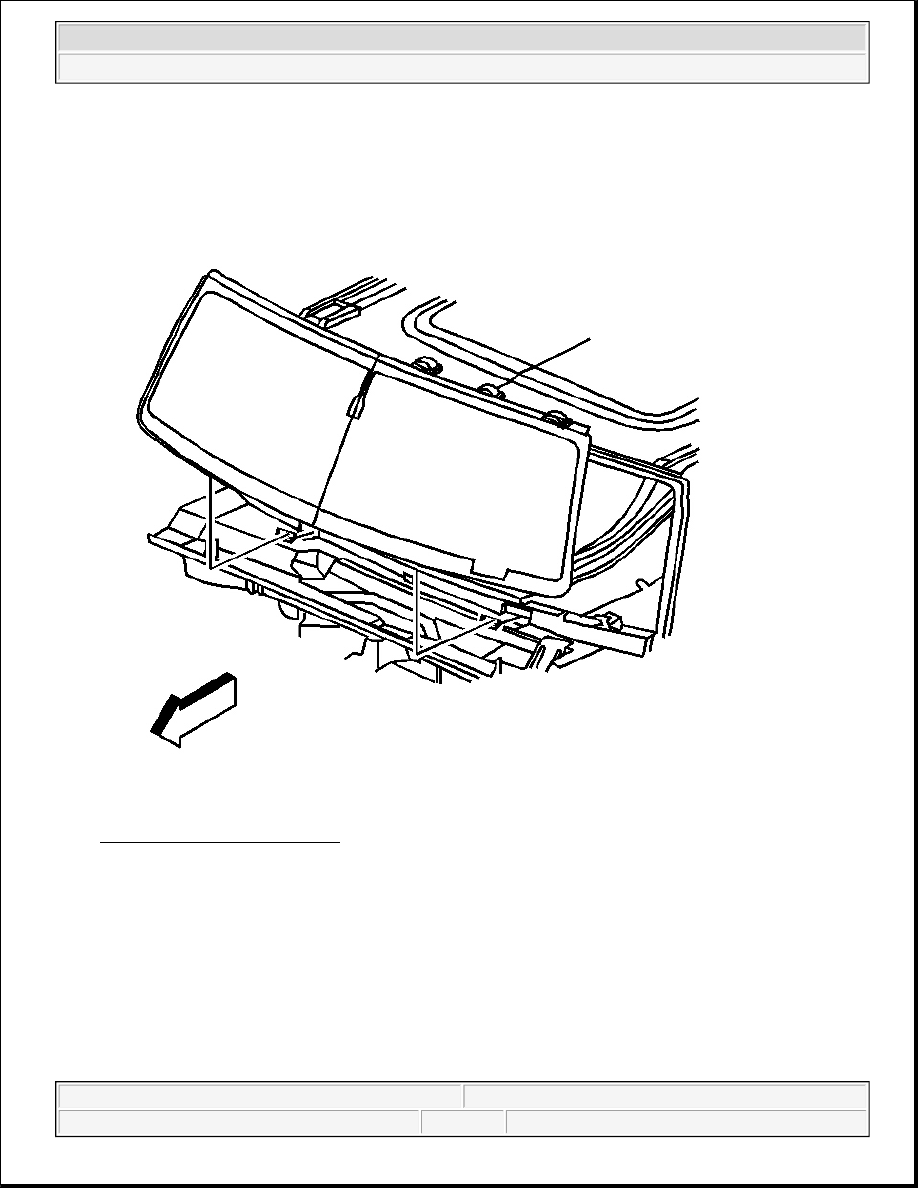

Fig. 26: Applying Pinch-Weld Primer Black #3 To Surface Of Pinch-Weld Flange
Courtesy of GENERAL MOTORS CORP.

7. Shake the pinch-weld primer black #3 for at least 1 minute.

CAUTION: Failure to prep the area prior to the application of primer may cause

insufficient bonding of urethane adhesive. Insufficient bonding of
urethane adhesive may allow unrestrained occupants to be ejected
from the vehicle resulting in personal injury.

IMPORTANT: Do not apply the black #3 primer to the existing bead of the urethane

adhesive on the pinch-weld flange. Apply the primer only to nicks,
scratches or the primed surfaces.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Stationary Windows - Hummer H2



8. Use a new dauber in order to apply the primer to the surface of the pinch-weld flange (1).

9. Allow the pinch-weld primer to dry for approximately 10 minutes.

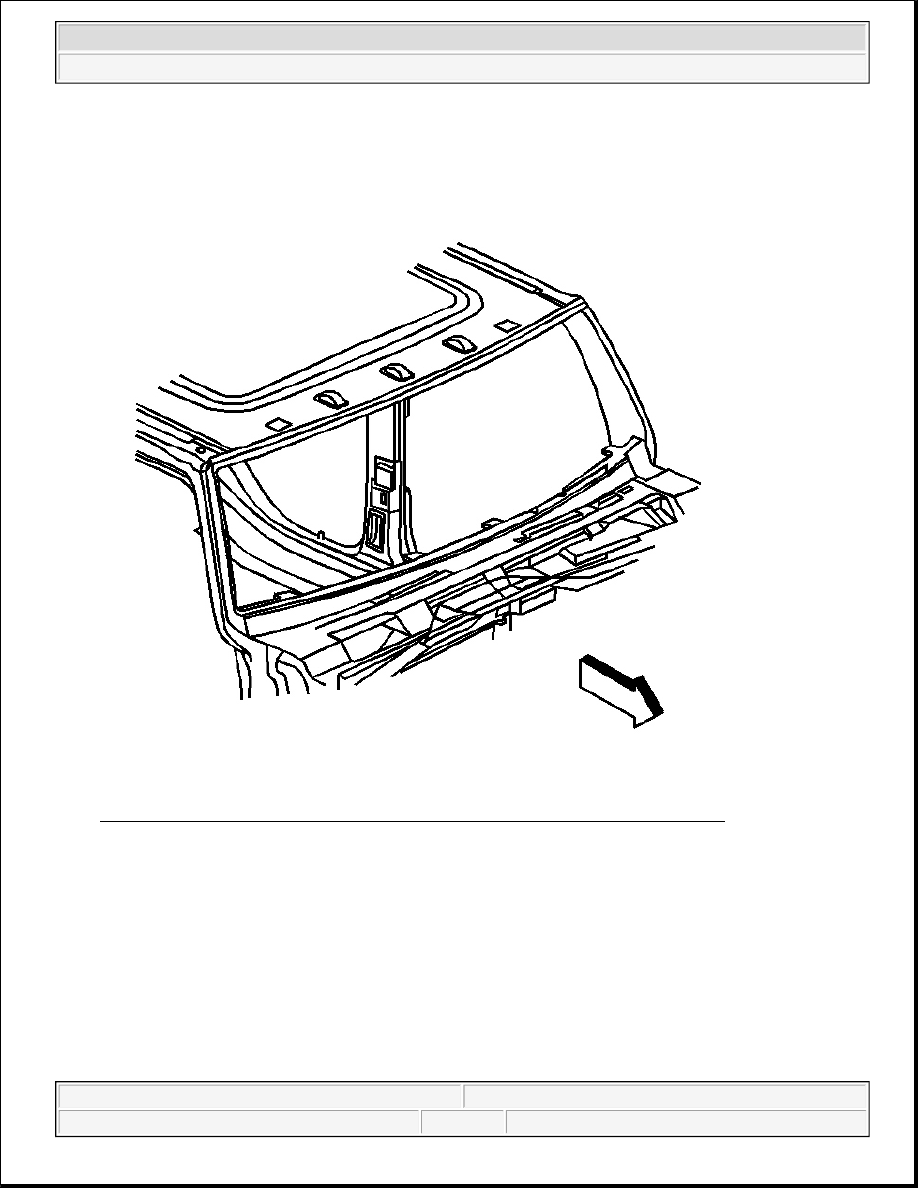

Fig. 27: Identifying Windshield
Courtesy of GENERAL MOTORS CORP.

10. With the aid of an assistant dry fit the window to the opening in order to determine the correct position.
