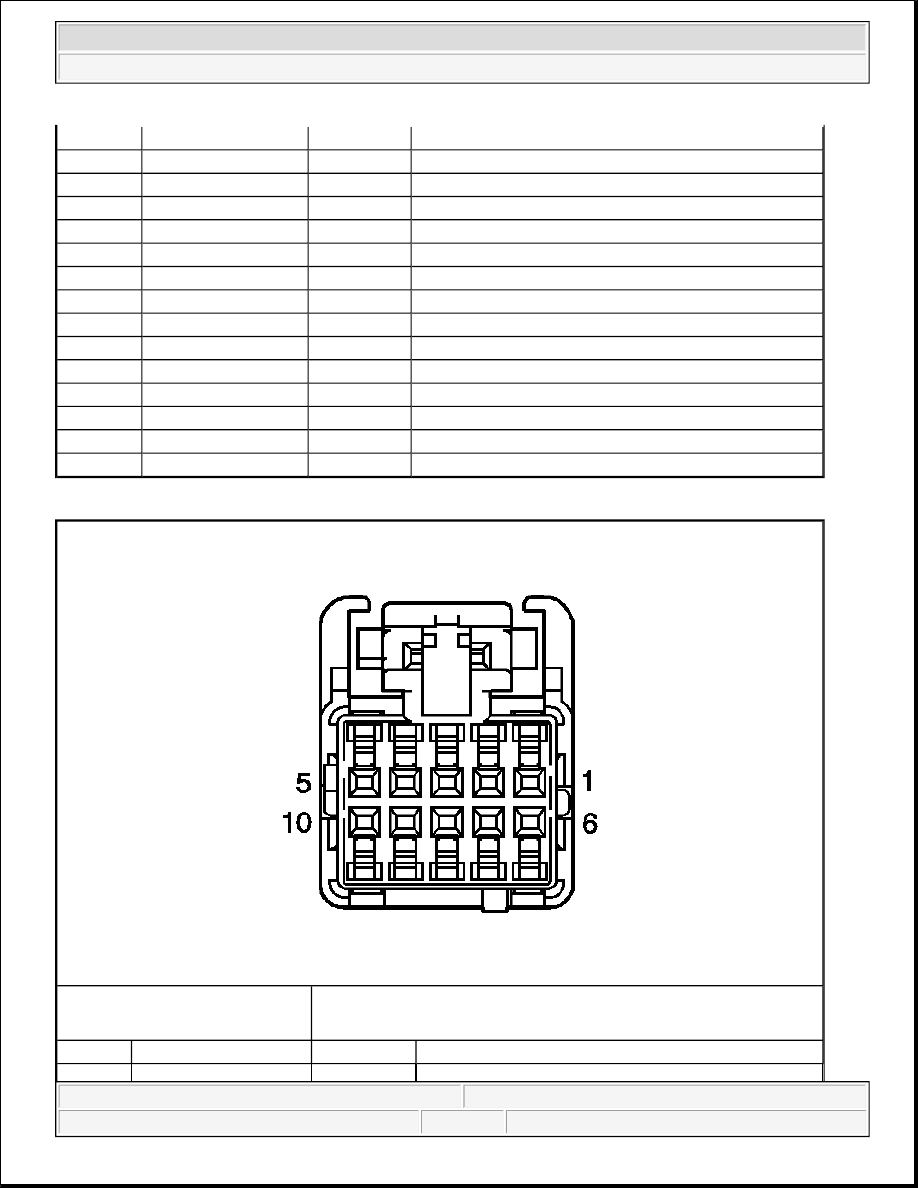

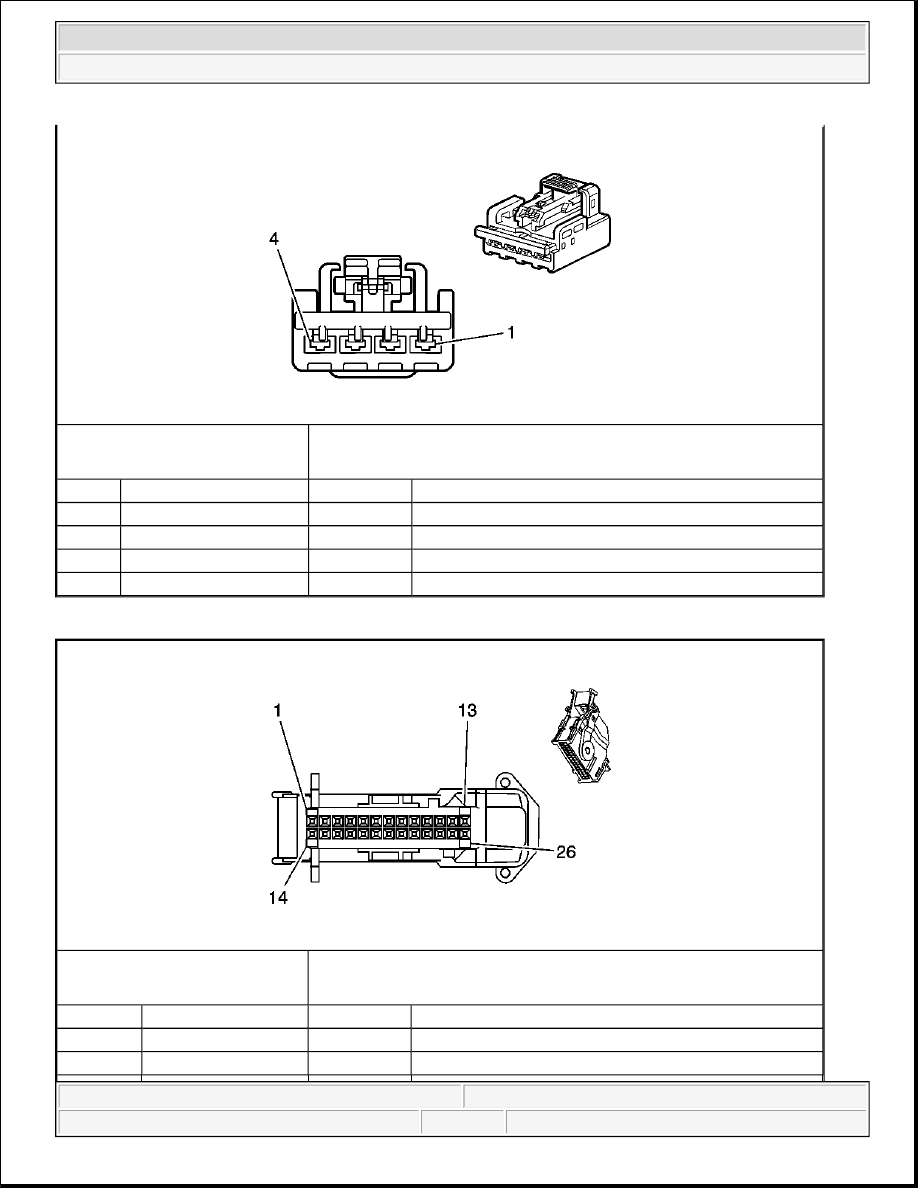

Front Passenger Door Module (FPDM) Terminal Identification - C1 Connector Part Information z 6383393-4 z 12-Way F AMP 0.64 mm Unsealed (GN) Pin Wire Color Circuit No. Function 1 WH/BK - Medium Heat Indicator Control 2 YE - Low Heat Indicator Control 3 GY - Back Only Select 4 L-BU - Memory/Heated Seat Backlight 5 PK - Memory 2 Switch Signal 6 - - Not Used 7 D-GN - High Heat Indicator Control 8 BK - Back Only Indicator 9 D-BU - Back and Cushion Select 10 RD - Memory 1 Switch Signal 11 BN - Memory/Heated Switch Supply Voltage 12 - - Not Used
