Driver Door Module (DDM) Terminal Identification - C1

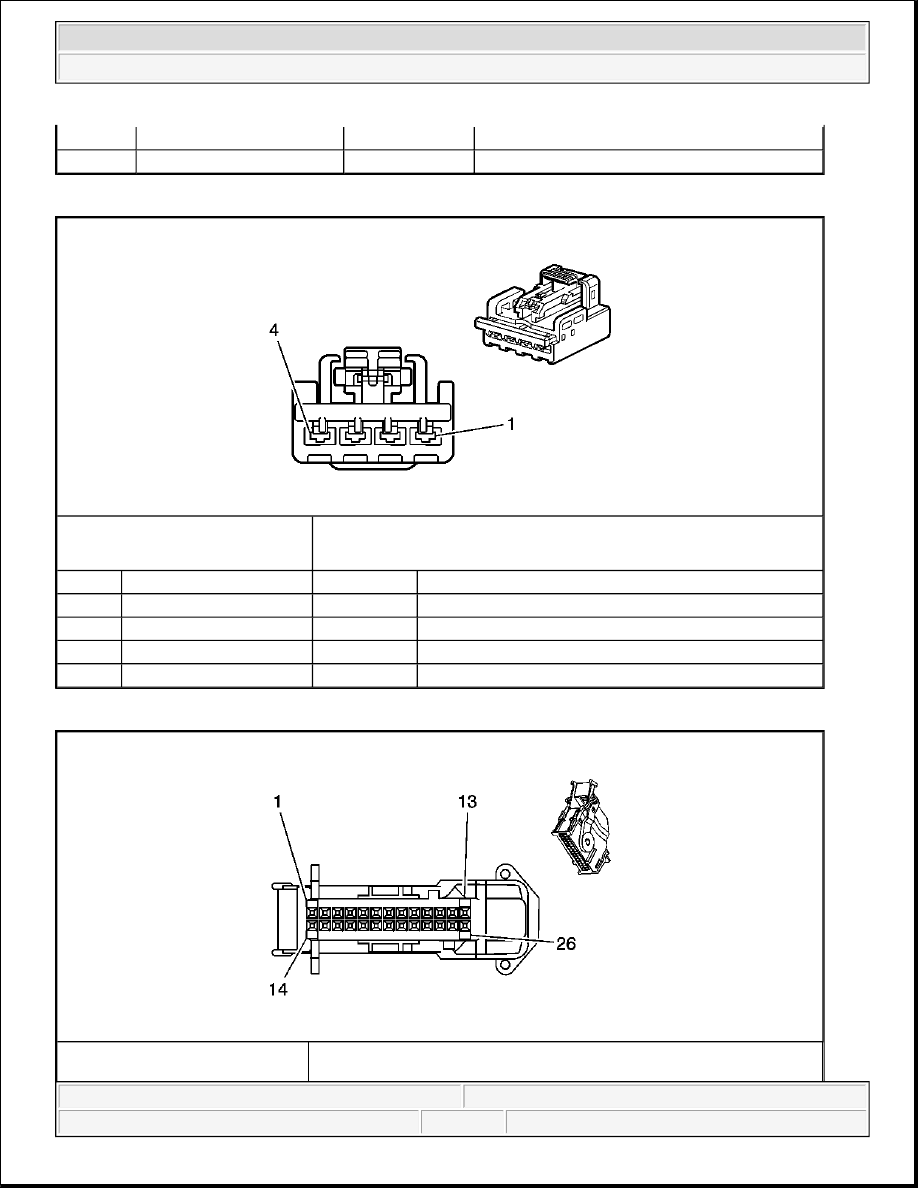

Driver Door Module (DDM) Terminal Identification - C2

E-G

-

-

Not Used

H

WH

194

Rear Door Unlock Switch Signal

Connector Part Information

z

15393410

z

4-Way F AMP 2.8 mm Sealed (BK)

Pin

Wire Color

Circuit No.

Function

1

BN

165

Power Window Motor Left Front Down Control

2

OG

1240

Battery Positive Voltage

3

D-BU

164

Power Window Motor Left Front Up Control

4

BK

1050

Ground

Connector Part Information

z

15398841



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



Driver Door Module (DDM) Terminal Identification - C3

z

26-Way F AMP Lever Assist (BK)

Pin

Wire Color

Circuit No.

Function

1-2

-

-

Not Used

3

BN

1183

Left Front Door Switch Low Reference

4

D-BU

660

Left Front Door Courtesy Lamp Control

5-9

-

-

Not Used

10

GY

1690

Automatic Day/Night Mirror Signal

11

-

-

Not Used

12

PK

1691

Automatic Day/Night Mirror Low Reference

13

D-BU/WH

149

Courtesy Lamp - Left Front Door Supply Voltage

14

OG

4140

Battery Positive Voltage

15

L-GN

262

Driver Door Key Switch Signal

16-17

-

-

Not Used

18

GY/BK

745

Left Front Door Ajar Switch Signal

19

-

-

Not Used

20

TN

294

Door Lock Actuator Unlock Control

21

GY

295

Door Lock Actuator Lock Control

22

BN

1046

DDM Class 2 Serial Data

23-26

-

-

Not Used



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



Driver Door Module (DDM) Terminal Identification - C4

Connector Part Information

z

6383393-7

z

10-Way F 0.64 mm Unsealed AMP (BU)

Pin

Wire Color

Circuit No.

Function

1-2

-

-

Not Used

3

BK

-

Driver Mirror Heating Element Low Reference

4

PU

-

Mirror Sensor Low Reference

5-6

-

-

Not Used

7

GY

-

Automatic Day/Night Mirror Signal

8

PK

-

Automatic Day/Night Mirror Low Reference

9-10

-

-

Not Used



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



Driver Door Module (DDM) Terminal Identification - C5

Connector Part Information

z

6383393-5

z

10-Way F 0.64 mm Unsealed AMP (BK)

Pin

Wire Color

Circuit No.

Function

1

YE

-

Driver Folding Mirror Motor Extend Control

2

OG

-

Mirror Heating Element Supply Voltage

3

RD

-

Driver Mirror Horizontal Position Sensor Signal

4

D-GN

-

5-Volt Reference

5

D-BU

-

Driver Mirror Vertical Position Sensor Signal

6

L-BU

-

Driver Folding Mirror Motor Retract Control

7

YE/WH

-

Driver Mirror Right/Down Motors Common

8

L-BU

-

Driver Mirror Motor Right Control

9

L-GN

-

Driver Mirror Motor Down Control

10

-

-

Not Used
