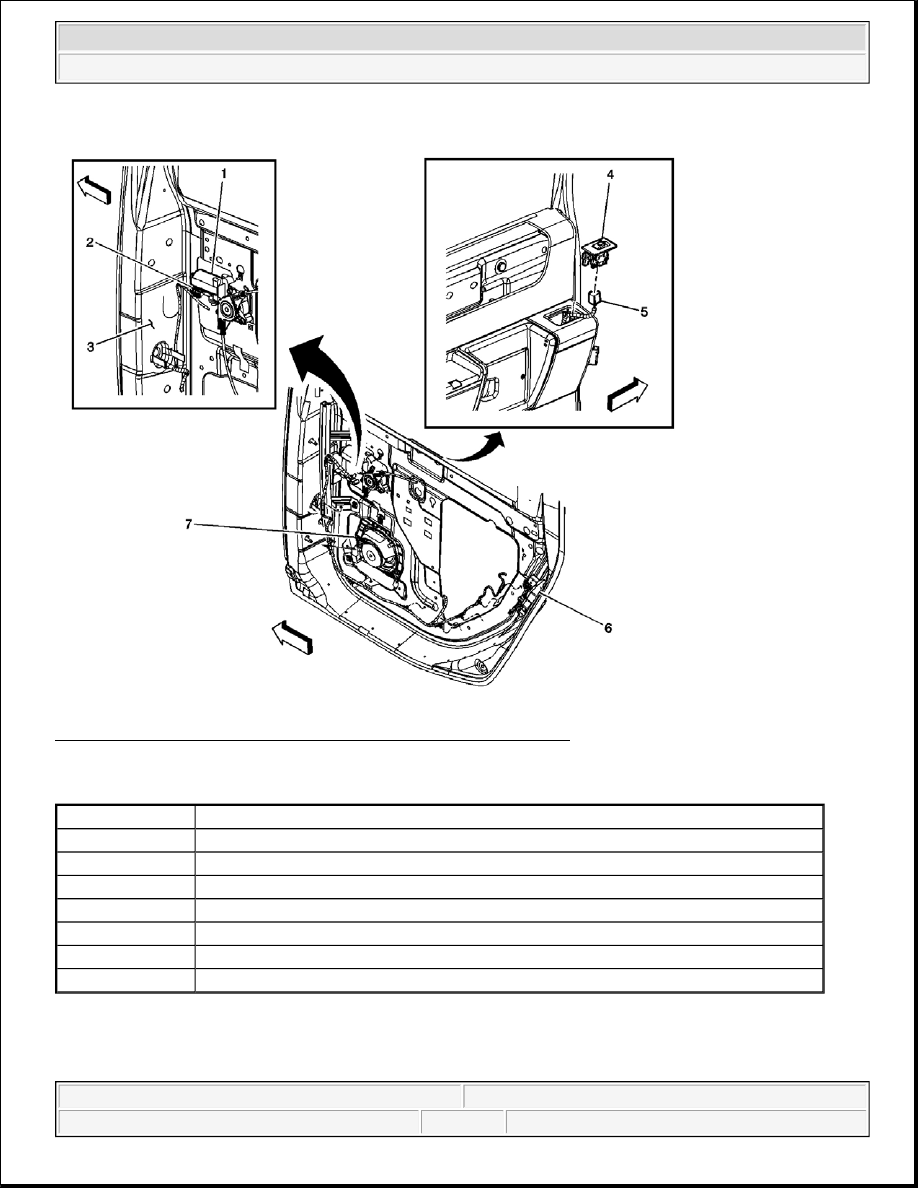

Fig. 10: Left Rear Door Component Views (RT Rear Door Similar)
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 10

Callout

Component Name

1

Door Window Motor - LR

2

Door Window Motor Connector - LR

3

Door Harness Pass-Through Grommet

4

Door Window Switch - LR

5

Door Window Switch Connector - LR

6

Door Latch Assembly - LR

7

Speaker - LR Door



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



Fig. 11: Liftgate Relay Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 11

Callout

Component Name

1

Right B-Pillar

2

C390

3

G306

4

Liftgate Lock Relay

5

Courtesy Lamp - Right B-Pillar

6

Body Harness



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



Fig. 12: Door Lock Switch-Rear Cargo Area Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 12

Callout

Component Name

1

Door Lock Switch Connector - Rear

2

Door Lock Switch - Rear

3

Rear Storage Bin



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



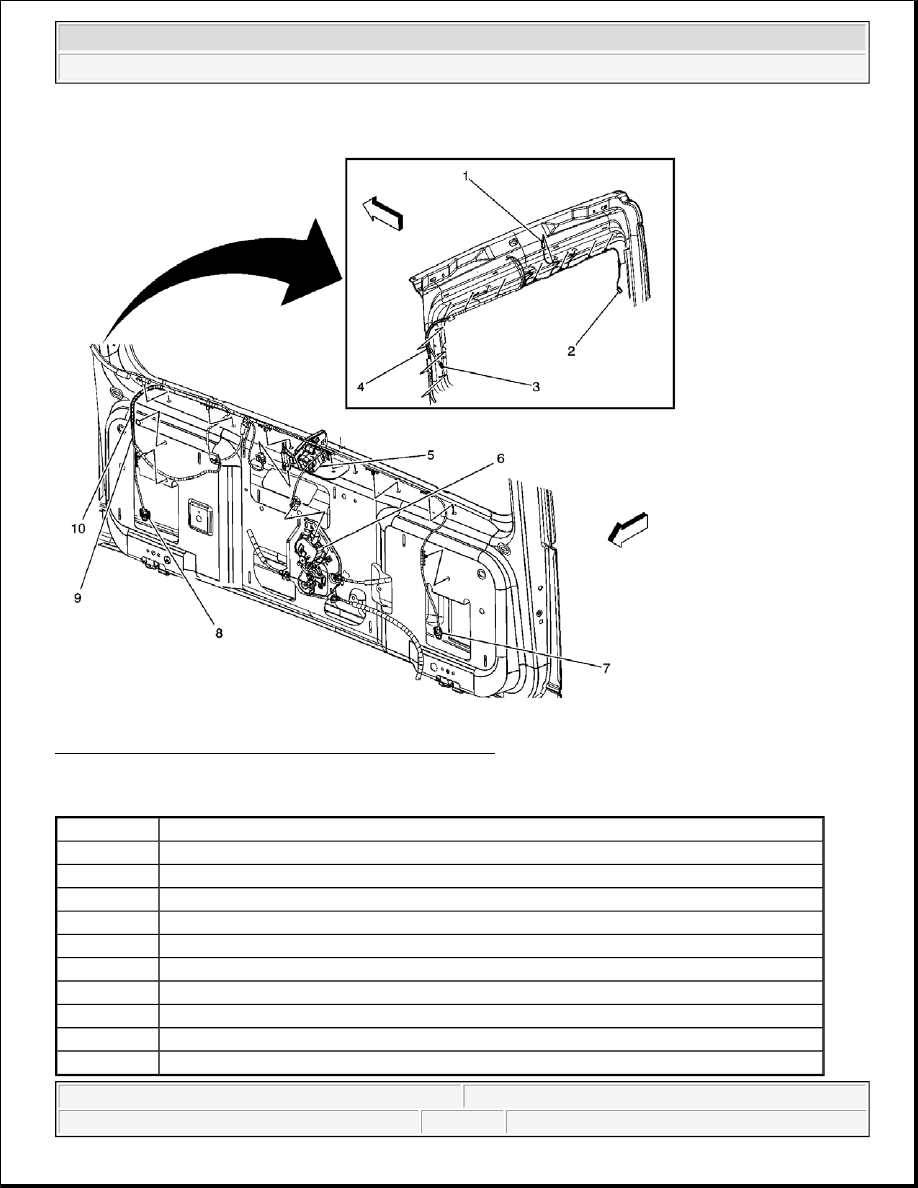

Fig. 13: Door Lock Actuator - Liftgate Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 13

Callout

Component Name

1

Center High Mounted Stop Lamp (CHMSL) Connector

2

Rear Window Defogger Grid Connector

3

Rear Window Defogger Grid Connector

4

Splice S900

5

Rear Window Wiper Module - w/Motor

6

Door Lock Actuator - Liftgate

7

Liftgate Ajar Switch - Left

8

Liftgate Ajar Switch - Right

9

Splice S902

10

Splice S901



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2
