POWER DOOR SYSTEMS CONNECTOR END VIEWS

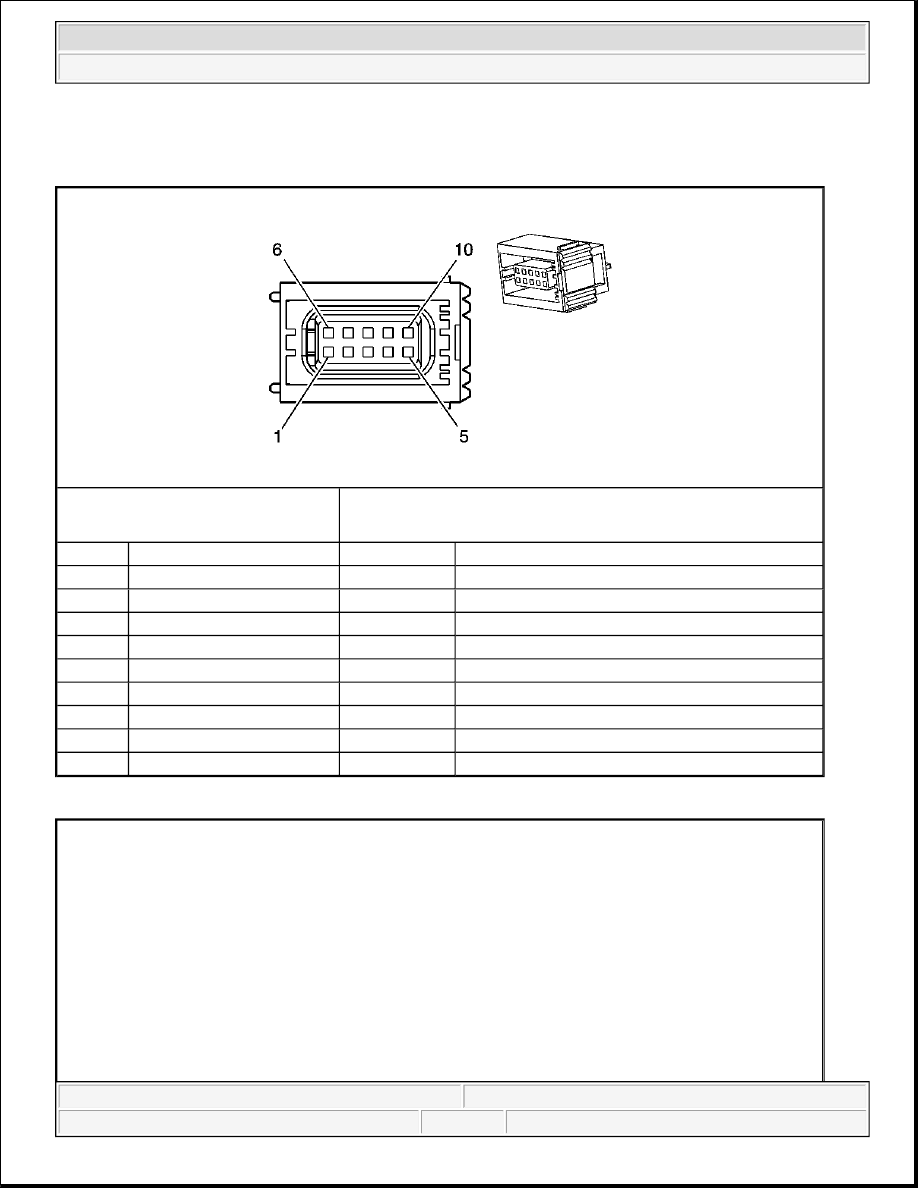

Door Latch Assembly Terminal Identification - Driver

Door Latch Assembly Terminal Identification - Front Passenger

Connector Part Information

z

10768367

z

10-Way F SLD AMP (BK)

Pin

Wire Color

Circuit No.

Function

1

-

-

Not Used

2

TN

294

Door Lock Actuator Unlock Control

3

GY

295

Door Lock Actuator Lock Control

4-5

-

-

Not Used

6

GY/BK

745

Left Front Door Ajar Switch Signal

7

-

-

Not Used

8

BN

1183

Left Front Door Switch Low Reference

9

L-GN

262

Driver Door Key Switch Signal

10

-

-

Not Used



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



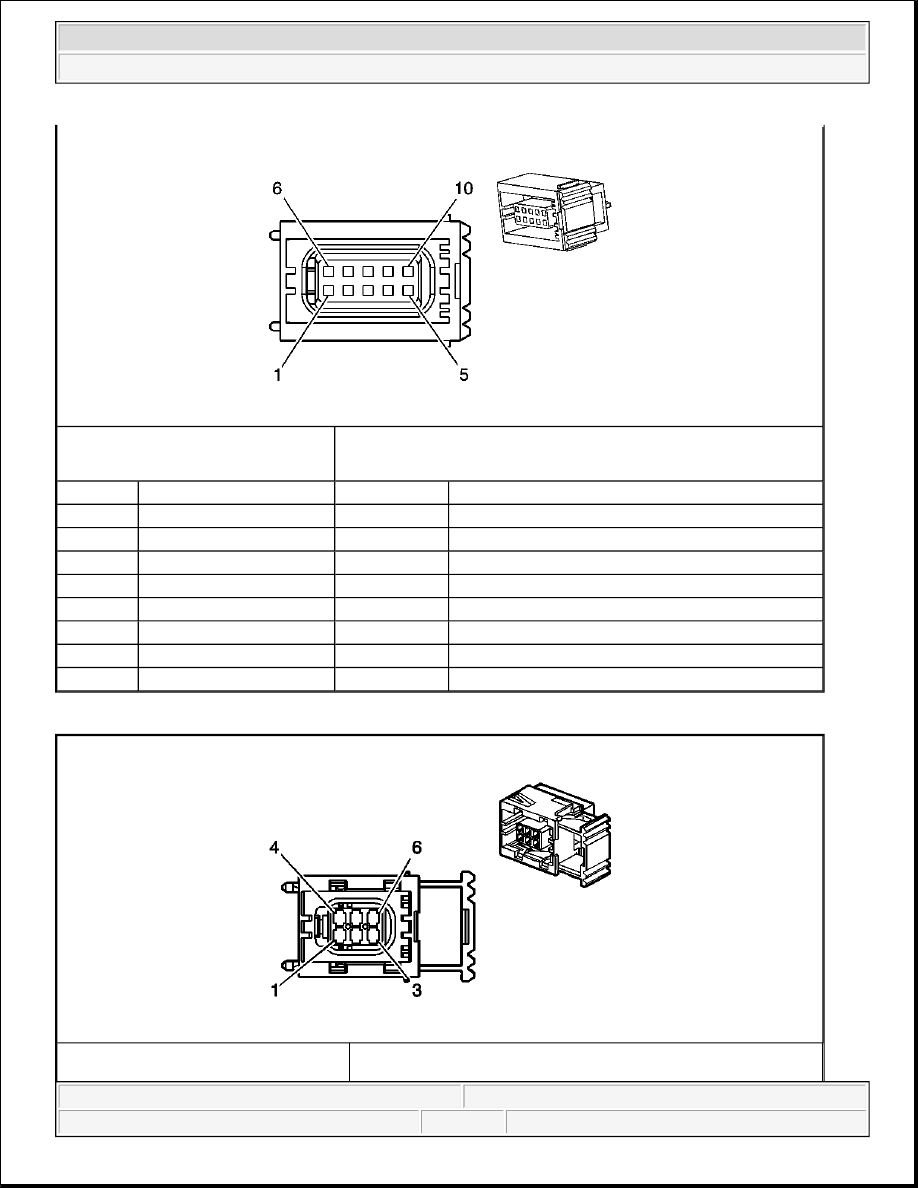

Door Latch Assembly Terminal Identification - LR

Connector Part Information

z

10768367

z

10-Way F AMP SLD (BK)

Pin

Wire Color

Circuit No.

Function

1

BK/WH

746

Right Front Door Ajar Switch Signal

2

-

-

Not Used

3

D-GN

1178

Right Front Door Switch Low Reference

4

L-GN

265

Passenger Door Key Switch Signal

5-6

-

-

Not Used

7

TN

294

Door Lock Actuator Unlock Control

8

GY

295

Door Lock Actuator Lock Control

9-10

-

-

Not Used

Connector Part Information

z

10768369



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



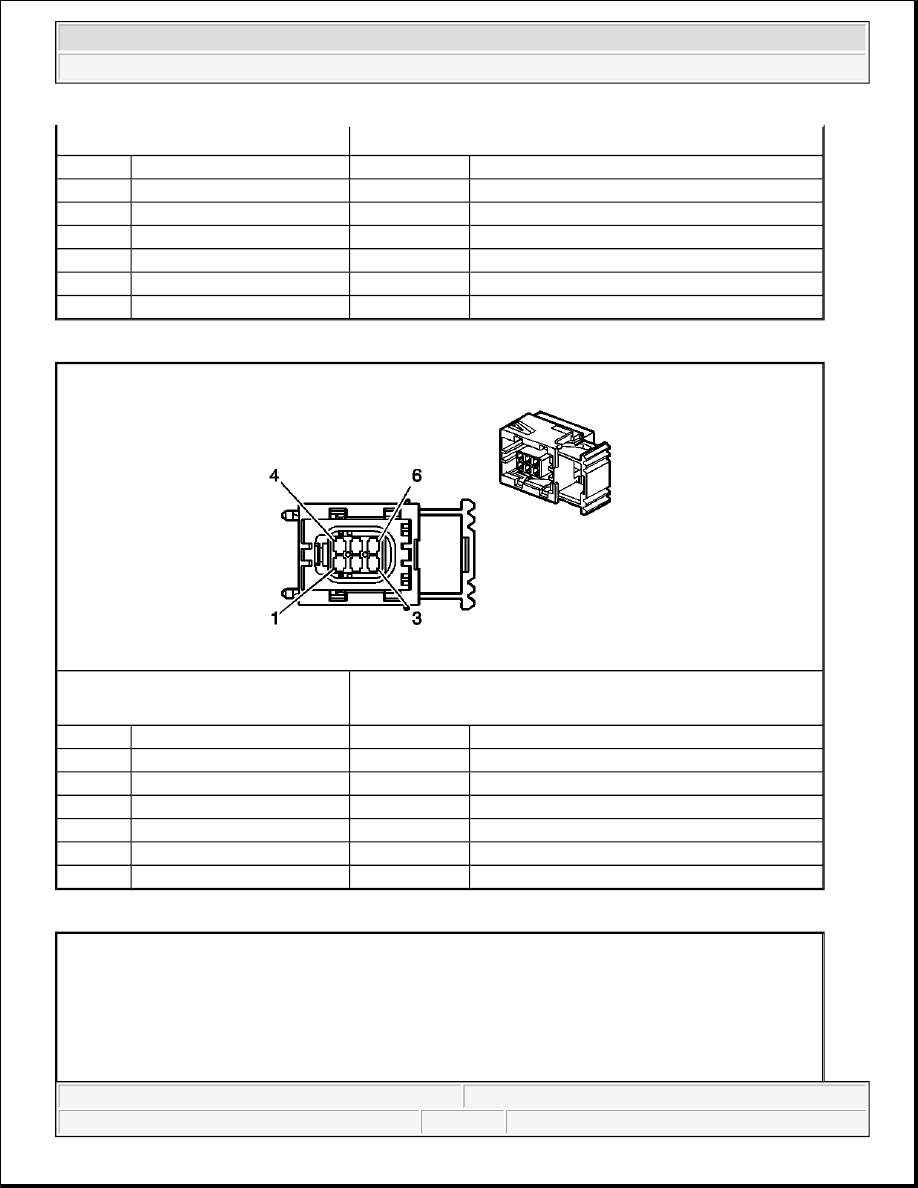

Door Latch Assembly Terminal Identification - RR

Door Lock Actuator Terminal Identification - Liftgate

z

6-Way F SLD AMP (BK)

Pin

Wire Color

Circuit No.

Function

1

-

-

Not Used

2

TN

294

Door Lock Actuator Unlock Control

3

GY

295

Door Lock Actuator Lock Control

4

L-BU/BK

747

Left Rear Door Ajar Switch Signal

5

-

-

Not Used

6

BK

1150

Ground

Connector Part Information

z

10768369

z

6-Way F SLD AMP (BK)

Pin

Wire Color

Circuit No.

Function

1

L-GN/BK

748

Right Rear Door Ajar Switch Signal

2

-

-

Not Used

3

BK

1250

Ground

4

-

-

Not Used

5

TN

294

Door Lock Actuator Unlock Control

6

GY

295

Door Lock Actuator Lock Control



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Doors - Hummer H2



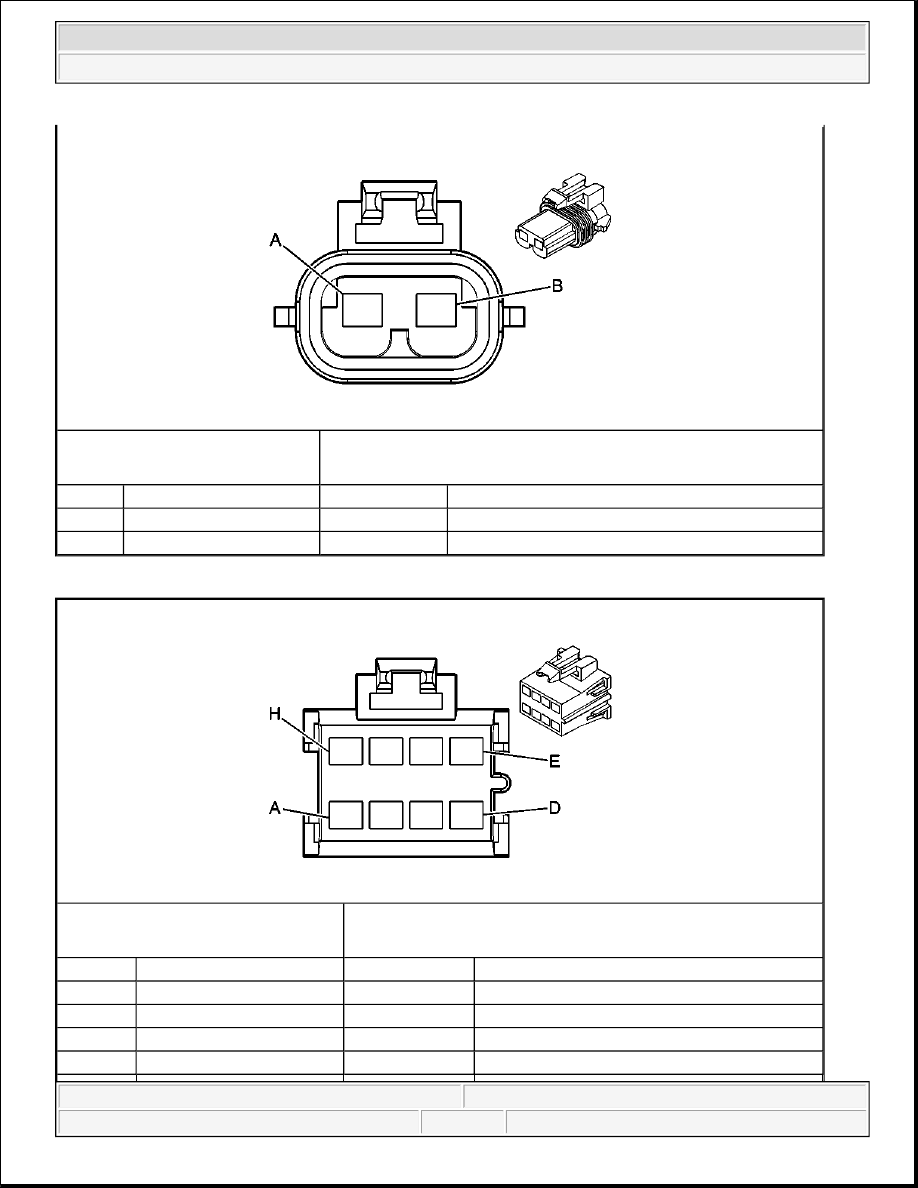

Door Lock Terminal Identification Switch - Rear

Connector Part Information

z

12077900

z

2-Way F Metri-Pack 280 Series Sealed (BK)

Pin

Wire Color

Circuit No.

Function

A

TN

294

Door Lock Actuator Unlock Control

B

GY

295

Door Lock Actuator Lock Control

Connector Part Information

z

12064998

z

8-Way F Metri-Pack 280 Series (BK)

Pin

Wire Color

Circuit No.

Function

A

-

-

Not Used

B

BK

2351

Ground

C

-

-

Not Used

D

L-BU

195

Rear Door Lock Switch Signal
