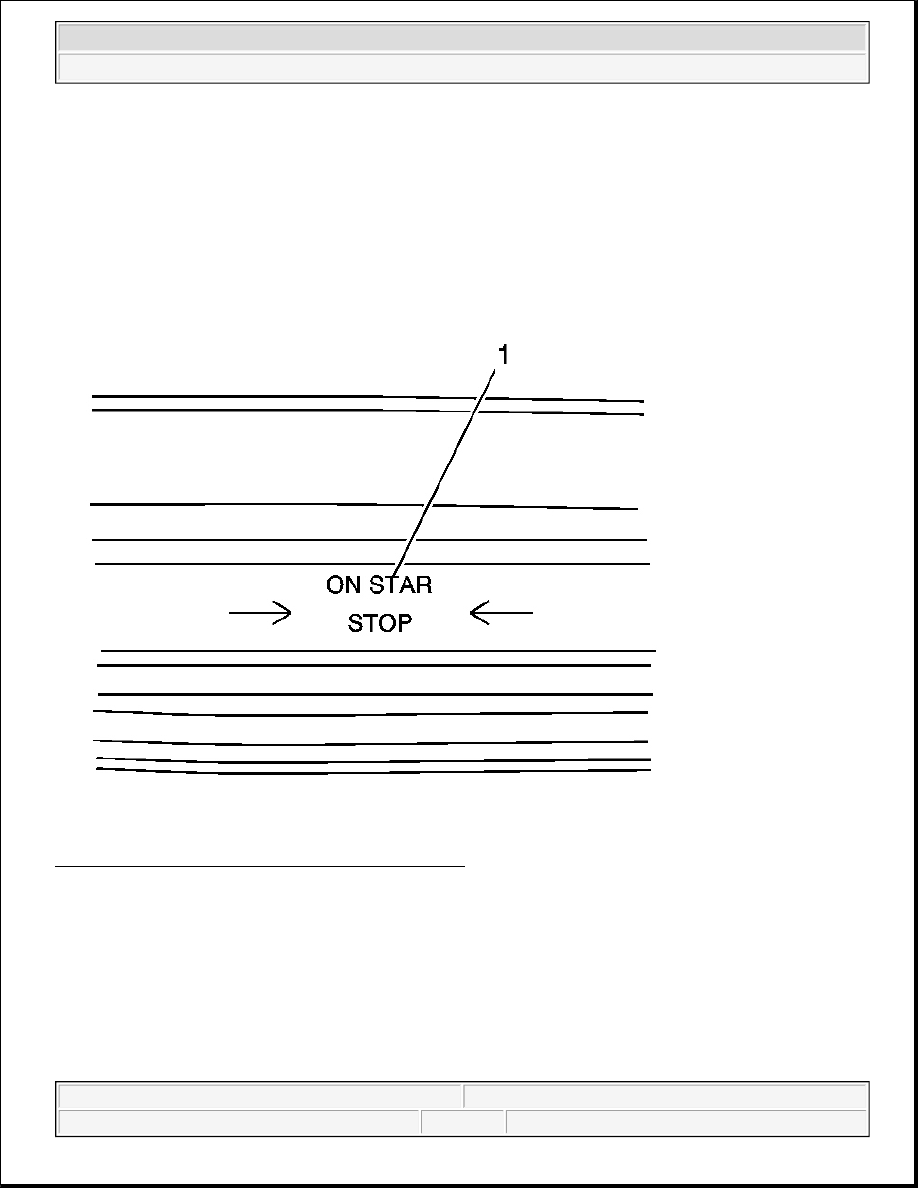

Fig. 30: Aligning Front Cross Bar With On-Star Stop
Courtesy of GENERAL MOTORS CORP.

On vehicles not equipped with sunroofs, align the front cross bar with the On-Star stop (1), located
approximately 7.5 inches behind the front outer marking light.

IMPORTANT: It is necessary to use the following alignment marks when aligning the front

cross bar. Marks are located on the top surface of the passenger side roof rail,
and should be aligned with the arrow (1) on the crossbar. All roof rack kits
include a stop clip, which should be placed on the roof rail in the appropriate
stop location. Failure to align to these marks could result in component
interference and excessive wind noise.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Roof - Hummer H2



Fig. 31: Aligning Arrow On Cross Bar With Sunroof Stop
Courtesy of GENERAL MOTORS CORP.

On vehicles equipped with sunroofs, align the arrow on the cross bar with the sunroof stop (1), located
approximately 20 inches rearward on the OnStar stop.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Roof - Hummer H2

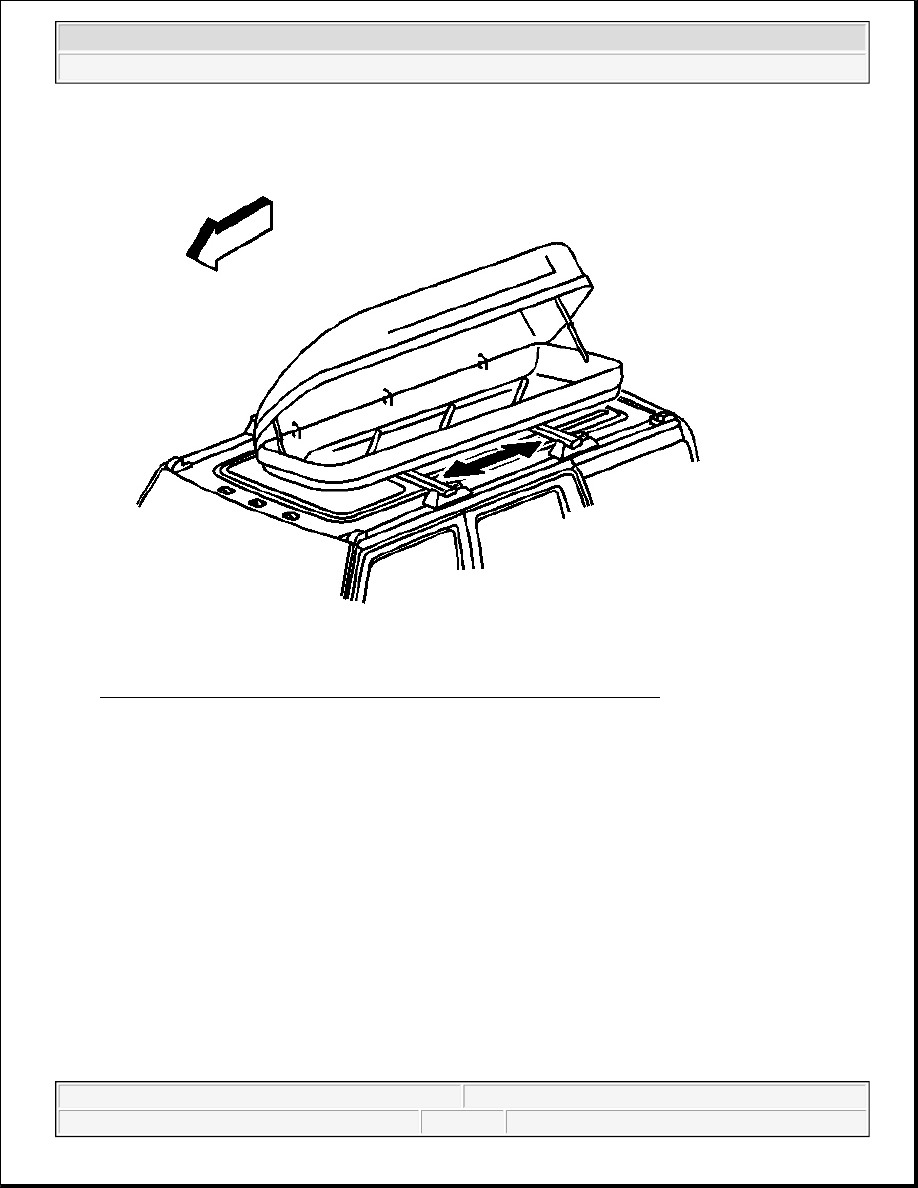

Fig. 32: Ensuring Hard Cargo Carrier Is Parallel To Direction Of Travel
Courtesy of GENERAL MOTORS CORP.

1. Ensure that the carrier is parallel to the direction of travel by initially setting the cross bars at a width of

80 cm (31.5 in).



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Roof - Hummer H2

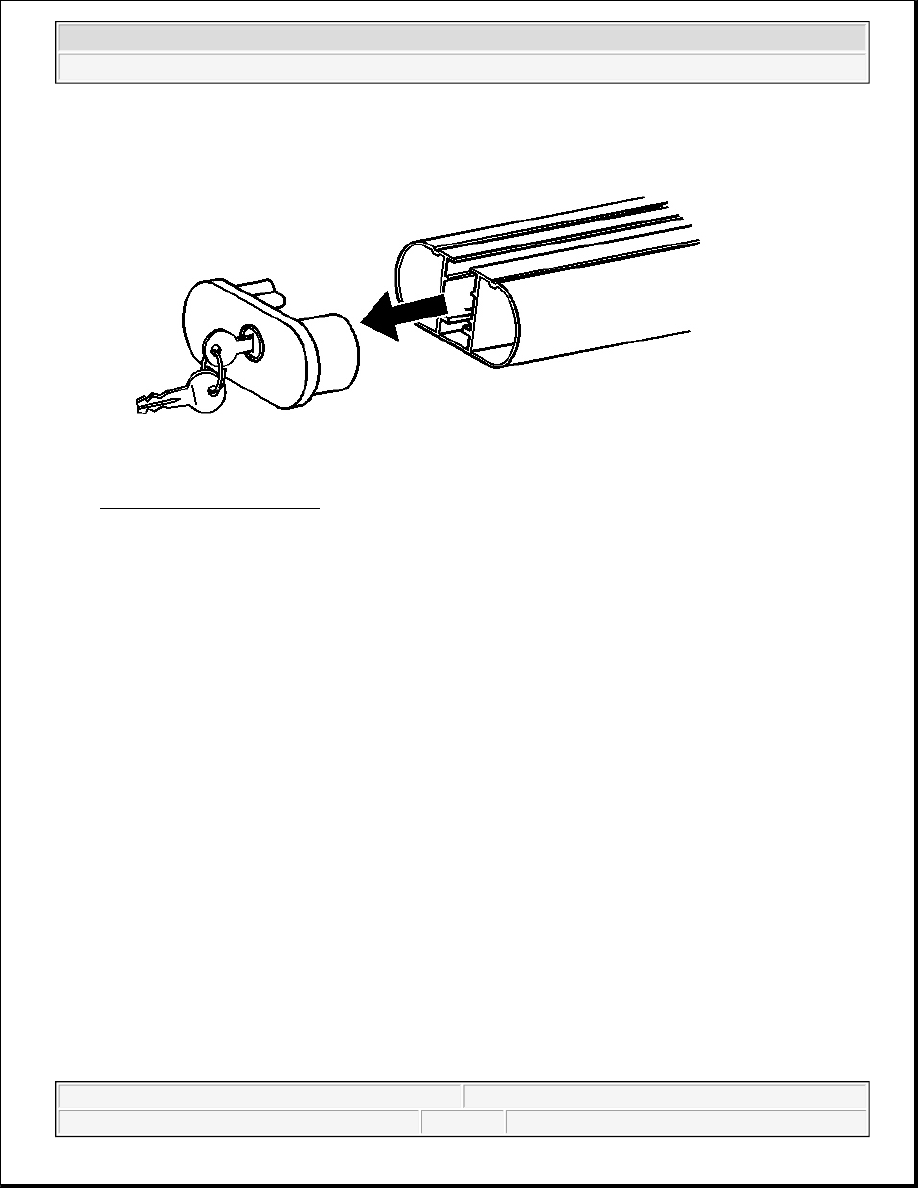

Fig. 33: Cross Bar End Caps
Courtesy of GENERAL MOTORS CORP.

2. Remove the end caps on cross bars of the roof rack on one side of the vehicle.
