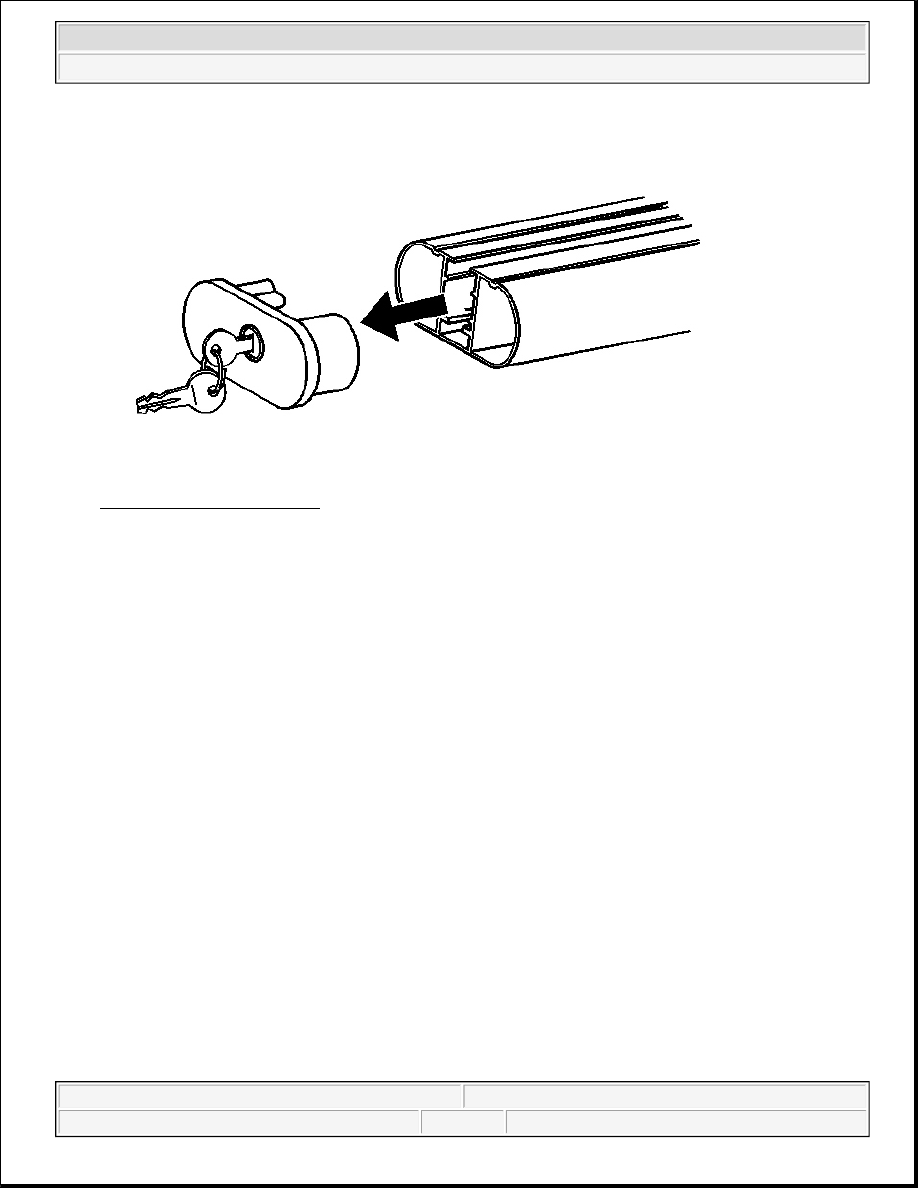

Fig. 25: Cross Bar End Caps
Courtesy of GENERAL MOTORS CORP.

1. Remove the end caps to the cross bars on the roof rack.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Roof - Hummer H2



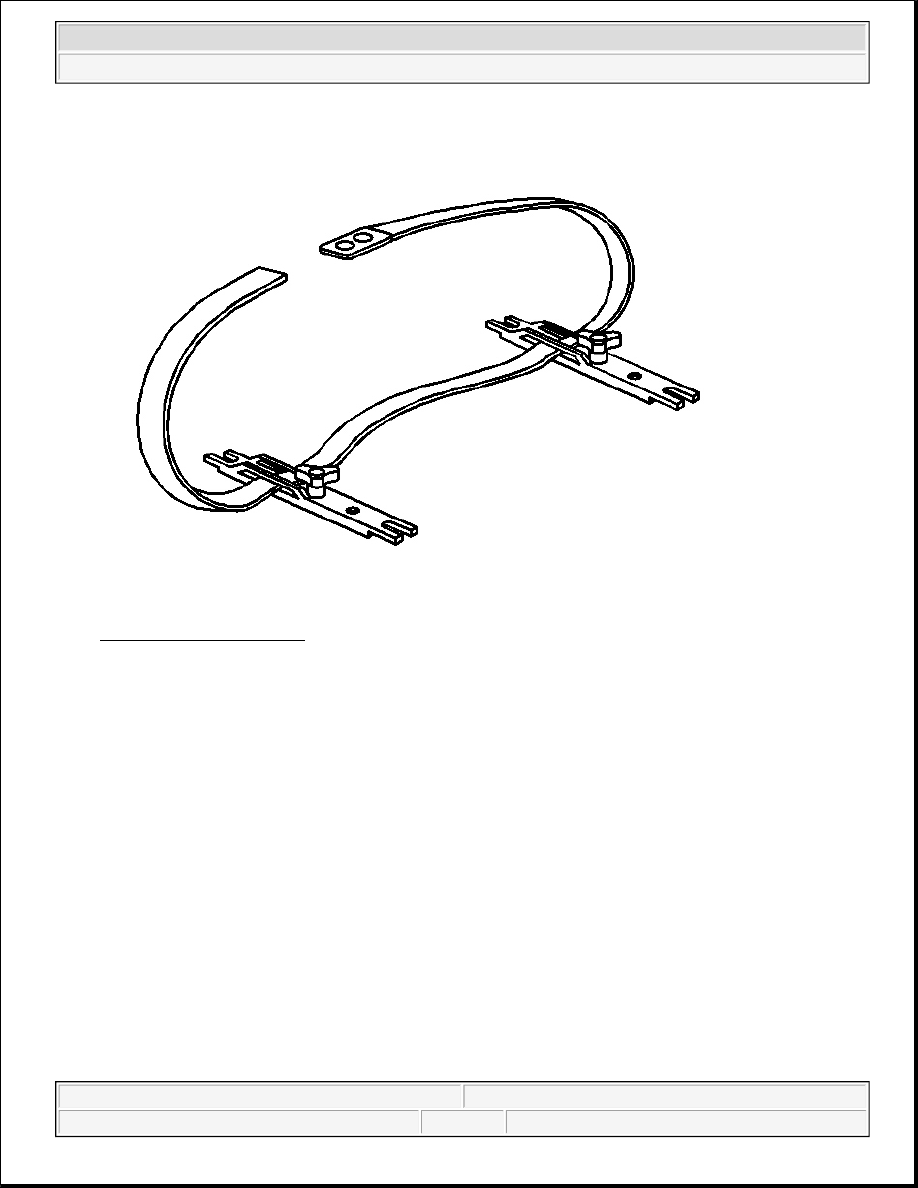

Fig. 26: Straps & Brackets
Courtesy of GENERAL MOTORS CORP.

2. Remove the straps through the eyes of the brackets.

3. Loosen the attaching hardware and remove cargo box from top of vehicle.

4. Slide the assembly from T-slot of roof rack cross bar.

5. Remove using the knobs from end of T-bolts.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Roof - Hummer H2



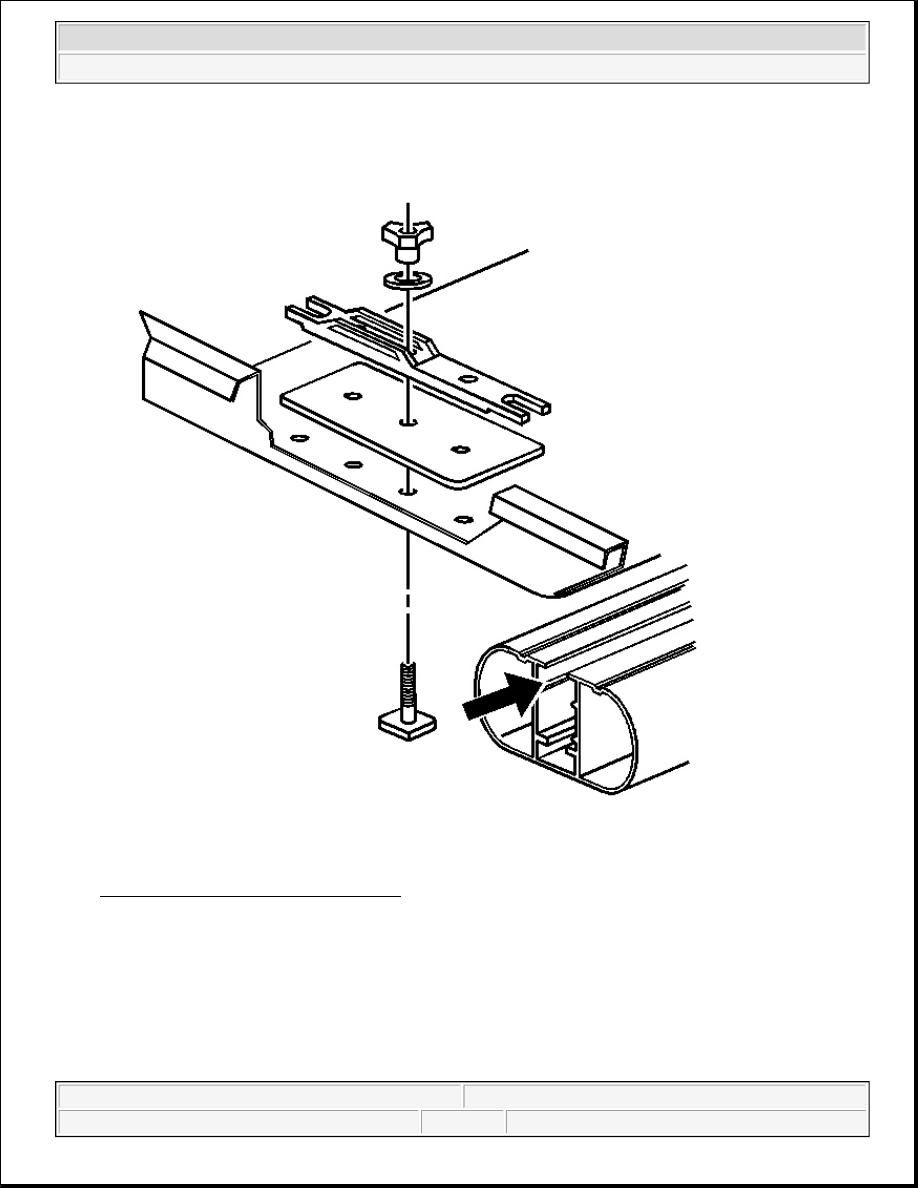

Fig. 27: T-Bolts & Hard Cargo Carrier
Courtesy of GENERAL MOTORS CORP.

6. Remove the T-bolts from underneath the hard cargo carrier.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Roof - Hummer H2



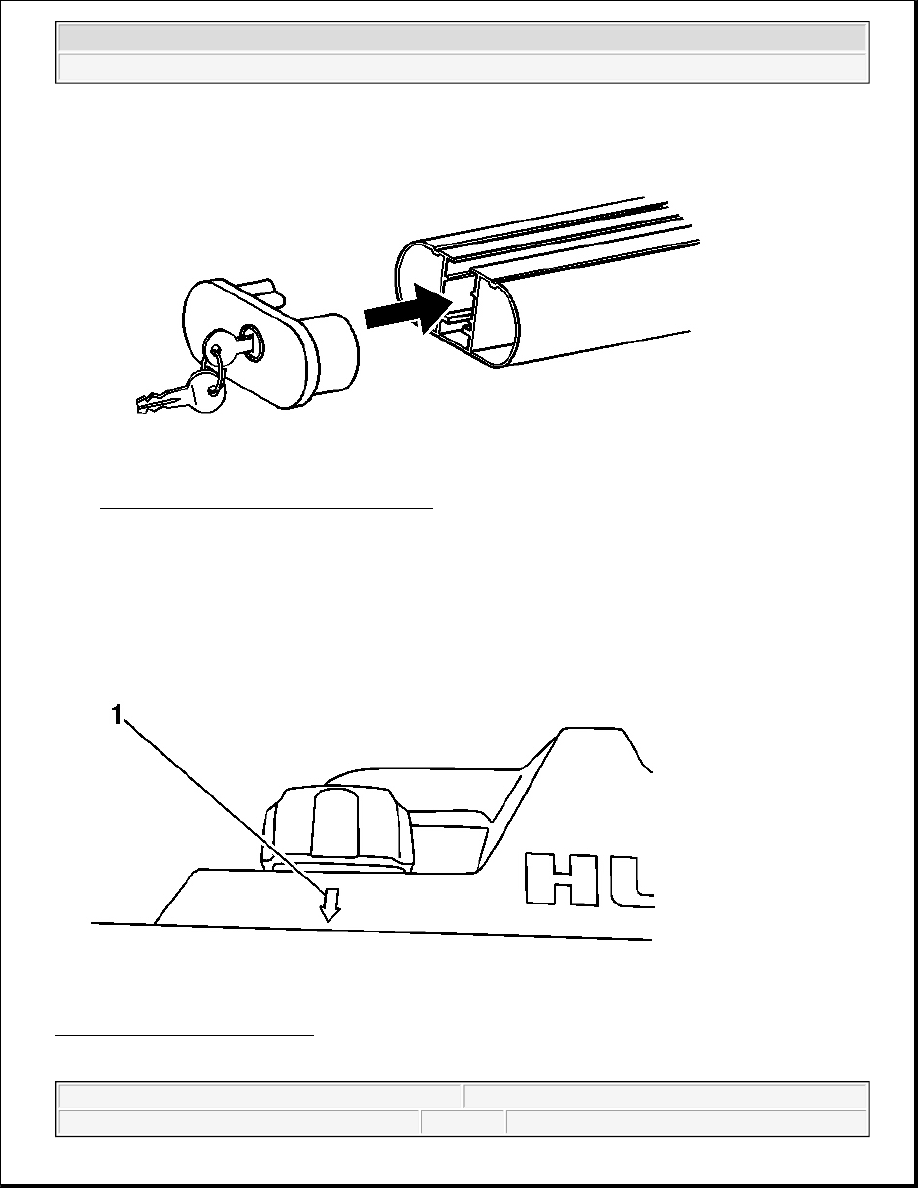

Fig. 28: Installing End Caps On Cross Bars
Courtesy of GENERAL MOTORS CORP.

7. Install the end caps on cross bars of the roof rack.

Installation Procedure

Fig. 29: Aligning Front Cross Bar
Courtesy of GENERAL MOTORS CORP.
