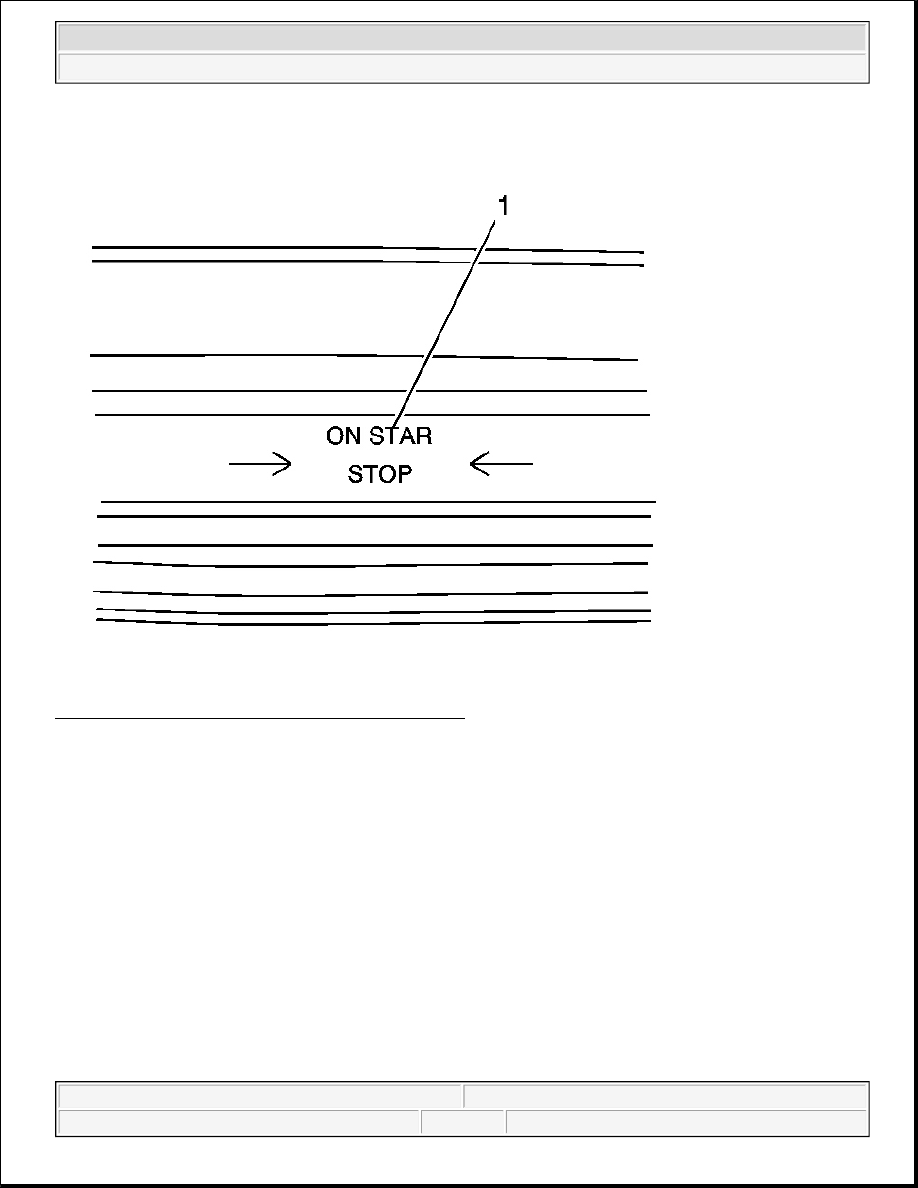

Fig. 21: Aligning Front Cross Bar With On-Star Stop
Courtesy of GENERAL MOTORS CORP.

On vehicles not equipped with sunroofs, align the front cross bar with the On-Star stop (1), located
approximately 7.5 inches behind the front outer marking light.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Roof - Hummer H2



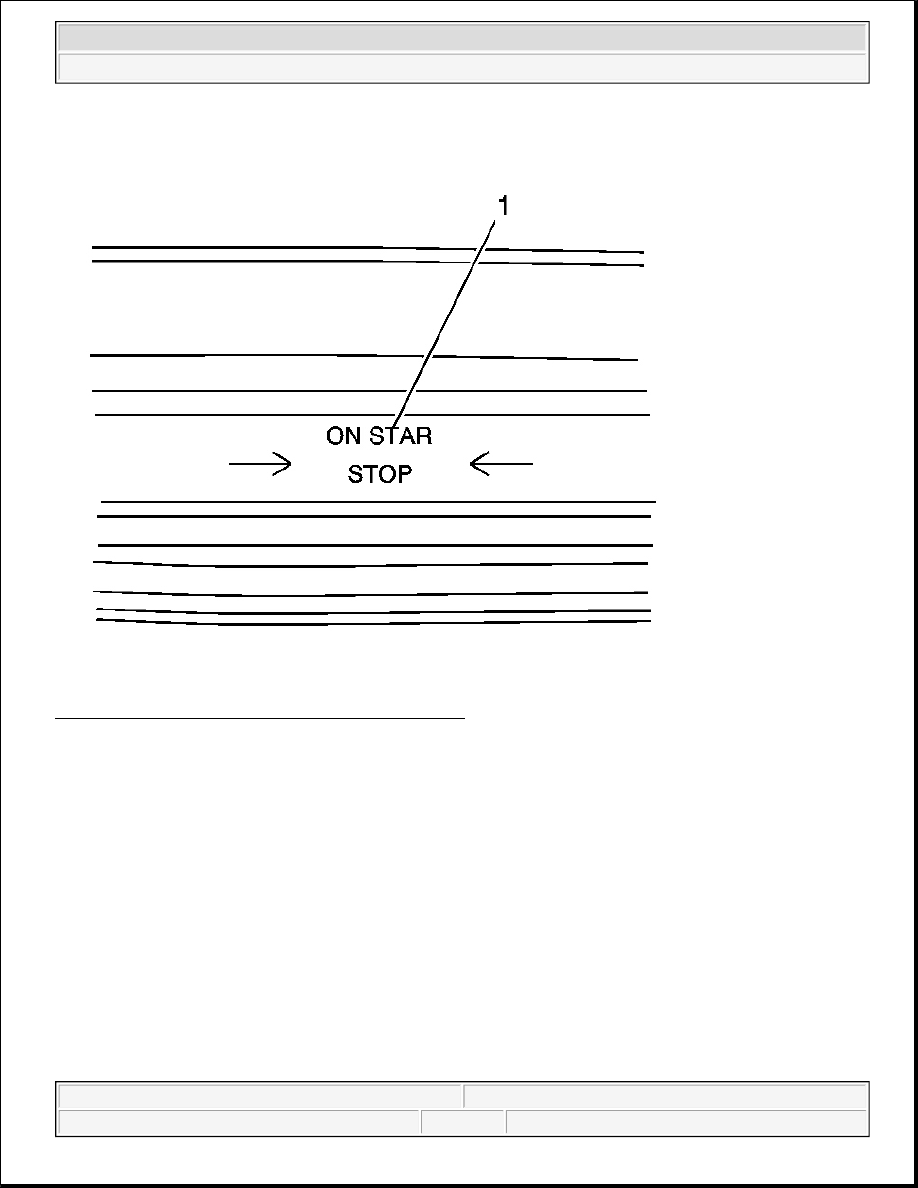

Fig. 22: Aligning Arrow On Cross Bar With Sunroof Stop
Courtesy of GENERAL MOTORS CORP.

On vehicles equipped with sunroofs, align the arrow on the cross bar with the sunroof stop (1), located
approximately 20 inches rearward on the OnStar stop.

1. Install the luggage carrier to the vehicle.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Roof - Hummer H2

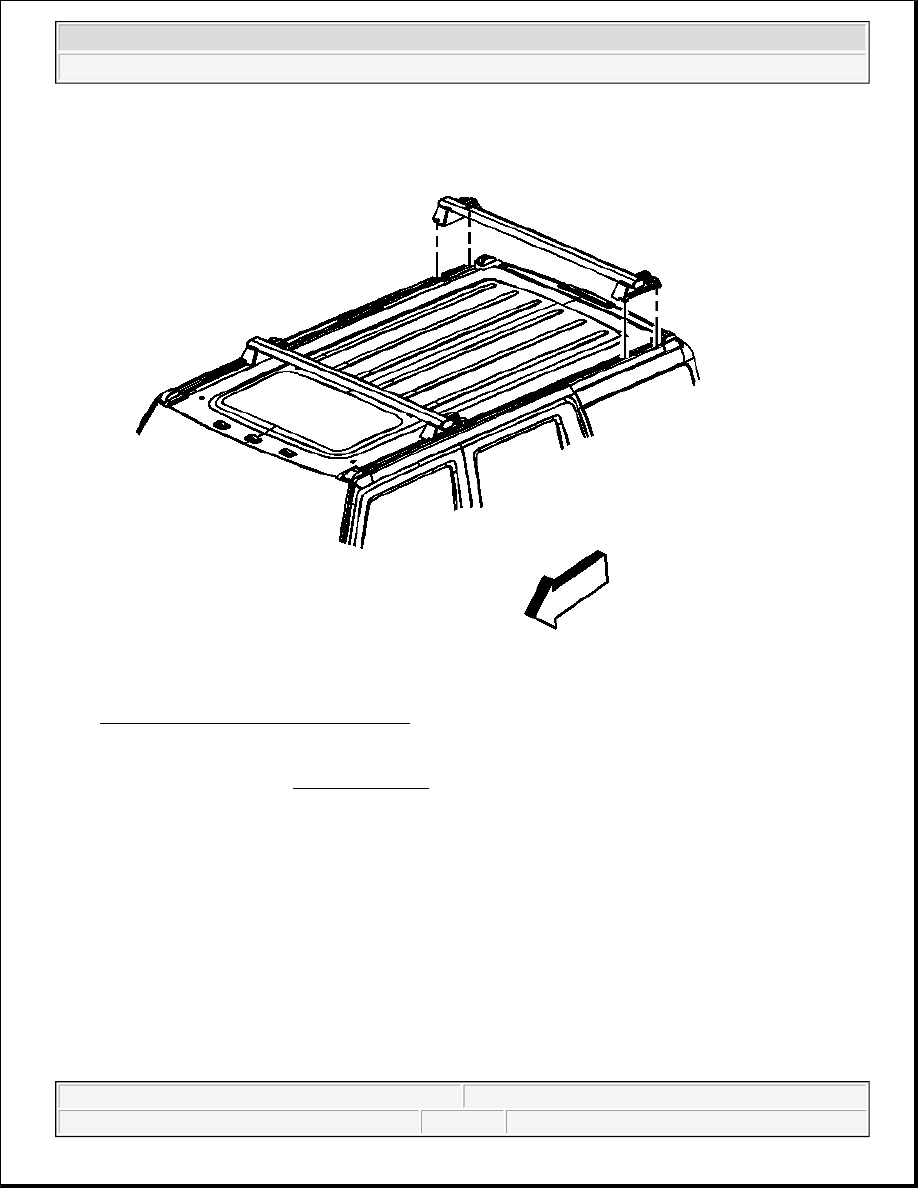

Fig. 23: Cross Rails & Clearance Lamps
Courtesy of GENERAL MOTORS CORP.

2. Install the bolts to the side rails.

Tighten: Tighten the bolts to 9 N.m (7 lb ft).

3. Install the clearance lamps to the side rails by inserting the locator tab and lowering into place, then insert

the screw.

Tighten: Tighten the screw to 3 N.m (26 lb in).

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Roof - Hummer H2

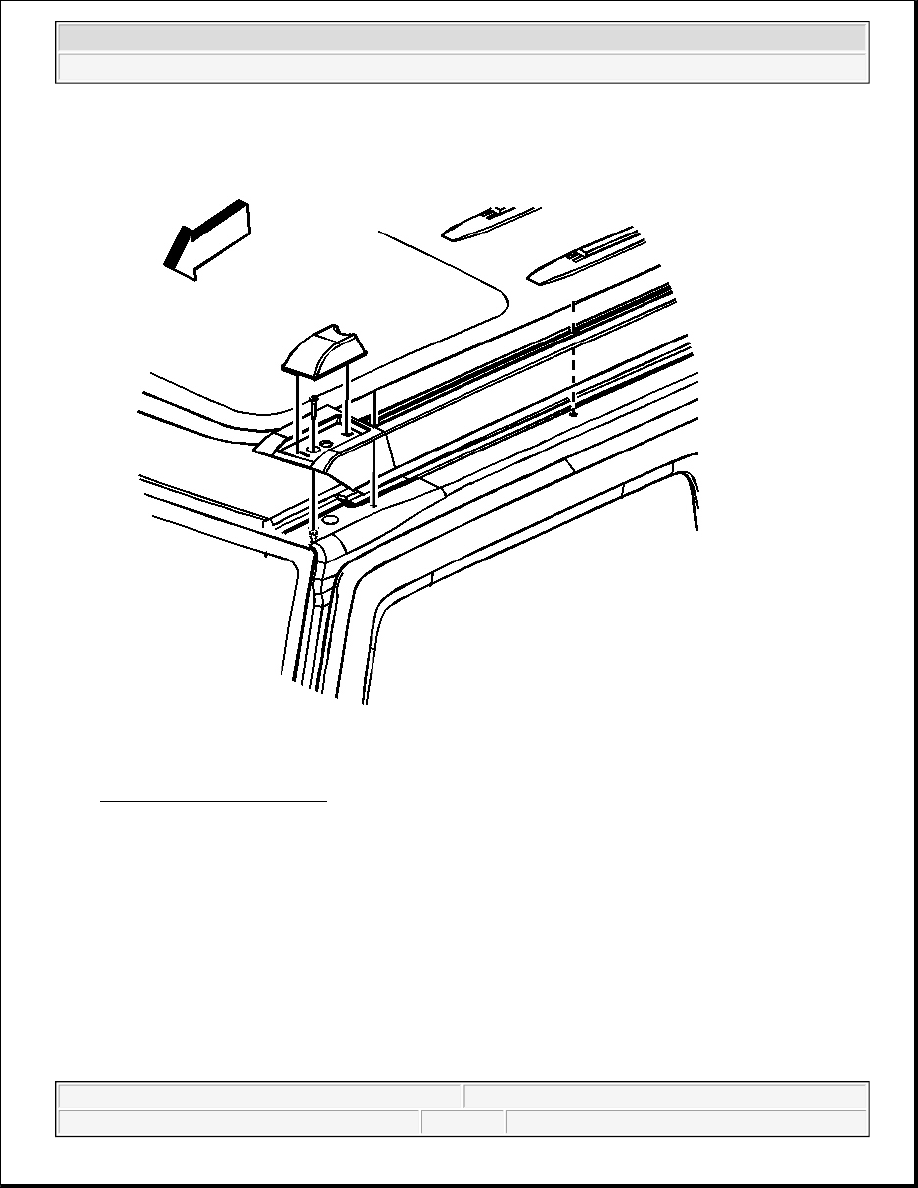

Fig. 24: Side Rail Cover Bolts
Courtesy of GENERAL MOTORS CORP.

4. Install the cross rails by sliding the cross rails from the rear of the vehicle. Tighten the lock knobs at the

detent locator marks.

5. Install the side rail covers by clipping the covers to the luggage carrier side rails.

HARD CARGO CARRIER REPLACEMENT

Removal Procedure
