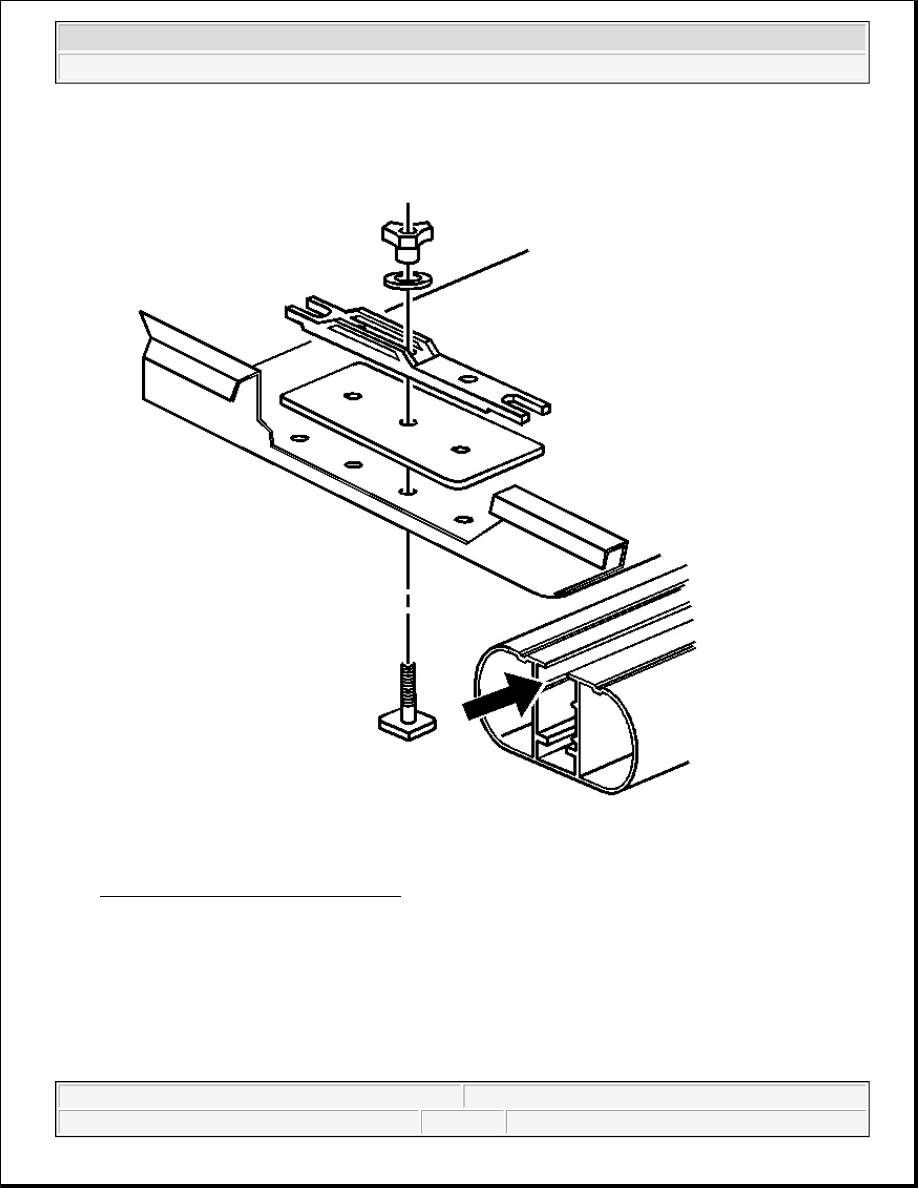

Fig. 34: T-Bolts & Hard Cargo Carrier
Courtesy of GENERAL MOTORS CORP.

3. Insert the T-bolts in the following order:

1. From underneath the hard cargo carrier

2. Through a hole at the bottom of the carrier

3. Through the plate's center hole

4. Through the internal ski down



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Roof - Hummer H2



5. Through the locking washer

4. Loosely attach using knob to end of T-bolts.

5. Slide the assembly into the T-slot of roof rack cross bar.

6. Align cargo box to vehicle and tighten the roof rack cross bars and attaching hardware.

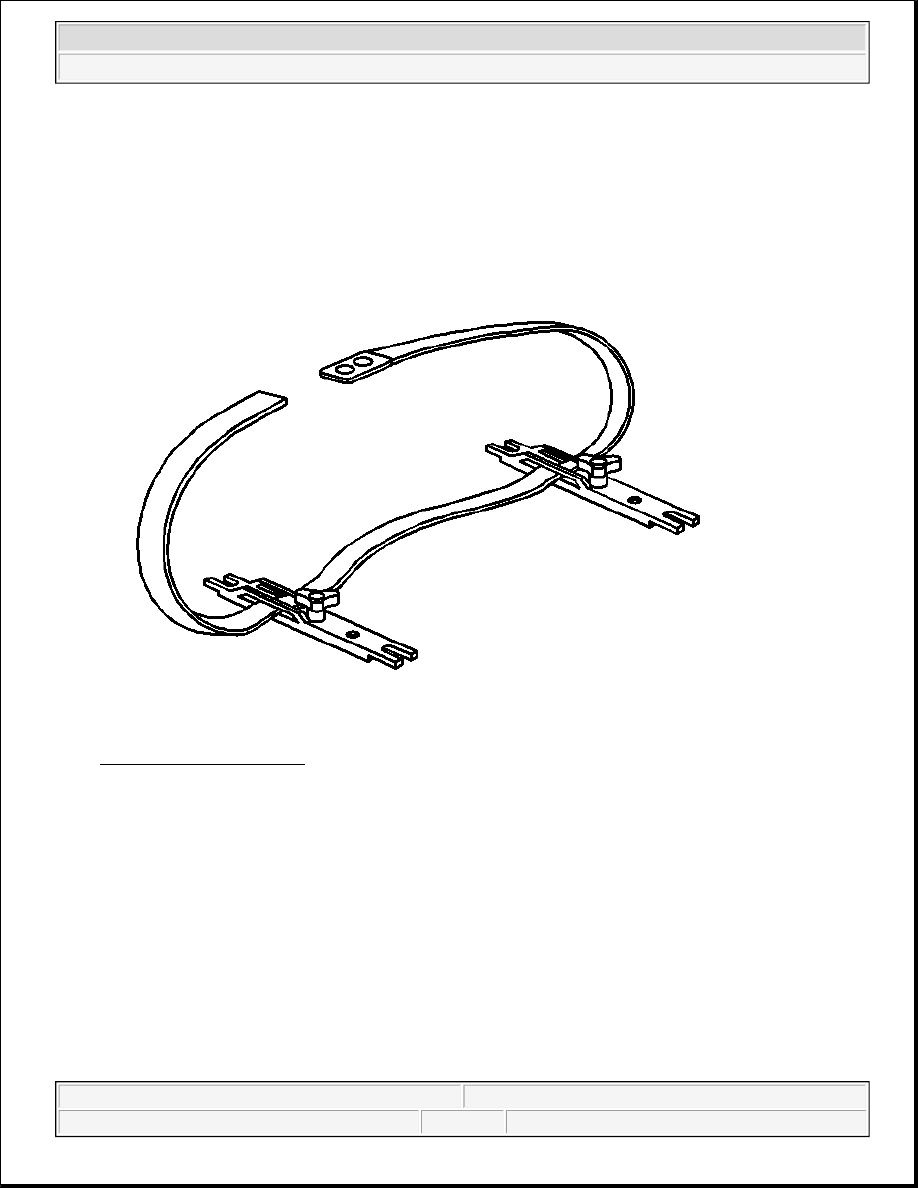

Fig. 35: Straps & Brackets
Courtesy of GENERAL MOTORS CORP.

7. Insert the straps through the eyes of the brackets.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Roof - Hummer H2



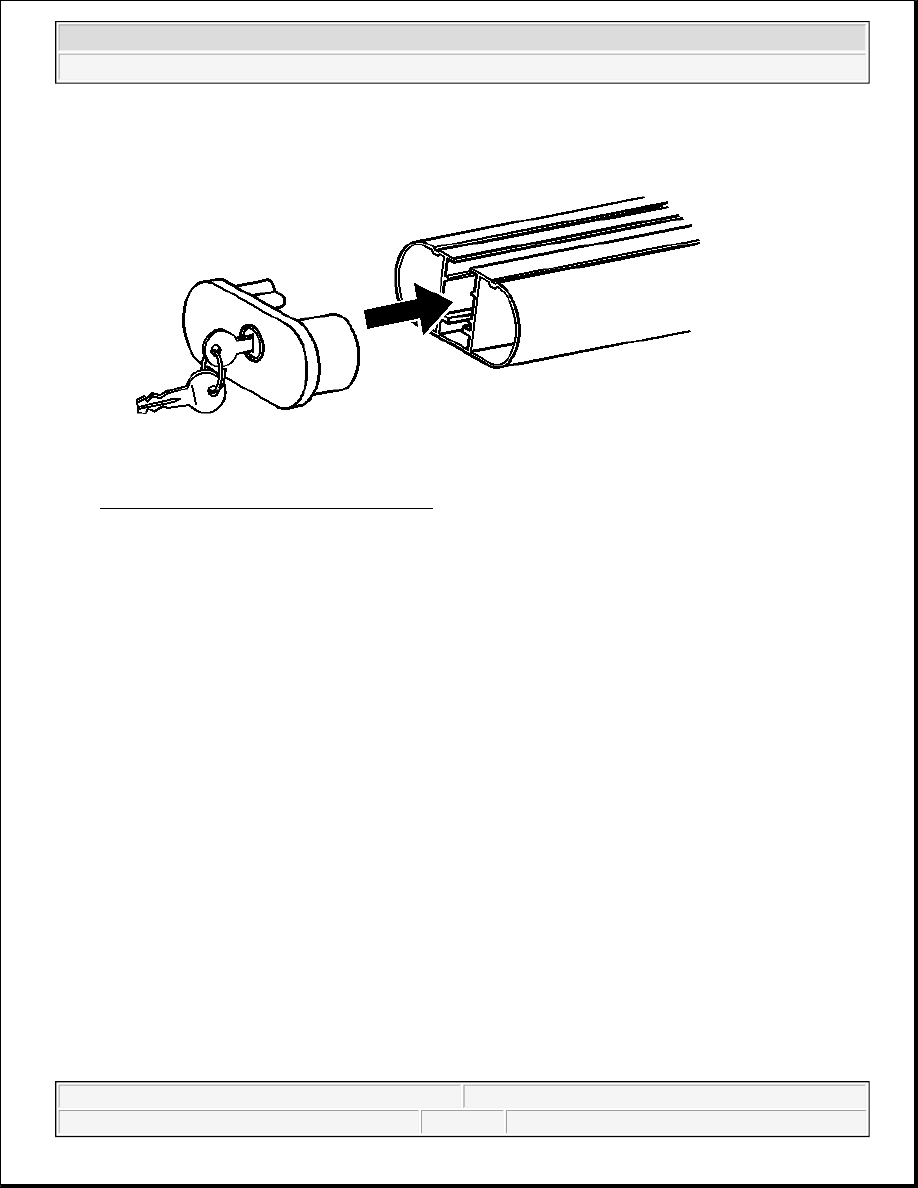

Fig. 36: Installing End Caps On Cross Bars
Courtesy of GENERAL MOTORS CORP.

8. Replace the end caps to the cross bars on roof rack.

LUGGAGE BASKET REPLACEMENT - ROOF MOUNTED

Removal Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Roof - Hummer H2



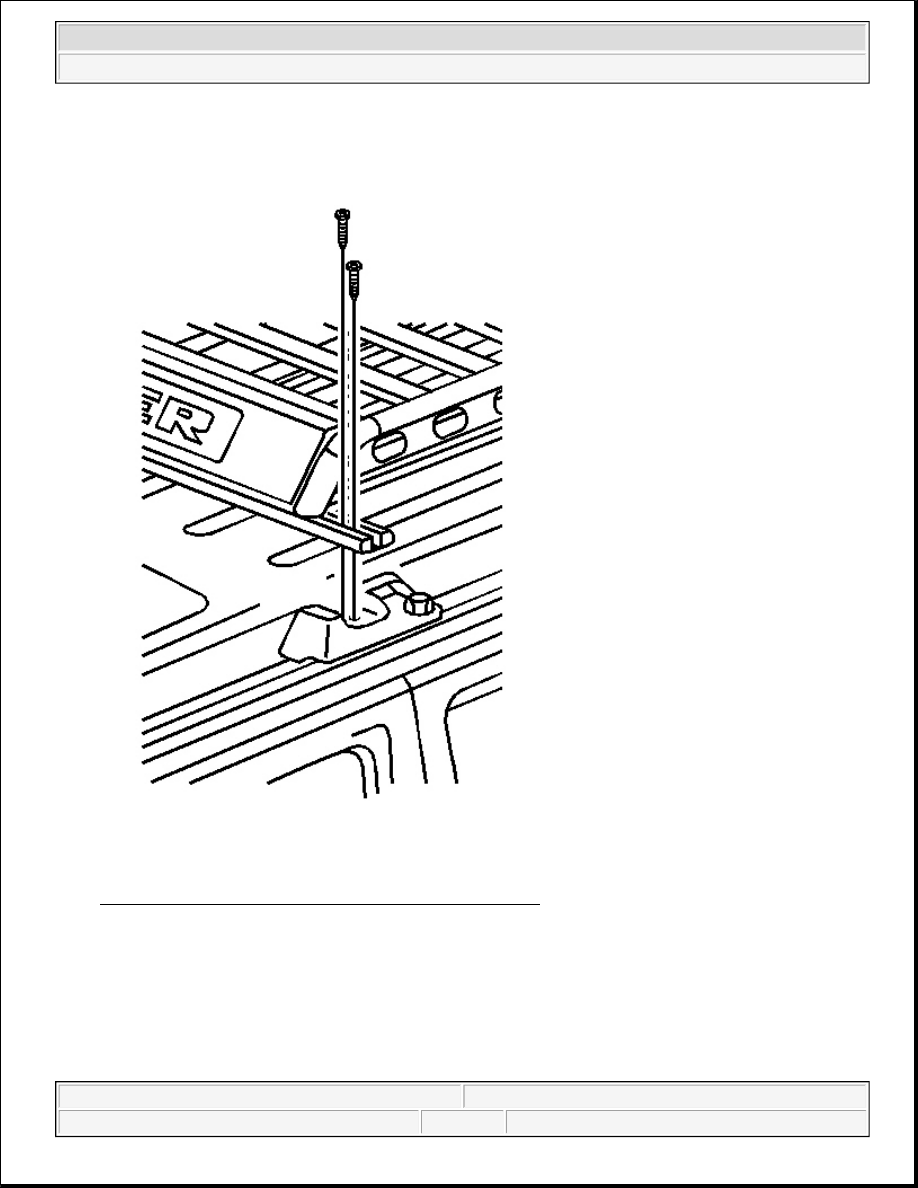

Fig. 37: Roof Mounted Luggage Basket Mounting Screws
Courtesy of GENERAL MOTORS CORP.

1. Remove the screws from the roof basket mounts through the stanchion.
