Fig. 102: Rear Heated Seat Switch
Courtesy of GENERAL MOTORS CORP.

2. Disconnect the electrical connector.

3. Release the seat heater retaining clips.

4. Remove the switch from the vehicle.

Installation Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



Fig. 103: Rear Heated Seat Switch
Courtesy of GENERAL MOTORS CORP.

1. Install the switch to the console panel.

2. Connect the electrical connector.

3. Install the center console end panel. Refer to Center Console End Panel Replacement in Instrument

Panel, Gauges, and Console.

SEAT CUSHION HEATER REPLACEMENT - REAR



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



The seat cushion heater element can not be replaced individually. Therefore if the heater element has failed, the
seat cushion trim cover needs to be replaced as ab assembly. Refer to Seat Cushion Cover and Pad
Replacement - Rear .

ARMREST REPLACEMENT - REAR SEAT

Removal Procedure

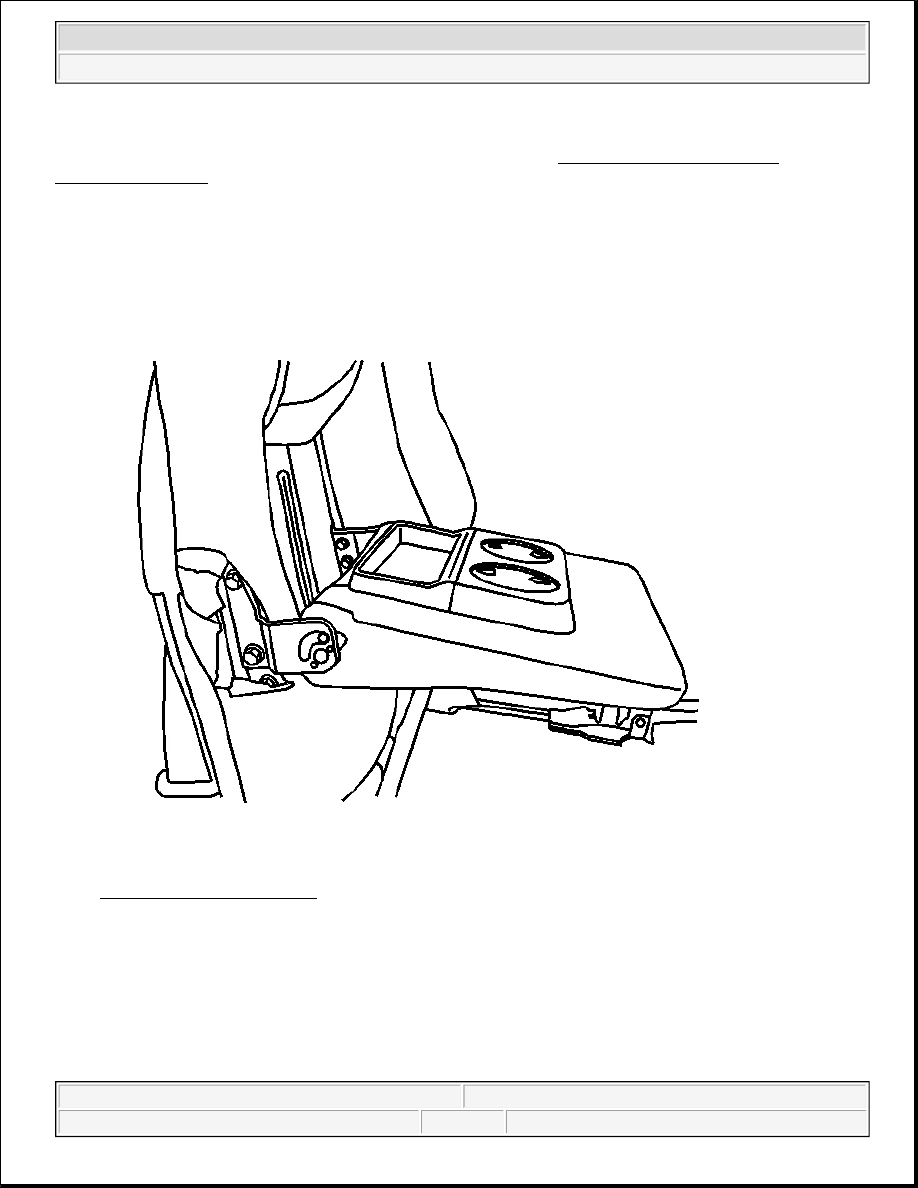

Fig. 104: Rear Seat Armrest
Courtesy of GENERAL MOTORS CORP.

1. Remove the bolts that retain the center armrest to the seat frame.

2. Remove the center arm rest from the vehicle.

Installation Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



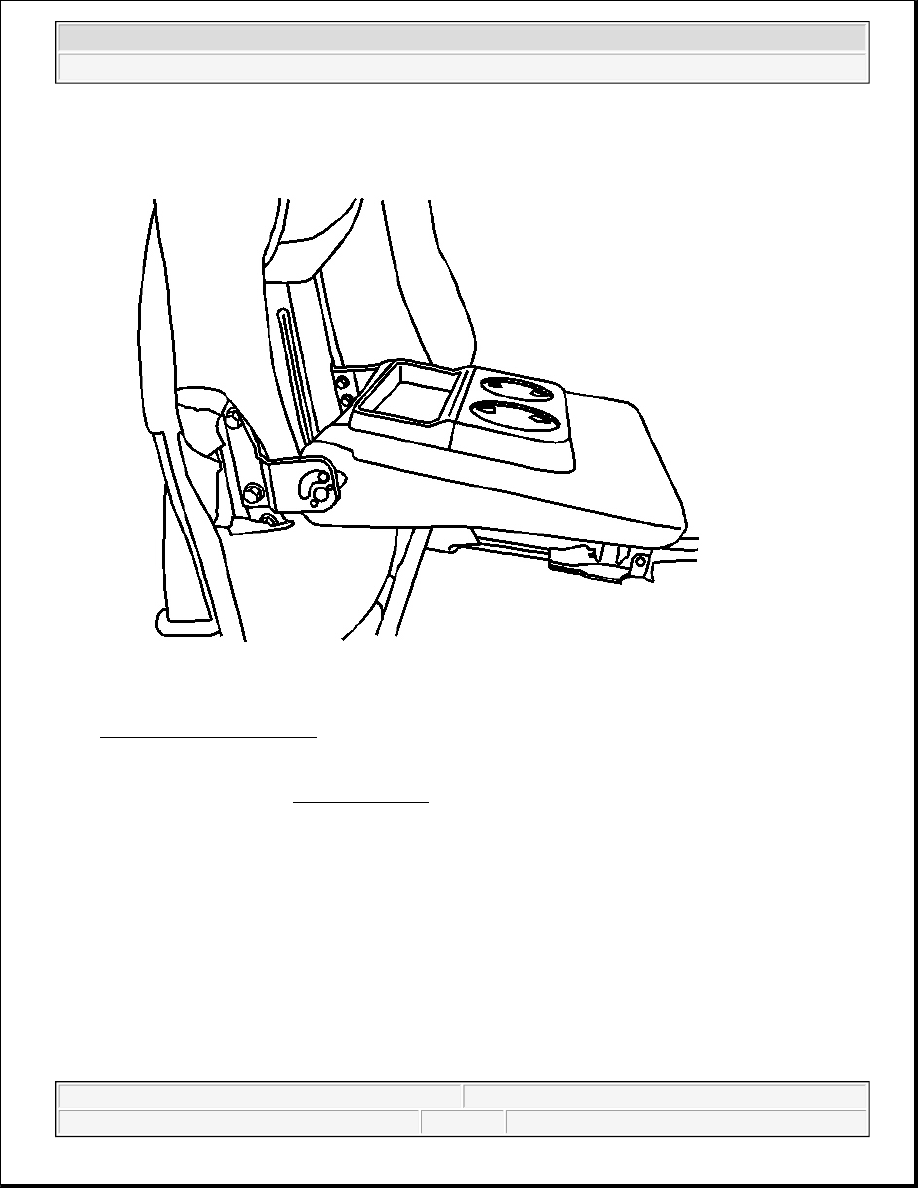

Fig. 105: Rear Seat Armrest
Courtesy of GENERAL MOTORS CORP.

1. Install the center armrest to the seat frame.

2. Install the bolts to the center armrest.

Tighten: Tighten the bolt to 9 N.m (80 lb in).

HEAD RESTRAINT SUPPORT COVER REPLACEMENT - REAR

Removal Procedure

NOTE:

Refer to Fastener Notice in Cautions and Notices.
