2. Remove the armrest, if equipped. Refer to Armrest Replacement - Rear Seat .

3. Partially remove the seat-back cover in order to gain access to the retaining bolts. Refer to Seat Back

Cover and Pad Replacement - Rear .

4. Remove the bolts from the seat-back frame.

5. Remove the seat-back frame (4) from the seat back cushion frame.

Installation Procedure

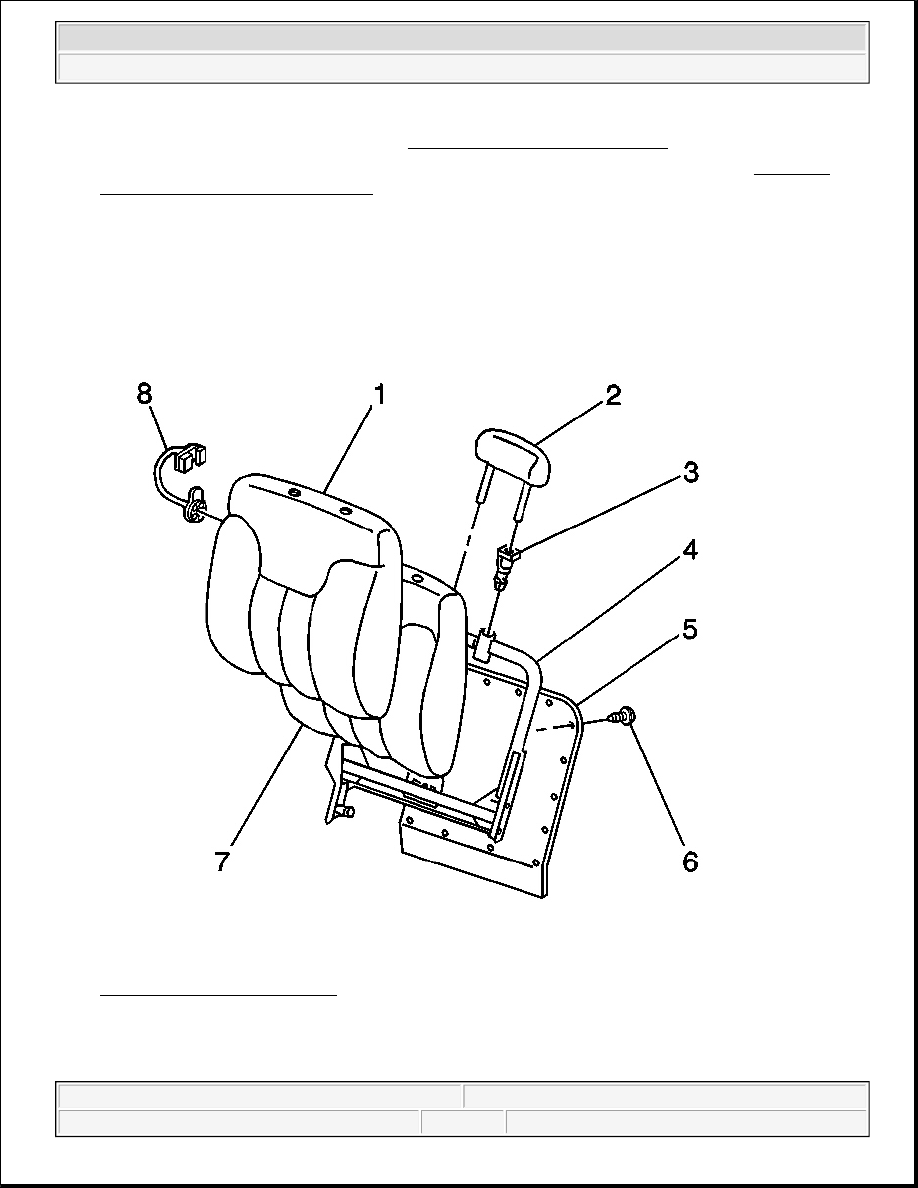

Fig. 95: Rear Seat Back Frame
Courtesy of GENERAL MOTORS CORP.

1. Install the seat-back frame (4) to the seat cushion frame.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



2. Install the bolts which retain the seat-back frame to the seat cushion frame.

Tighten: Tighten the bolts to 35 N.m (26 lb ft).

3. Install the seat-back cover. Refer to Seat Back Cover and Pad Replacement - Rear .

4. Install the armrest to the seat back. Refer to Armrest Replacement - Rear Seat .

5. Install the seat to the vehicle. Refer to Seat Replacement - Rear No. 1 or Seat Replacement - Rear No.

2 .

SEAT BACK COVER REPLACEMENT - REAR FOLDING

Removal Procedure

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2

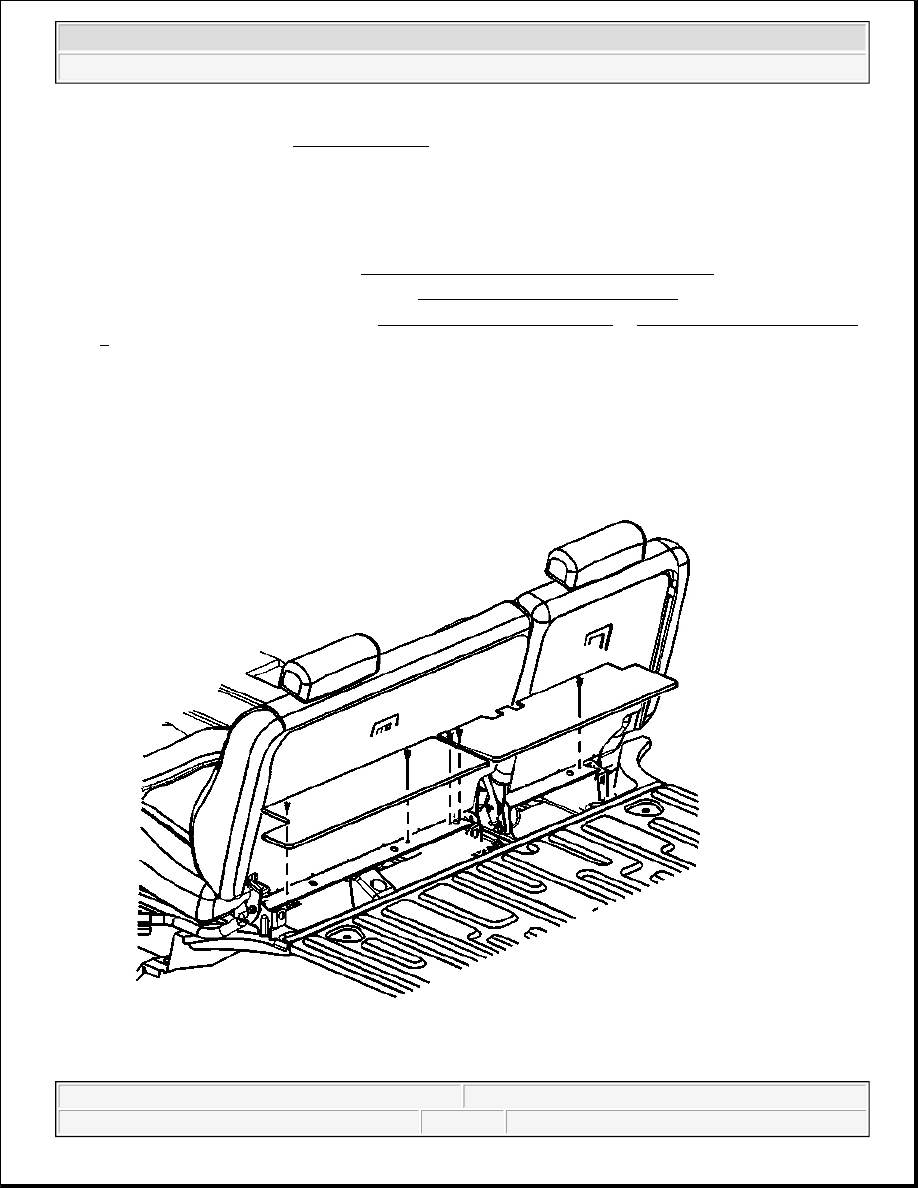

Fig. 96: Rear Folding Seat Back Cover
Courtesy of GENERAL MOTORS CORP.

1. Fold the seat forward.

2. Grab the seat back cover and pull up to release the clips.

3. Remove the rear seat back cover.

Installation Procedure

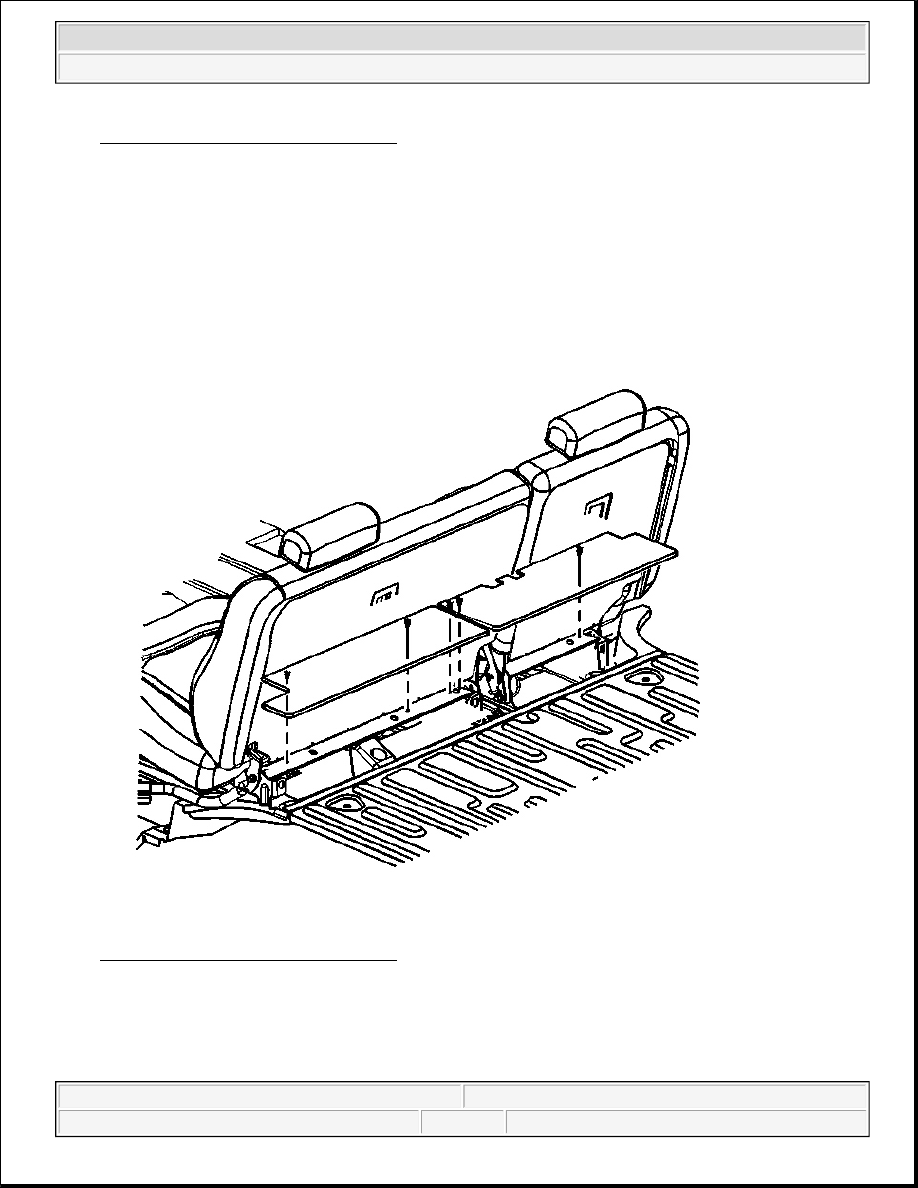

Fig. 97: Rear Folding Seat Back Cover
Courtesy of GENERAL MOTORS CORP.

1. Align the rear seat back cover replacement to the seat.

2. Push downward to engage the clips.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



SEAT BACK LATCH REPLACEMENT - REAR

Removal Procedure

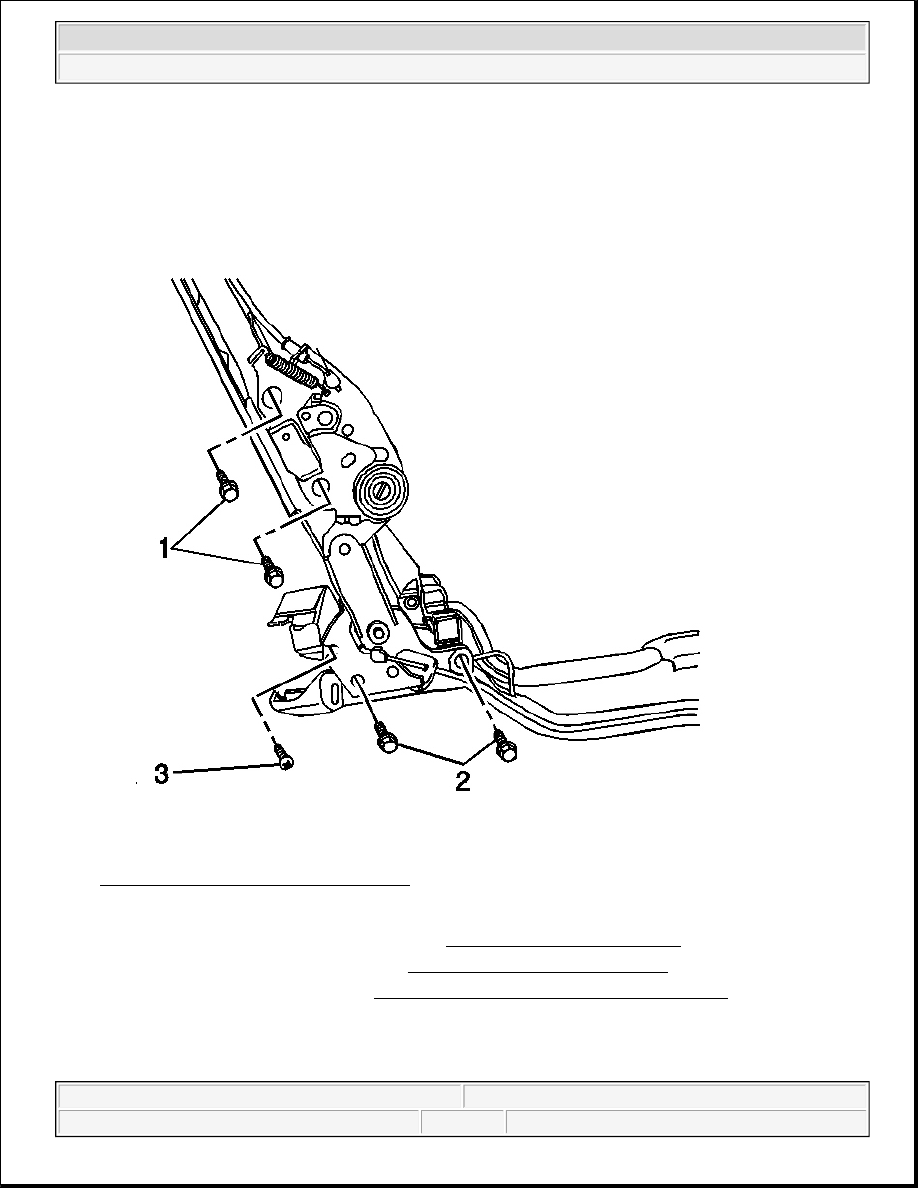

Fig. 98: Rear Seat Back Latch Assembly
Courtesy of GENERAL MOTORS CORP.

1. Remove the rear seat from the vehicle. Refer to Seat Replacement - Rear No. 1 .

2. Remove the armrest, if equipped. Refer to Armrest Replacement - Rear Seat .

3. Remove the seat back cover. Refer to Seat Back Cover and Pad Replacement - Rear .

4. Remove the bolts (1,2) that retain the latch assembly to the seat frame.

5. Remove the screw (3) that retains the latch assembly to the seat frame.

6. Unsnap the recliner cables from the folding mechanism.
