2. Install the bolts to the hinge assembly.

Tighten: Tighten the bolts to 7 N.m (61 lb in).

3. Install the seat cushion trim cover (8) and the pad (7). Refer to Seat Cushion Cover and Pad

Replacement - Rear .

SEAT CUSHION COVER AND PAD REPLACEMENT - REAR

Removal Procedure

1. Remove the rear passenger seat from the vehicle. Refer to Seat Replacement - Rear No. 1 or Seat

Replacement - Rear No. 2 .



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2





2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



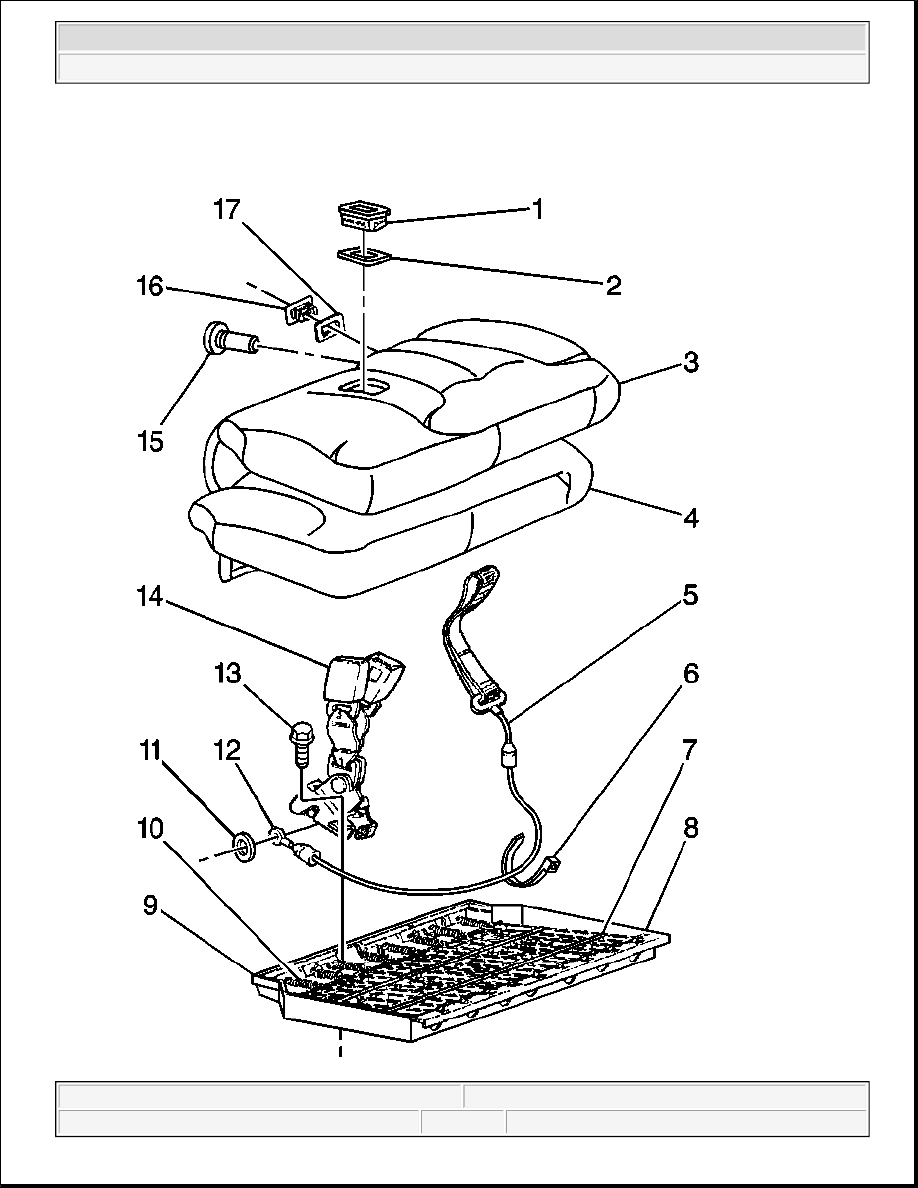

Fig. 90: Rear Seat Cushion Cover, Frame & Foam Pad
Courtesy of GENERAL MOTORS CORP.

2. Remove the rear passenger seat riser.

3. Remove the seat cushion plastic cover from the seat cushion frame.

4. Remove the hog rings and/or the J-clips from the rear edge of the seat cushion cover (3).

5. Disconnect the rear heater connector, if equipped.

6. Remove the seat belt buckles, if required.

7. Remove all of the remaining hog rings, and/or the J-clips that are retaining the seat cushion cover (3) to

the seat cushion frame (8).

8. Release the hook, and the loop-strips that are retaining the seat cushion cover to the foam pad (4).

9. Remove the center screw retaining the latch cover.

10. Remove the seat cushion cover from the foam pad.

Installation Procedure
