Hummer H2. Manual - part 600

Fig. 86: Rear No. 1 Seat
Courtesy of GENERAL MOTORS CORP.

5. Remove the seat from the vehicle.

Installation Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



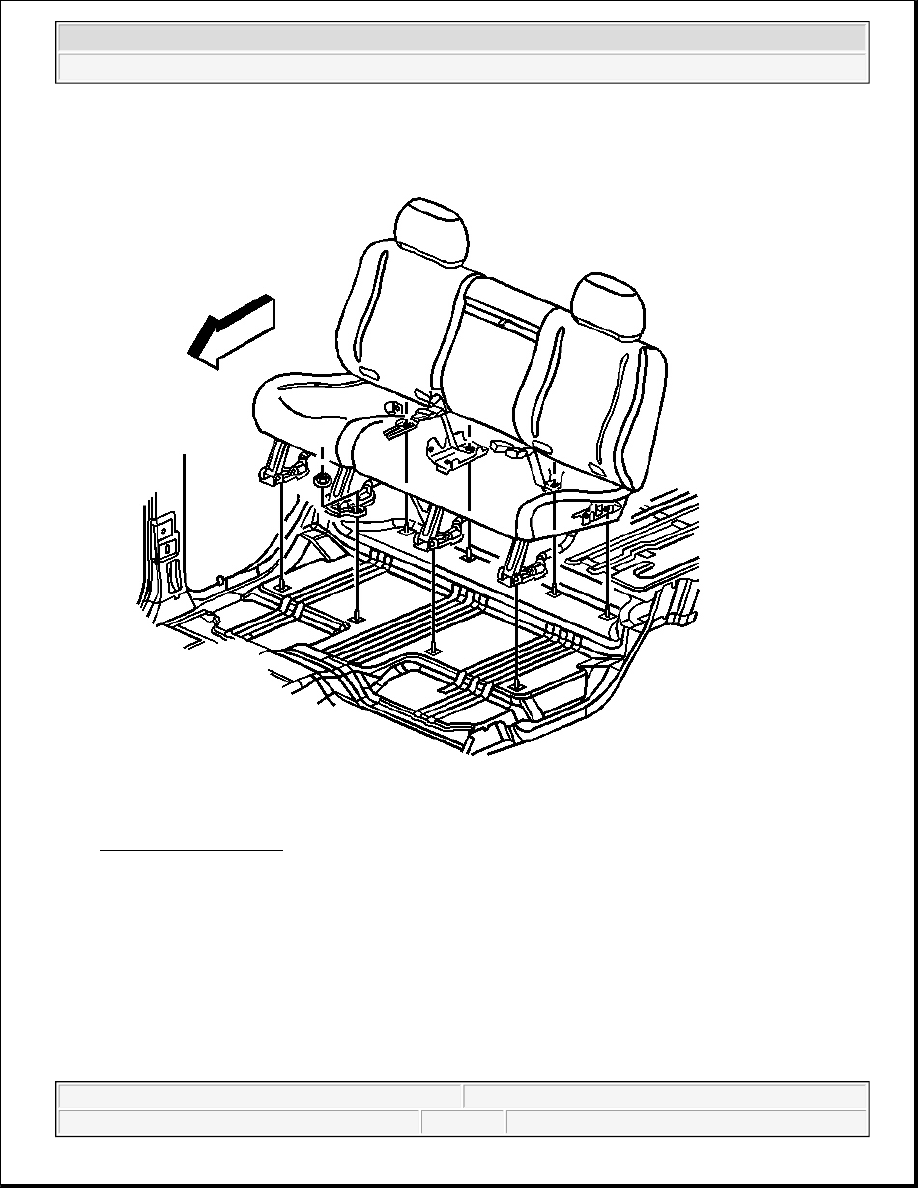

Fig. 87: Rear No. 1 Seat
Courtesy of GENERAL MOTORS CORP.

1. Install the seat into the vehicle.

2. Fold the seat cushions forward.

3. Install the seat retaining bolts.

Tighten: Tighten the bolts to 55 N.m (41 lb ft).

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



4. Connect the electrical connectors, if equipped.

5. Fold the seat cushion back to the closed position.

SEAT CUSHION FRAME REPLACEMENT - REAR

Removal Procedure

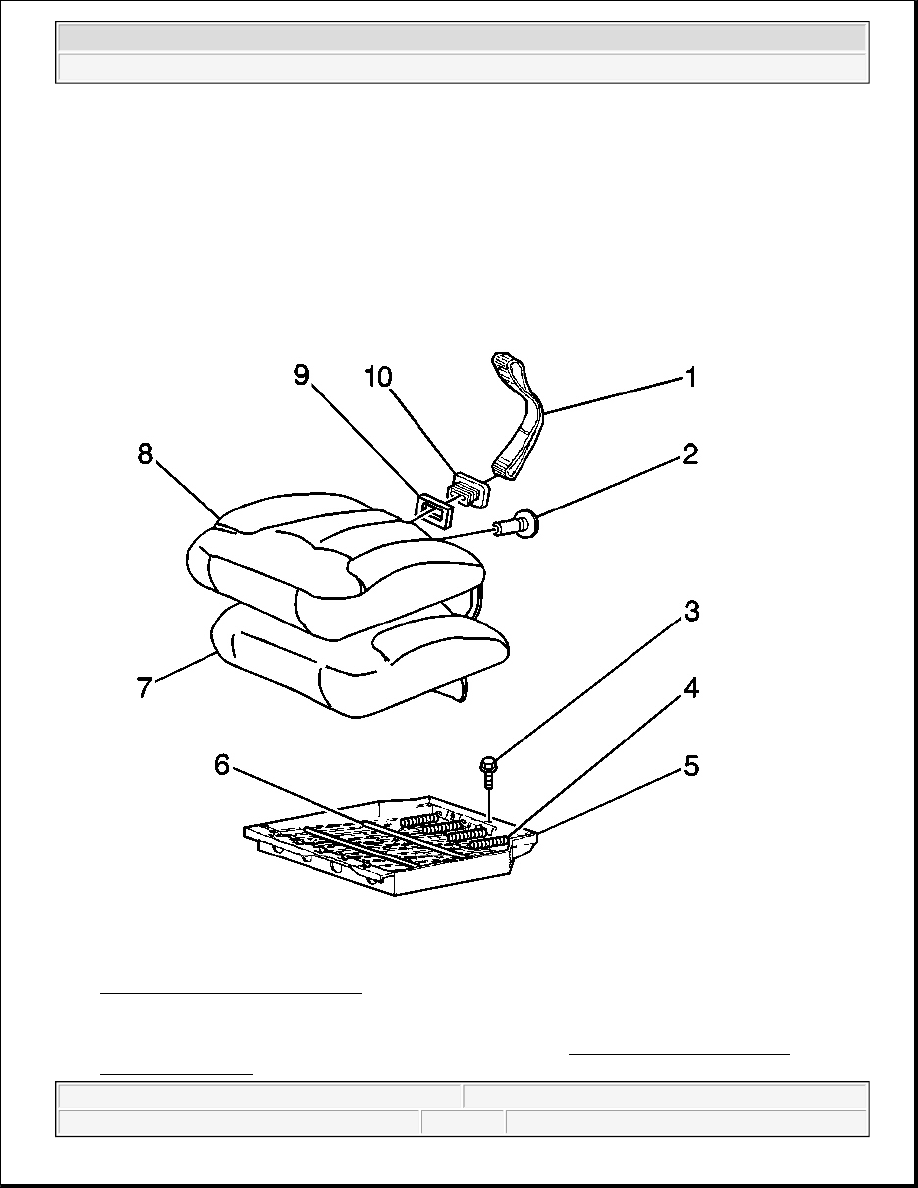

Fig. 88: Rear Seat Cushion Frame
Courtesy of GENERAL MOTORS CORP.

1. Remove the seat cushion trim cover (8) and the pad (7). Refer to Seat Cushion Cover and Pad

Replacement - Rear .



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



2. Remove the bolts from the hinge assembly.

3. Remove the seat cushion frame (5).

Installation Procedure

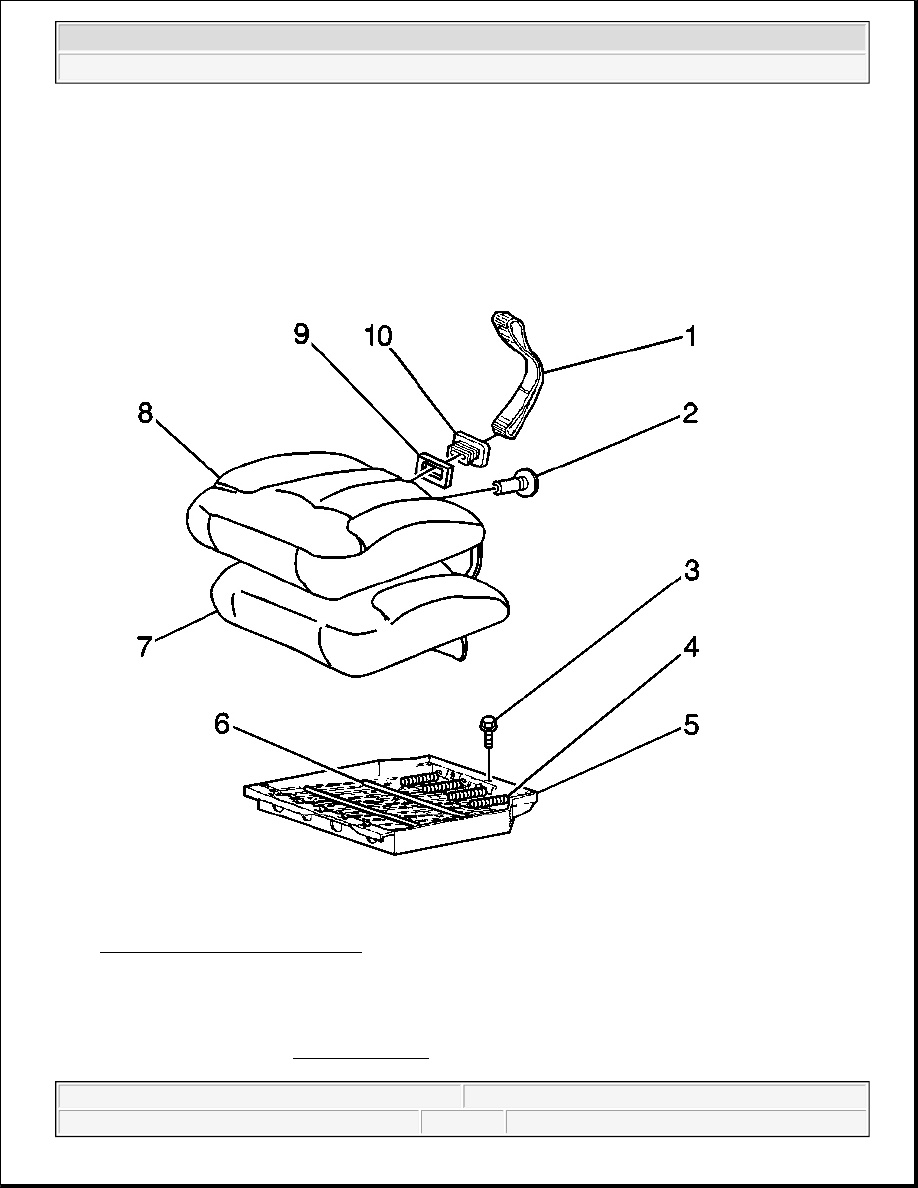

Fig. 89: Rear Seat Cushion Frame
Courtesy of GENERAL MOTORS CORP.

1. Install the seat cushion frame (5).

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2
