Fig. 79: Front Seat Head Restraint Retainers
Courtesy of GENERAL MOTORS CORP.

3. Remove the head restraint retainers from the seat back frame by squeezing the retaining tabs together at

the base of the guide(s) and lifting up.

Installation Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



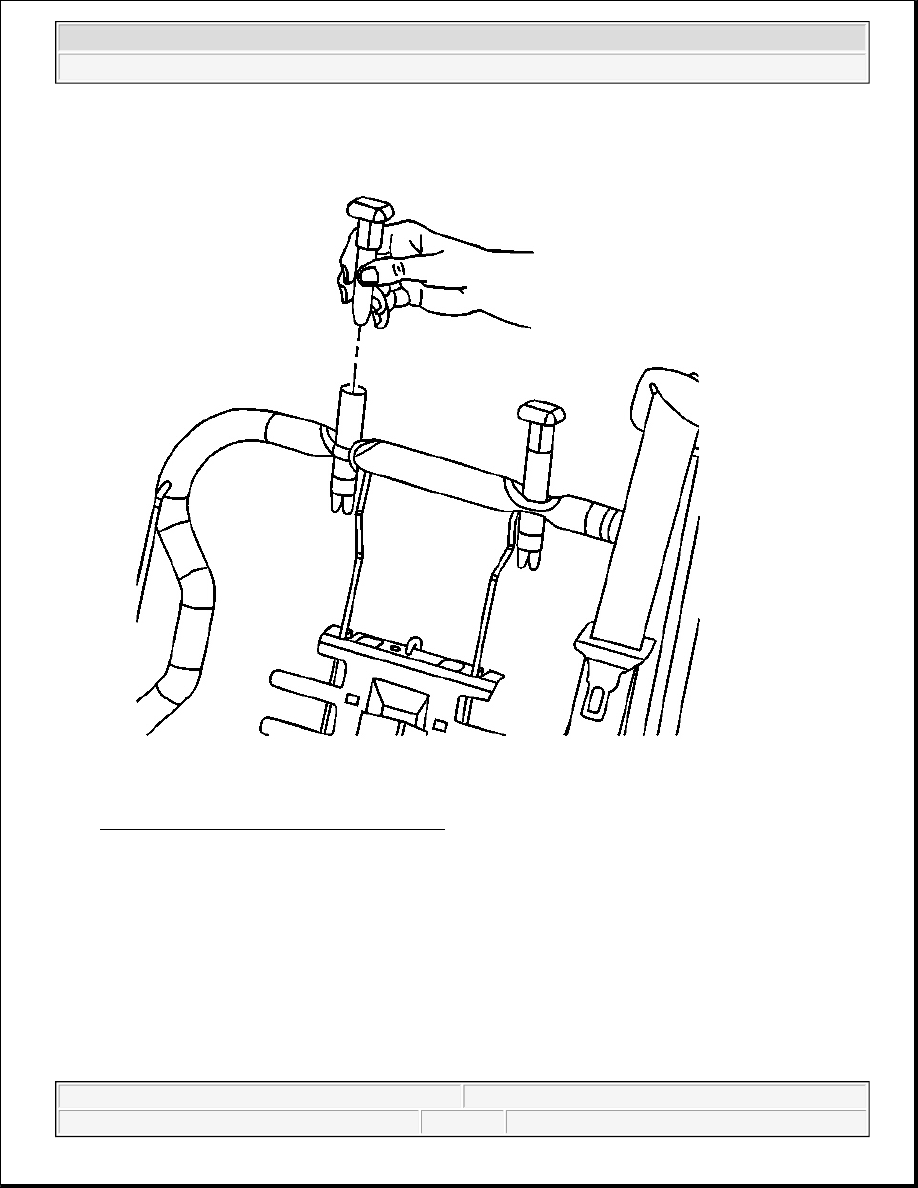

Fig. 80: Front Seat Head Restraint Retainers
Courtesy of GENERAL MOTORS CORP.

1. Install the head restraint retainers by pressing into the seat back frame until the retaining tabs snap into

place at the bottom of the frame opening.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



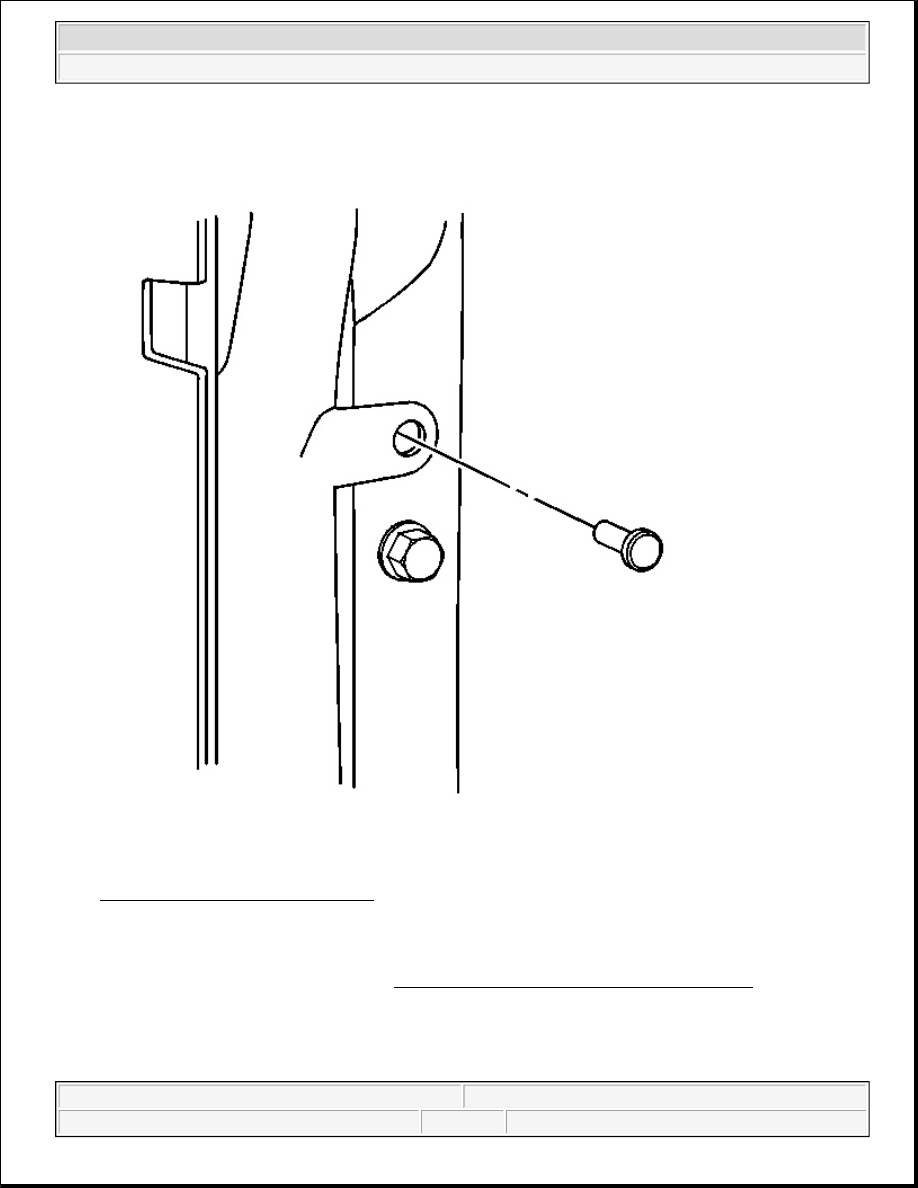

Fig. 81: Seat Belt Tower Cover Bolt
Courtesy of GENERAL MOTORS CORP.

2. Position the cardboard panel to the seat back frame and install the panel fasteners.

3. Install the seat back trim cover. Refer to Seat Back Cover and Pad Replacement - Front .

ARMREST REPLACEMENT - FRONT SEAT

Removal Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



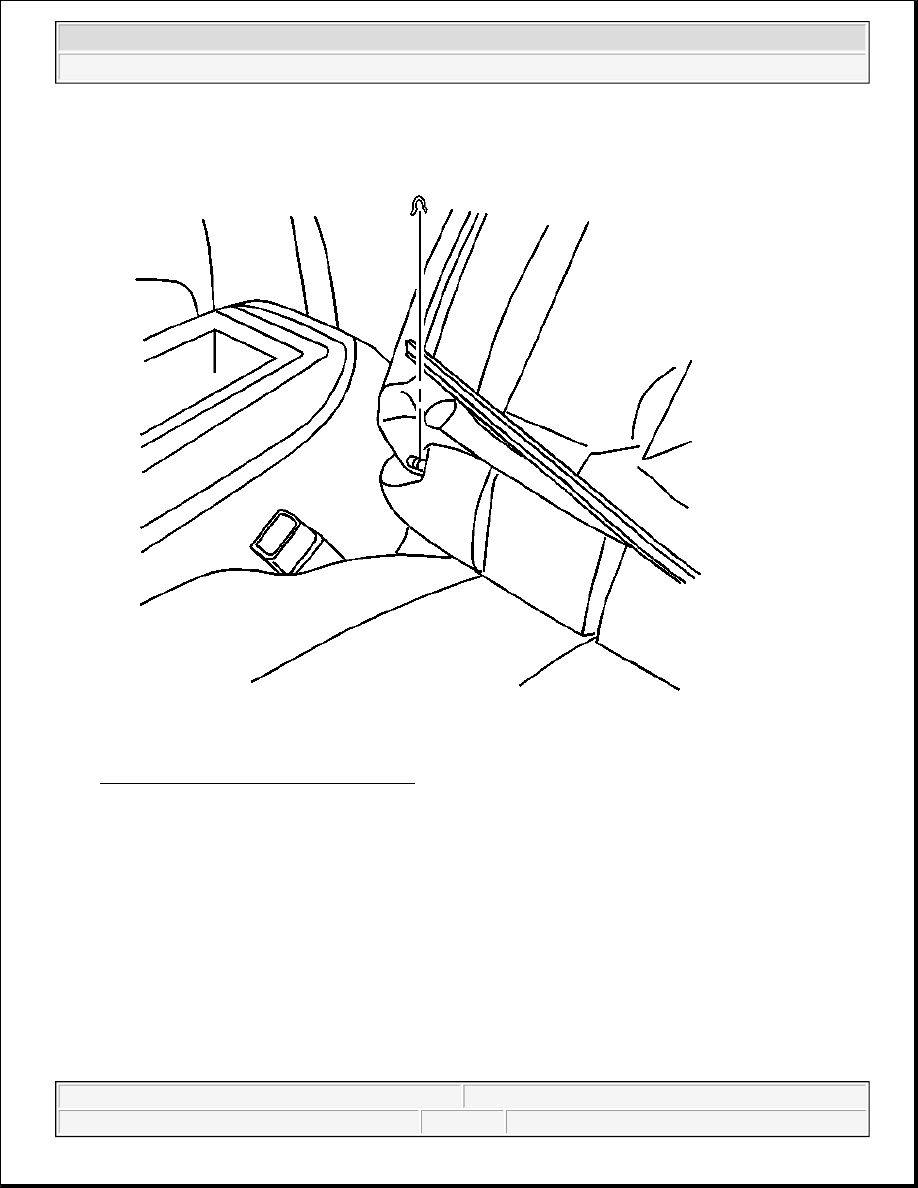

Fig. 82: Front Seat Armrest Components
Courtesy of GENERAL MOTORS CORP.

1. Set the front seat back in the forward position.

2. Separate the J-clip at the bottom of the seat using a flat bladed tool.

3. Remove the 2 push pins at the bottom retaining the seat back cover to the card board.

4. From the back of the front seat, disconnect the heating element wire connector, if equipped.

5. Role up the seat cover up to the bottom of the arm rest.

6. Recline the seat.

7. From the front of the seat move the seat cushion away from the seat frame to gain access to the arm rest

clip.

8. Remove the rubber band from the clip.

9. Remove the clip from the seat frame.
