Hummer H2. Manual - part 597

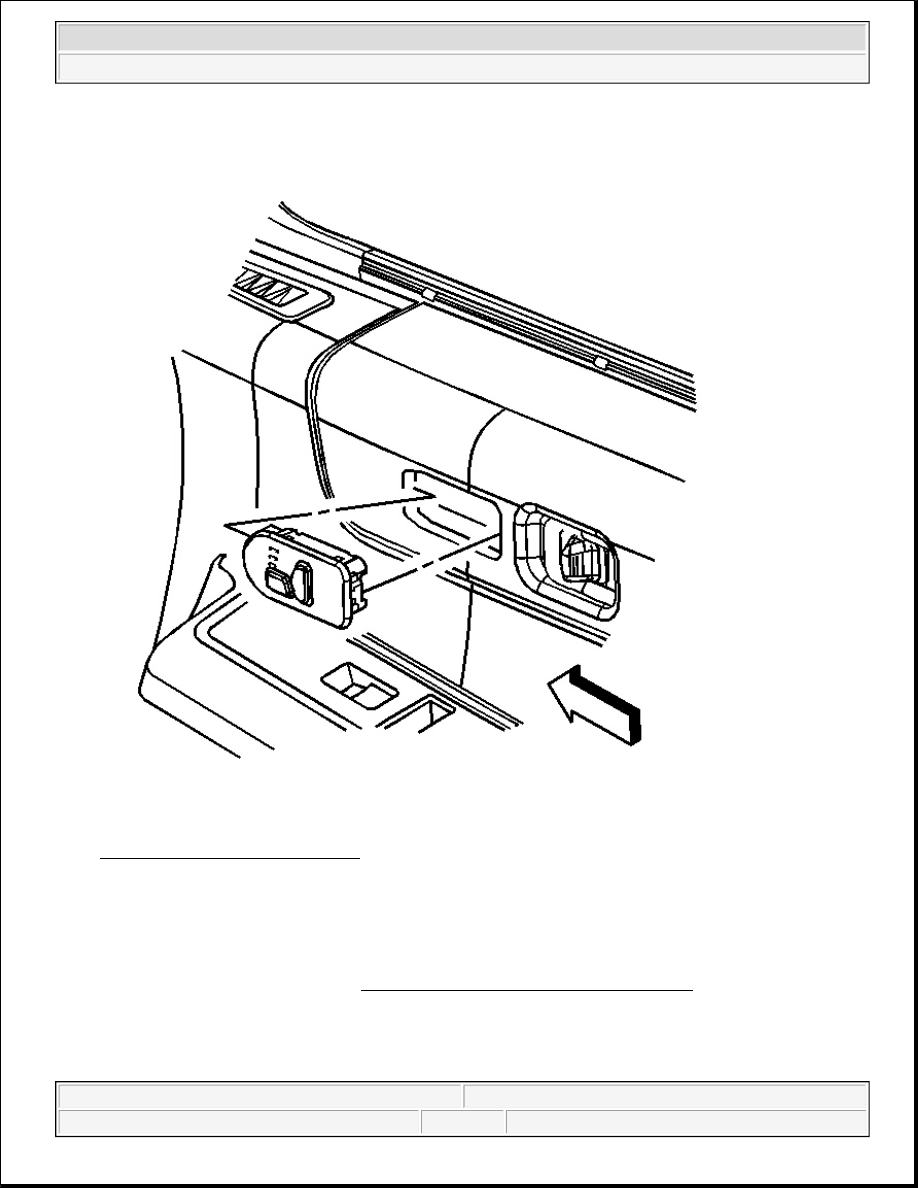

Fig. 75: Front Heated Seat Switch
Courtesy of GENERAL MOTORS CORP.

1. Install the front seat heater switch to the front trim panel by pressing the switch into place until the switch

is completely seated.

2. Connect the electrical connector to the front seat heater switch.

3. Install the front trim panel. Refer to Trim Panel Replacement - Side Front Door in Doors.

SEAT BACK HEATER ELEMENT REPLACEMENT - FRONT

The seat back heater element can not be replaced individually. Therefore if the heater element has failed, the



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



seat cushion trim cover needs to be replaced as ab assembly. Refer to Seat Back Cover and Pad Replacement
- Front .

SEAT CUSHION HEATER ELEMENT REPLACEMENT - FRONT

The seat cushion heater element can not be replaced individually. Therefore if the heater element has failed, the
seat cushion trim cover needs to be replaced as ab assembly. Refer to Seat Cushion Trim Cover and Pad
Replacement .

HEAD RESTRAINT REPLACEMENT

Removal Procedure

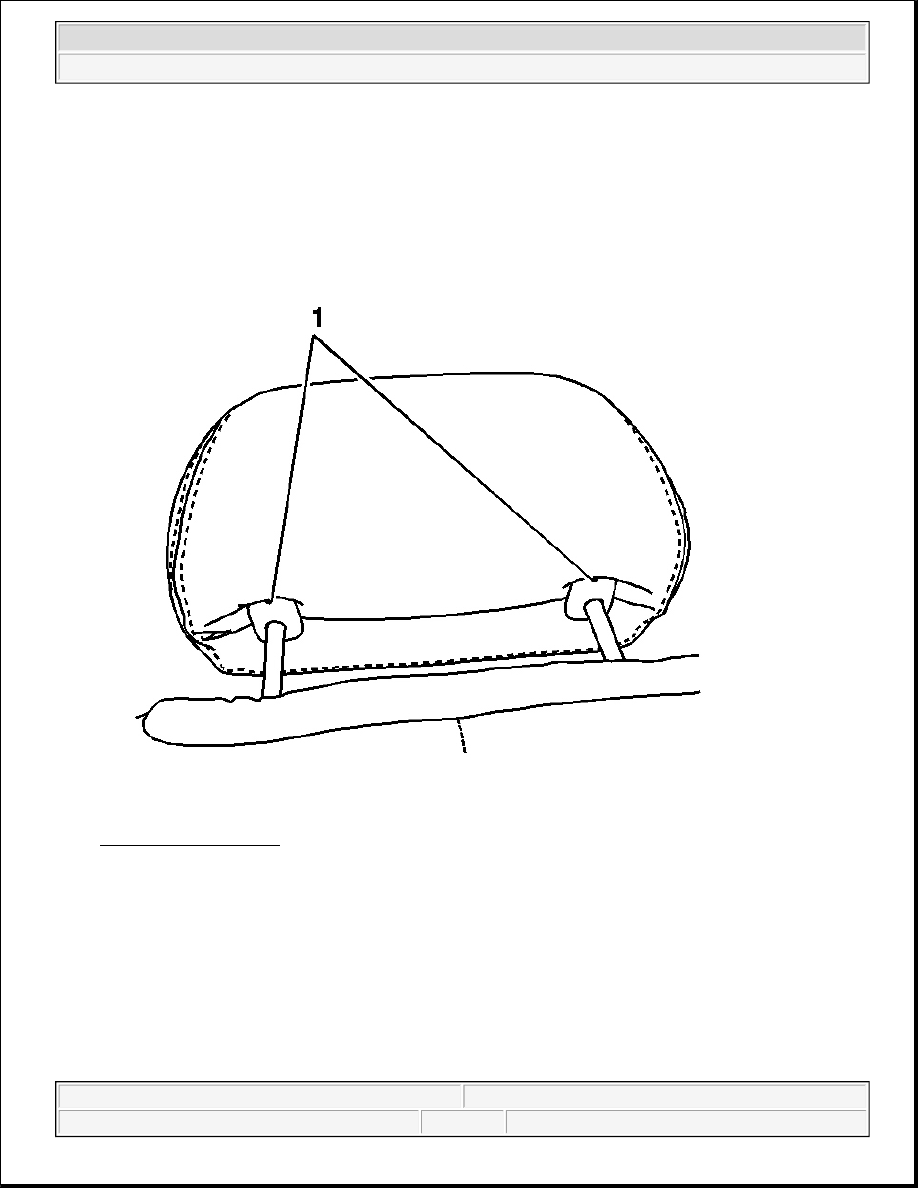

Fig. 76: Head Restraint
Courtesy of GENERAL MOTORS CORP.

1. Pull the head restraint to the full height position.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



2. Insert a pointed tool into the access hole (1) and press inwards.

3. Pull the head restraint from the seat.

Installation Procedure

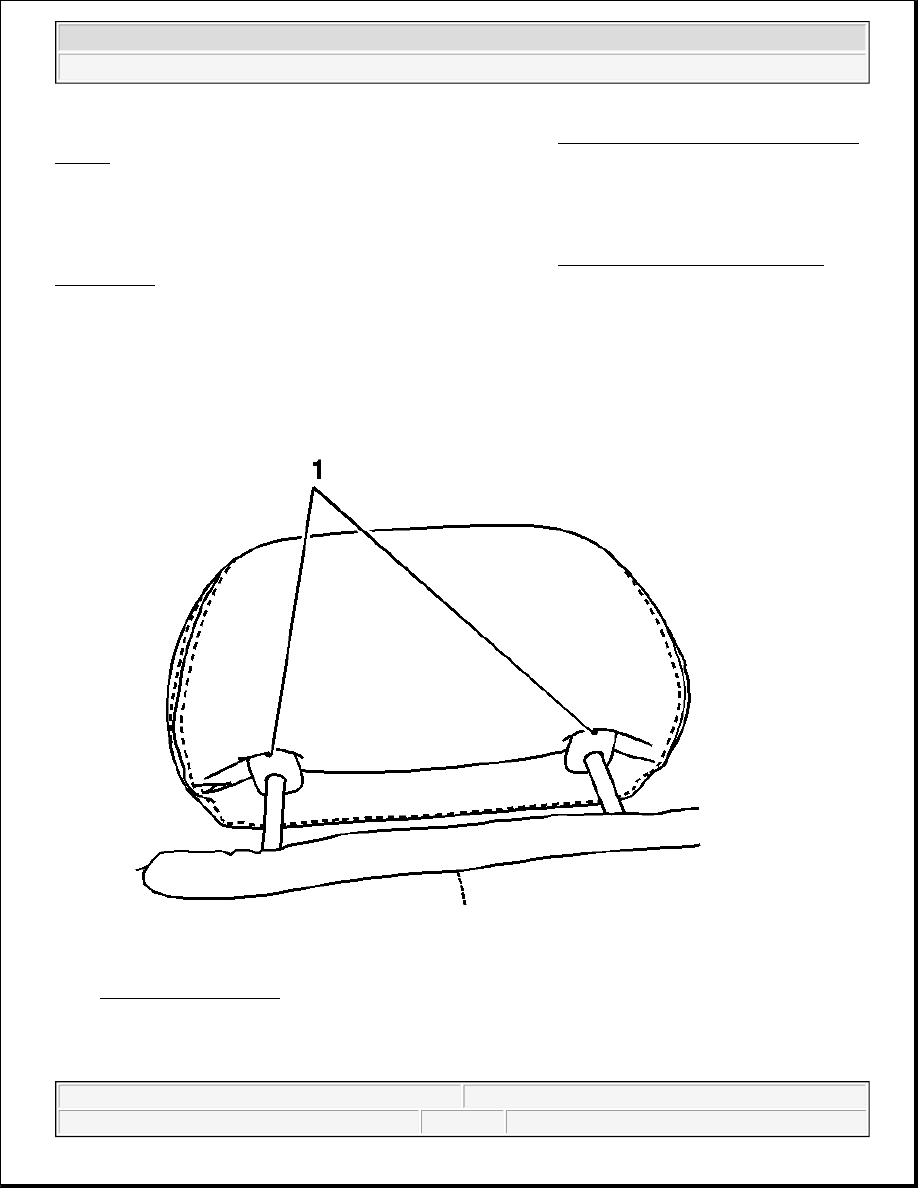

Fig. 77: Head Restraint
Courtesy of GENERAL MOTORS CORP.

1. Install the head restraint by pushing down on restraint until the restraint is fully seated.

2. To ensure the head restraint is fully seated pull the head restraint up to the full upward position.

The head restraint must not come off the restraint rod.

HEAD RESTRAINT RETAINER REPLACEMENT - FRONT SEAT

Removal Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



1. Slide up the seat back trim cover in order to gain access to the rear cardboard panel fasteners. Refer to

Seat Back Cover and Pad Replacement - Front .

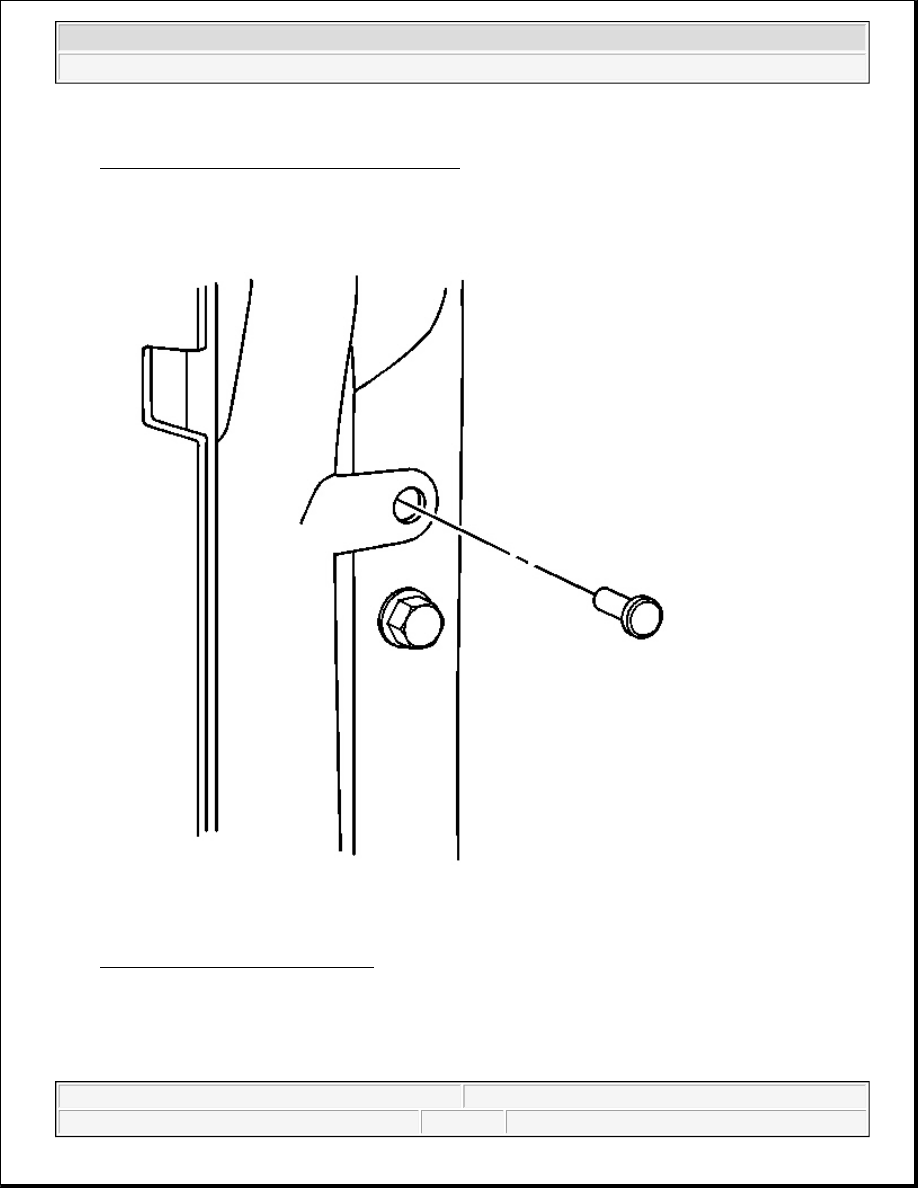

Fig. 78: Seat Belt Tower Cover Bolt
Courtesy of GENERAL MOTORS CORP.

2. Remove the panel fasteners. Pull back the panel in order to gain access to the bushings.
