Hummer H2. Manual - part 595

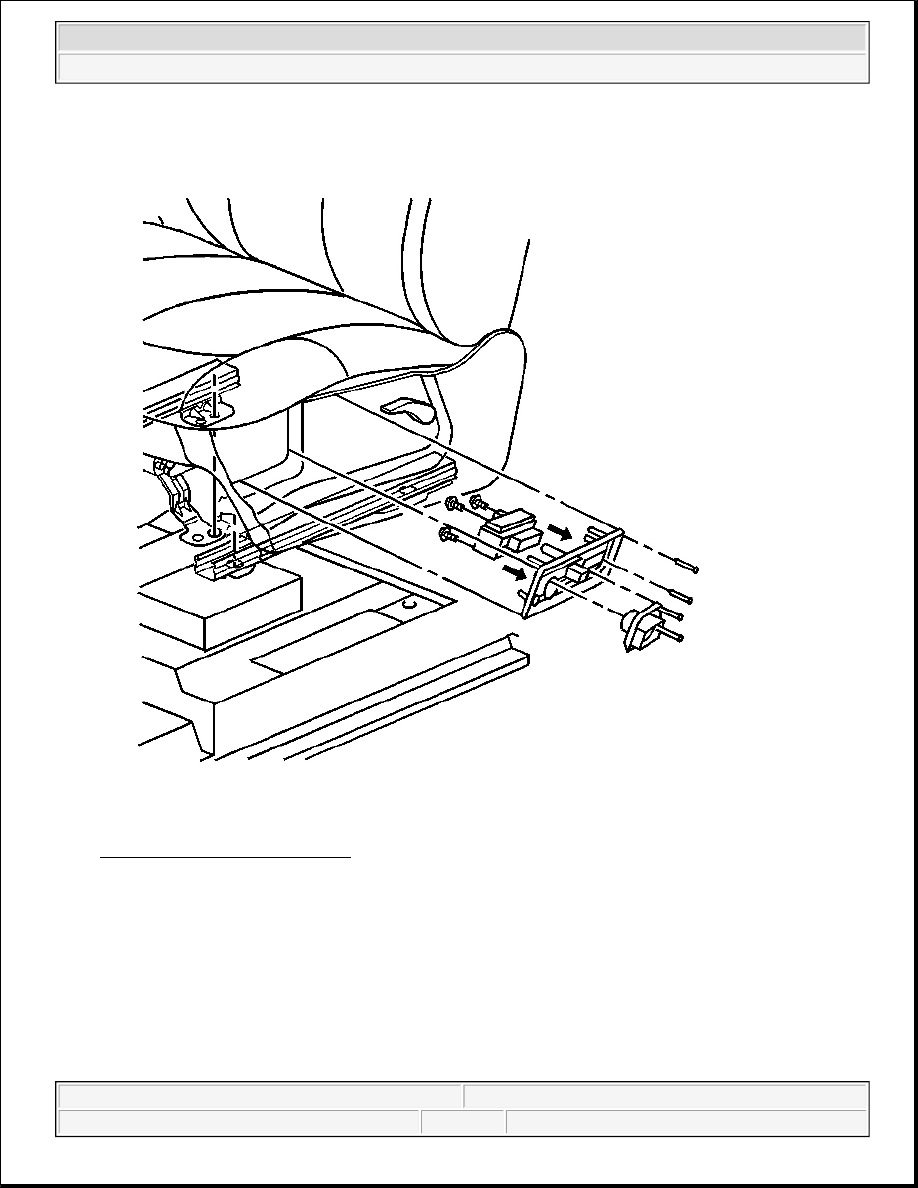

Fig. 68: Power Seat Switch Bezel
Courtesy of GENERAL MOTORS CORP.

1. Remove the screws retaining the power seat switch bezel.

2. Disconnect the electrical connectors.

3. Remove the lumbar support switch.

4. Remove the power seat adjuster switch assembly.

Installation Procedure

1. Install the power seat adjuster switch assembly to the seat switch bezel.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



2. Install the lumbar support switch to the seat switch bezel.

3. Connect the electrical connectors.

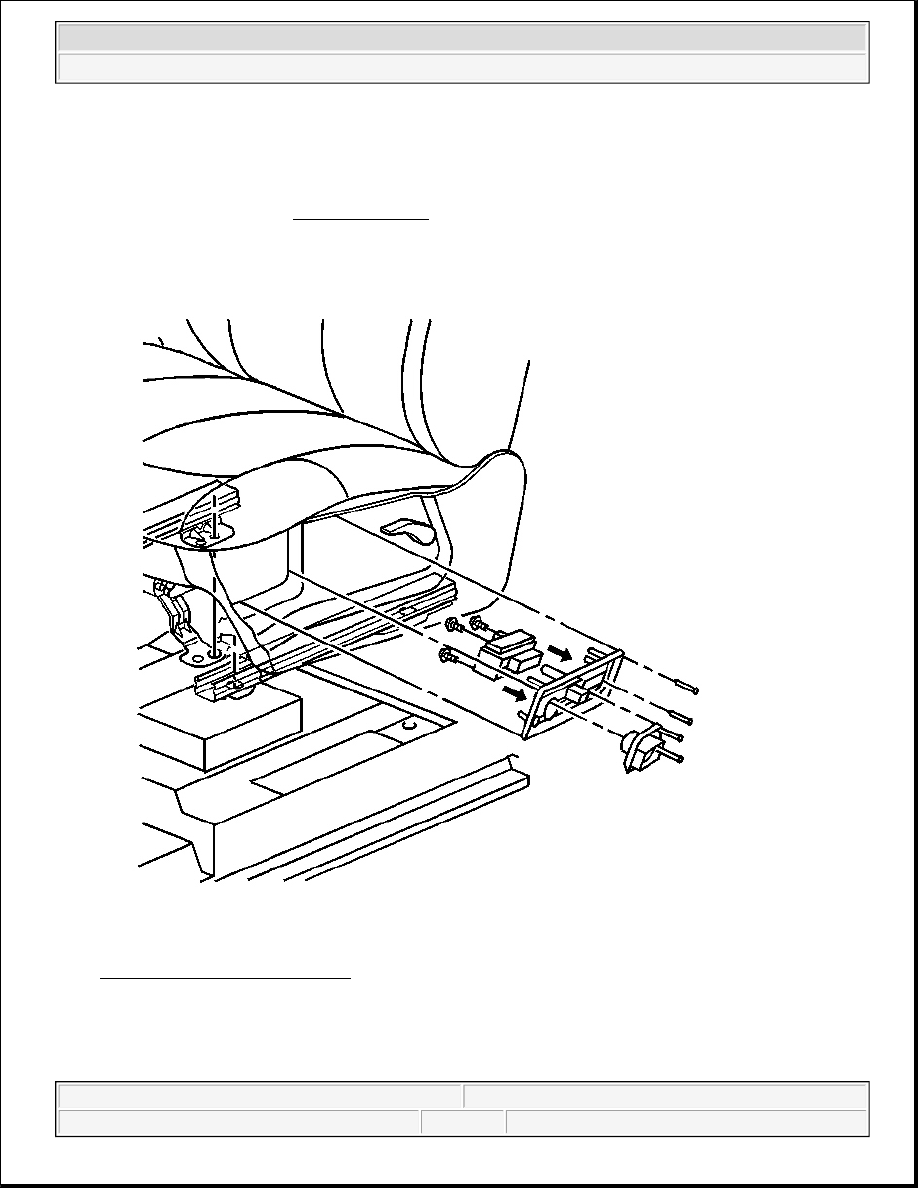

Fig. 69: Power Seat Switch Bezel
Courtesy of GENERAL MOTORS CORP.

4. Install the screws retaining the power seat switch bezel.

Tighten: Tighten the screws to 2 N.m (18 lb in).

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



MEMORY SEAT CONTROL MODULE REPLACEMENT

Removal Procedure

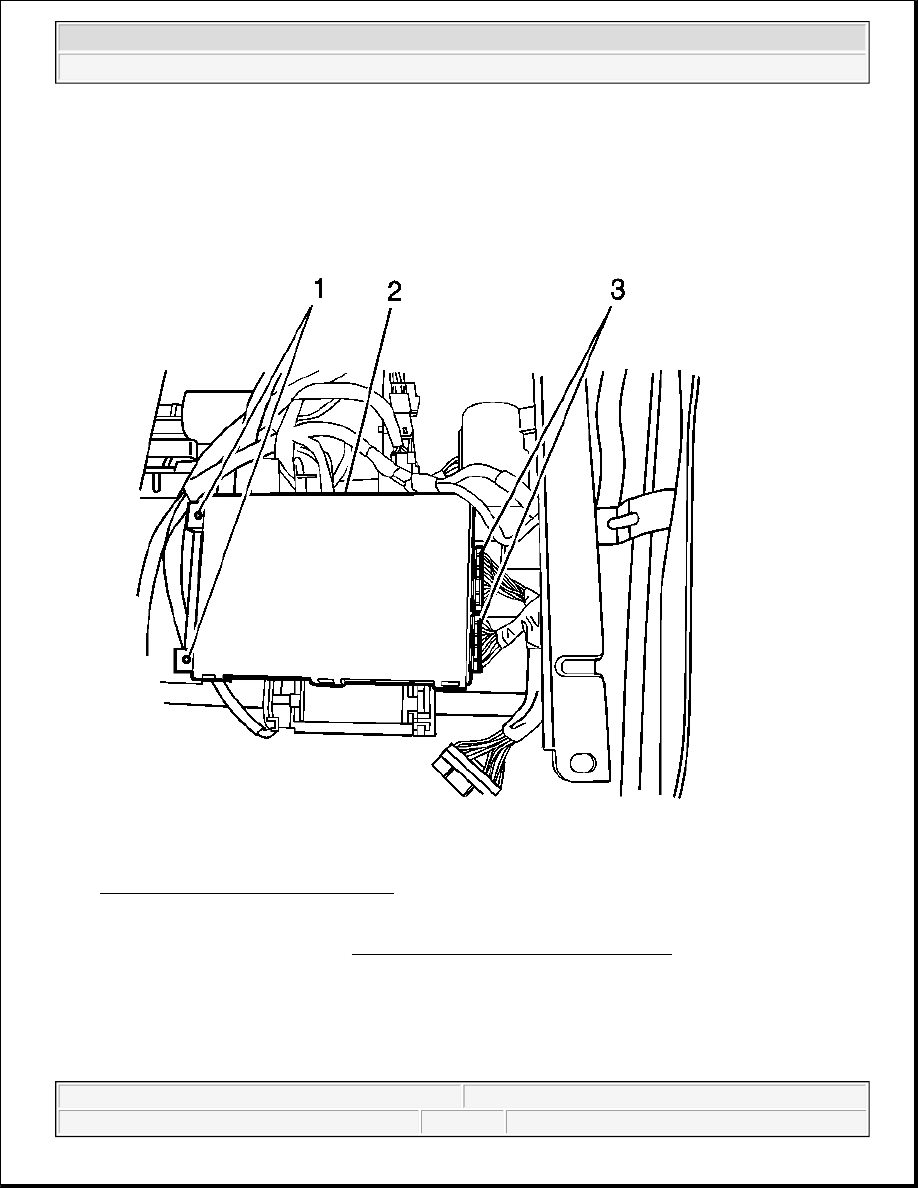

Fig. 70: Memory Seat Control Module
Courtesy of GENERAL MOTORS CORP.

1. Remove the seat cushion. Refer to Seat Cushion Frame Replacement - Front .

2. Disconnect the upper electrical harness connectors (3).

3. Remove the module (2) retaining screws (1).

4. Slide the module to the right to disengage the lower retainers.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



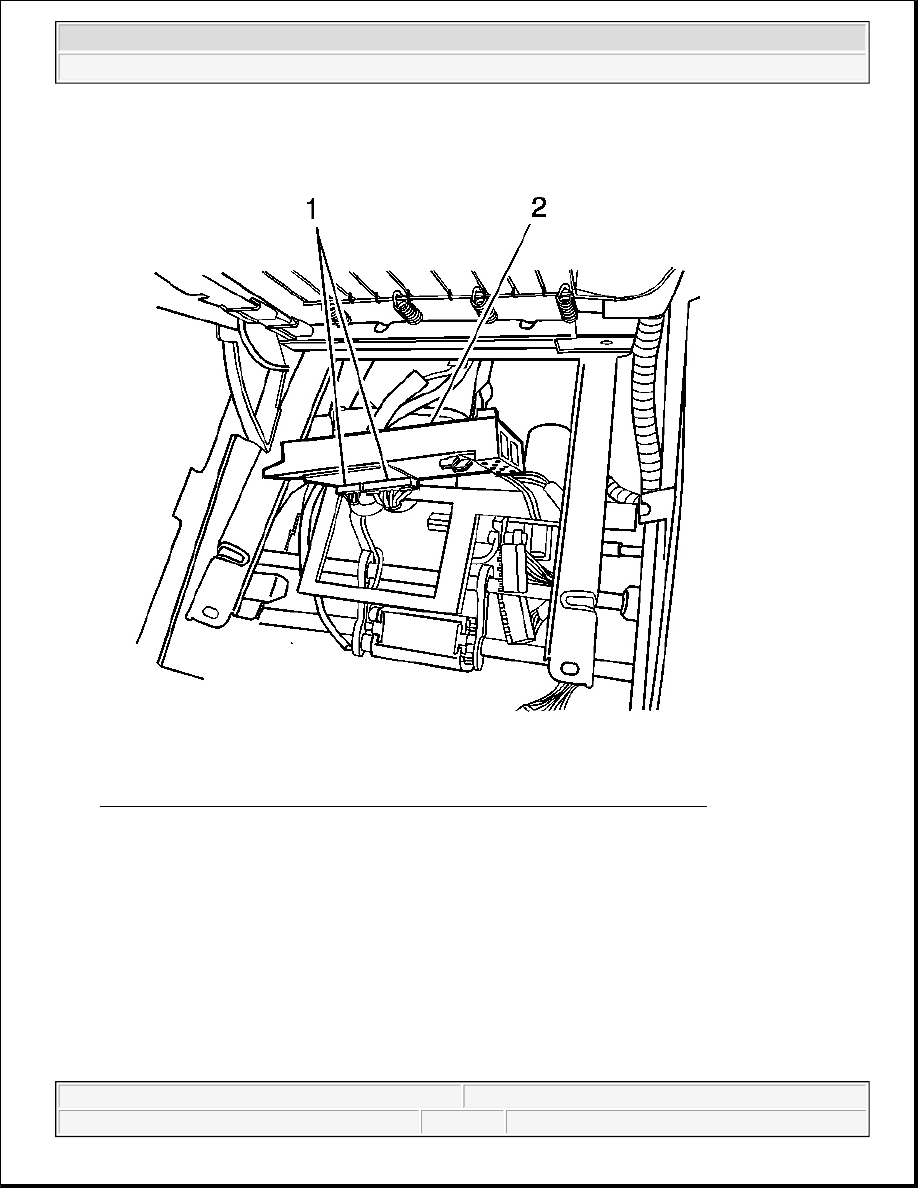

Fig. 71: Lower Electrical Harness Connectors & Memory Seat Control Module
Courtesy of GENERAL MOTORS CORP.

5. Disconnect the lower electrical harness connectors (2).

6. Remove the module from the vehicle.

Installation Procedure
