Fig. 64: Power Seat Switch Bezel
Courtesy of GENERAL MOTORS CORP.

1. Remove the power seat switch bezel from the seat. Refer to Seat Switch Bezel Replacement .



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2

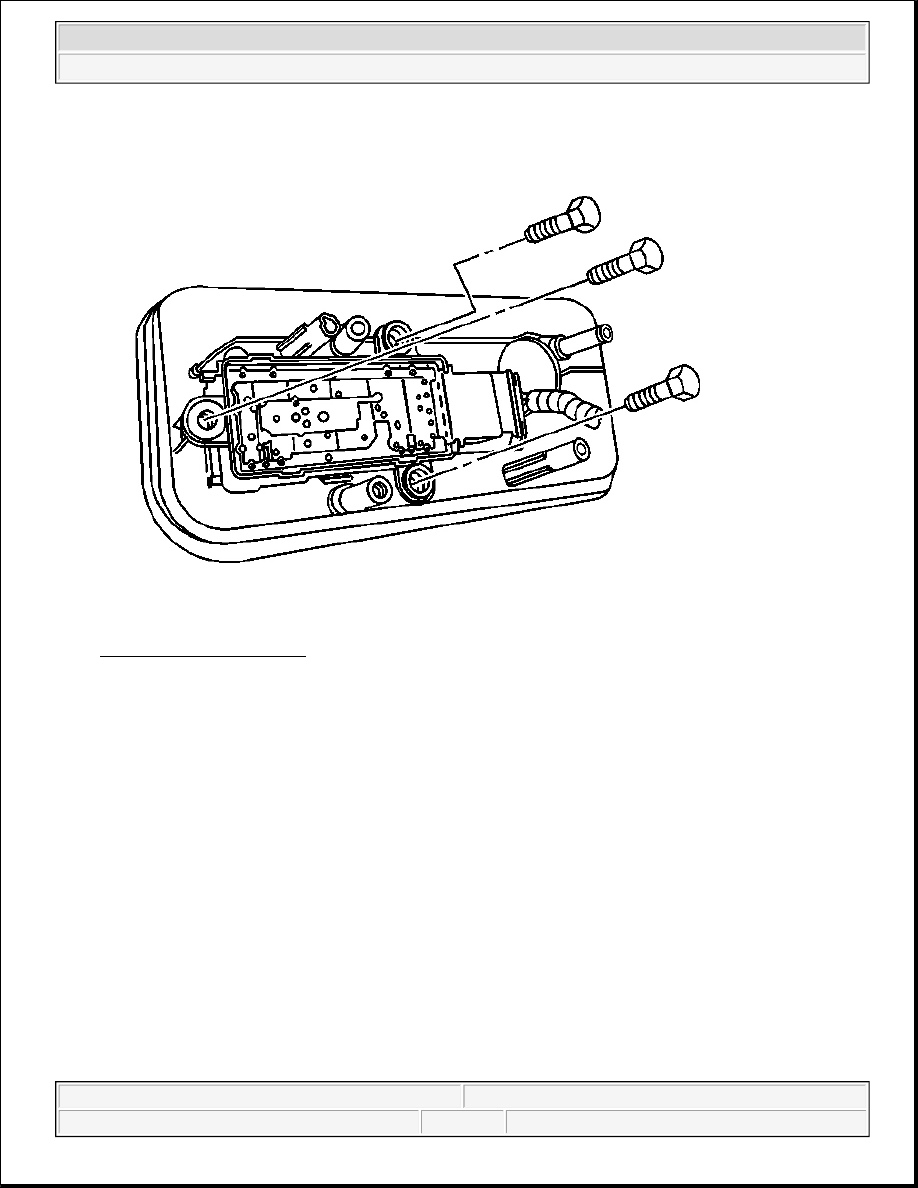

Fig. 65: Power Seat Switch
Courtesy of GENERAL MOTORS CORP.

2. Remove the power seat switch to bezel screws.

3. Remove the power seat switch.

Installation Procedure

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



Fig. 66: Power Seat Switch
Courtesy of GENERAL MOTORS CORP.

1. Install the power seat switch to the bezel.

Tighten: Tighten the screws to 2 N.m (18 lb in).



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



Fig. 67: Power Seat Switch Bezel
Courtesy of GENERAL MOTORS CORP.

2. Install the power seat switch to bezel screws.

3. Install the power seat switch bezel to the seat. Refer to Seat Switch Bezel Replacement .

SEAT SWITCH BEZEL REPLACEMENT

Removal Procedure
