5. Remove the seat back frame from the seat adjuster. Refer to Seat Back Frame Replacement - Front .

6. Remove the seat back hinge/recliner mechanism. Refer to Seat Back Hinge/Recliner Mechanism

Replace - Front .

7. Remove the seat adjuster track cover. Refer to Seat Adjuster Track Cover Replacement - Front .

8. Remove the memory module, if equipped. Refer to Memory Seat Control Module Replacement .

Installation Procedure

1. Install the memory module, if equipped. Refer to Memory Seat Control Module Replacement .

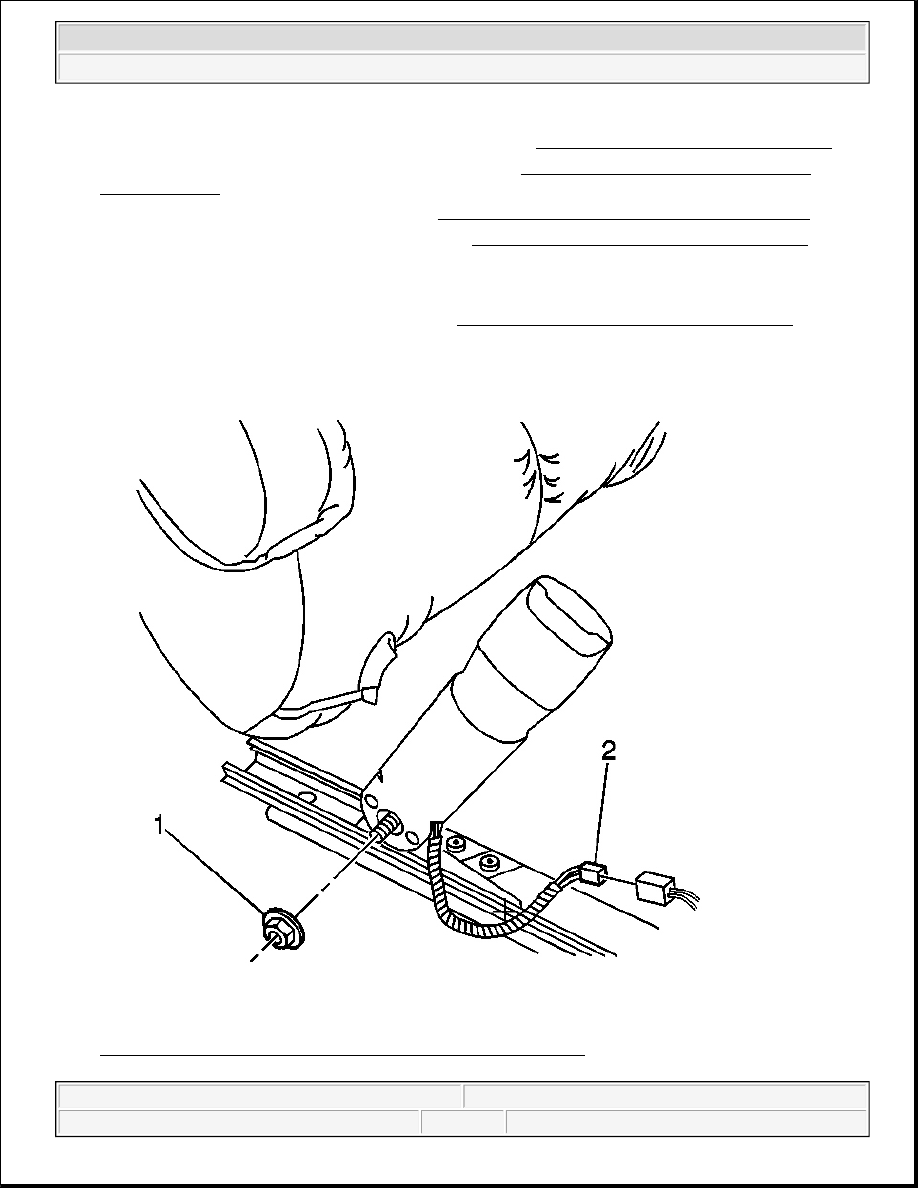

Fig. 61: Inboard Seat Belt Buckle, Nut & Electrical Connection
Courtesy of GENERAL MOTORS CORP.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



2. Install the inboard seat belt buckle and nut (1).

Tighten: Tighten the nut to 53 N.m (39 lb ft).

3. Connect the electrical connection (2).

4. Install the seat adjuster track cover. Refer to Seat Adjuster Track Cover Replacement - Front .

5. Install the seat back hinge/recliner mechanism. Refer to Seat Back Hinge/Recliner Mechanism Replace

- Front .

6. Install the seat back frame to the seat adjuster. Refer to Seat Back Frame Replacement - Front .

7. Install the seat cushion frame to the seat adjuster. Refer to Seat Cushion Frame Replacement - Front .

8. Install the seat trim panel. Refer to Trim Panel Replacement - Front Seat .

9. Install the seat in the vehicle. Refer to Seat Replacement - Front Bucket .

10. If the vehicle is equipped with memory seats, calibrate the seat. Refer to Memory Seat Calibration

Procedure .

SEAT ADJUSTER TRACK COVER REPLACEMENT - FRONT

Removal Procedure

1. Remove the seat from the vehicle. Refer to Seat Replacement - Front Bucket .

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



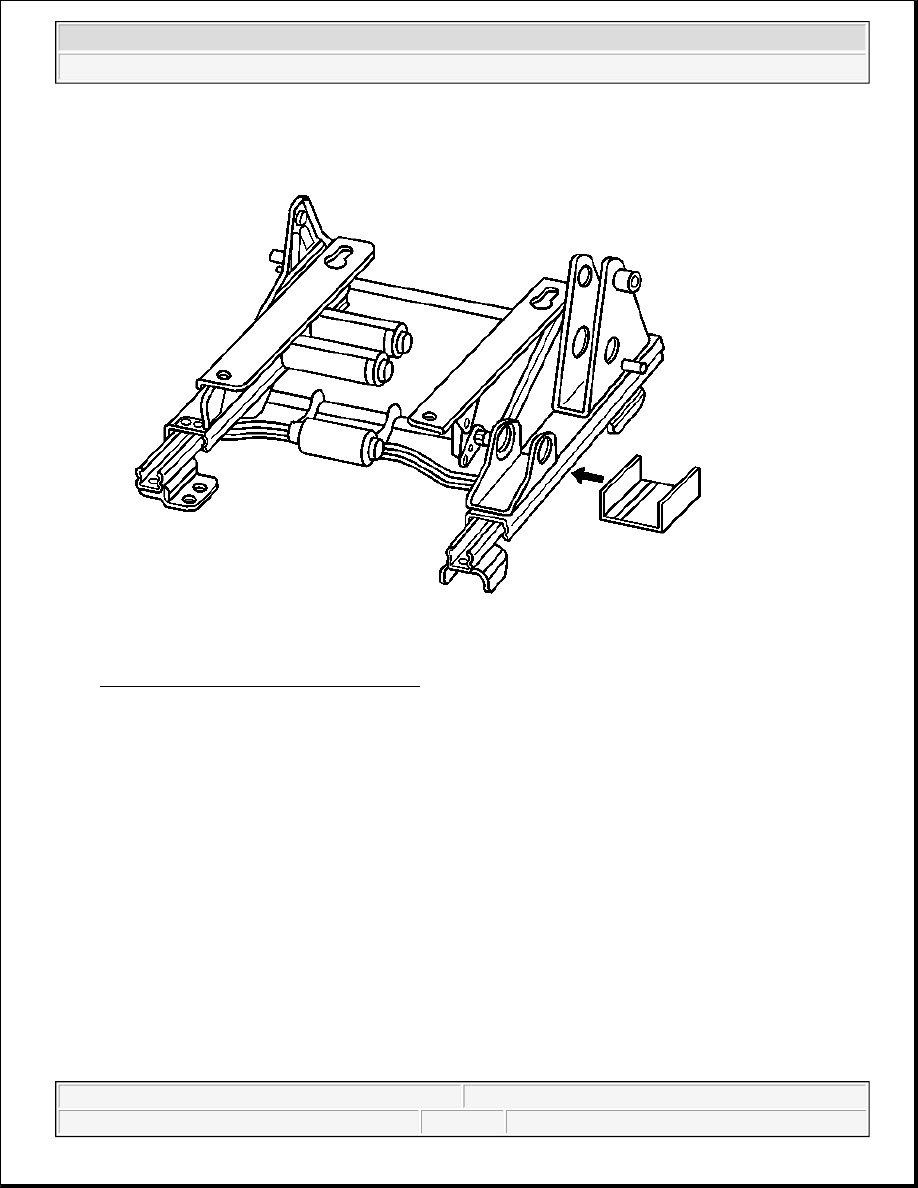

Fig. 62: Front Seat Adjuster Track Cover
Courtesy of GENERAL MOTORS CORP.

2. Unsnap the front tabs, then the rear tabs of the track cover.

3. Remove the track cover from the vehicle.

Installation Procedure



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Seats - Hummer H2



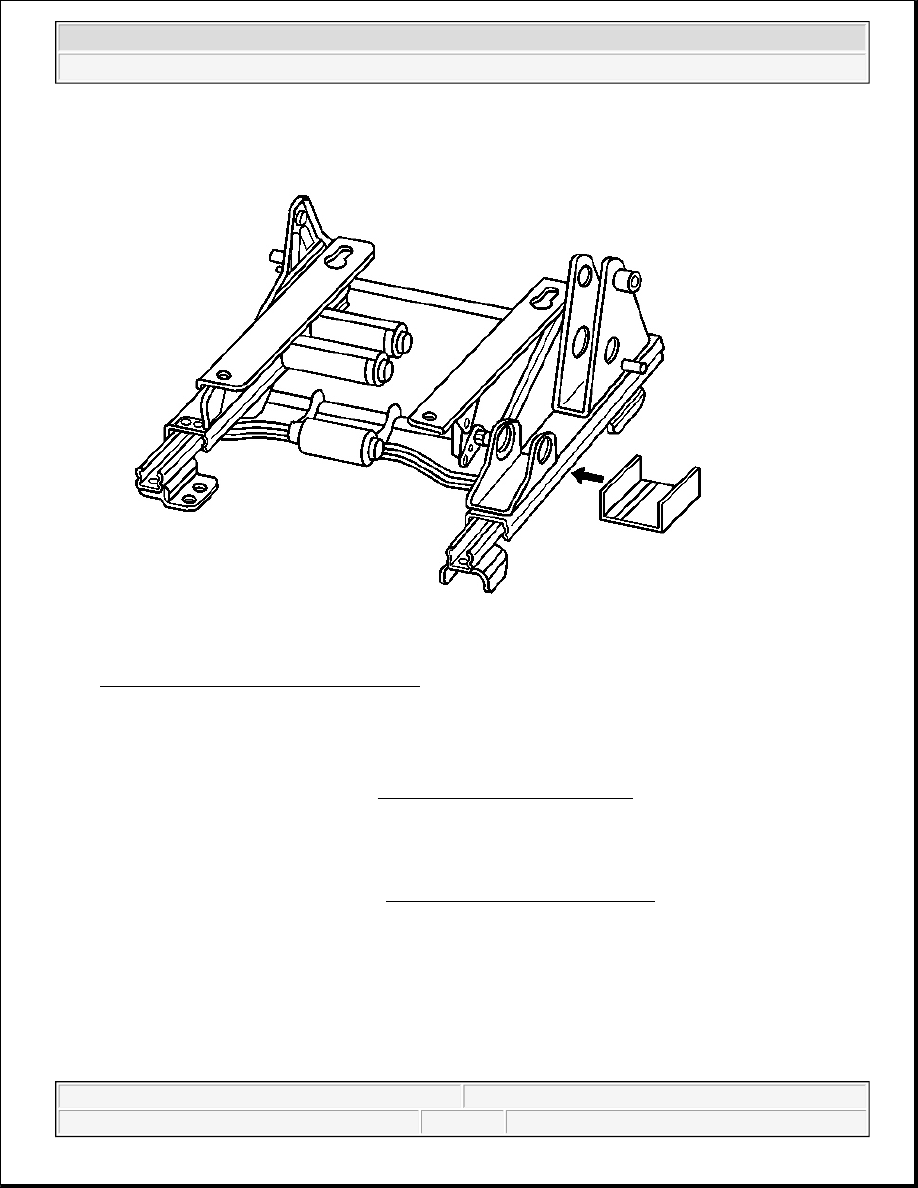

Fig. 63: Front Seat Adjuster Track Cover
Courtesy of GENERAL MOTORS CORP.

1. Install the track cover on the seat.

2. Snap on the rear tabs, then the front tabs of the track cover.

3. Install the seat in the vehicle. Refer to Seat Replacement - Front Bucket .

SEAT ADJUSTER MOTOR REPLACEMENT - FRONT

The seat adjuster motors can not be replaced individually. Therefore if any motor has failed, the seat adjuster
needs to be replaced as an assembly. Refer to Seat Adjuster Replacement - Front .
